Product Details | GROOVE PULLEY
3020-00-049-7623 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 5186473, 3020-00-049-7623, 00-049-7623, 3020000497623, 000497623
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-049-7623 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-049-7623
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-049-7623
Related Products | NSN 3020-00-049-7623
Technical Data | NSN 3020-00-049-7623
| Characteristic | Specifications |
|---|---|

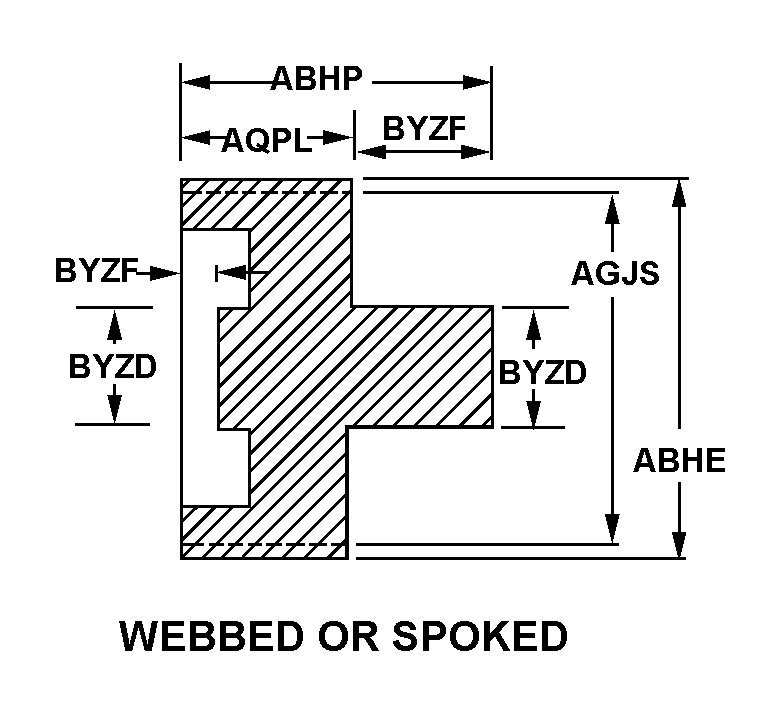

| STYLE DESIGNATOR | A25 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 9.000 INCHES NOMINAL |
| OVERALL LENGTH | 5.280 INCHES NOMINAL |
| PITCH DIAMETER | ANY ACCEPTABLE |
| FACE WIDTH | 2.440 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.880 INCHES NOMINAL AA END AND 3.380 INCHES NOMINAL BB END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 2.840 INCHES NOMINAL AA END AND 0.500 INCHES NOMINAL BB END |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | IRON, CAST OVERALL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 3 |
| GROOVE DEPTH | 0.625 INCHES NOMINAL |
| GROOVE WIDTH | 0.656 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 38.0 |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 1.060 INCHES NOMINAL |
| BORE LENGTH | 4.030 INCHES NOMINAL |
| COUNTERBORE FEATURE | INCLUDED |
| COUNTERBORE LOCATION | AA END |
| COUNTERBORE DIAMETER | 1.760 INCHES NOMINAL |
| COUNTERBORE DEPTH | 3.500 INCHES NOMINAL |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |
| KEYWAY WIDTH | 0.381 INCHES NOMINAL |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.186 INCHES NOMINAL |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| SPLIT HUB FEATURE | NOT INCLUDED |
