NSN 3010-01-321-6519 CHJS7Q, 01-321-6519, 013216519
Product Details | SHAFT COUPLING HALF
3010-01-321-6519 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: CHJS7Q, 3010-01-321-6519, 01-321-6519, 3010013216519, 013216519
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 21 JUN 1990 | 01-321-6519 | 08009 ( COUPLING HALF, SHAFT ) |
Drawings & Photos | NSN 3010-01-321-6519
Demand History | NSN 3010-01-321-6519
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CHJS7Q | 2022-12-363 | 2 | DIBBS |
| CHJS7Q | 2022-12-352 | 2 | DIBBS |
| 3010-01-321-6519 | 2021-04-119 | 20 | United States |
| 3010-01-321-6519 | 2021-04-119 | 40 | United States |
| CHJS7Q | 2019-08-239 | 2 | DIBBS |
| 3010-01-321-6519 | 2017-01-25 | 2 | DIBBS |
| 3010-01-321-6519 | 2016-01-21 | 2 | DIBBS |
| 3010-01-321-6519 | 2015-11-328 | 2 | DIBBS |
Cross Reference | NSN 3010-01-321-6519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CHJS7Q | 71176 | EMERSON ELECTRIC CO BROWNING MFG DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-321-6519
Related Products | NSN 3010-01-321-6519
Technical Data | NSN 3010-01-321-6519
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

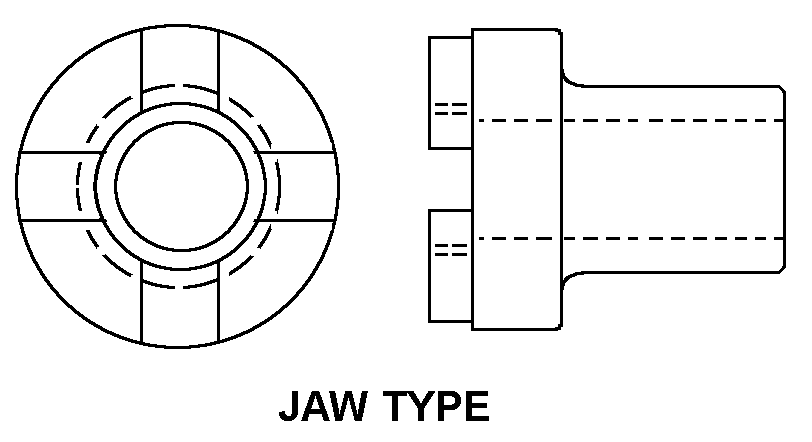

| BODY STYLE | A12 JAW TYPE |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.688 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 1.3750 INCHES NOMINAL |
| BORE LENGTH | 1.8120 INCHES NOMINAL |
| FEATURES PROVIDED | KEYWAY |
| SPECIAL FEATURES | BODY KEYING FACILITY DEP/HT:1.062" NOM.; BORE COUNTERBORE FEATURE:NOT INCLUDED; KEYING FACILITY QTY:1; HUB OD:4.125" NOM.; THREAD PROVISION:UNTHREADED; DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY:1.062" NOM.; KEYWAY WD:0.375" NOM. |
Restrictions/Controls & Freight Information | NSN 3010-01-321-6519
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-321-6519
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
