NSN 3010-00-224-1859 2584603, 00-224-1859, 002241859
Product Details | SHAFT COUPLING HALF
3010-00-224-1859 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 2584603, 3010-00-224-1859, 00-224-1859, 3010002241859, 002241859
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 16 MAR 1970 | 00-224-1859 | 08009 ( COUPLING HALF, SHAFT ) |

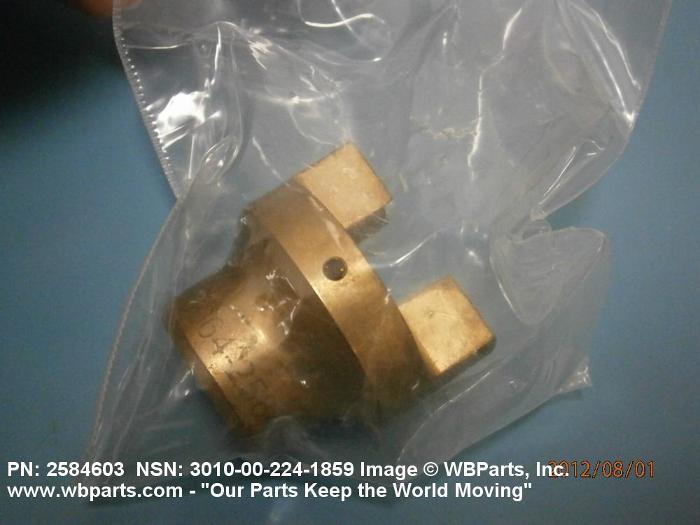

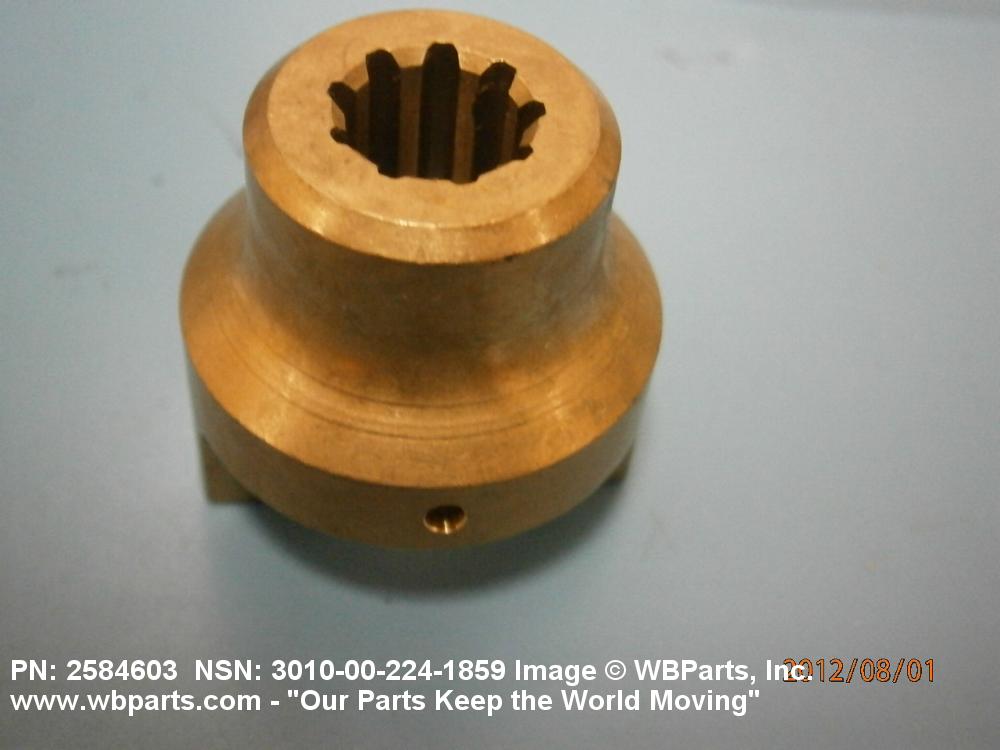

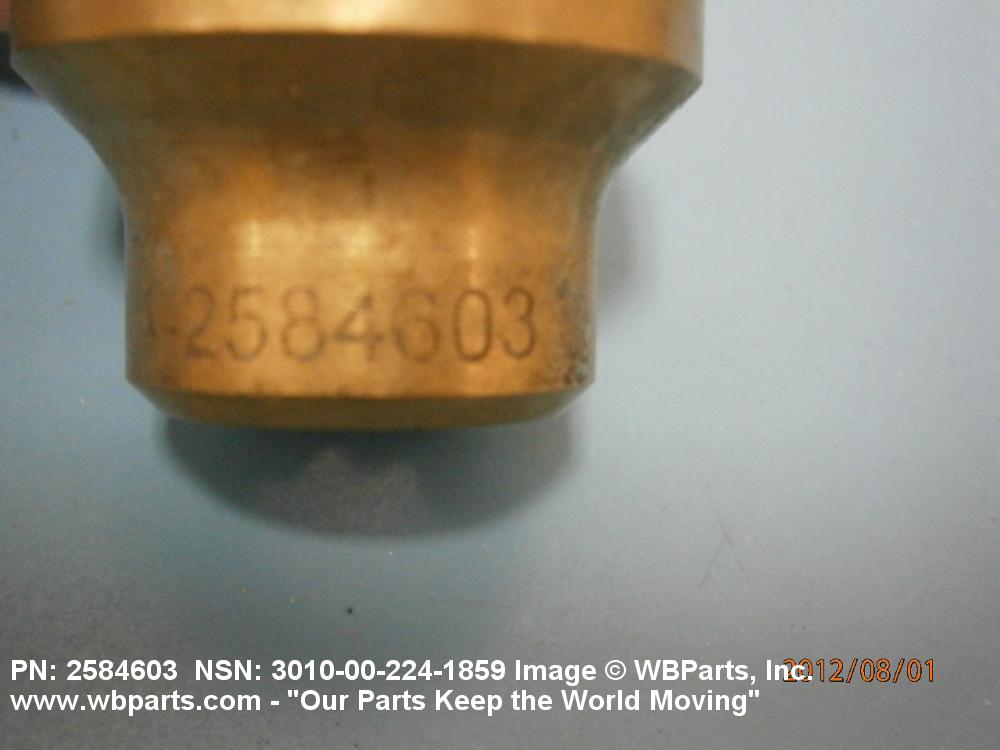

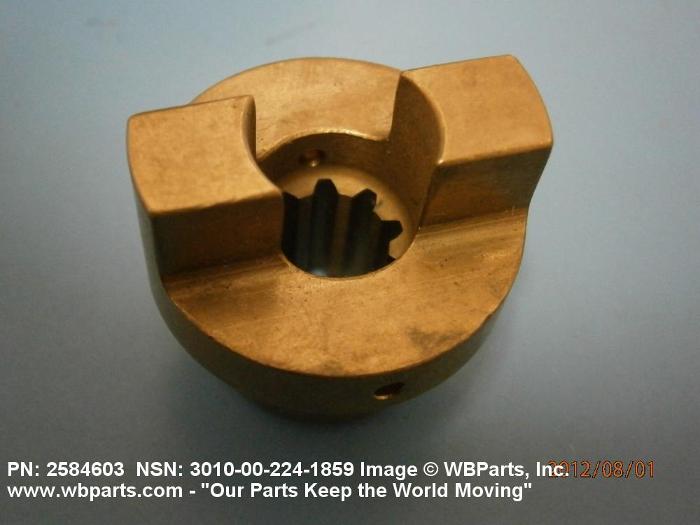

Drawings & Photos | NSN 3010-00-224-1859
Demand History | NSN 3010-00-224-1859
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-00-224-1859 | 2023-05-124 | 16 | DIBBS |
| 3010-00-224-1859 | 2023-04-96 | 19 | DIBBS |
| 3010-00-224-1859 | 2022-11-321 | 37 | DIBBS |
| 3010-00-224-1859 | 2022-02-48 | 179 | DIBBS |
| 3010-00-224-1859 | 2021-12-346 | 107 | DIBBS |
| 3010-00-224-1859 | 2021-10-292 | 72 | DIBBS |
| 3010-00-224-1859 | 2021-09-266 | 186 | DIBBS |
| 3010-00-224-1859 | 2020-10-302 | 116 | DIBBS |
| 3010-00-224-1859 | 2020-10-275 | 36 | DIBBS |
| 3010-00-224-1859 | 2020-08-218 | 1 | us |
| 3010-00-224-1859 | 2020-08-217 | 1 | us |
| 3010-00-224-1859 | 2020-08-217 | 1 | us |
| 3010-00-224-1859 | 2020-07-209 | 2 | us |
| 3010-00-224-1859 | 2020-07-204 | 3 | US |
| 3010-00-224-1859 | 2019-12-349 | 163 | DIBBS |
| 3010-00-224-1859 | 2019-02-44 | 139 | DIBBS |
| 3010-00-224-1859 | 2017-08-215 | 35 | United States |
| 3010-00-224-1859 | 2017-02-33 | 290 | DIBBS |
| 3010-00-224-1859 | 2016-12-340 | 157 | DIBBS |
| 3010-00-224-1859 | 2012-11-332 | 471 | DIBBS |
| 3010-00-224-1859 | 2012-09-268 | 126 | DIBBS |
| 3010-00-224-1859 | 2012-07-209 | 10 | United States |
| 3010-00-224-1859 | 2012-07-208 | 15 | United States |
| 3010-00-224-1859 | 2012-05-152 | 118 | DIBBS |
| 3010-00-224-1859 | 2011-11-322 | 79 | DIBBS |
| 3010-00-224-1859 | 2011-08-214 | 103 | DIBBS |
| 3010-00-224-1859 | 2010-03-85 | 151 | DIBBS |
| 3010-00-224-1859 | 2008-06-154 | 73 | DIBBS |
| 3010-00-224-1859 | 2008-06-154 | 202 | DIBBS |
| 3010-00-224-1859 | 2008-05-144 | 73 | DIBBS |
| 3010-00-224-1859 | 2008-05-144 | 202 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-224-1859
Related Products | NSN 3010-00-224-1859
Technical Data | NSN 3010-00-224-1859
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-00430 FED SPEC SINGLE MATERIAL RESPONSE AND FED STD 00153 FED STD SINGLE MATERIAL RESPONSE |

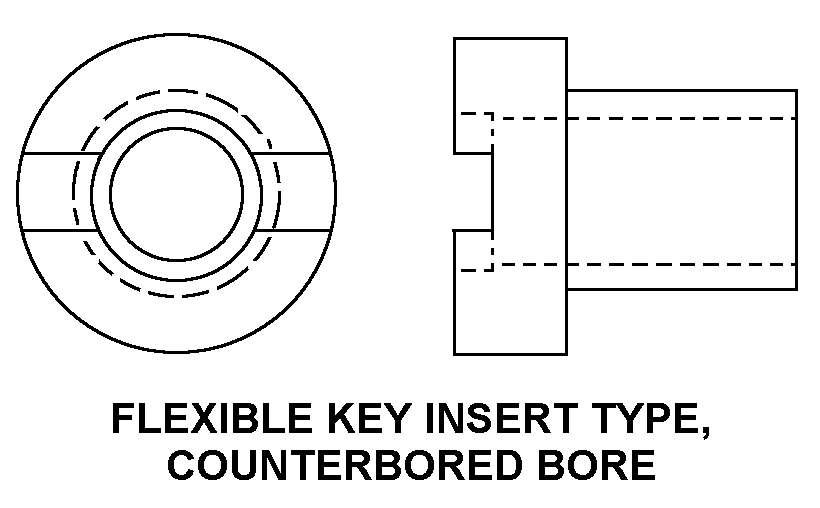

| BODY STYLE | A3 FLEXIBLE KEY INSERT TYPE, COUNTERBORED BORE |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| BORE SHAPE | SPLINED |
| SPLINE QUANTITY | 9 |
| SPLINE MAJOR DIAMETER | 0.510 INCHES NOMINAL |
| SPECIAL FEATURES | NO. B THRU B5; BODY KEYING FACILITY DEP/HT:0.485" NOM.; BODY KEYING FACILITY WD:0.375" NOM.; UNTHREADED HOLE LOCATION:0.562" FROM SLOT END; UNTHREADED HOLE QTY:1; SECURING METHOD:UNTHREADED HOLE; BORE COUNTERBORE FEATURE:NOT INCLUDED; SPLINE LG.:0.625" NOM.; HUB OD:0.875" NOM.; BORE LG.:0.578" NOM.; FLANGE THICKNESS:0.625" NOM.; SPLINE MINOR DIA.:0.412" NOM.; HOLE DIA.:0.097" NOM. |
Restrictions/Controls & Freight Information | NSN 3010-00-224-1859
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-224-1859
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
