NSN 3010-01-397-5300 10320334D, 103-2033-4D, 10320337
Product Details | SHAFT COUPLING HALF
3010-01-397-5300 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 10320334D, 103-2033-4D, 10320337, 103-2033-7, 3010-01-397-5300, 01-397-5300, 3010013975300, 013975300
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 13 OCT 1994 | 01-397-5300 | 08009 ( COUPLING HALF, SHAFT ) |

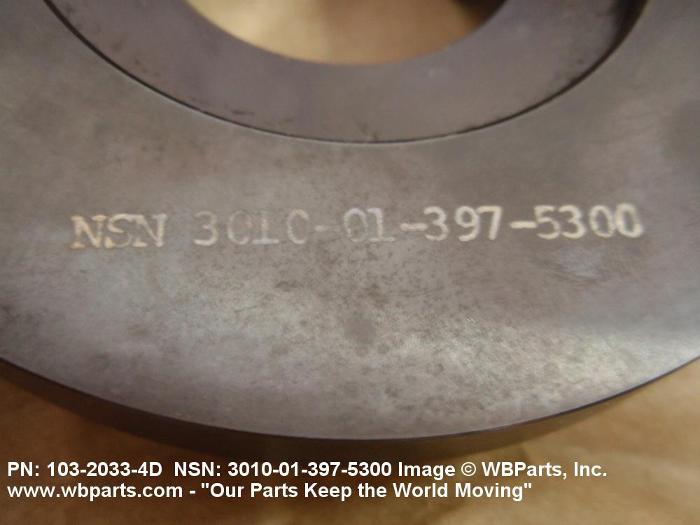

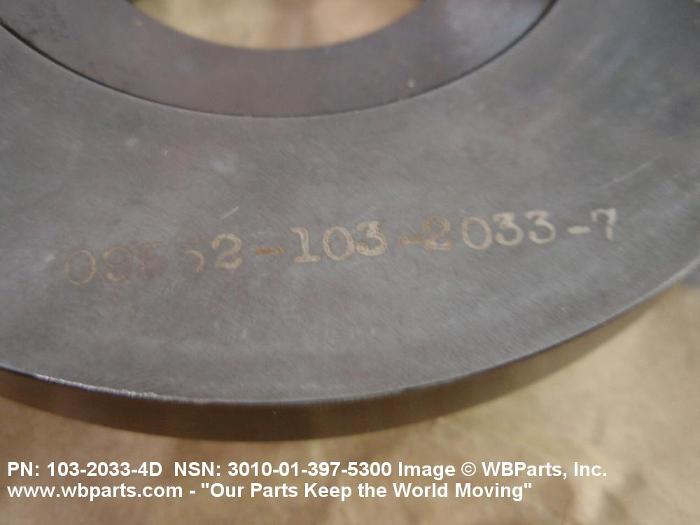

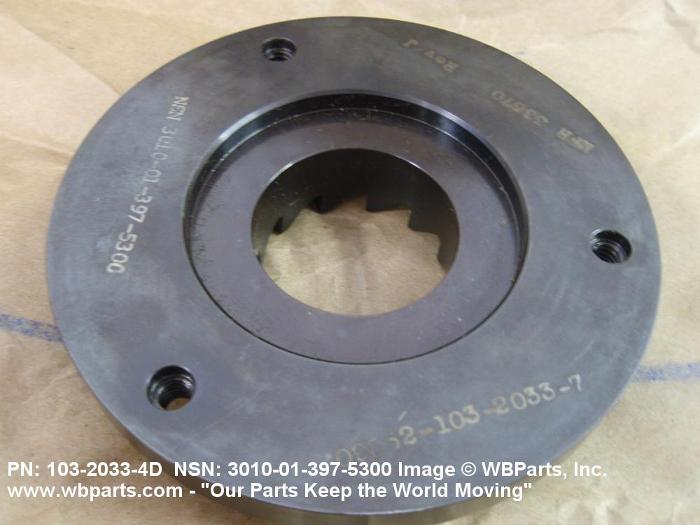

Drawings & Photos | NSN 3010-01-397-5300
Demand History | NSN 3010-01-397-5300
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 103-2033-7 | 2024-11-318 | 3 | DIBBS |
| 10320337 | 2024-11-317 | 1 | United States |
| 103-2033-7 | 2024-10-305 | 3 | DIBBS |
| 103-2033-7 | 2022-10-297 | 3 | DIBBS |
| 103-2033-7 | 2022-08-243 | 1 | DIBBS |
| 103-2033-7 | 2022-06-159 | 1 | DIBBS |
| 103-2033-7 | 2021-12-349 | 3 | DIBBS |
| 103-2033-7 | 2021-11-318 | 2 | DIBBS |
| 103-2033-7 | 2019-01-14 | 4 | DIBBS |
| 103-2033-7 | 2019-01-03 | 4 | DIBBS |
| 3010-01-397-5300 | 2018-10-296 | 1 | DIBBS |
| 3010-01-397-5300 | 2018-10-284 | 1 | DIBBS |
| 3010-01-397-5300 | 2018-01-04 | 4 | DIBBS |
| 3010-01-397-5300 | 2017-10-299 | 6 | DIBBS |
| 3010-01-397-5300 | 2017-05-141 | 4 | DIBBS |
| 3010-01-397-5300 | 2012-10-279 | 2 | DIBBS |
| 3010-01-397-5300 | 2011-06-153 | 3 | DIBBS |
| 3010-01-397-5300 | 2011-05-132 | 3 | DIBBS |
| 3010-01-397-5300 | 2011-04-116 | 3 | DIBBS |
| 3010-01-397-5300 | 2011-02-55 | 7 | DIBBS |
| 3010-01-397-5300 | 2011-01-16 | 1 | Singapore |
| 10320334D | 2010-08-224 | 1 | Singapore |
| 3010-01-397-5300 | 2010-07-182 | 1 | Singapore |
| 3010-01-397-5300 | 2009-11-313 | 10 | DIBBS |
| 3010-01-397-5300 | 2009-02-36 | 3 | DIBBS |
| 3010-01-397-5300 | 2008-09-255 | 3 | DIBBS |
| 3010-01-397-5300 | 2007-04-95 | 6 | DIBBS |
| 3010-01-397-5300 | 2006-03-79 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-397-5300
Related Products | NSN 3010-01-397-5300
Technical Data | NSN 3010-01-397-5300
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

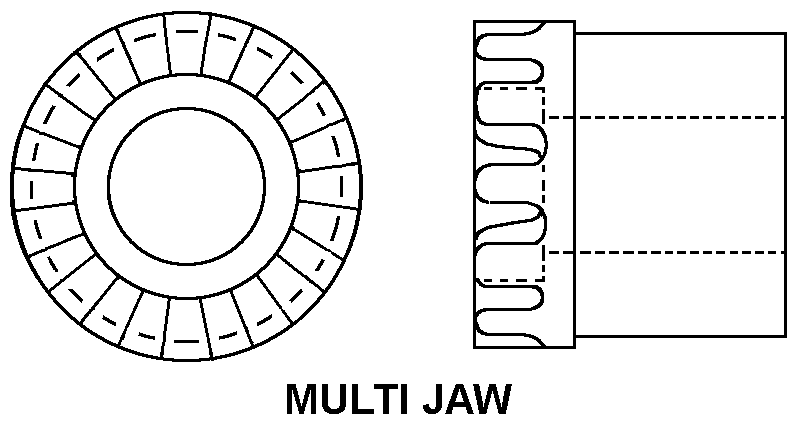

| BODY STYLE | A20 MULTI JAW |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.250 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 1.5000 INCHES NOMINAL |
| SPECIAL FEATURES | SURFACE TREATMENT:BLACK OXIDE; BORE COUNTERBORE FEATURE:INCLUDED; KEYING FACILITY:NOT INCLUDED; COUNTERBORE LOCATION:HUB END; HUB OD:4.250" NOM.; THREAD PROVISION:UNTHREADED; FLANGE THICKNESS:0.410" NOM.; COUNTERBORE DEP.:0.190" NOM.; COUNTERBORE DIA.:2.375" NOM. |
| III END ITEM IDENTIFICATION | 4920-01-087-8210 |
Restrictions/Controls & Freight Information | NSN 3010-01-397-5300
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-01-397-5300
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
