NSN 3010-01-263-0624 CHCFR5H, ST52D51, ST52D5-1
Product Details | SHAFT COUPLING HALF
3010-01-263-0624 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: CHCFR5H, ST52D51, ST52D5-1, 3010-01-263-0624, 01-263-0624, 3010012630624, 012630624
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
30 | 09 SEP 1987 | 01-263-0624 | 08009 ( COUPLING HALF, SHAFT ) |
Demand History | NSN 3010-01-263-0624
Part Number | Request Date | QTY | Origin |
---|---|---|---|
3010-01-263-0624 | 2013-07-212 | 1 | US |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3010-01-263-0624
Related Products | NSN 3010-01-263-0624
Technical Data | NSN 3010-01-263-0624
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |

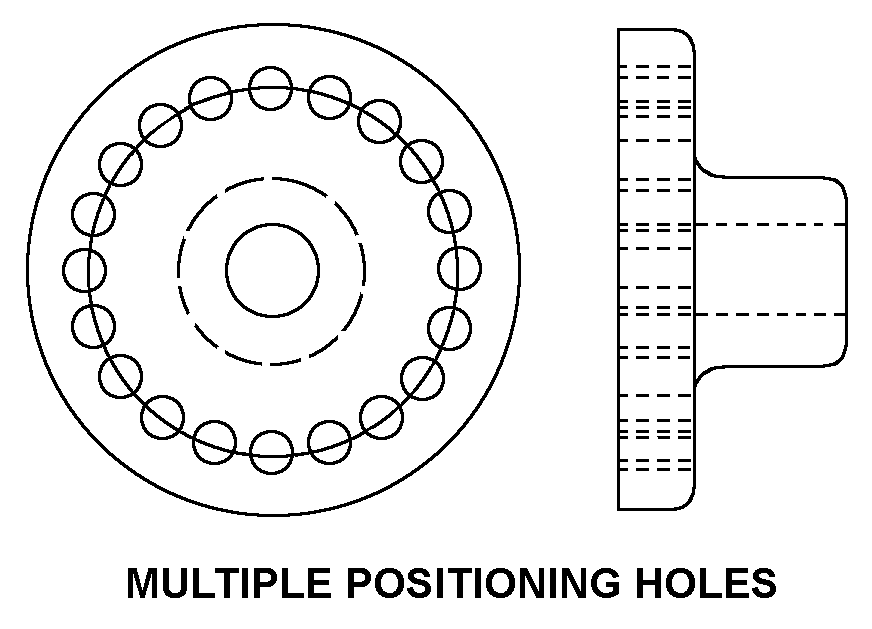

BODY STYLE | A13 MULTIPLE POSITIONING HOLES |
OVERALL LENGTH | 1.780 INCHES NOMINAL |
OUTSIDE DIAMETER | 5.250 INCHES NOMINAL |
BORE LENGTH | 1.7800 INCHES NOMINAL |
SPECIAL FEATURES | FLANGE THICKNESS:0.620" NOM. |
MANUFACTURERS CODE | 04236 |
MFR SOURCE CONTROLLING REFERENCE | ST52D5-1 |
Restrictions/Controls & Freight Information | NSN 3010-01-263-0624
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS SUB2 |
Less than car load rating | R | 65 |
Less than truck load rating | R | 65.0 |
Water commodity Code | 593 | unknown |
Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | Z | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
