Product Details | SHAFT COUPLING HALF

3010-00-859-2588 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.

Part Alternates: SMB413908, SM-B-413908, SMB413908ANDSMB413909, SMB413909, SM-B-413909, 806076, 3010-00-859-2588, 00-859-2588, 3010008592588, 008592588

Mechanical Power Transmission Equipment | Torque Converters and Speed Changers

Supply Group (FSG) NSN Assign. NIIN
30 01 JAN 1962 00-859-2588

Drawings & Photos | NSN 3010-00-859-2588


Demand History | NSN 3010-00-859-2588

Part Number Request Date QTY Origin
SMB413908 2013-05-133 20 Iran

Cross Reference | NSN 3010-00-859-2588

Part Number Cage Code Manufacturer
806076 80045 L-3 COMMUNICATIONS CINCINNATI ELECTRONICS CORPORATION
SM-B-413908 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SM-B-413909 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SMB413908ANDSMB413909 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3010-00-859-2588

Technical Data | NSN 3010-00-859-2588

Characteristic Specifications
MATERIAL STEEL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-764, TY 303, COND A FED SPEC SINGLE MATERIAL RESPONSE

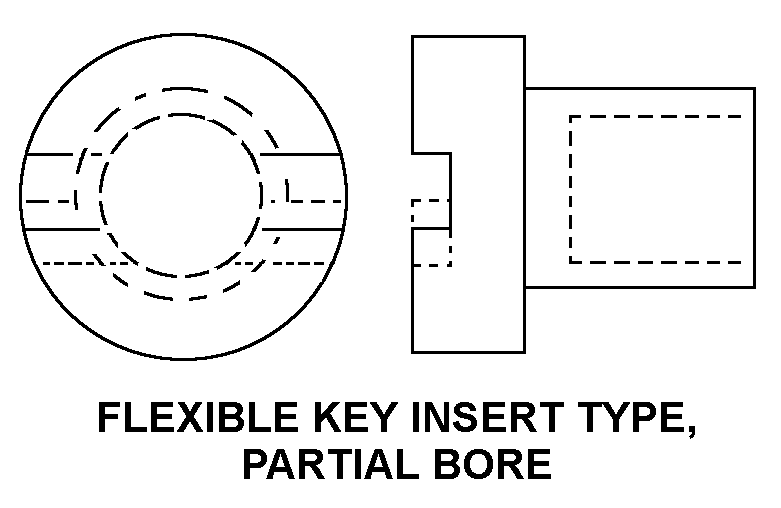

BODY STYLE A2 FLEXIBLE KEY INSERT TYPE, PARTIAL BORE
OVERALL LENGTH 0.569 INCHES NOMINAL
BORE SHAPE STRAIGHT
BORE DIAMETER 0.1870 INCHES NOMINAL
BORE LENGTH 0.2500 INCHES NOMINAL
SPECIAL FEATURES SURFACE TREATMENT:PASSIVATED; OFFSET DISTANCE BETWEEN CENTERLINES OF BORE AND BODY KEYING FACILITY:0.093" NOM.; BODY KEYING FACILITY DEPTH/HT:0.125" NOM.; BODY KEYING FACILITY WD:0.375" NOM.; SECURING METHOD:CLAMP; KEYING FACILITY AND BORE COUNTERBORE FEATURE:NOT INCLUDED; O/A OUTSIDE DIMENSION:0.813" OD; HUB OD:0.250" NOM.; THREAD PROVISION:UNTHREADED; FLANGE THICKNESS:0.335" NOM.
