Product Details | SHAFT COUPLING HALF
3010-00-131-4963 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 161013PC3, 3010-00-131-4963, 00-131-4963, 3010001314963, 001314963
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
30 | 01 JAN 1963 | 00-131-4963 | 08009 ( COUPLING HALF, SHAFT ) |
Cross Reference | NSN 3010-00-131-4963
Part Number | Cage Code | Manufacturer |
---|---|---|
161013PC3 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-131-4963
Related Products | NSN 3010-00-131-4963
Technical Data | NSN 3010-00-131-4963
Characteristic | Specifications |
---|---|
MATERIAL | COPPER ALLOY |
MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-691 COMP 4 FED SPEC SINGLE MATERIAL RESPONSE |

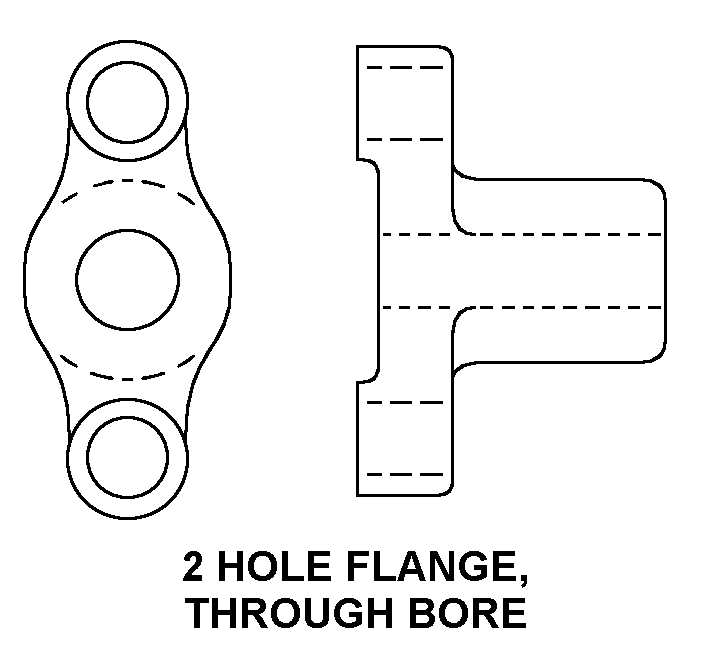

BODY STYLE | A9 2 HOLE FLANGE, THROUGH BORE |
OVERALL LENGTH | 1.340 INCHES MINIMUM AND 1.360 INCHES MAXIMUM |
BORE SHAPE | STRAIGHT |
BORE DIAMETER | 0.8750 INCHES MINIMUM AND 0.8757 INCHES MAXIMUM |
BORE LENGTH | 1.2500 INCHES NOMINAL |
SPECIAL FEATURES | 1/8" DIA. HOLE DRILLED THRU CENTER OF BOTH POSITIONING HOLE THD 0.45" FROM COUPLING END; UNTHREADED BORE DEPTH:0.190" MIN., 0.200" MAX.; UNTHREADED BORE DIA.:0.422" NOM.; BORE THREAD SIZE DESIGNATOR:1/2-13 NC; POSITIONING FACILITY BOLT CIRCLE DIA.:3.098" MIN., 3.102" MAX.; POSITIONING FACILITY QTY:2; POSITIONING HOLE STYLE:BODY-BOUND; BORE COUNTERBORE FEATURE:NOT INCLUDED; KEYING FACILITY TYPE:INTEGRAL KEY; KEYING FACILITY QTY:1; KEYING FACILITY:INCLUDED; O/A OUTSIDE DIMENSION:4" NOM.; HUB OD:1.375" NOM.; THREAD PROVISION:UNTHREADED; DISTANCE FROM CENTER OF BORE TO TOP OF KEY:0.3365" NOM.; KEY WD:0.1875" NOM.; FLANGE THICKNESS:0.850" NOM. |
