NSN 3010-00-097-0386 A4313, 801E8188, 00-097-0386
Product Details | SHAFT COUPLING HALF
3010-00-097-0386 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: A4313, 801E8188, 3010-00-097-0386, 00-097-0386, 3010000970386, 000970386
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-097-0386 | 08009 ( COUPLING HALF, SHAFT ) |
Drawings & Photos | NSN 3010-00-097-0386
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-097-0386
Related Products | NSN 3010-00-097-0386
Technical Data | NSN 3010-00-097-0386
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

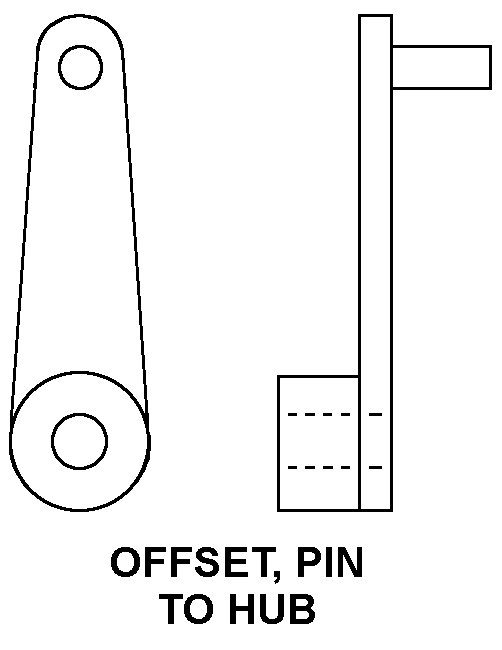

| BODY STYLE | A24 OFFSET, PIN TO HUB |
| OVERALL LENGTH | 0.320 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| SPECIAL FEATURES | SURFACE TREATMENT:PAINTED; DISTANCE FROM BORE CENTERLINE TO BODY KEYING FACILITY BOTTOM/TOP:0.156" NOM.; HOLE THREAD SIZE DESIGNATOR:3/16-32; THREAD HOLE LOCATION:90 DEG. FROM STRAIGHT BORE; SECURING METHOD:THREADED HOLE; BORE COUNTERBORE FEATURE:NOT INCLUDED; KEYING FACILITY:NOT INCLUDED; O/A OUTSIDE DIMENSION:0.637"; HUB OD:0.625" NOM.; FURNISHED ITEM & QTY:(1) SETSCREW; PIN LG.:0.325" NOM.; THREAD PROVISION:UNTHREADED; PIN DIA.:0.161" NOM. |
Restrictions/Controls & Freight Information | NSN 3010-00-097-0386
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
