NSN 3010-00-067-8855 3000047001, 30-00047-001, 00-067-8855
Product Details | SHAFT COUPLING HALF
3010-00-067-8855 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 3000047001, 30-00047-001, 3010-00-067-8855, 00-067-8855, 3010000678855, 000678855
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-067-8855 | 08009 ( COUPLING HALF, SHAFT ) |
Drawings & Photos | NSN 3010-00-067-8855
Cross Reference | NSN 3010-00-067-8855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30-00047-001 | 00724 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-067-8855
Related Products | NSN 3010-00-067-8855
Technical Data | NSN 3010-00-067-8855
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763, TYPE 303 FED SPEC SINGLE MATERIAL RESPONSE |

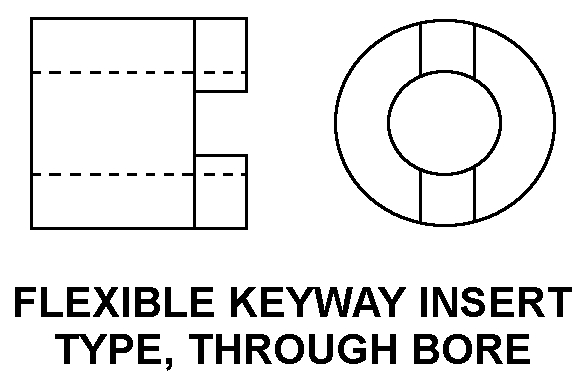

| BODY STYLE | A22 FLEXIBLE KEYWAY INSERT TYPE, THROUGH BORE |
| OVERALL LENGTH | 0.249 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.600 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 0.1870 INCHES NOMINAL |
| FEATURES PROVIDED | KEYWAY |
| SPECIAL FEATURES | FSC APPLICATION DATA:AMPLIFIERS,RADIO FREQUENCY,EXCEPT NAVIGATION,AIRBORNE; SURFACE TREATMENT:PASSIVATED; BODY KEYING FACILITY WD:0.062" NOM.; BODY KEYING FACILITY DEP/HT:0.078" NOM.; HOLE THREAD SIZE DESIGNATOR:NO. 4 / 0.112" / -40; UNTHREADED HOLE LOCATION:90 DEG. FROM KEYWAY; UNTHREADED HOLE QTY:1; THREADED HOLE LOCATION:(1) HOLE, 180 DEG. FROM KEYWAY; THREADED HOLE QTY:1; SECURING METHOD:THREADED AND UNTHREADED HOLE; BORE COUNTERBORE FEATURE:NOT INCLUDED; KEYING FACILITY QTY:1; THREAD PROVISION:UNTHREADED; DISTANCE FROM CENTERLINE OF BORE TO BOTTOM OF KEYWAY:0.129" NOM.; KEYWAY WD:0.065" NOM.; HOLE DIA.:0.065" NOM. |
| MANUFACTURERS CODE | 00724 |
| DESIGN CONTROL REFERENCE | 30-00047-001 |
Restrictions/Controls & Freight Information | NSN 3010-00-067-8855
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-067-8855
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | BY | TG:AIRBORNE COMMUNICATION EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
