NSN 1680-00-415-6394 004156394
Product Details | ROTATING SHAFT EYE BRACKET
1680-00-415-6394 A rigid metal item usually fabricated from steel castings and/or welded steel pieces and designed with one or more hole(s) in line to accompany and hold, align, or support a mechanical shaft that rotates through an arc not to exceed 360 degrees (6.282 radians). It may have provision to accommodate a bushing or sleeve but usually it has a straight drilled shaft-support hole. Mounting holes are provided for attaching to a supporting member or main body. Excludes HOUSING, BEARING UNIT (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components2590000030400042Miscellaneous Power Transmission Equipment
Part Alternates: 004156394
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 00-415-6394 | 22089 ( BRACKET, EYE, ROTATING SHAFT ) |

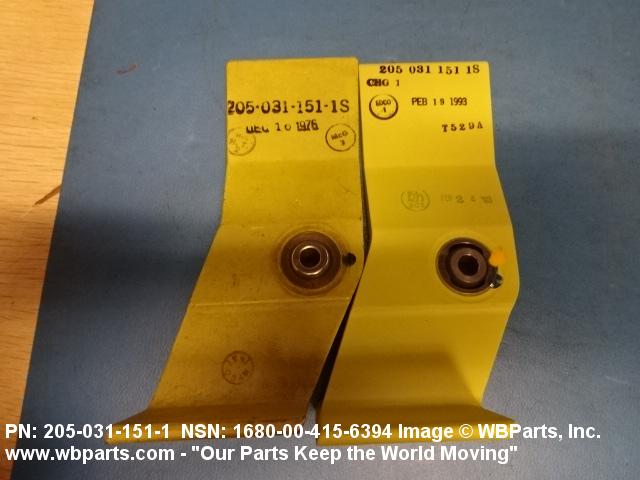

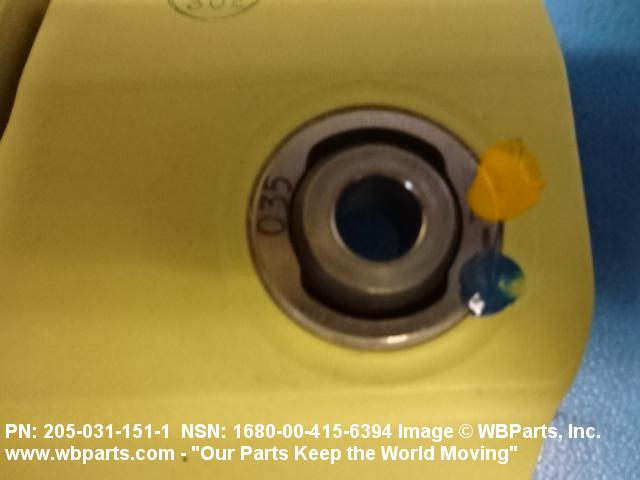

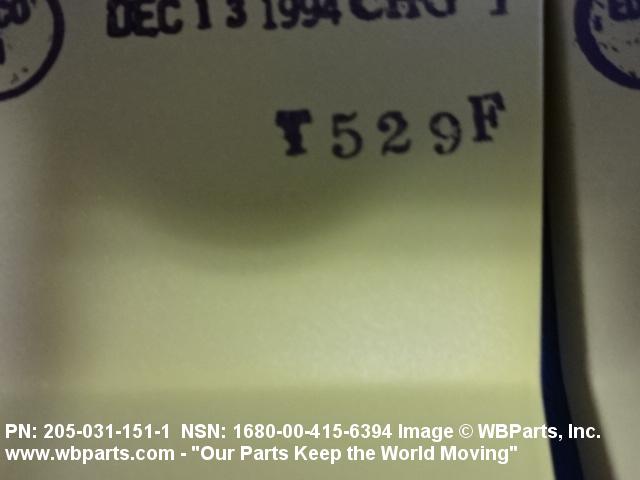

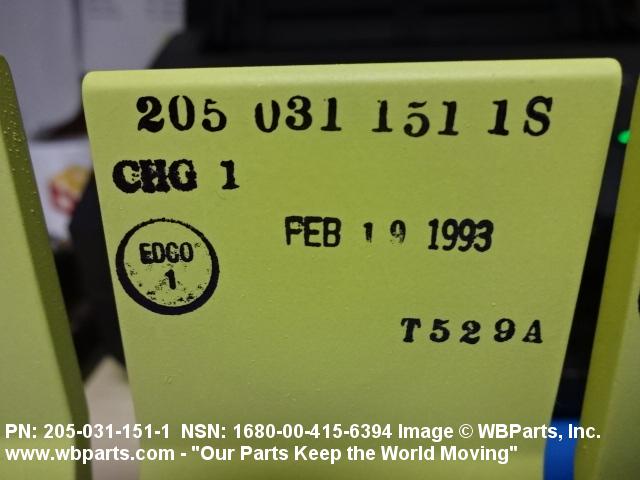

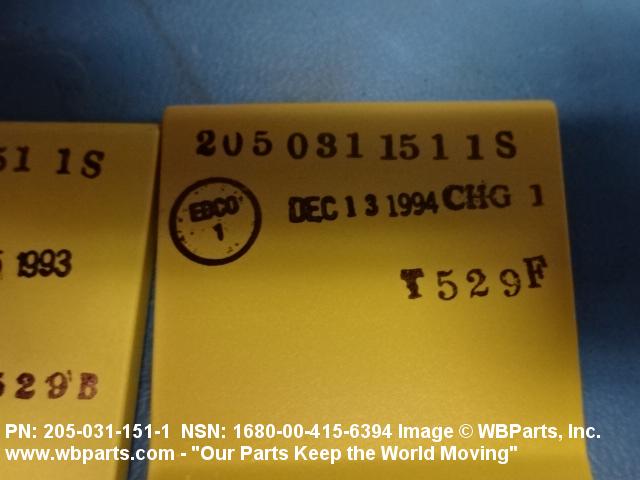

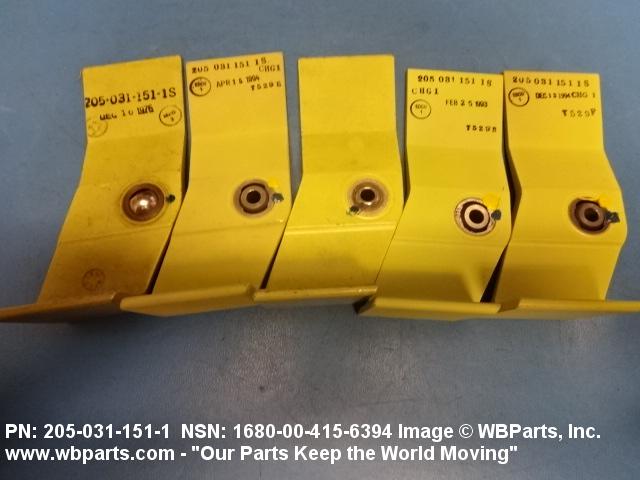

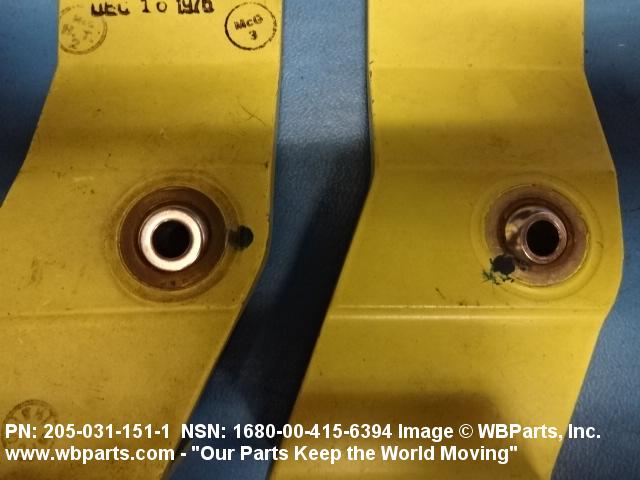

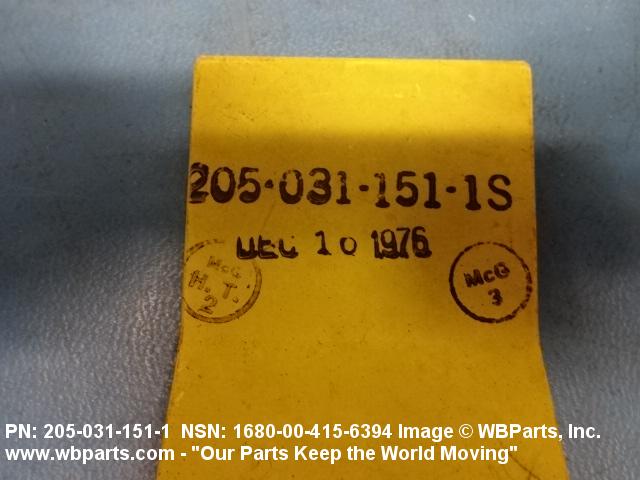

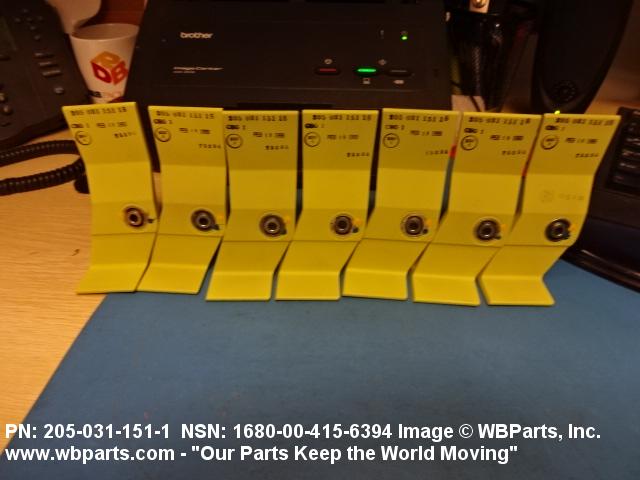

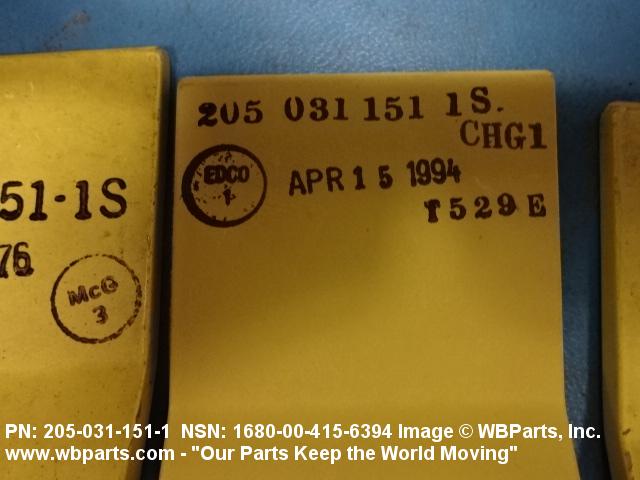

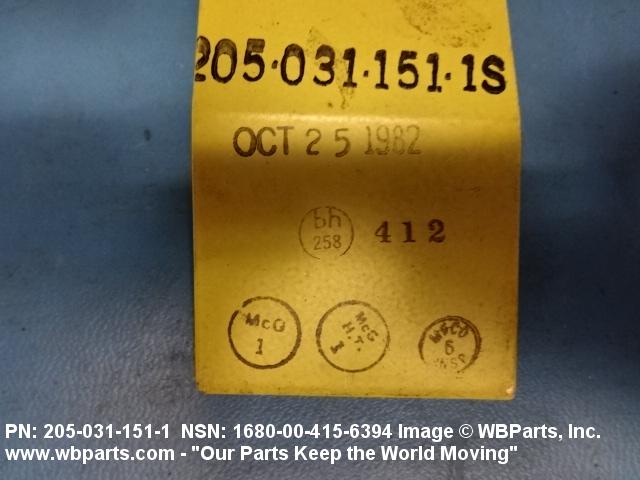

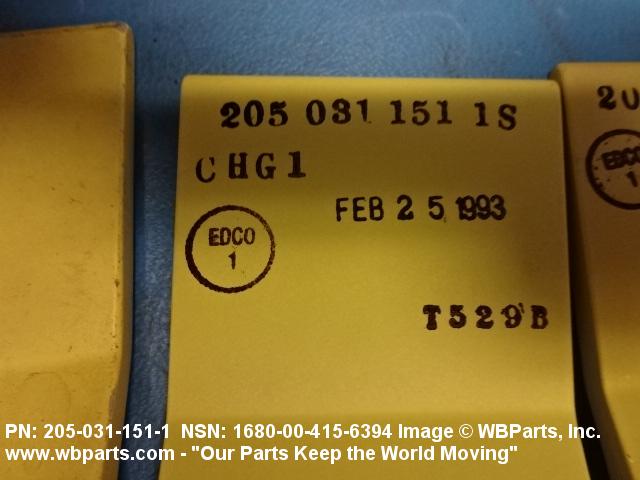

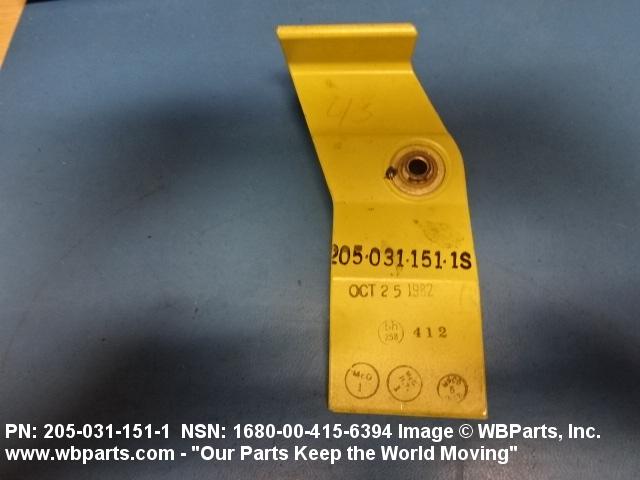

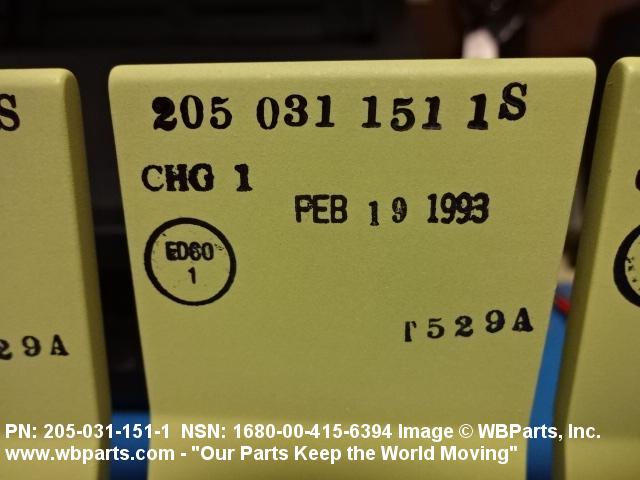

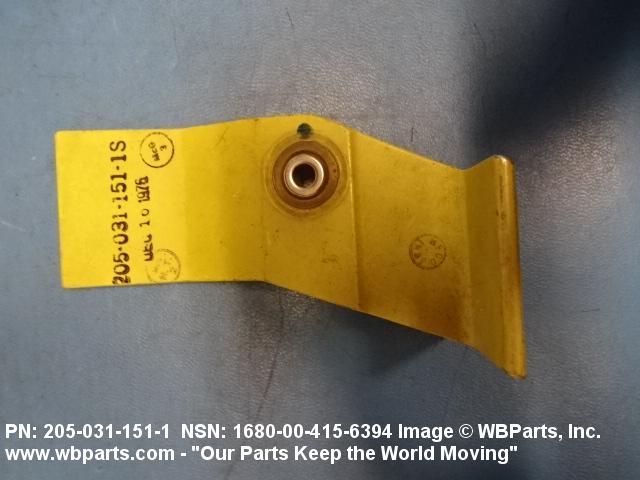

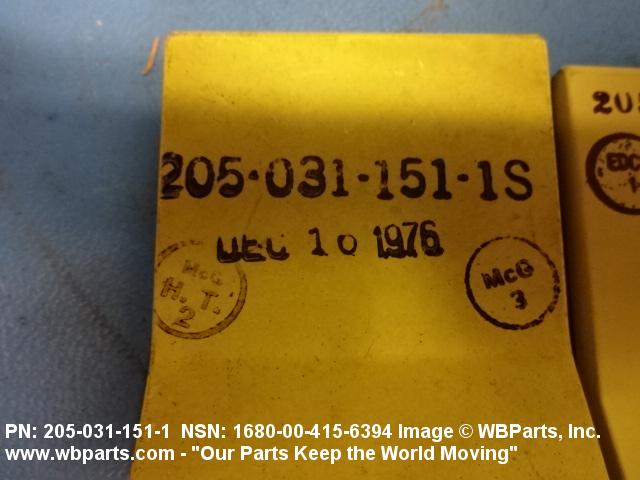

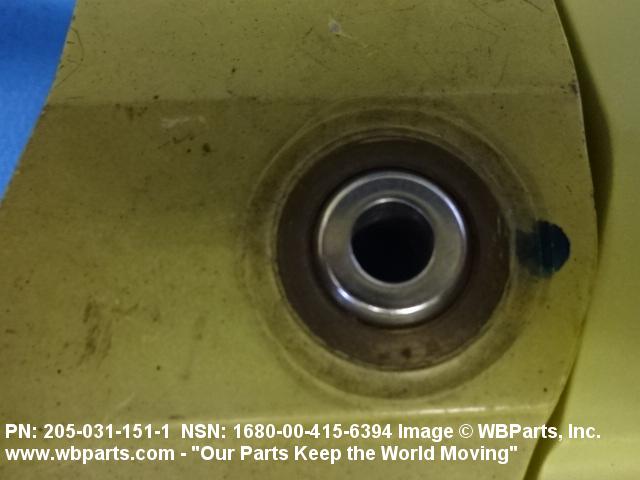

Drawings & Photos | NSN 1560-00-415-6394
Demand History | NSN 1680-00-415-6394
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 205031151001 | 2024-02-58 | 2 | US |
| 205-031-151-001 | 2023-02-33 | 2 | Argentina |
| 205031151001 | 2015-07-191 | 2 | US |
| 205031151001 | 2015-04-107 | 1 | United States |
| 2050311511 | 2014-11-314 | 2 | US |
| 205031151001 | 2011-03-75 | 41 | US |
| 2050311511 | 2010-12-355 | 48 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-415-6394
Technical Data | NSN 1680-00-415-6394
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9,T6 FED SPEC SINGLE MATERIAL RESPONSE |
| BORE INSIDE DIAMETER | 0.749 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| OVERALL LENGTH | 0.252 INCHES NOMINAL |
| WIDTH | 2.120 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| SPECIAL FEATURES | BOLT HOLE:QTY-1,SHAPE-ROUND;DISTANCE FROM BORE CTRLINE TO BASE BOTTOM,1.720 IN. |
| III END ITEM IDENTIFICATION | UH-1 SERIES HELICOPTERS |
Restrictions/Controls & Freight Information | NSN 1680-00-415-6394
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
