NSN 3040-01-340-4126 12147-9503, 1247503M, 1247-503M
Product Details | ROTATING SHAFT EYE BRACKET
3040-01-340-4126 A rigid metal item usually fabricated from steel castings and/or welded steel pieces and designed with one or more hole(s) in line to accompany and hold, align, or support a mechanical shaft that rotates through an arc not to exceed 360 degrees (6.282 radians). It may have provision to accommodate a bushing or sleeve but usually it has a straight drilled shaft-support hole. Mounting holes are provided for attaching to a supporting member or main body. Excludes HOUSING, BEARING UNIT (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components2590000030400042Miscellaneous Power Transmission Equipment
Part Alternates: 12147-9503, 1247503M, 1247-503M, 50052516, 50052-516, 50052-516 F58037, 50052516F58037, 50052616, 50052-616, 3040-01-340-4126, 01-340-4126, 3040013404126, 121479503, 013404126
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 12 JUN 1991 | 01-340-4126 | 22089 ( BRACKET, EYE, ROTATING SHAFT ) |

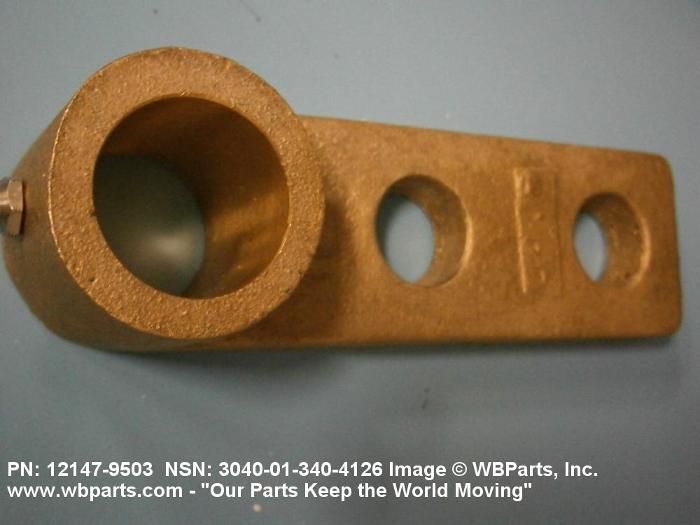

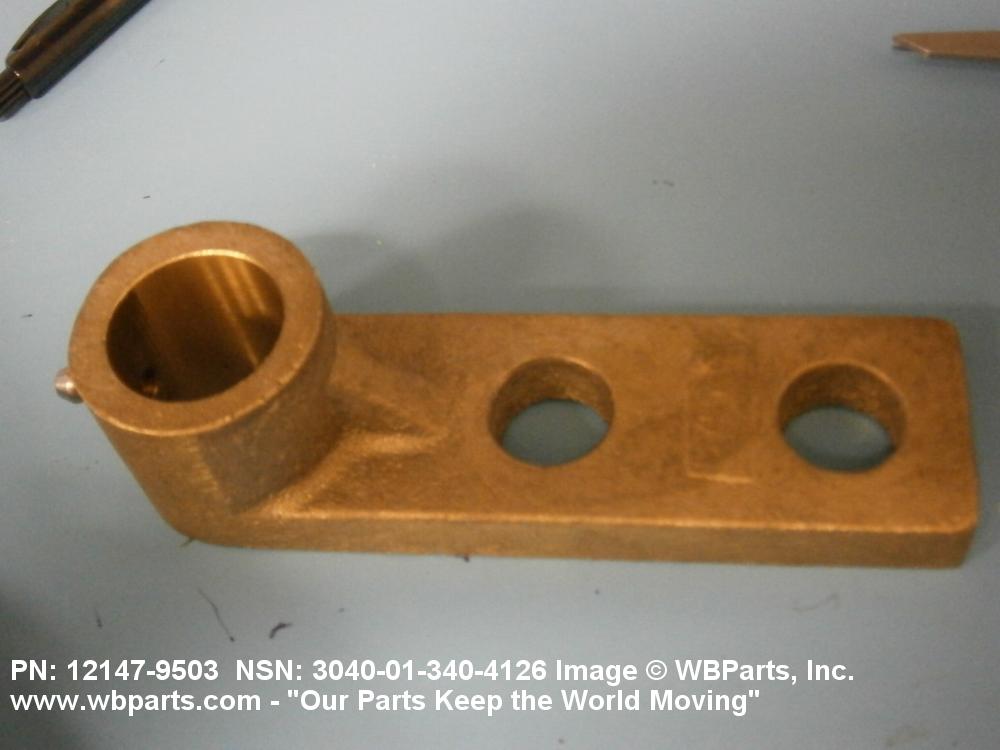

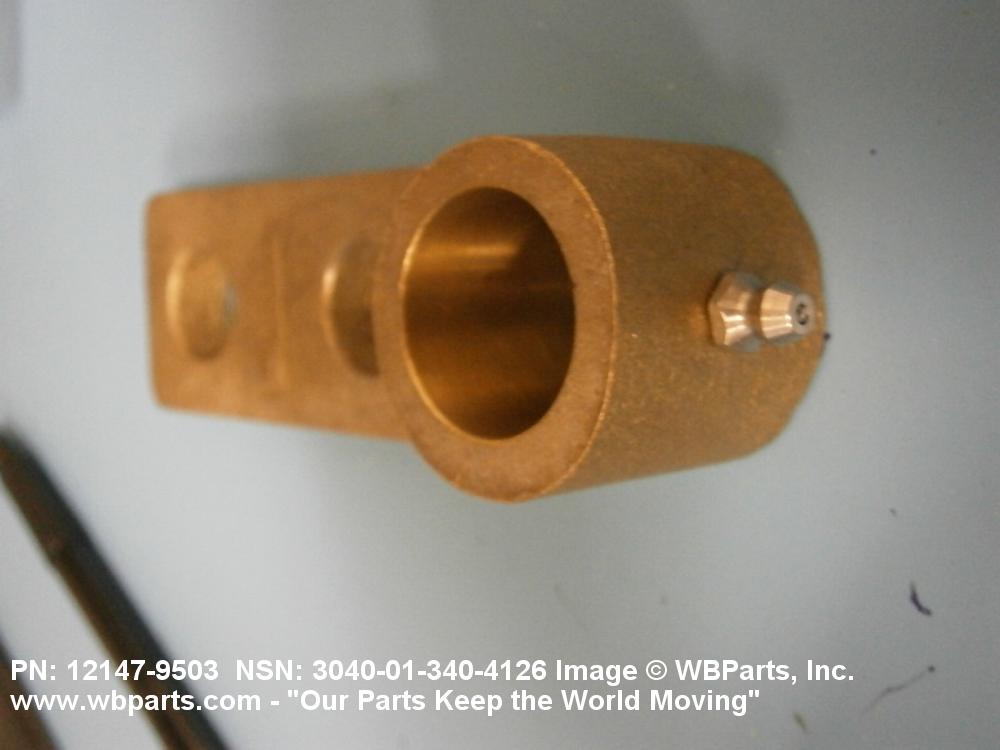

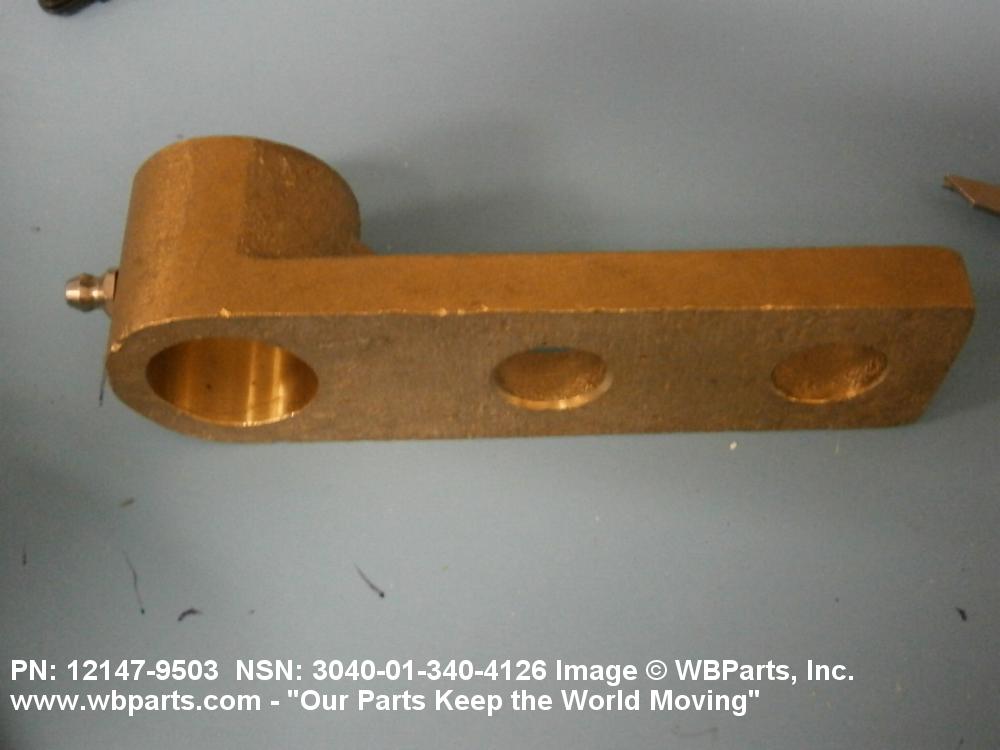

Drawings & Photos | NSN 3040-01-340-4126
Demand History | NSN 3040-01-340-4126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12147-9503 | 2022-03-87 | 1 | DIBBS |
| 1247-503M | 2022-03-87 | 1 | DIBBS |
| 12147-9503 | 2022-03-76 | 1 | DIBBS |
| 1247-503M | 2022-03-76 | 1 | DIBBS |
| 3040-01-340-4126 | 2018-07-185 | 1 | DIBBS |
| 3040-01-340-4126 | 2017-07-186 | 4 | DIBBS |
| 3040-01-340-4126 | 2017-07-186 | 10 | DIBBS |
| 3040-01-340-4126 | 2015-11-320 | 1 | DIBBS |
| 3040-01-340-4126 | 2015-11-307 | 1 | DIBBS |
| 3040-01-340-4126 | 2013-07-211 | 4 | DIBBS |
| 3040-01-340-4126 | 2013-05-123 | 1 | DIBBS |
| 3040-01-340-4126 | 2012-05-152 | 1 | US |
| 3040-01-340-4126 | 2012-05-136 | 1 | United States |
Cross Reference | NSN 3040-01-340-4126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12147-9503 | 72166 | B.W. ELLIOTT MANUFACTURING CO., LLC DBA ELLIOTT MANUFACTURING |
| 1247-503M | 72166 | B.W. ELLIOTT MANUFACTURING CO., LLC DBA ELLIOTT MANUFACTURING |
| 50052-516 | 58037 | ELLIOTT B W MFG CO LLC FLEX SHAFT AND VALVE CONTROL PRODUCT |
| 50052-516 F58037 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 50052-616 | 58037 | ELLIOTT B W MFG CO LLC FLEX SHAFT AND VALVE CONTROL PRODUCT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-340-4126
Technical Data | NSN 3040-01-340-4126
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| BORE INSIDE DIAMETER | 1.060 INCHES NOMINAL |
| WIDTH | 1.500 INCHES NOMINAL |
| SPECIAL FEATURES | BOLT HOLE:QTY-2,SHAPE-ROUND,SIZE-0.690 IN. DIA;DISTANCE FROM BORE CTRLINE TO BASE BOTTOM,4.500 IN.;C TO C DISTANCE BETWEEN BOLT HOLES,1.750 IN. |
Restrictions/Controls & Freight Information | NSN 3040-01-340-4126
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-340-4126
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
