Product Details | GROOVE PULLEY

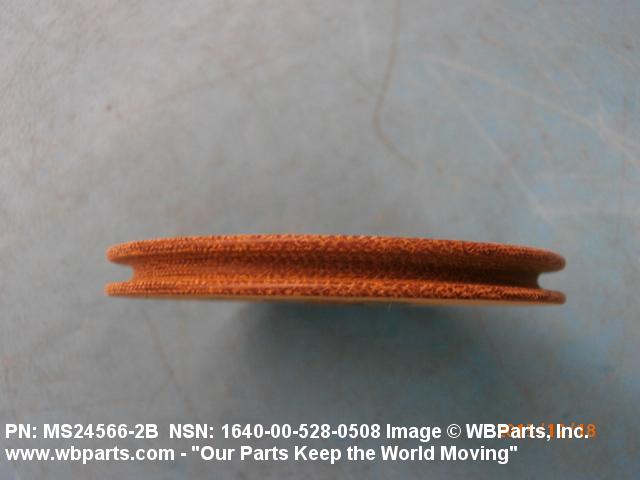

1640-00-528-0508 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 005280508
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-528-0508 | 08109 ( PULLEY, GROOVE ) |

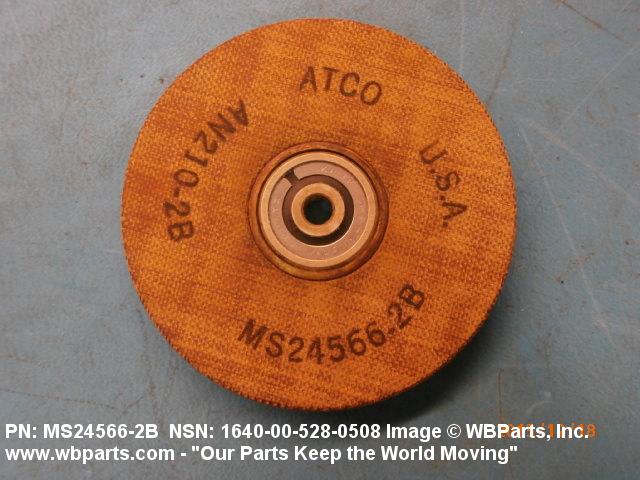

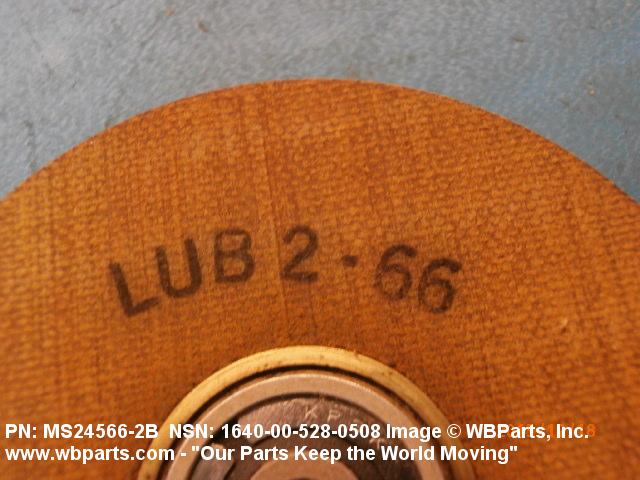

Drawings & Photos | NSN 1640-00-528-0508
Demand History | NSN 1640-00-528-0508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN2102A | 2024-07-194 | 150 | United States |
| MS245662B | 2024-07-193 | 100 | United States |
| MS245662B | 2023-08-216 | 10 | China |
| MS245662B | 2021-06-166 | 50 | United States |
| MS245662B | 2016-03-90 | 60 | United States |
| MS245662B | 2016-03-90 | 100 | United States |
| MS245662B | 2015-12-344 | 100 | United States |
| 1640-00-528-0508 | 2015-07-188 | 10 | Australia |
| AN2102A | 2011-09-269 | 2 | TR |
| AN2102A | 2011-09-269 | 10 | TR |
| AN2102B | 2011-03-61 | 4 | CO |
| AN2102A | 2010-12-343 | 3 | US |
| 1640-00-528-0508 | 2010-10-276 | 4 | AU |
| AN2102A | 2010-07-182 | 20 | Colombia |
| 1640-00-528-0508 | 2009-01-09 | 2 | AL |
| MS245662B | 2008-12-352 | 300 | United States |
| AN2102B | 2007-05-123 | 62 | India |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-528-0508
Technical Data | NSN 1640-00-528-0508

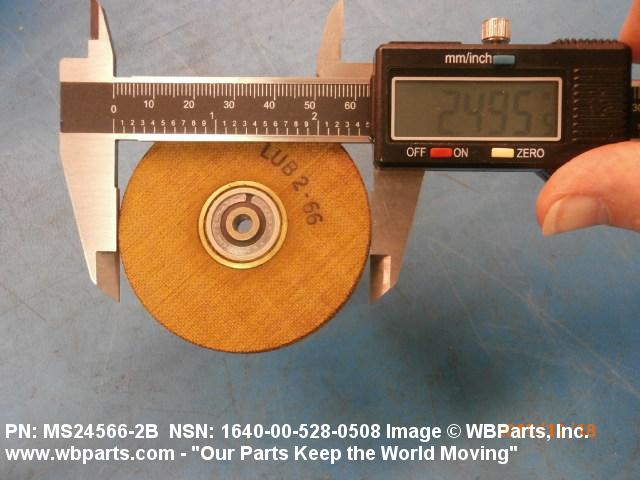

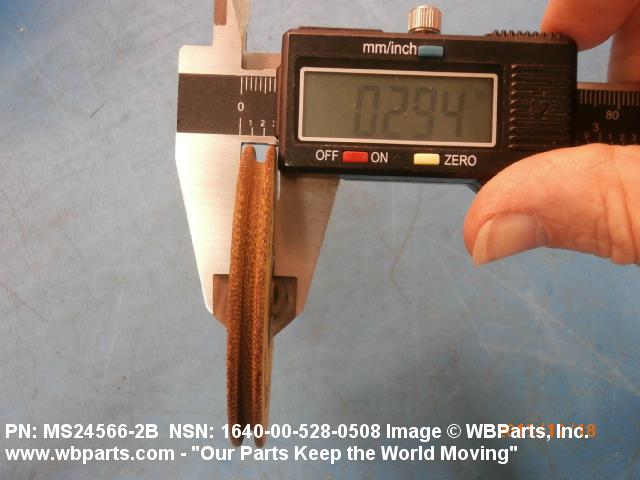

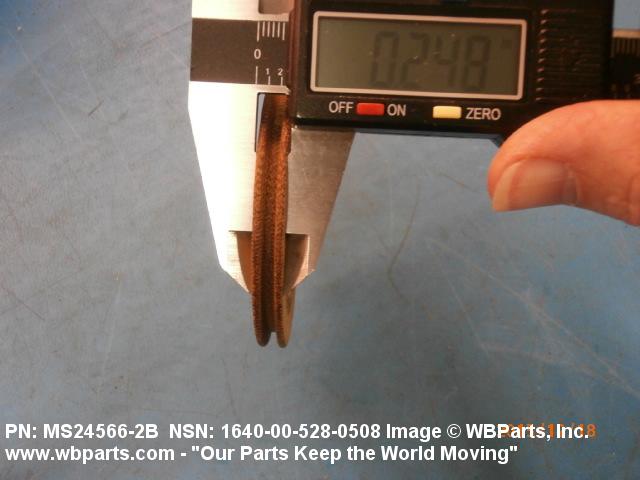

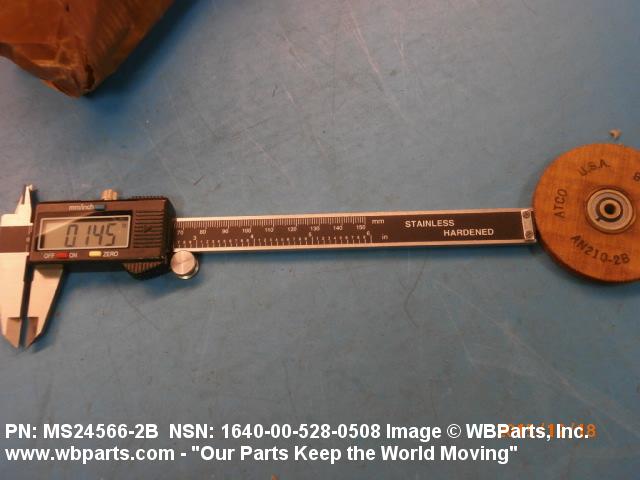

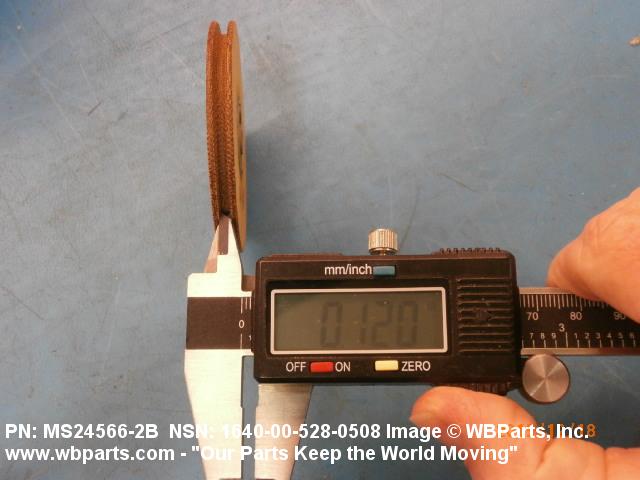

| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A7 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 2.490 INCHES MINIMUM AND 2.510 INCHES MAXIMUM |
| OVERALL LENGTH | 0.292 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| FACE WIDTH | 0.240 INCHES NOMINAL |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | PLASTIC, PHENOLIC BODY PLASTIC, PHENOLIC HUB AND STEEL HUB |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.139 INCHES MINIMUM AND 0.149 INCHES MAXIMUM |
| GROOVE WIDTH | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| GROOVE RADIUS | 0.052 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| BORE FEATURE | INCLUDED |
| BEARINGS | INCLUDED |
| BEARING TYPE | BALL |
| BEARING QUANTITY | 1 |
| BORE TYPE | STRAIGHT |

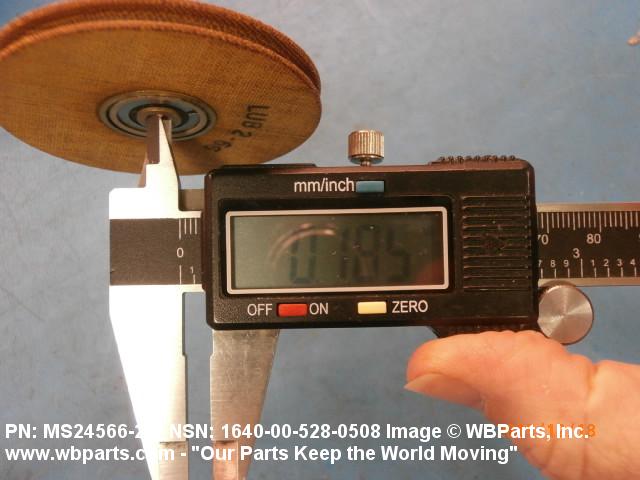

| BORE DIAMETER | 0.189 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| BORE LENGTH | 0.292 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| PROTRUDING HUB CHARACTERISTIC | STEPPED |
| FIRST STEP FACE LARGEST DIAMETER AND LOCATION | 1.031 INCHES NOMINAL BOTH ENDS |
| FIRST STEP LENGTH AND LOCATION | 0.022 INCHES NOMINAL BOTH ENDS |
| SECOND STEP LENGTH AND LOCATION | 0.005 INCHES NOMINAL BOTH ENDS |
| HUB END OUTSIDE DIAMETER AND LOCATION | 0.375 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.027 INCHES NOMINAL BOTH ENDS |
| SPLIT HUB FEATURE | NOT INCLUDED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILP7034 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24566-2B |
