Product Details | GROOVE PULLEY

1640-00-517-1330 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.

Part Alternates: 005171330

Aircraft Components and Accessories | Aircraft Control Cable Products

Supply Group (FSG) NSN Assign. NIIN
16 00-517-1330

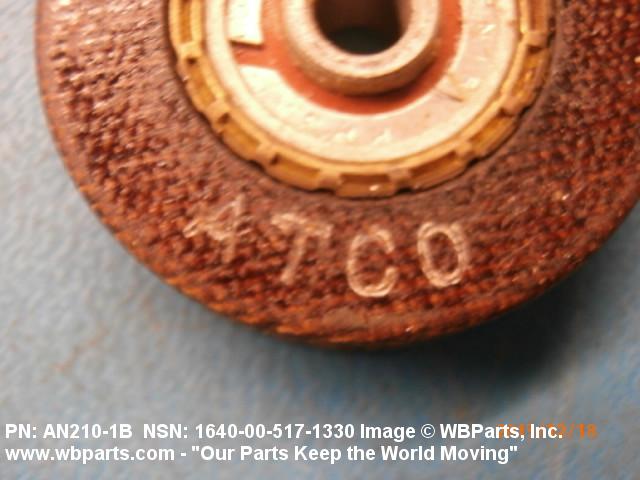

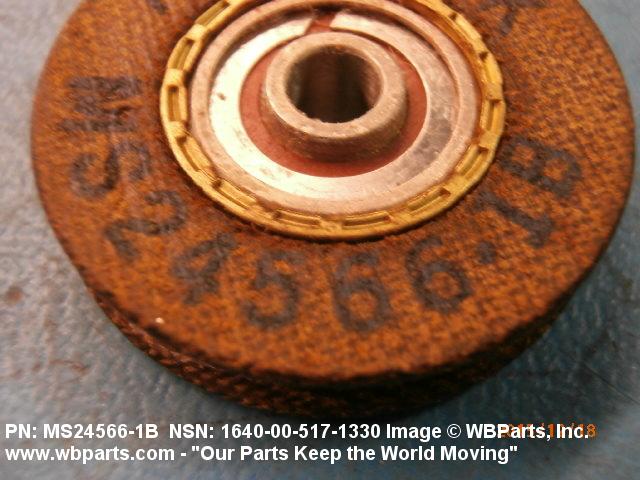

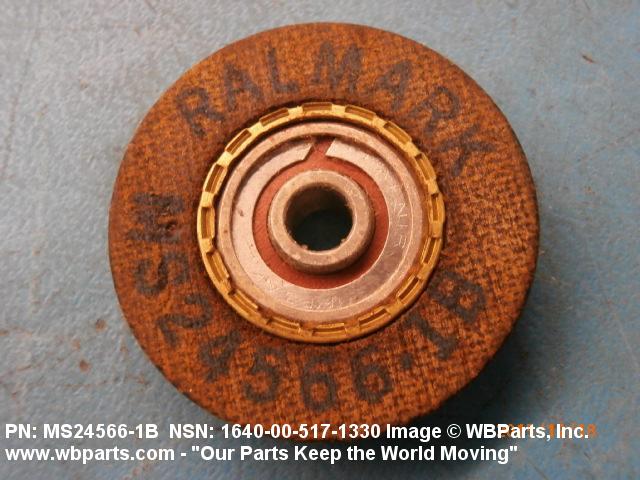

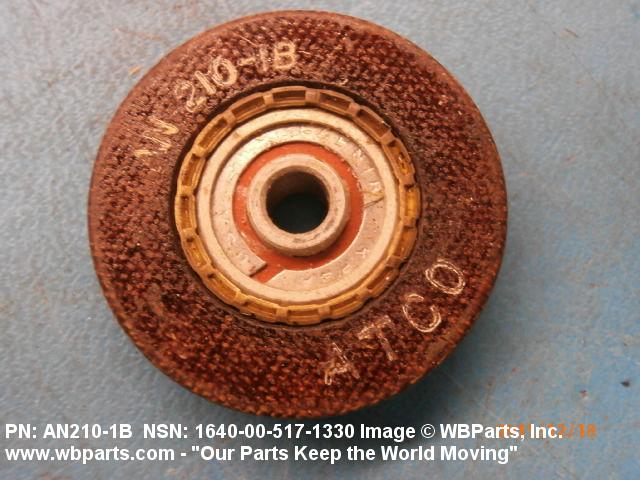

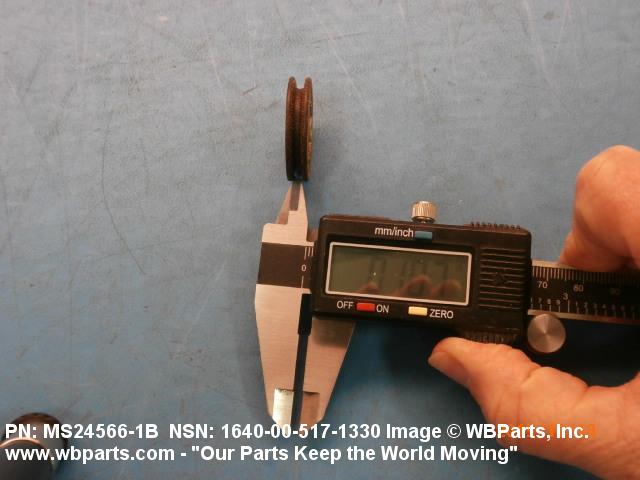

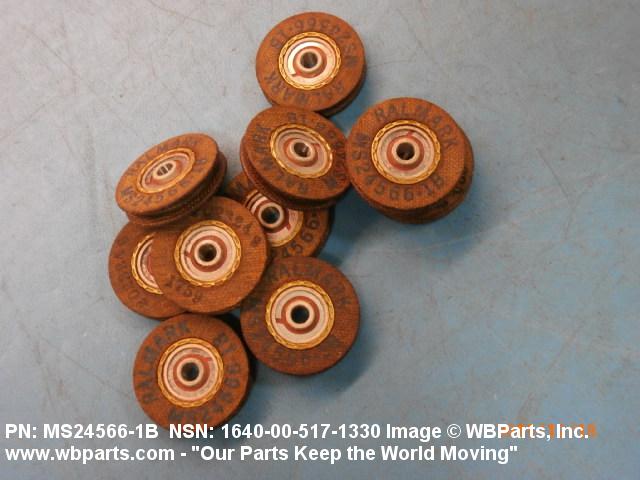

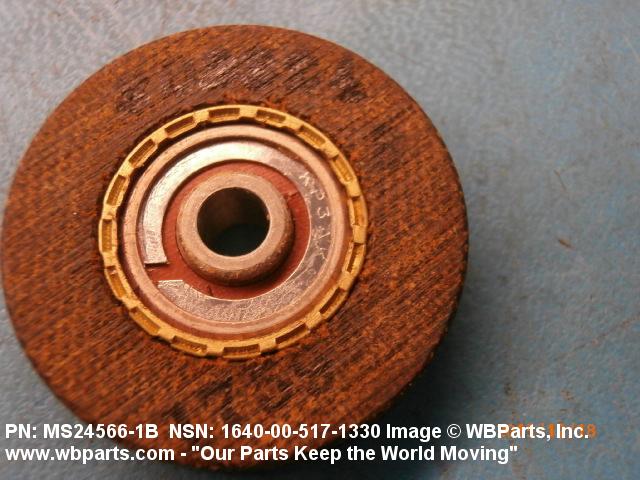

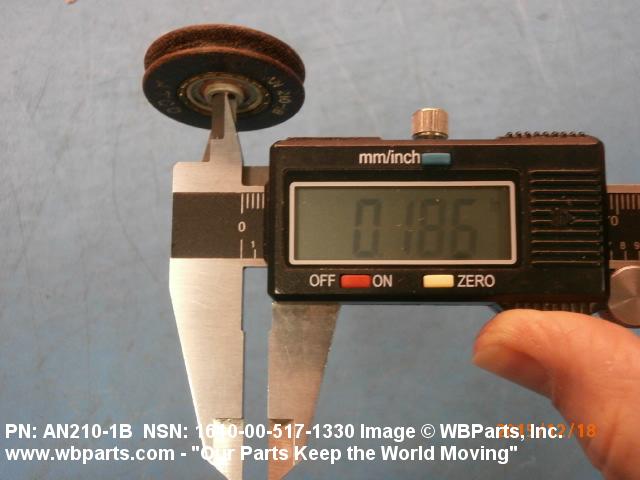

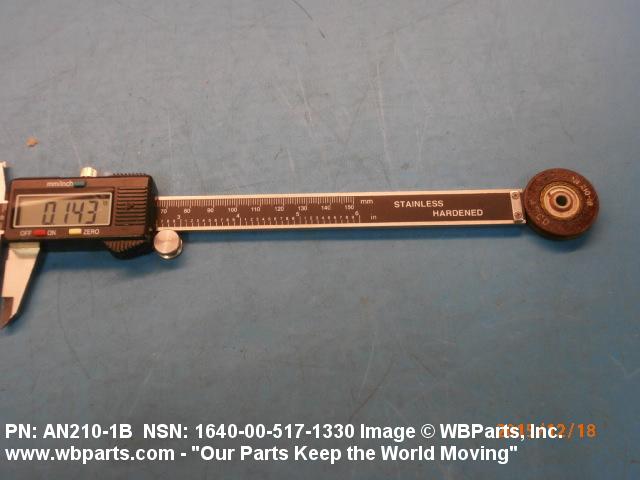

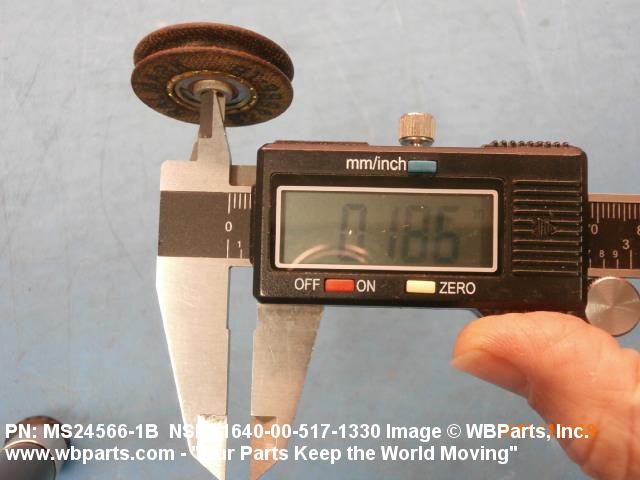

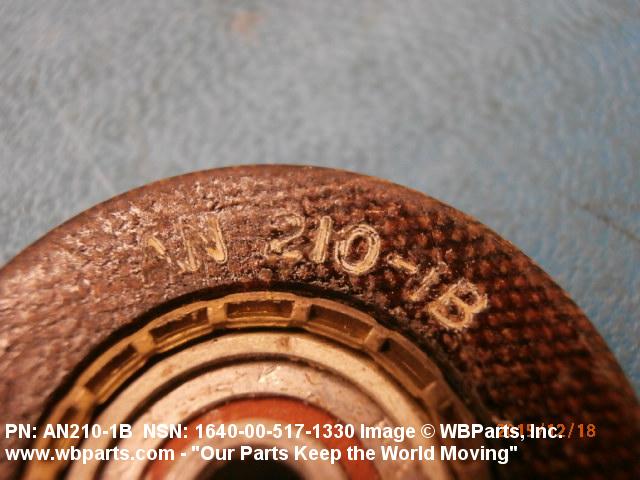

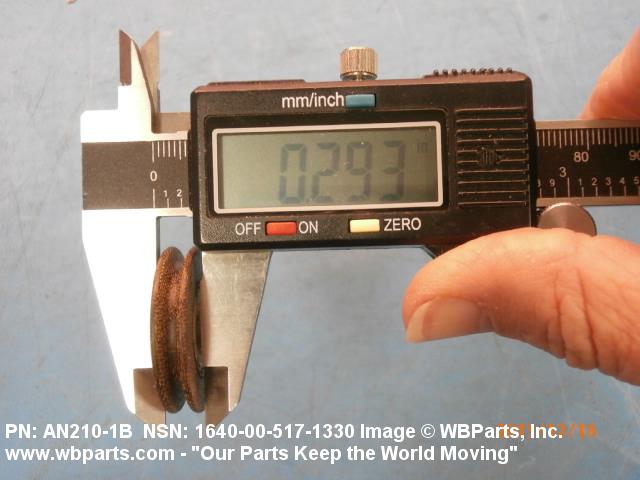

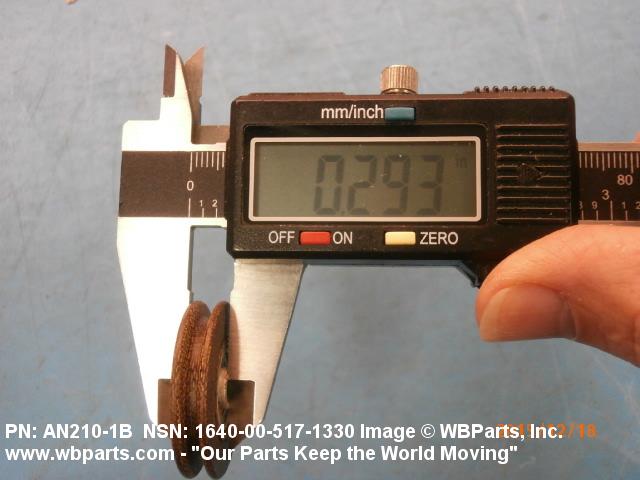

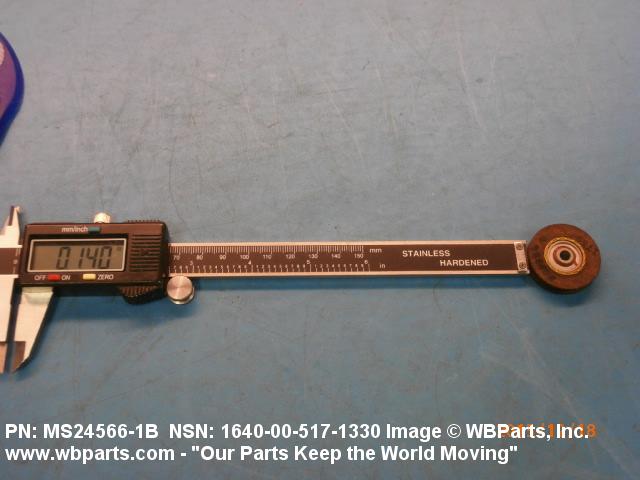

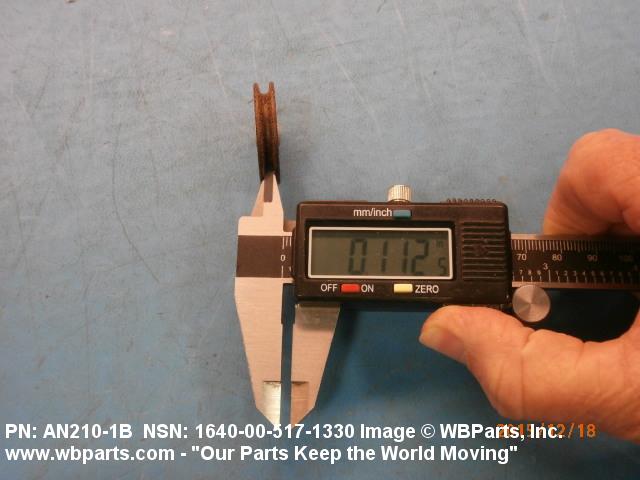

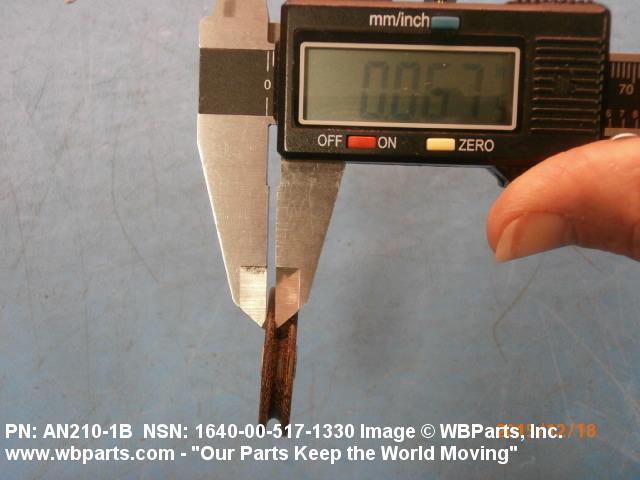

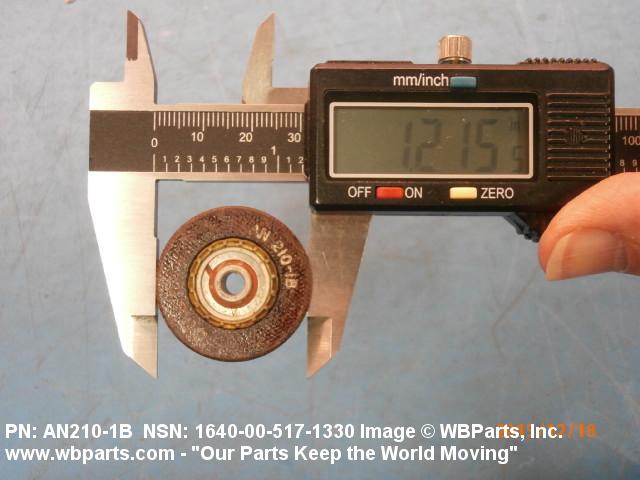

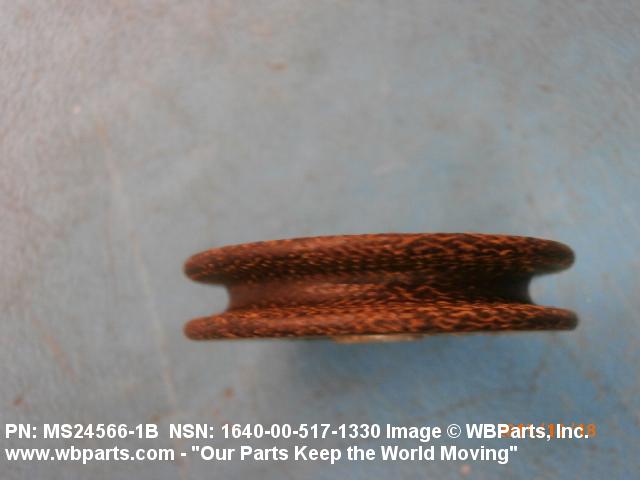

Drawings & Photos | NSN 1640-00-517-1330


Demand History | NSN 1640-00-517-1330

Part Number Request Date QTY Origin
AN2101A 2024-07-194 150 United States
MS245661B 2024-07-193 150 United States
MS245661B 2023-12-352 302 United States
MS245661B 2023-12-348 302 United States
MS245661B 2023-11-314 302 us
MS245661B 2023-09-261 7 United States
MS245661B 2023-07-202 2 US
MS245661B 2023-02-48 5 US
MS245661B 2022-07-207 352 United States
MS245661B 2022-07-188 500 United States
MS245661B 2022-06-160 4 US
MS245661B 2022-01-28 100 US
MS245661B 2021-04-97 15 United States
MS245661B 2020-12-345 100 United States
MS245661B 2020-12-345 200 United States
AN210-1B 2018-11-324 2
MS245661B 2018-02-57 50 United States
MS245661B 2017-05-124 2 US
MS245661B 2017-05-124 100 US
MS245661B 2015-12-344 200 United States
MS245661B 2013-01-15 26 Switzerland
1640005171330 2012-01-30 2 AE
AN2101A 2010-12-336 6 US
MS245661B 2010-12-336 6 US
1640-00-517-1330 2010-09-255 50 US
1640-00-517-1330 2009-04-95 10 US
1640-00-517-1330 2008-12-352 180 United States
AN2101B 2008-10-294 15 France
1640-00-517-1330 2008-04-121 216 DIBBS
MS245661B 2007-12-337 500 us
AN2101B 2007-05-123 107 India
AN2101A 2006-05-151 90 United States

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1640-00-517-1330

Technical Data | NSN 1640-00-517-1330

Characteristic Specifications
STYLE DESIGNATOR A3 PLAIN

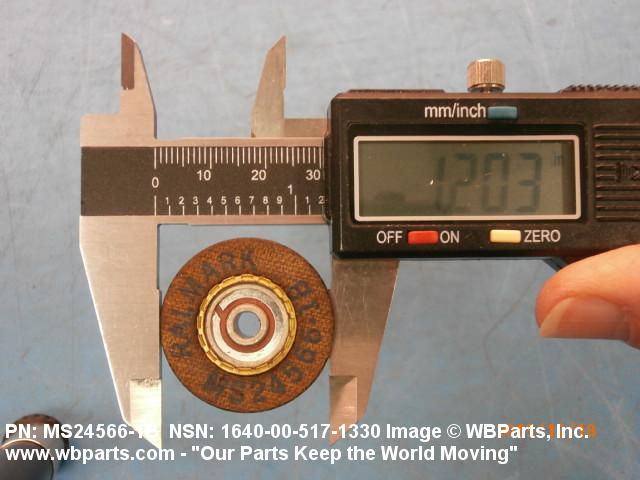

OUTSIDE DIAMETER 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM

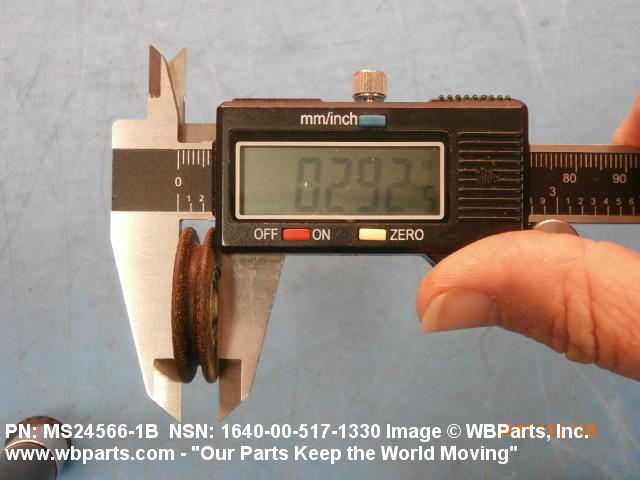

OVERALL LENGTH 0.292 INCHES MINIMUM AND 0.297 INCHES MAXIMUM
PITCH DIAMETER ANY ACCEPTABLE
FACE WIDTH 0.240 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
HUB END OUTSIDE DIAMETER AND LOCATION 0.624 INCHES MINIMUM BOTH ENDS AND 0.625 INCHES MAXIMUM BOTH ENDS
DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION 0.023 INCHES NOMINAL BOTH ENDS
DESIGN FORM PLAIN
WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE NOT OFFSET
LIGHTENING HOLE NOT INCLUDED
INTEGRAL COOLING VANE NOT INCLUDED
MATERIAL AND LOCATION PLASTIC, PHENOLIC OVERALL
GROOVE SHAPE U
GROOVE QUANTITY 1
GROOVE DEPTH 0.139 INCHES MINIMUM AND 0.140 INCHES MAXIMUM
GROOVE WIDTH 0.300 INCHES NOMINAL
GROOVE RADIUS 0.052 INCHES MINIMUM AND 0.055 INCHES MAXIMUM
BORE FEATURE INCLUDED
BEARINGS INCLUDED
BEARING TYPE BALL
BEARING QUANTITY 1
BORE TYPE STRAIGHT
BORE DIAMETER 0.189 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
BORE LENGTH 0.296 INCHES MINIMUM AND 0.297 INCHES MAXIMUM
COUNTERBORE FEATURE NOT INCLUDED
KEYING FACILITY NOT INCLUDED
SPLIT HUB FEATURE NOT INCLUDED
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS24566-1B
