NSN 1640-00-288-3411 002883411
Product Details | GROOVE PULLEY

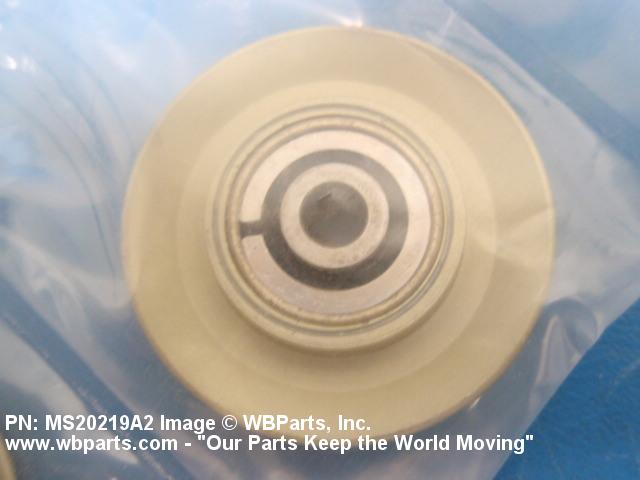

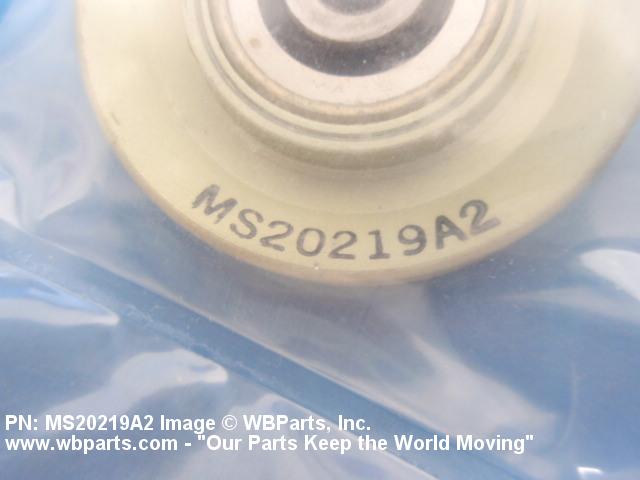

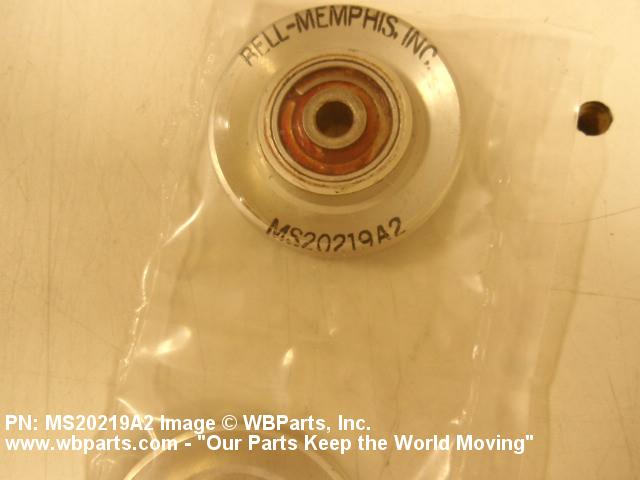

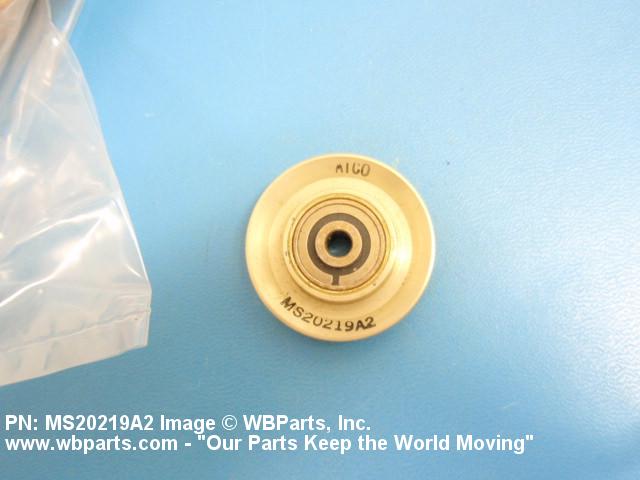

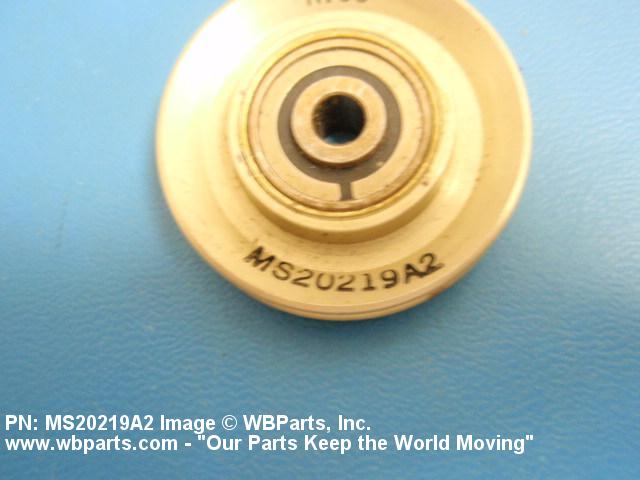

1640-00-288-3411 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 002883411
Aircraft Components and Accessories | Aircraft Control Cable Products
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
16 | 00-288-3411 | 08109 ( PULLEY, GROOVE ) |
Demand History | NSN 1640-00-288-3411
Part Number | Request Date | QTY | Origin |
---|---|---|---|
NAS3762 | 2014-10-303 | 4 | United States |
MS20219A2 | 2012-11-310 | 19 | |
MS20219A2 | 2012-01-27 | 10 | US |
1640-00-288-3411 | 2011-10-277 | 100 | FR |
NAS3762 | 2010-03-88 | 100 | United States |
MS20219A2 | 2009-11-334 | 120 | United States |
MS20219A2 | 2009-10-278 | 3 | United Kingdom |
MS20219A2 | 2009-08-238 | 2 | Sri Lanka |
MS20219A2 | 2009-07-187 | 80 | United States |
1640-00-288-3411 | 2009-04-104 | 40 | United States |
MS20219A2 | 2006-04-100 | 12 | us |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 1640-00-288-3411
Related Products | NSN 1640-00-288-3411
Technical Data | NSN 1640-00-288-3411
Characteristic | Specifications |
---|---|
STYLE DESIGNATOR | A3 PLAIN |
OUTSIDE DIAMETER | 1.745 INCHES MINIMUM AND 1.755 INCHES MAXIMUM |
OVERALL LENGTH | 0.433 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
FACE WIDTH | 0.310 INCHES MAXIMUM |
HUB END OUTSIDE DIAMETER AND LOCATION | 0.423 INCHES NOMINAL BOTH ENDS |
DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.064 INCHES NOMINAL BOTH ENDS |
DESIGN FORM | PLAIN |
LIGHTENING HOLE | NOT INCLUDED |
INTEGRAL COOLING VANE | NOT INCLUDED |
MATERIAL AND LOCATION | ALUMINUM ALLOY,QQ-A-268 OR 355,T4,OVERALL |
GROOVE SHAPE | U |
GROOVE QUANTITY | 1 |
GROOVE DEPTH | 0.156 INCHES NOMINAL |
GROOVE WIDTH | 0.150 INCHES NOMINAL |
GROOVE RADIUS | 0.047 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
BORE FEATURE | INCLUDED |
BEARINGS | INCLUDED |
BEARING TYPE | BALL |
BEARING QUANTITY | 1 |
BORE TYPE | STRAIGHT |
BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
BORE LENGTH | 0.433 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
COUNTERBORE FEATURE | NOT INCLUDED |
KEYING FACILITY | NOT INCLUDED |
SPLIT HUB FEATURE | NOT INCLUDED |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILP7034 |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20219A2 |
Restrictions/Controls & Freight Information | NSN 1640-00-288-3411
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
