NSN 1640-00-069-4931 000694931
Product Details | ROD END CONNECTOR

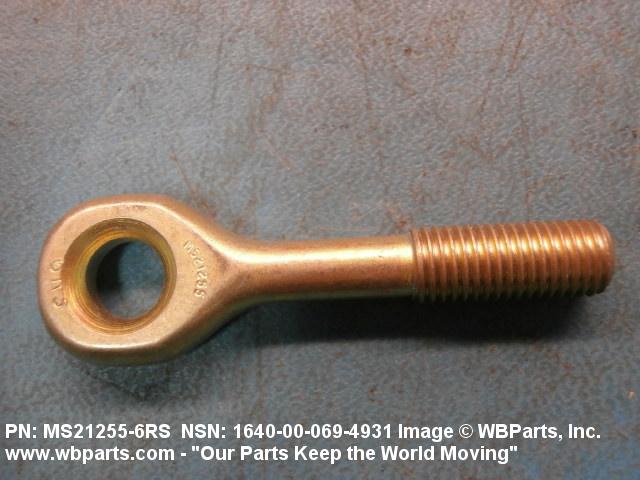

1640-00-069-4931 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Part Alternates: 000694931
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-069-4931 | 03439 ( CONNECTOR, ROD END ) |

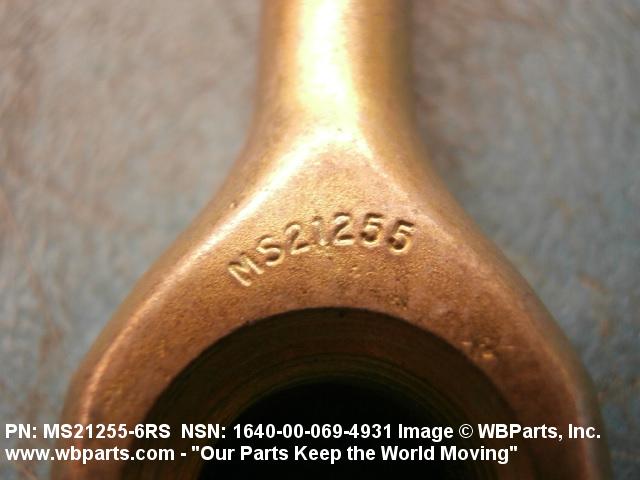

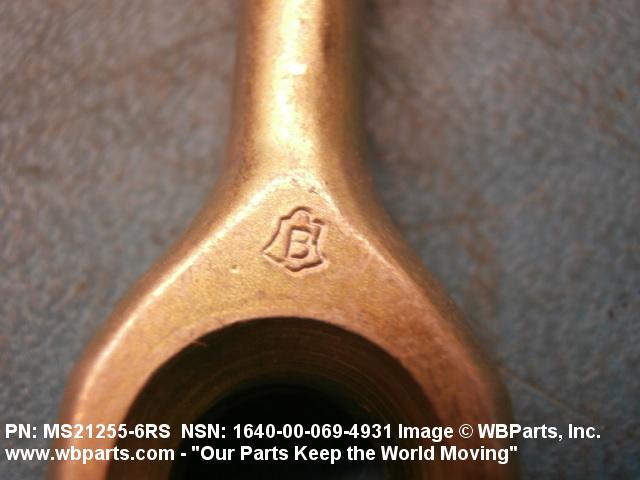

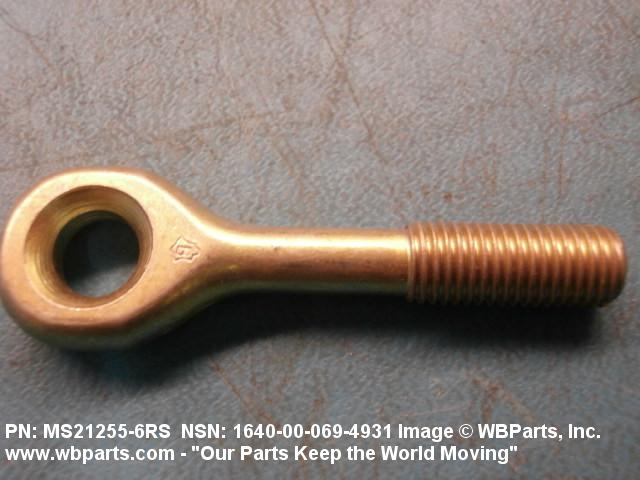

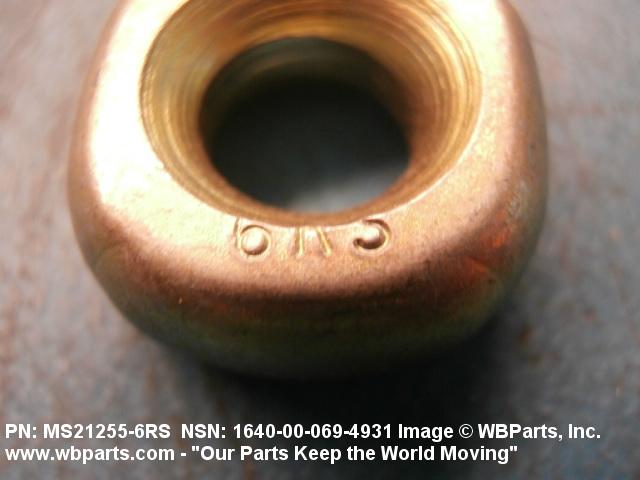

Drawings & Photos | NSN 1640-00-069-4931
Demand History | NSN 1640-00-069-4931
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS212556RS | 2019-02-36 | 55 | United States |
| 1640-00-069-4931 | 2016-10-301 | 250 | United States |
| MS212556RS | 2016-10-291 | 250 | United States |
| MS212556RS | 2014-09-259 | 35 | United States |
| 1640-00-069-4931 | 2009-02-55 | 22 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-069-4931
Technical Data | NSN 1640-00-069-4931
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8630 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |

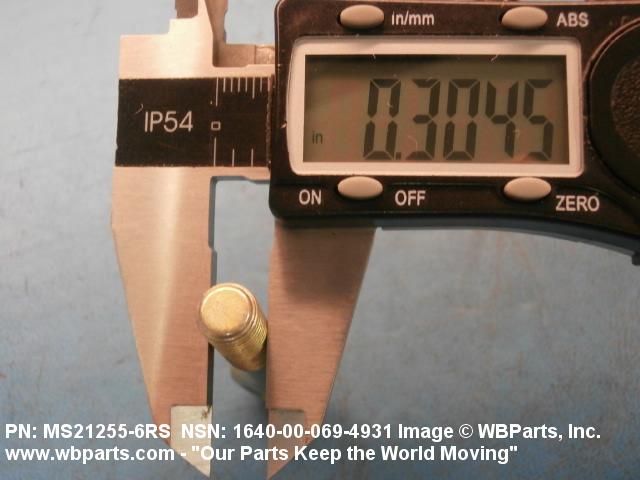

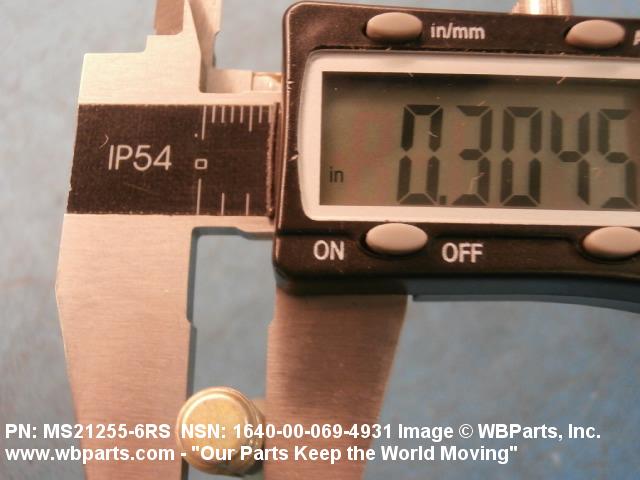

| NOMINAL THREAD SIZE | 0.312 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |

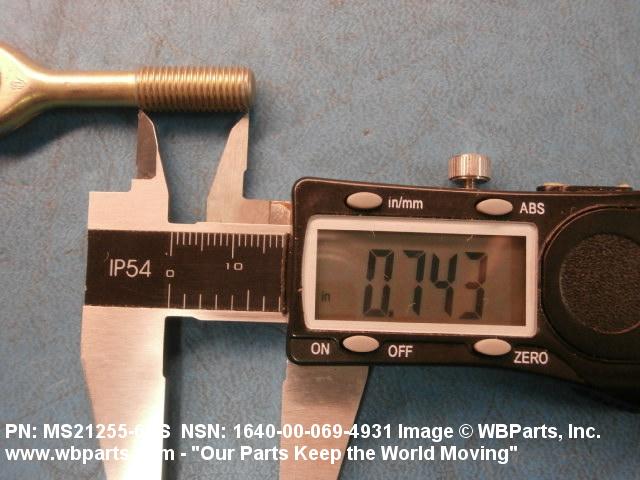

| THREAD LENGTH | 0.703 INCHES MINIMUM AND 0.797 INCHES MAXIMUM ROD CONNECTION |
| STYLE DESIGNATOR | 71 CONNECTOR |
| RADIUS | 0.344 INCHES NOMINAL |

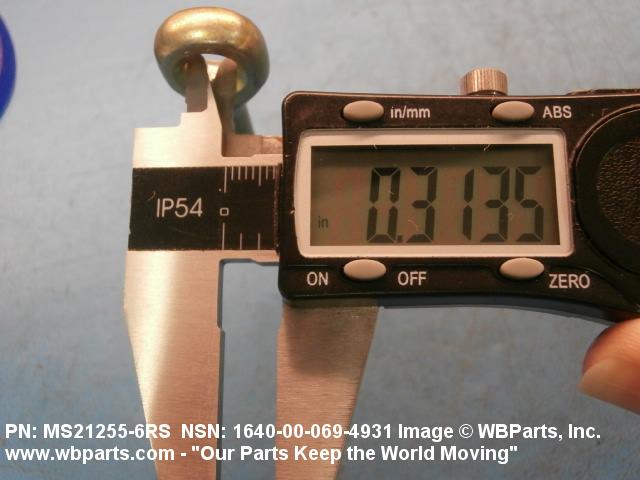

| SHANK OUTSIDE DIAMETER | 0.312 INCHES NOMINAL |

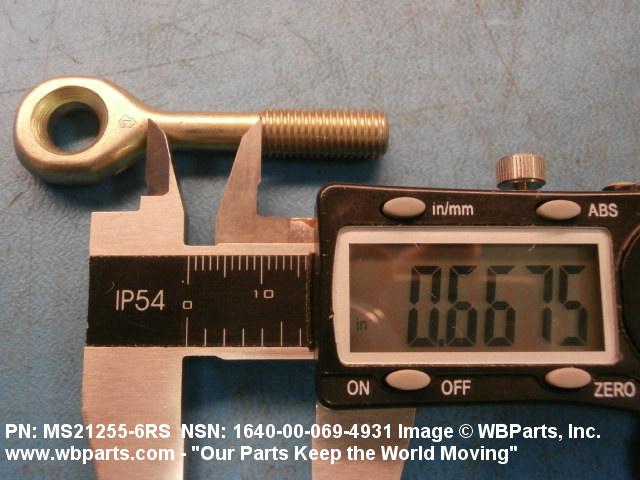

| TONGUE WIDTH | 0.688 INCHES NOMINAL |

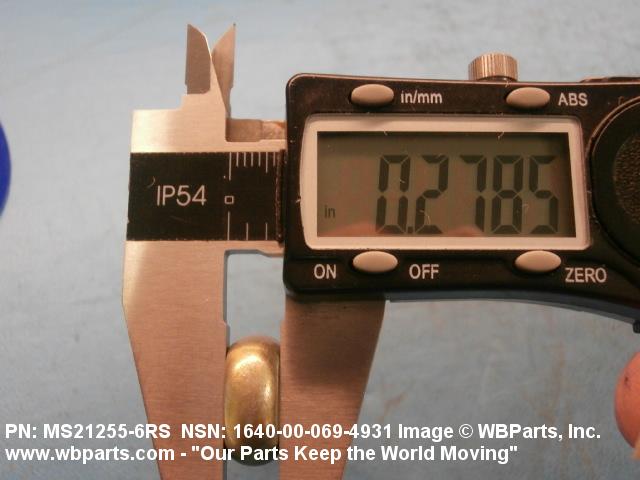

| TONGUE THICKNESS | 0.276 INCHES MINIMUM AND 0.286 INCHES MAXIMUM |

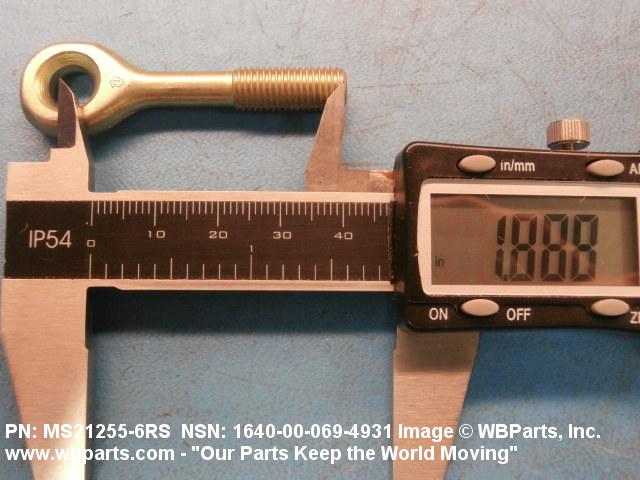

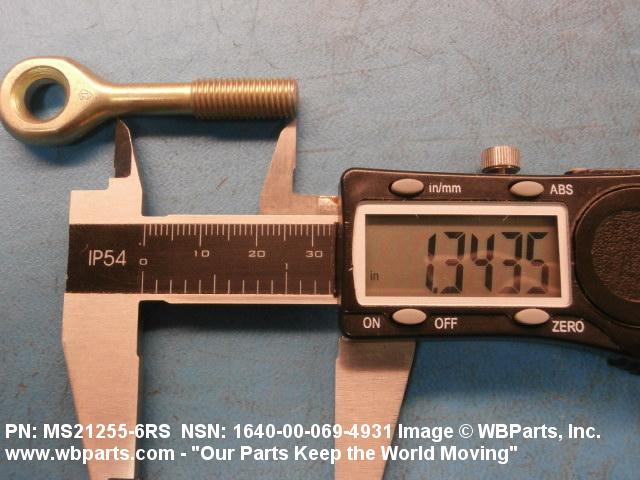

| SHANK OVERALL LENGTH | 1.348 INCHES NOMINAL |
| DISTANCE FROM END TO HOLE CENTER | 1.860 INCHES MINIMUM AND 1.906 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21255-6RS |
