NSN 1640-00-069-0598 000690598
Product Details | ROD END CONNECTOR
1640-00-069-0598 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Part Alternates: 000690598
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-069-0598 | 03439 ( CONNECTOR, ROD END ) |

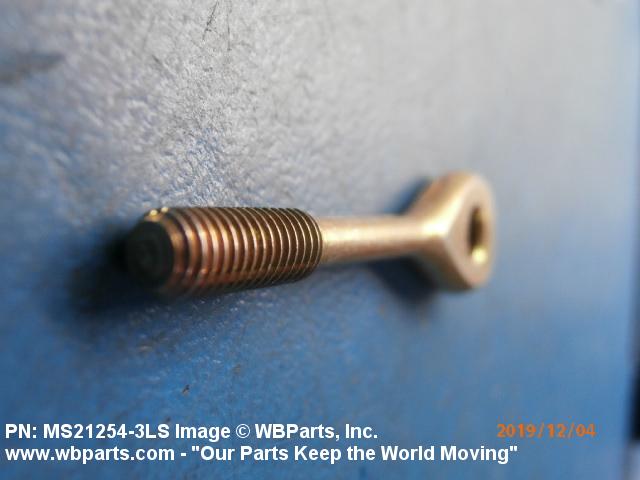

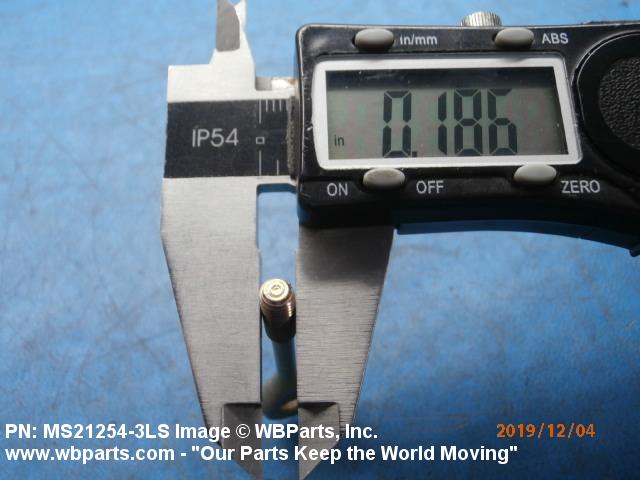

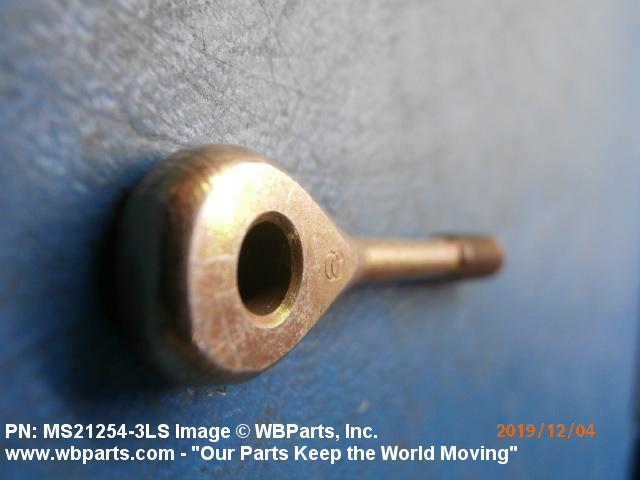

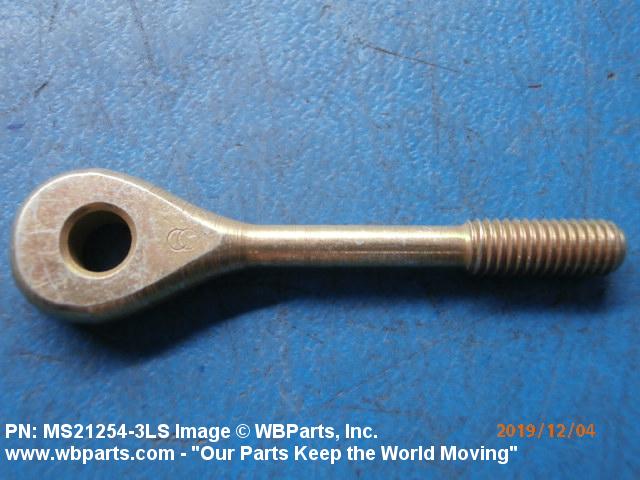

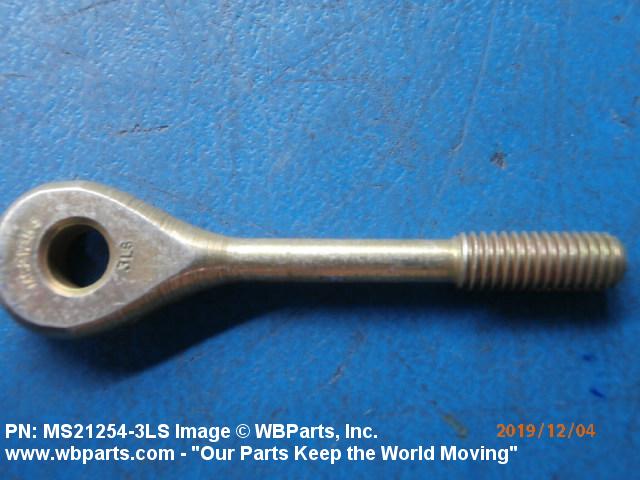

Drawings & Photos | NSN 1640-00-069-0598
Demand History | NSN 1640-00-069-0598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS212543LS | 2019-11-329 | 50 | Brazil |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-069-0598
Technical Data | NSN 1640-00-069-0598
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8630 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.190 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | LEFT-HAND ROD CONNECTION |

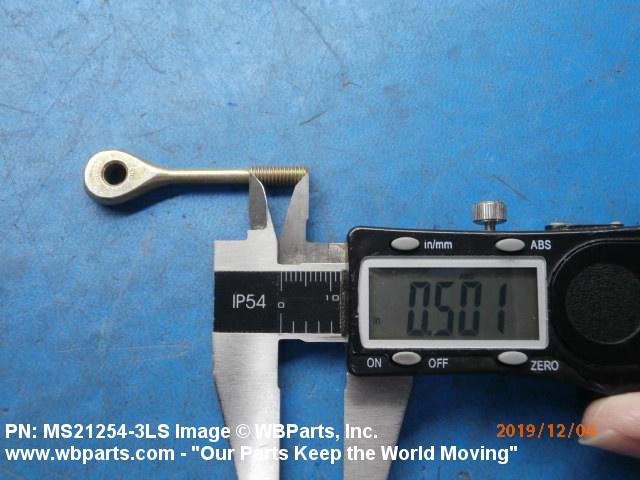

| THREAD LENGTH | 0.453 INCHES MINIMUM AND 0.547 INCHES MAXIMUM ROD CONNECTION |
| STYLE DESIGNATOR | 71 CONNECTOR |
| RADIUS | 0.250 INCHES NOMINAL |

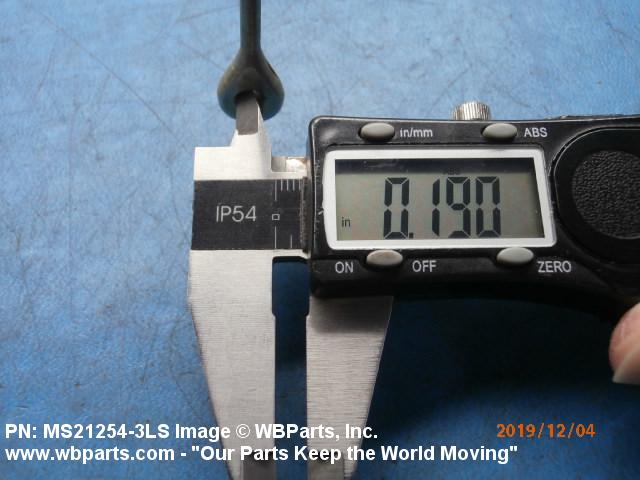

| SHANK OUTSIDE DIAMETER | 0.190 INCHES NOMINAL |

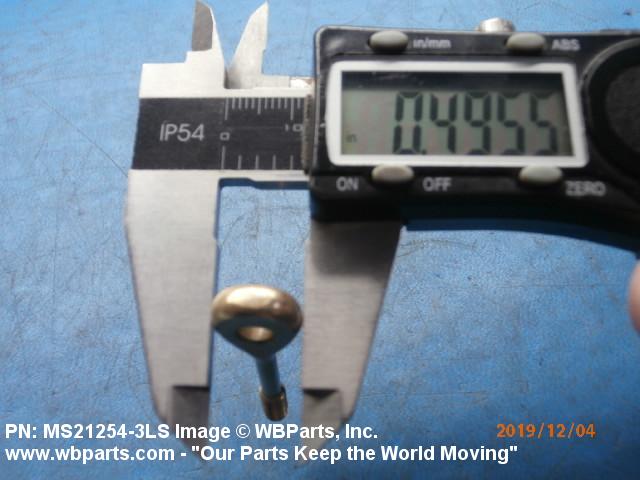

| TONGUE WIDTH | 0.500 INCHES NOMINAL |

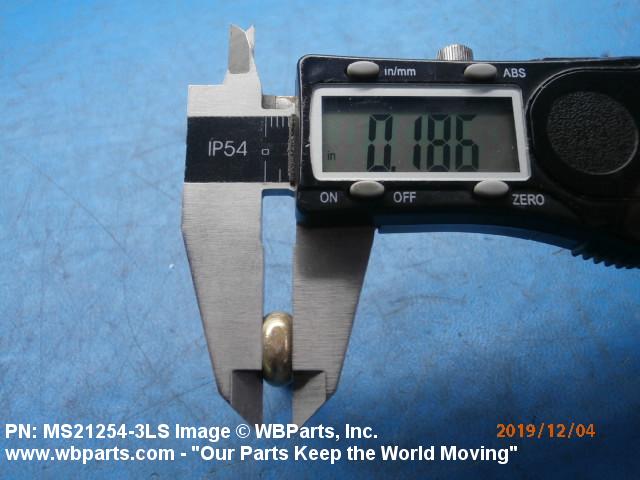

| TONGUE THICKNESS | 0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |

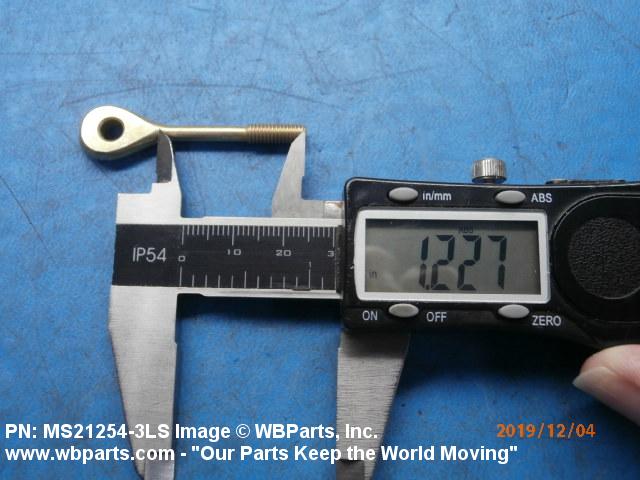

| SHANK OVERALL LENGTH | 1.209 INCHES NOMINAL |

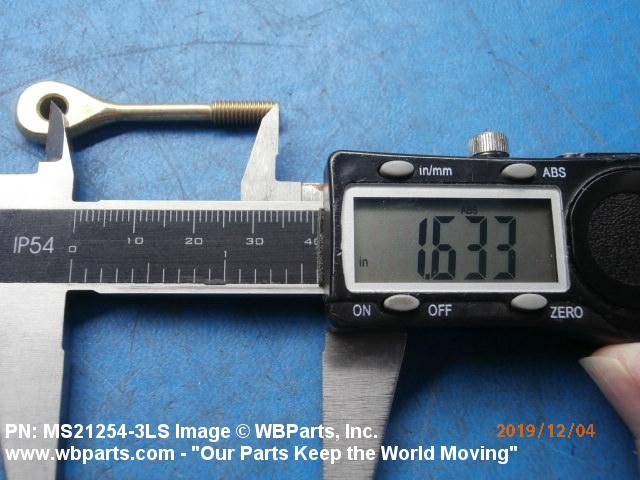

| DISTANCE FROM END TO HOLE CENTER | 1.610 INCHES MINIMUM AND 1.656 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |

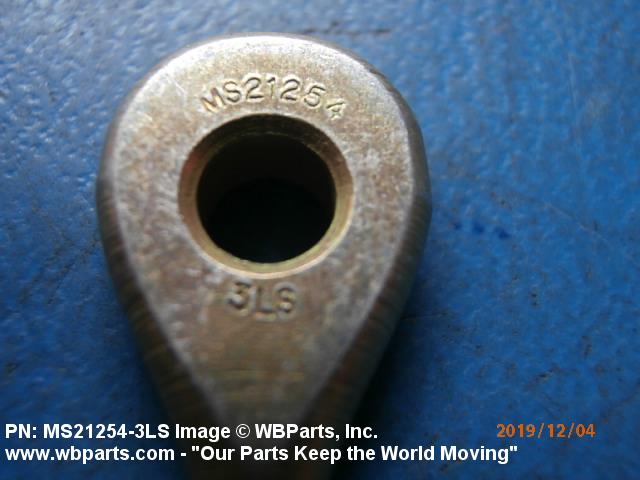

| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21254-3LS |
Restrictions/Controls & Freight Information | NSN 1640-00-069-0598
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
