NSN 1560-01-529-3868 206031329103, 206-031-329-103, 206031329103S
Product Details | AIRCRAFT STRUCTURAL COMPONENT SUPPORT
1560-01-529-3868 A device of various shapes to be permanently attached to the structure of an aircraft. It is designed to permanently mount and/or support an integral member, or group of members of the airframe in a proper position and bear the stress imposed by the components being supported. It may have mounting provisions, such as slots, holes, and/or attachments to facilitate installation. Excludes items which are primarily designed for dampening shock and/or vibration. Excludes BRACKET, ANGLE; BRACKET, DOUBLE ANGLE; BRACKET, SHELF; BRACKET, MOUNTING; BRACKET (1), STRUCTURAL COMPONENT, AIRCRAFT; and RADIUS BLOCK.
Part Alternates: 206031329103, 206-031-329-103, 206031329103S, 206-031-329-103S , 1560-01-529-3868, 01-529-3868, 1560015293868, 015293868
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 14 APR 2005 | 01-529-3868 | 32243 ( SUPPORT, STRUCTURAL COMPONENT, AIRCRAFT ) |

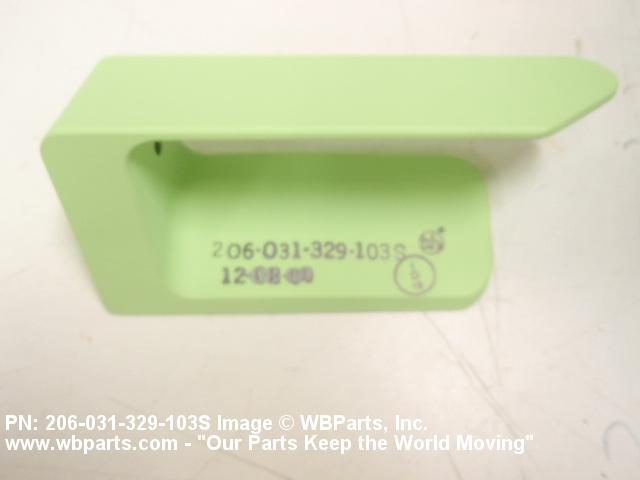

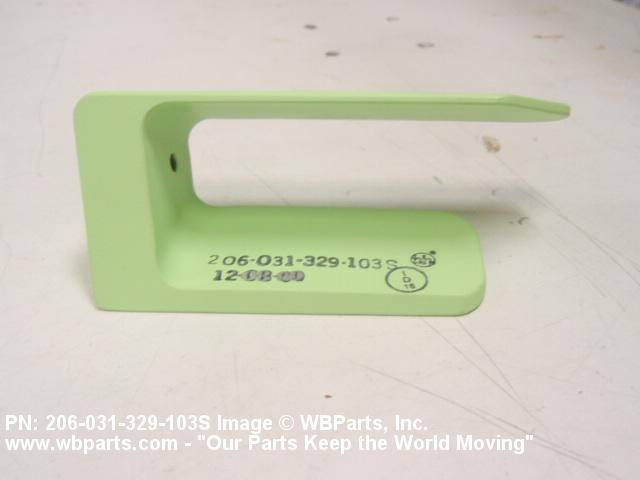

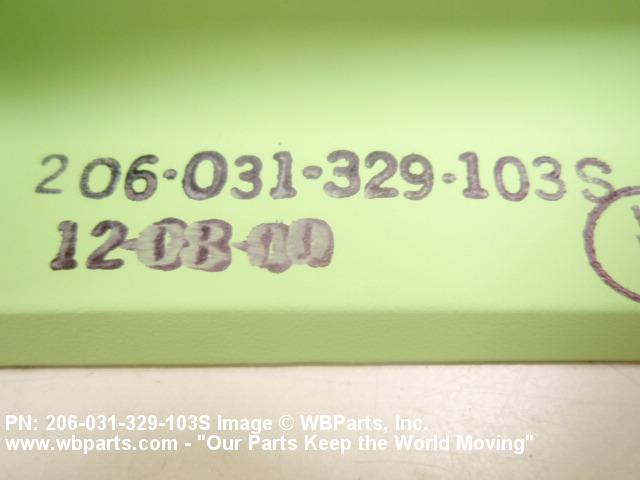

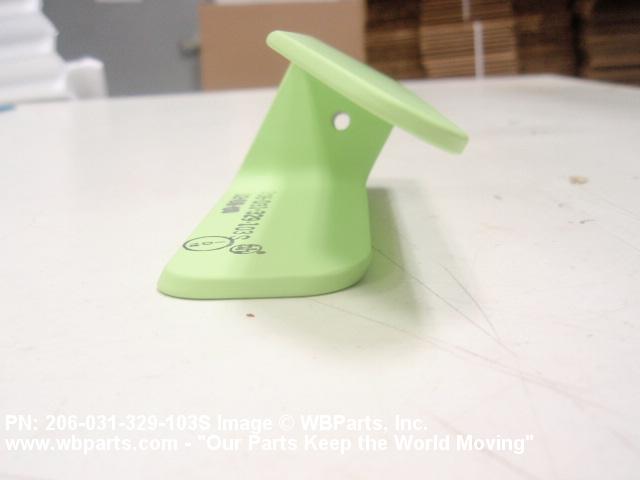

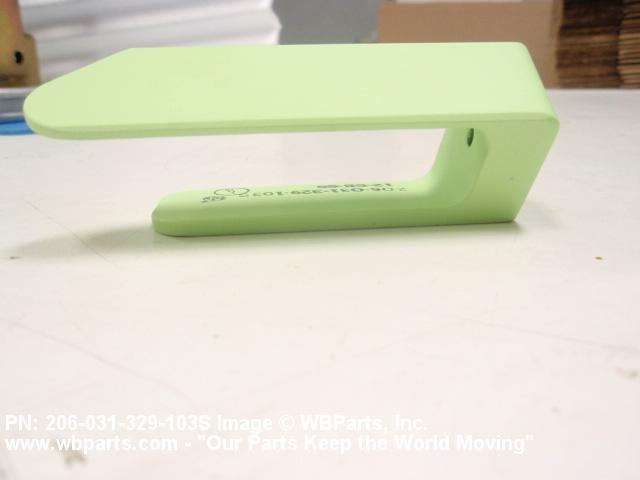

Drawings & Photos | NSN 1560-01-529-3868
Demand History | NSN 1560-01-529-3868
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 206-031-329-103 | 2024-08-219 | 1 | DIBBS |
| 206-031-329-103S | 2024-08-219 | 1 | DIBBS |
| 206031329103S | 2024-01-11 | 1 | New Zealand |
| 206031329103S | 2023-11-306 | 1 | ZA |
| 206031329103S | 2023-10-303 | 1 | ZA |
| 1560-01-529-3868 | 2023-01-06 | 1 | CO |
| 1560-01-529-3868 | 2021-10-281 | 1 | US |
| 206031329103S | 2015-08-224 | 1 | US |
| 1560-01-529-3868 | 2015-08-215 | 1 | CO |
| 206031329103S | 2015-02-47 | 1 | US |
| 206031329103 | 2013-10-283 | 1 | NZ |
| 1560-01-529-3868 | 2013-05-148 | 30 | DIBBS |
| 1560-01-529-3868 | 2013-02-51 | 18 | DIBBS |
| 1560-01-529-3868 | 2013-02-36 | 18 | DIBBS |
| 1560-01-529-3868 | 2012-11-316 | 21 | DIBBS |
| 1560-01-529-3868 | 2012-09-249 | 12 | DIBBS |
| 1560-01-529-3868 | 2012-08-216 | 14 | DIBBS |
| 1560-01-529-3868 | 2012-06-159 | 12 | DIBBS |
| 1560-01-529-3868 | 2012-05-131 | 5 | DIBBS |
| 1560-01-529-3868 | 2012-04-114 | 21 | DIBBS |
| 1560-01-529-3868 | 2012-04-97 | 7 | DIBBS |
| 1560-01-529-3868 | 2012-03-80 | 11 | DIBBS |
| 1560-01-529-3868 | 2012-01-19 | 10 | DIBBS |
| 1560-01-529-3868 | 2011-11-306 | 1 | us |
| 1560-01-529-3868 | 2011-09-250 | 15 | DIBBS |
| 1560-01-529-3868 | 2010-06-162 | 8 | DIBBS |
| 1560-01-529-3868 | 2010-06-160 | 20 | DIBBS |
| 206031329103S | 2010-05-132 | 1 | United States |
| 1560-01-529-3868 | 2010-04-103 | 3 | DIBBS |
| 1560-01-529-3868 | 2010-01-25 | 10 | DIBBS |
| 1560-01-529-3868 | 2010-01-22 | 10 | DIBBS |
| 1560-01-529-3868 | 2010-01-19 | 2 | US |
| 1560-01-529-3868 | 2010-01-19 | 1 | DIBBS |
| 1560-01-529-3868 | 2010-01-14 | 10 | DIBBS |
| 1560-01-529-3868 | 2009-10-296 | 1 | DIBBS |
| 1560-01-529-3868 | 2009-09-260 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-529-3868
Related Products | NSN 1560-01-529-3868
Technical Data | NSN 1560-01-529-3868
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | OH-58A/C NSN 1520-00-169-7137 |
Restrictions/Controls & Freight Information | NSN 1560-01-529-3868
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-529-3868
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
