NSN 1560-01-257-6257 128CSM101031, 128CSM10103-1, 01-257-6257
Product Details | AIRCRAFT STRUCTURAL COMPONENT SUPPORT
1560-01-257-6257 A device of various shapes to be permanently attached to the structure of an aircraft. It is designed to permanently mount and/or support an integral member, or group of members of the airframe in a proper position and bear the stress imposed by the components being supported. It may have mounting provisions, such as slots, holes, and/or attachments to facilitate installation. Excludes items which are primarily designed for dampening shock and/or vibration. Excludes BRACKET, ANGLE; BRACKET, DOUBLE ANGLE; BRACKET, SHELF; BRACKET, MOUNTING; BRACKET (1), STRUCTURAL COMPONENT, AIRCRAFT; and RADIUS BLOCK.
Part Alternates: 128CSM101031, 128CSM10103-1, 1560-01-257-6257, 01-257-6257, 1560012576257, 012576257
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 21 JUN 1987 | 01-257-6257 | 32243 ( SUPPORT, STRUCTURAL COMPONENT, AIRCRAFT ) |

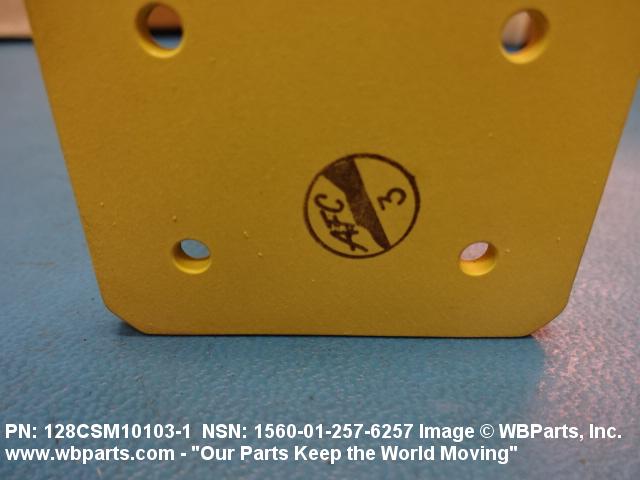

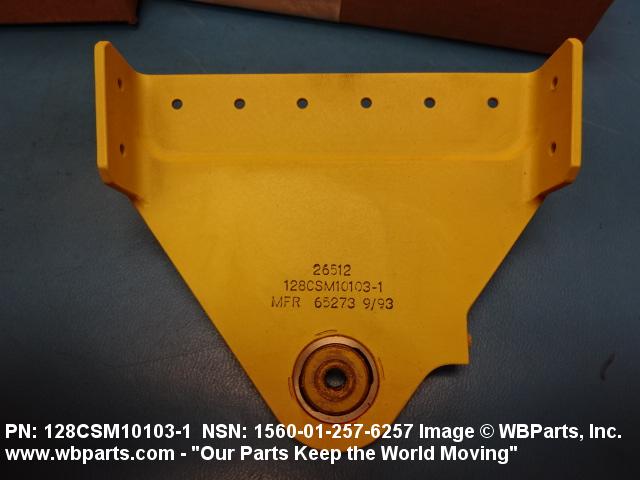

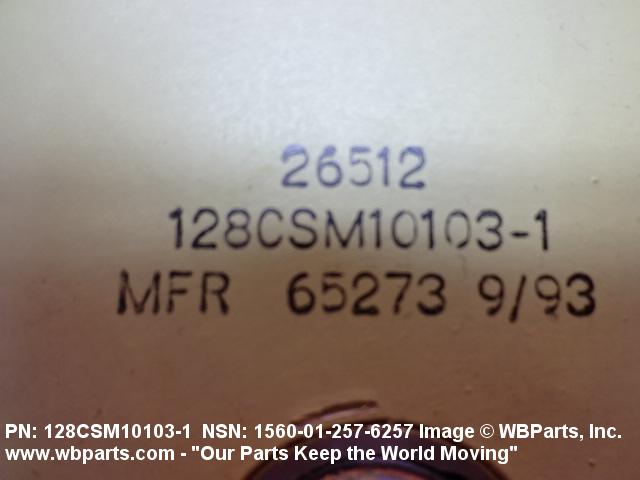

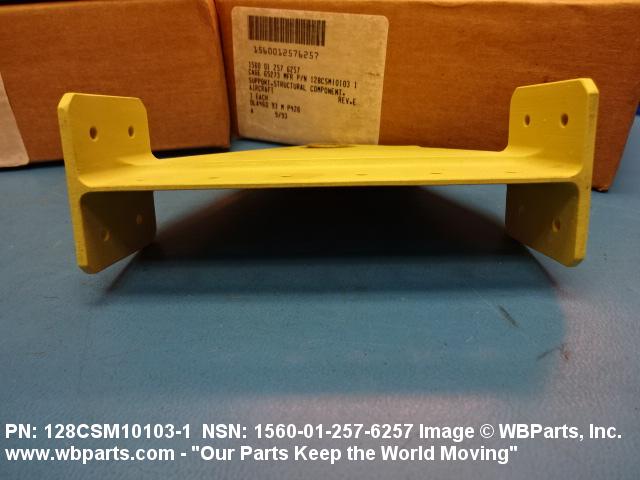

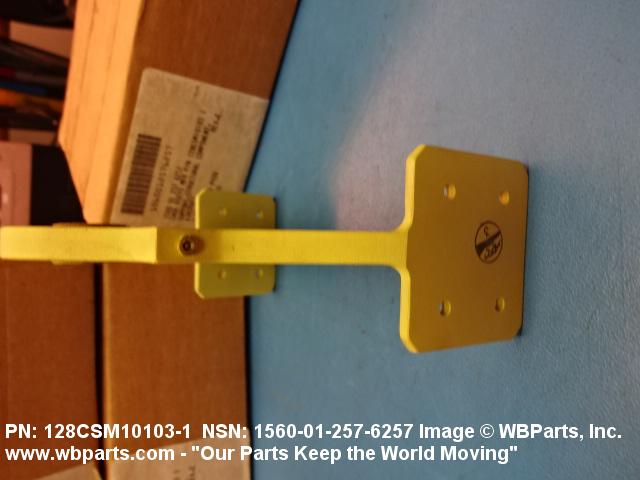

Drawings & Photos | NSN 1560-01-257-6257
Demand History | NSN 1560-01-257-6257
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-257-6257 | 2018-07-211 | 4 | United States |
| 1560-01-257-6257 | 2018-06-164 | 4 | DIBBS |
Cross Reference | NSN 1560-01-257-6257
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128CSM10103-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-257-6257
Technical Data | NSN 1560-01-257-6257
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/11 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/9 FED SPEC SINGLE MATERIAL RESPONSE |
| OVERALL LENGTH | 5.002 INCHES NOMINAL |
| OVERALL WIDTH | 1.800 INCHES NOMINAL |
| HEIGHT | 4.302 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AIRCRAFT MODEL A-6E |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 128CSM10103-1 |
Restrictions/Controls & Freight Information | NSN 1560-01-257-6257
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
