NSN 1560-01-380-3538 114S26332, 114S2633-2, 01-380-3538
Product Details | AIRCRAFT STRUCTURAL COMPONENT SUPPORT
1560-01-380-3538 A device of various shapes to be permanently attached to the structure of an aircraft. It is designed to permanently mount and/or support an integral member, or group of members of the airframe in a proper position and bear the stress imposed by the components being supported. It may have mounting provisions, such as slots, holes, and/or attachments to facilitate installation. Excludes items which are primarily designed for dampening shock and/or vibration. Excludes BRACKET, ANGLE; BRACKET, DOUBLE ANGLE; BRACKET, SHELF; BRACKET, MOUNTING; BRACKET (1), STRUCTURAL COMPONENT, AIRCRAFT; and RADIUS BLOCK.
Part Alternates: 114S26332, 114S2633-2, 1560-01-380-3538, 01-380-3538, 1560013803538, 013803538
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 17 SEP 1993 | 01-380-3538 | 32243 ( SUPPORT, STRUCTURAL COMPONENT, AIRCRAFT ) |

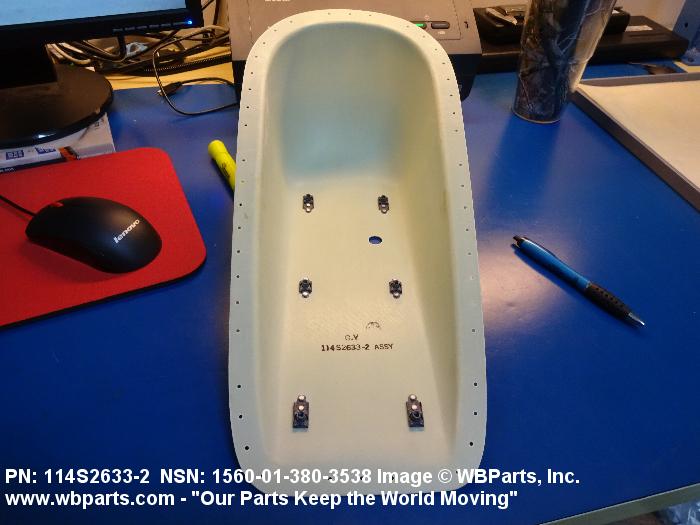

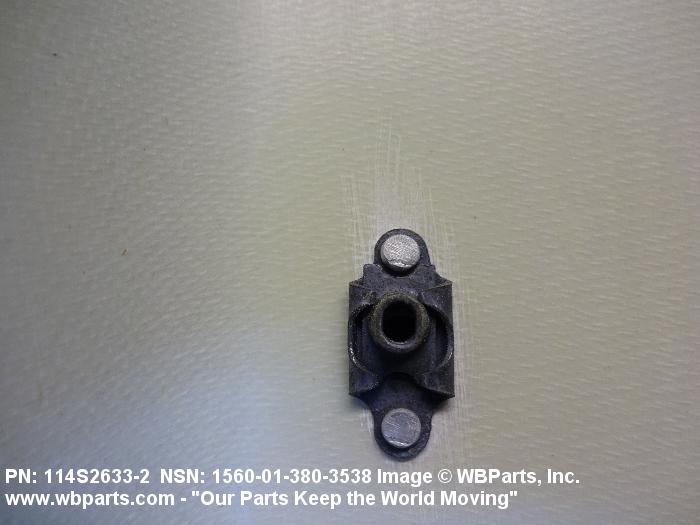

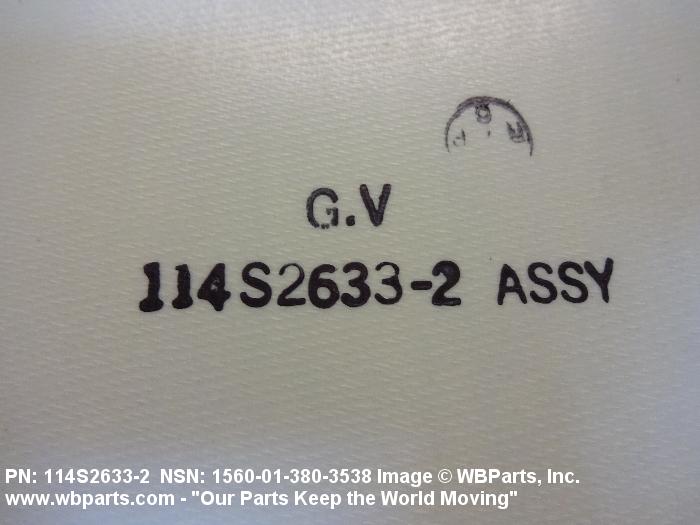

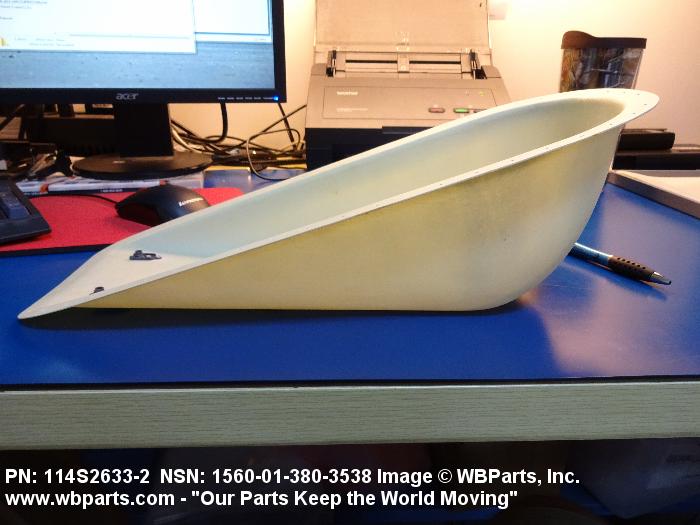

Drawings & Photos | NSN 1560-01-380-3538
Demand History | NSN 1560-01-380-3538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-380-3538 | 2020-11-325 | 1 | US |
| 1560-01-380-3538 | 2017-04-116 | 1 | United States |
Cross Reference | NSN 1560-01-380-3538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114S2633-2 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-380-3538
Restrictions/Controls & Freight Information | NSN 1560-01-380-3538
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
