NSN 1560-01-145-4502 70205-07051-101, 70205-07051-102, 01-145-4502
Product Details | AIRCRAFT TIP

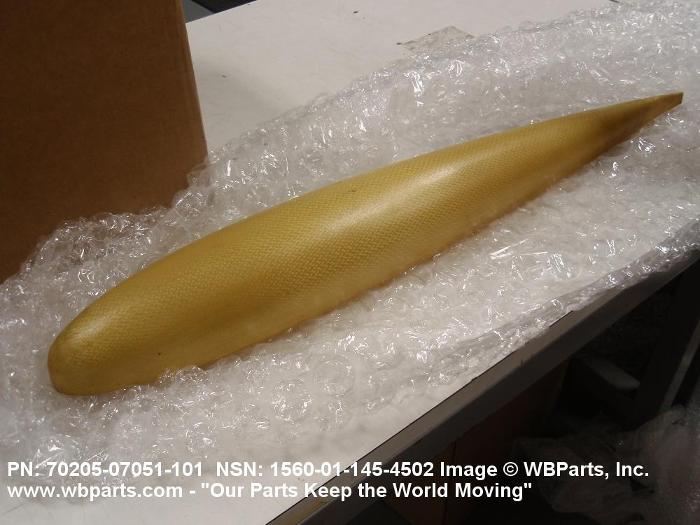

1560-01-145-4502 A chordwise sectional unit at the outer end of a wing, stabilizer, rotor blade or other airfoil for fixed and rotary wing aircraft.
Part Alternates: 70205-07051-101, 70205-07051-102, 1560-01-145-4502, 01-145-4502, 1560011454502, 7020507051101, 7020507051102, 011454502
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 12 JAN 1983 | 01-145-4502 | 41034 ( TIP, AIRCRAFT ) |
Drawings & Photos | NSN 1560-01-145-4502
Demand History | NSN 1560-01-145-4502
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-145-4502 | 2018-11-316 | 3 | DIBBS |
| 1560-01-145-4502 | 2008-12-338 | 1 | United States |
| 7020-50-705-1102 | 2008-08-240 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-145-4502
Related Products | NSN 1560-01-145-4502
Technical Data | NSN 1560-01-145-4502
| Characteristic | Specifications |
|---|---|
| MATERIAL | FIBER SYNTHETIC |
| AIRCRAFT LOCATION | HORIZONTAL STABILIZER TIP CAP |
| SIDE FOR WHICH DESIGNED | BOTH SIDES |
| AIRCRAFT MISSION DESIGN SERIES | UH-60 |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 70205-07051-102 |
Restrictions/Controls & Freight Information | NSN 1560-01-145-4502
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
