NSN 1560-00-477-7007 4T30002101A, 4T30002-101A, 00-477-7007
Product Details | AIRCRAFT TIP
1560-00-477-7007 A chordwise sectional unit at the outer end of a wing, stabilizer, rotor blade or other airfoil for fixed and rotary wing aircraft.
Part Alternates: 4T30002101A, 4T30002-101A, 1560-00-477-7007, 00-477-7007, 1560004777007, 004777007
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 16 MAY 1969 | 00-477-7007 | 41034 ( TIP, AIRCRAFT ) |

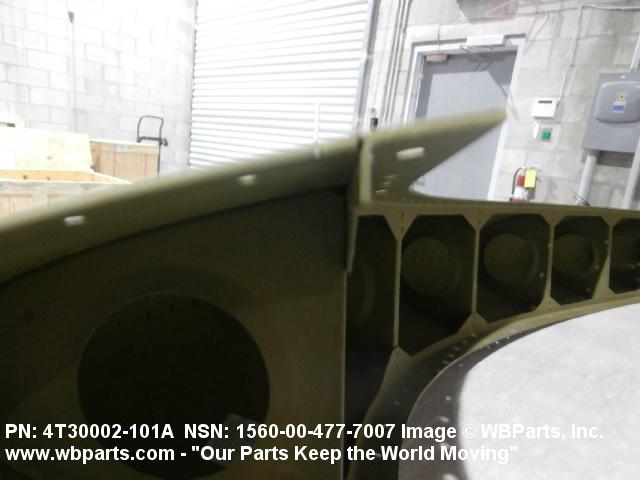

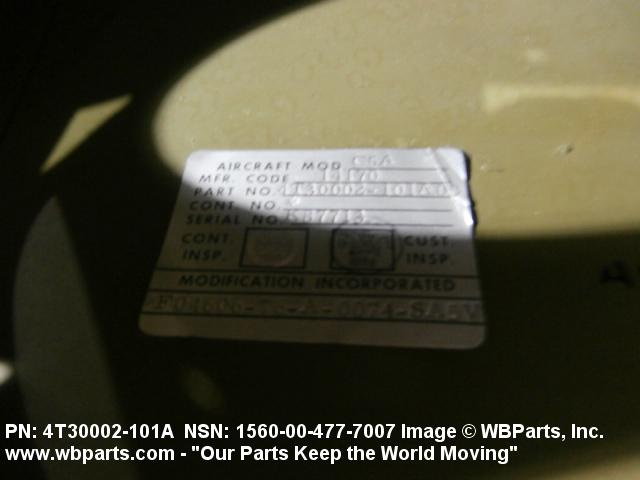

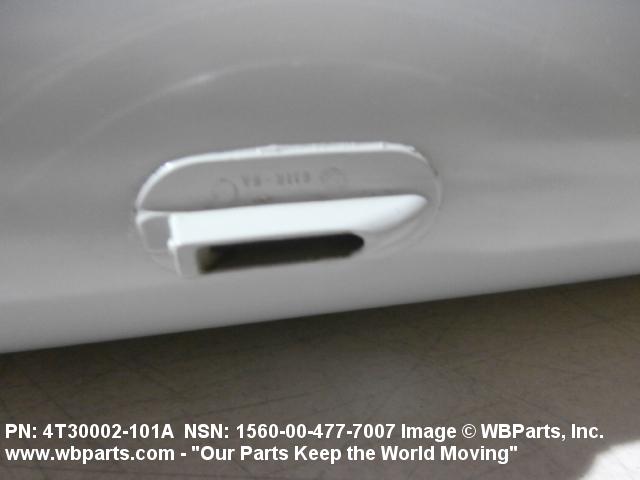

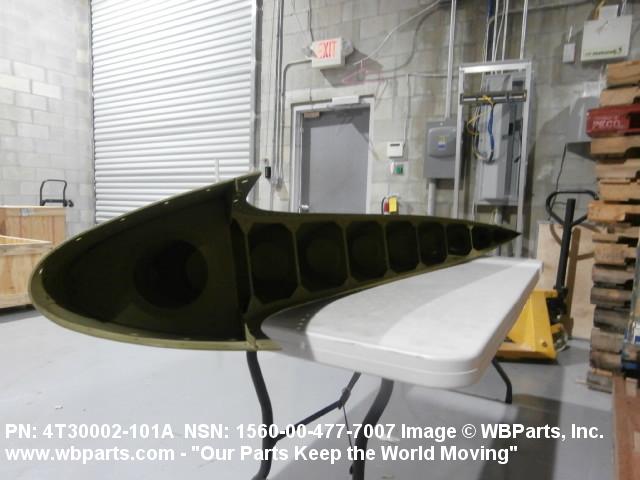

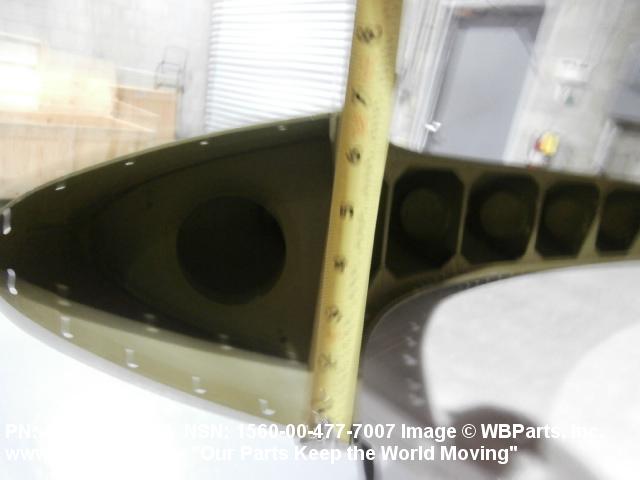

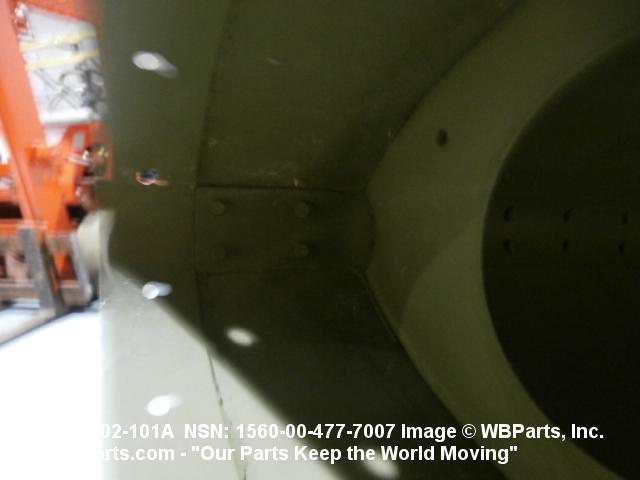

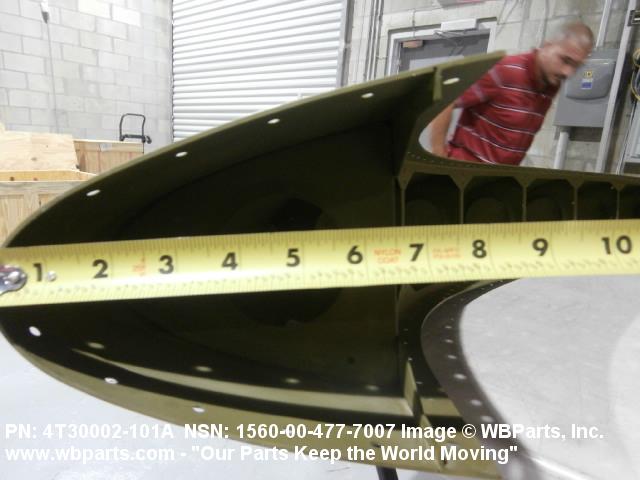

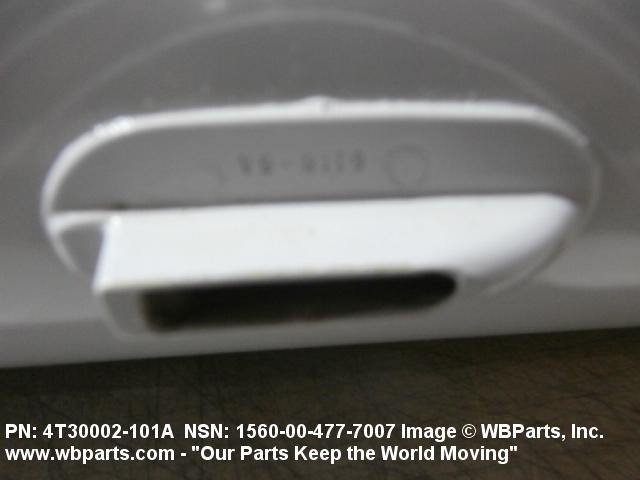

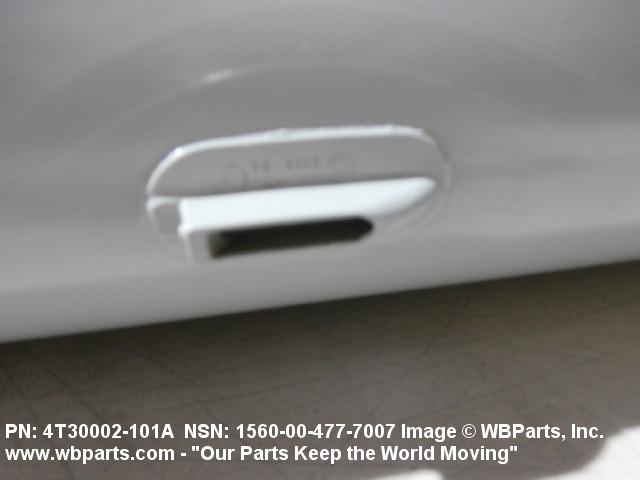

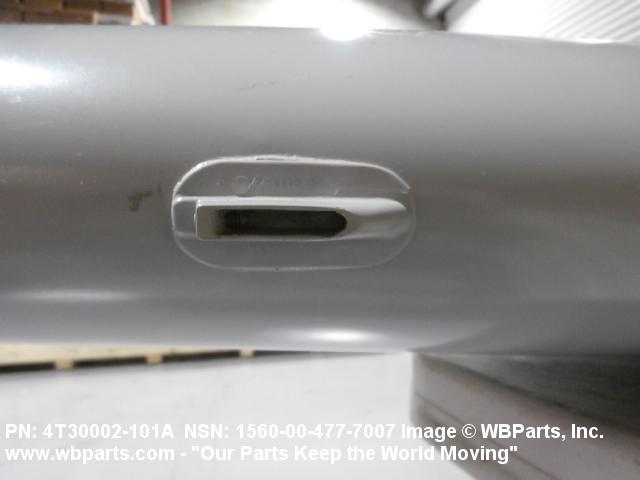

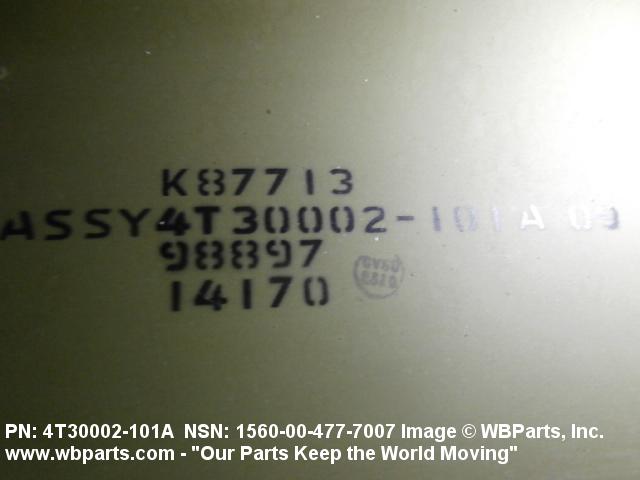

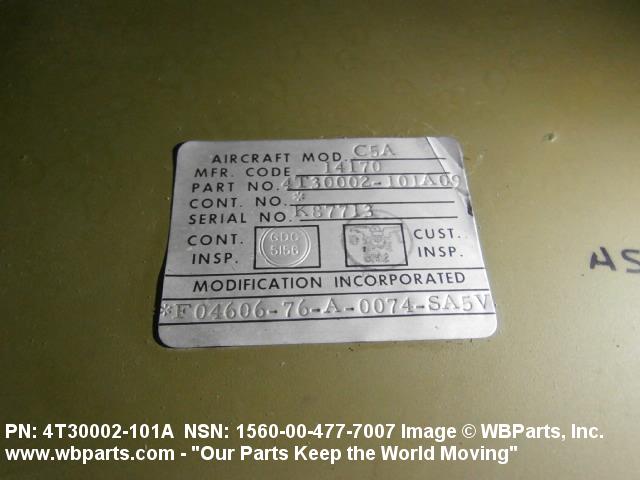

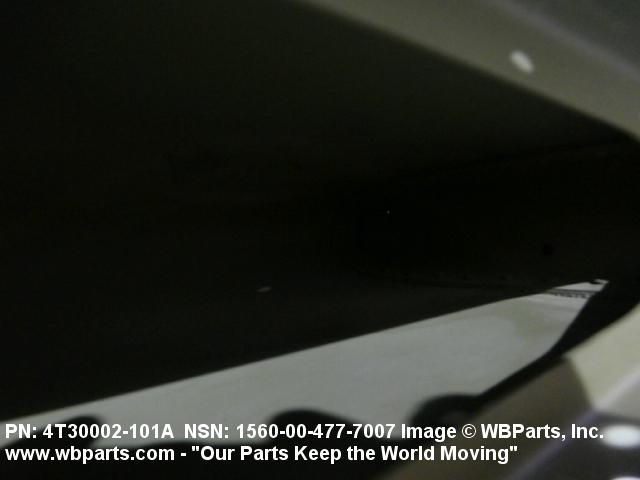

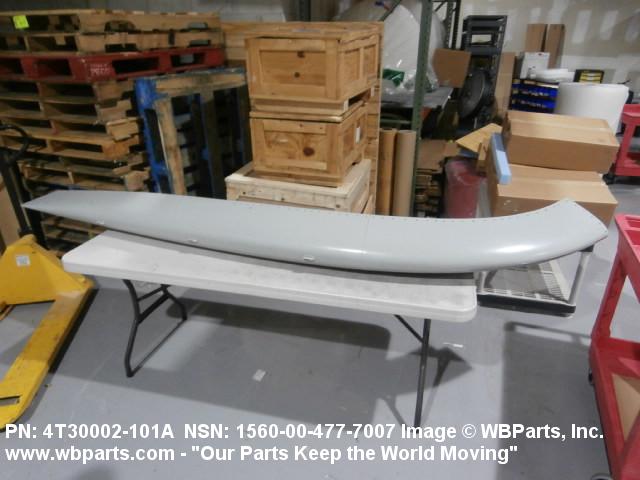

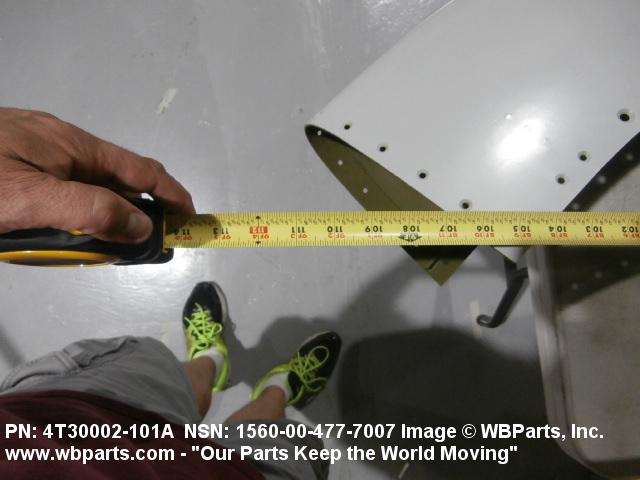

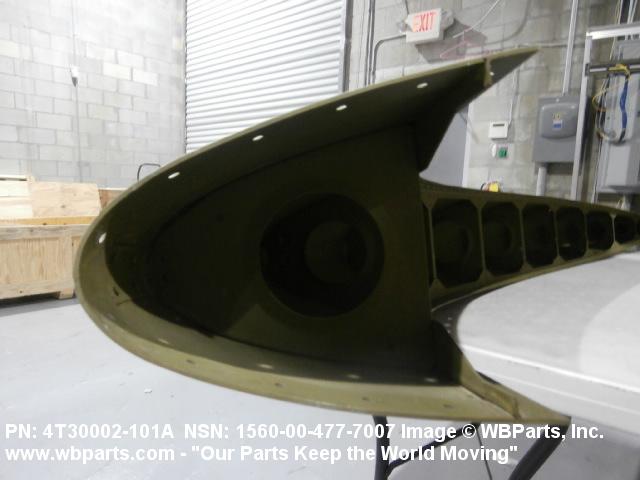

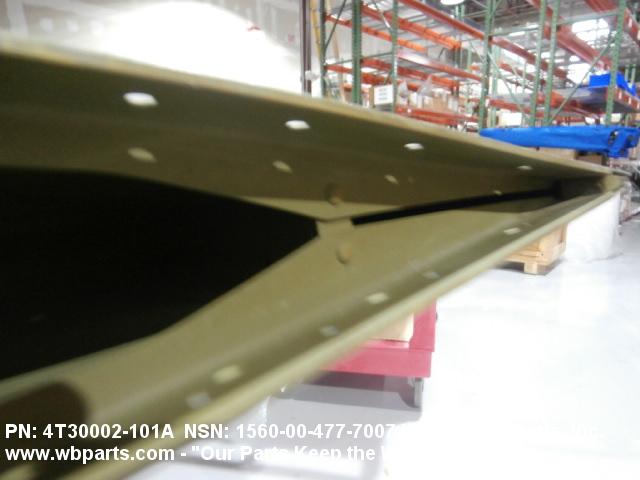

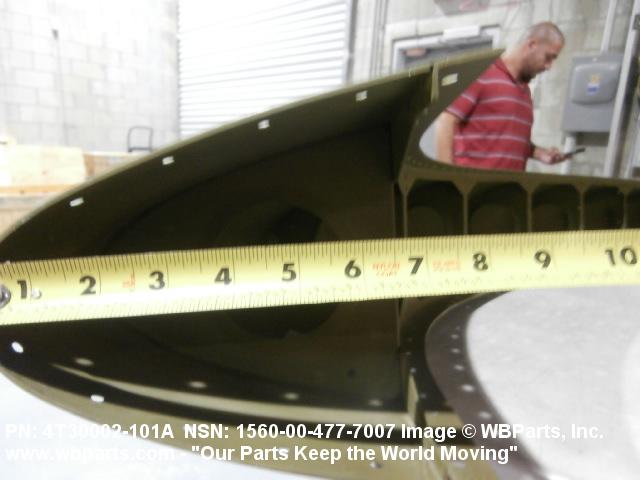

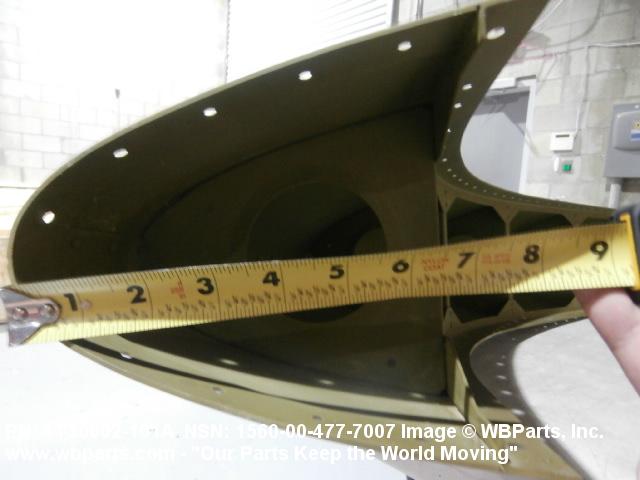

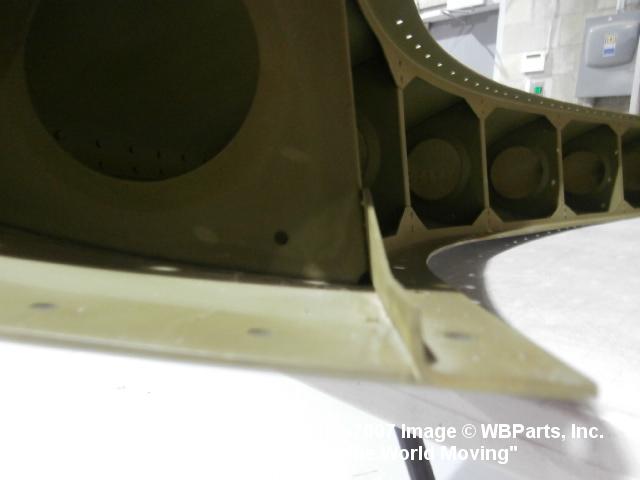

Drawings & Photos | NSN 1560-00-477-7007
Demand History | NSN 1560-00-477-7007
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-00-477-7007 | 2016-12-354 | 1 | DIBBS-RFPs |
| 1560-00-477-7007 | 2016-09-272 | 5 | DIBBS |
| 1560-00-477-7007 | 2016-04-103 | 5 | DIBBS |
| 1560-00-477-7007 | 2015-10-279 | 1 | United States |
| 1560-00-477-7007 | 2015-02-36 | 3 | DIBBS |
| 1560-00-477-7007 | 2014-03-83 | 1 | DIBBS-RFPs |
| 1560-00-477-7007 | 2014-01-08 | 1 | DIBBS-RFPs |
| 1560-00-477-7007 | 2013-07-185 | 2 | DIBBS |
Cross Reference | NSN 1560-00-477-7007
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-00-477-7007
Related Products | NSN 1560-00-477-7007
Technical Data | NSN 1560-00-477-7007
| Characteristic | Specifications |
|---|---|
| AIRCRAFT MISSION DESIGN SERIES | AIRCRAFT C-5 |
| SPECIAL FEATURES | REMOVABLE |
Restrictions/Controls & Freight Information | NSN 1560-00-477-7007
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-00-477-7007
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | UC | TG:C-5A GALAXY |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
