NSN 1560-00-651-8288 8-8149-1651, 00-651-8288, 881491651
Product Details | AIRCRAFT TIP
1560-00-651-8288 A chordwise sectional unit at the outer end of a wing, stabilizer, rotor blade or other airfoil for fixed and rotary wing aircraft.
Part Alternates: 8-8149-1651, 1560-00-651-8288, 00-651-8288, 1560006518288, 881491651, 006518288
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01 JAN 1963 | 00-651-8288 | 41034 ( TIP, AIRCRAFT ) |

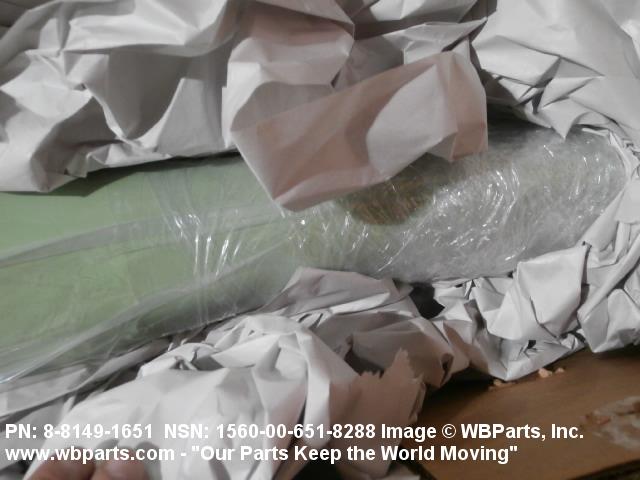

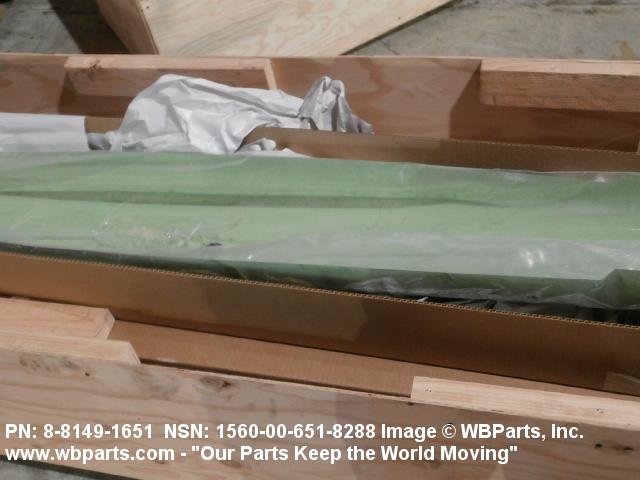

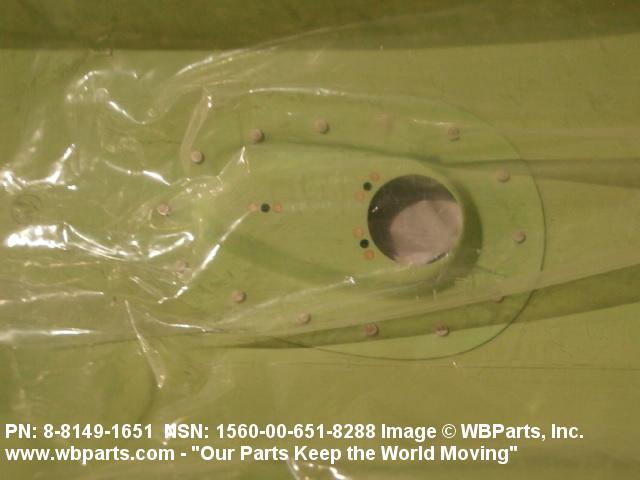

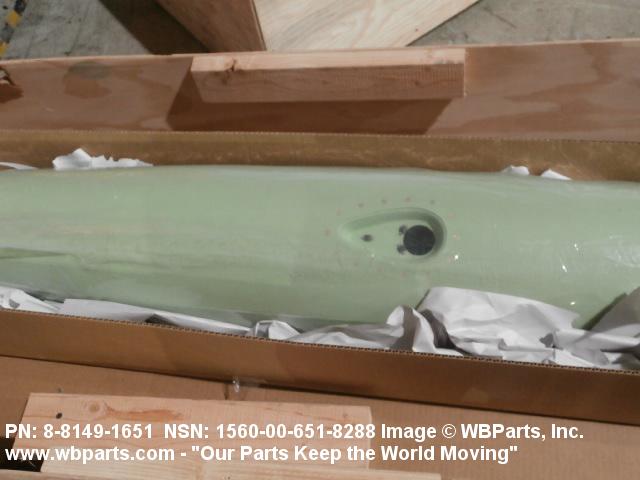

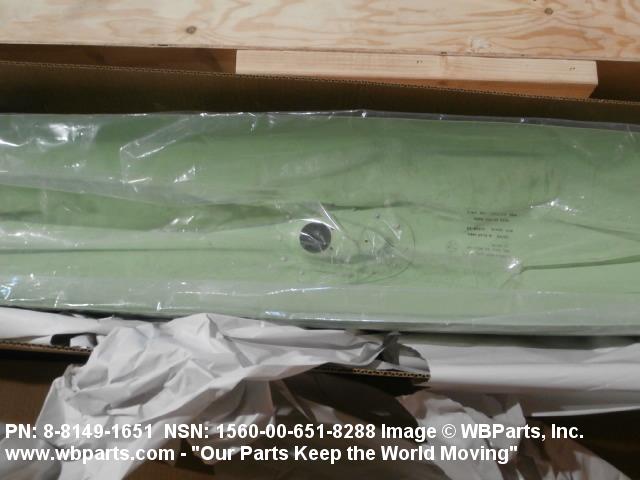

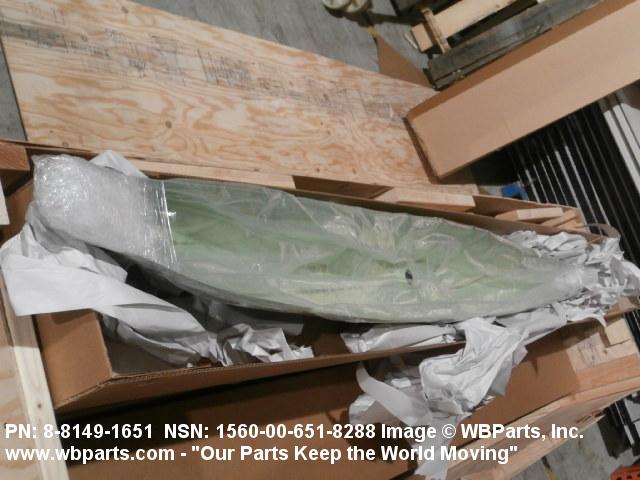

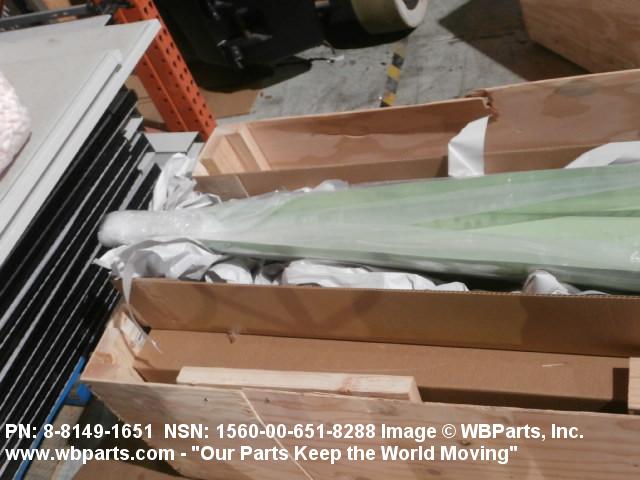

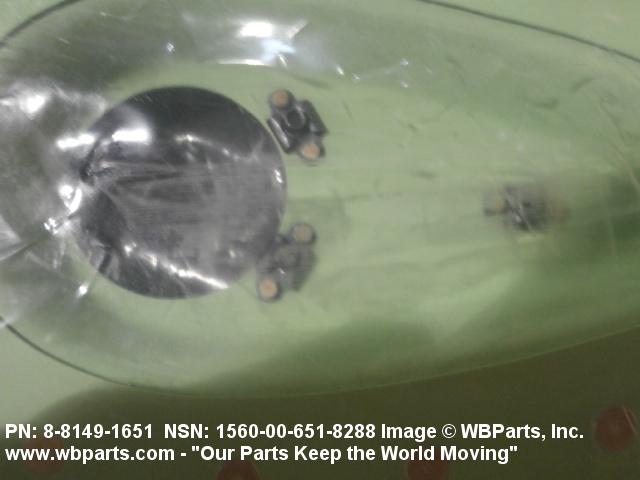

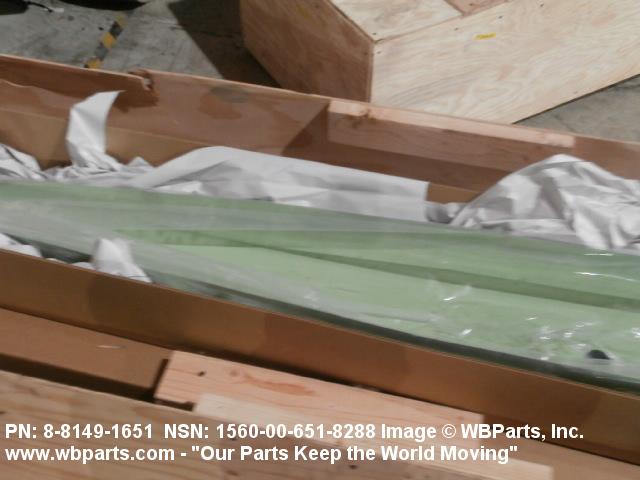

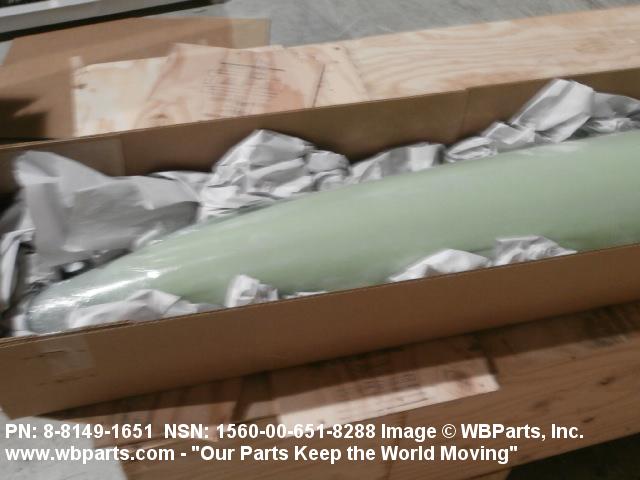

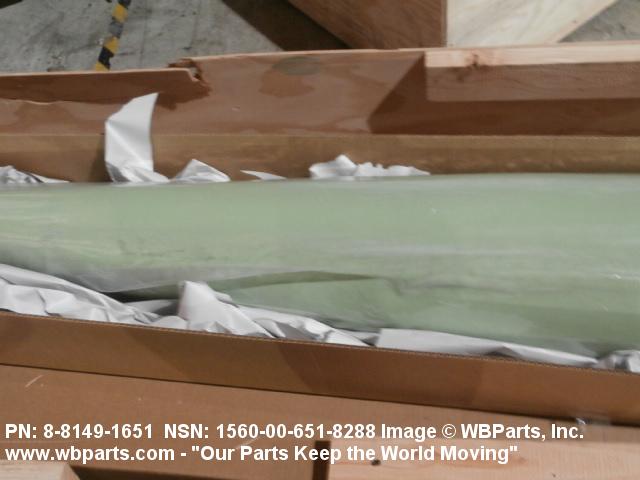

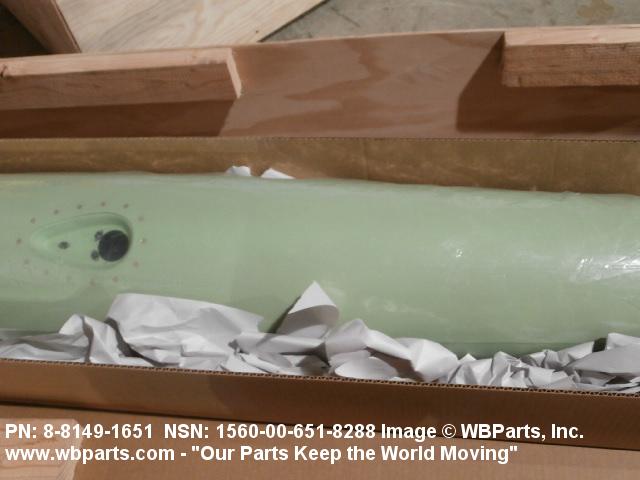

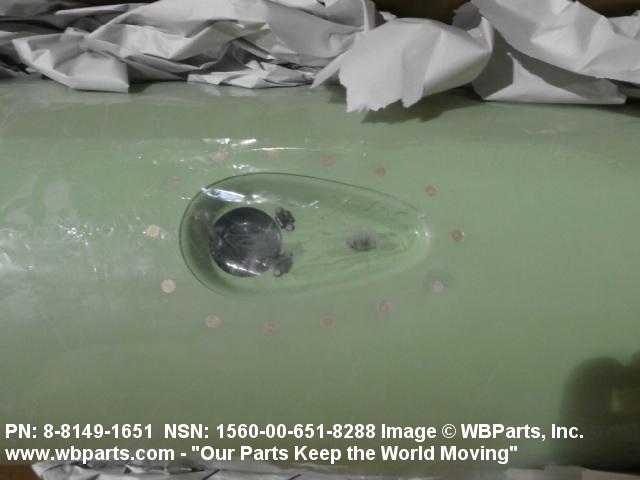

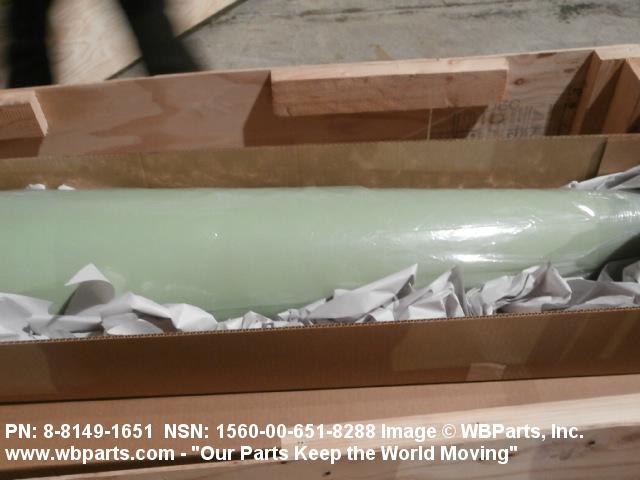

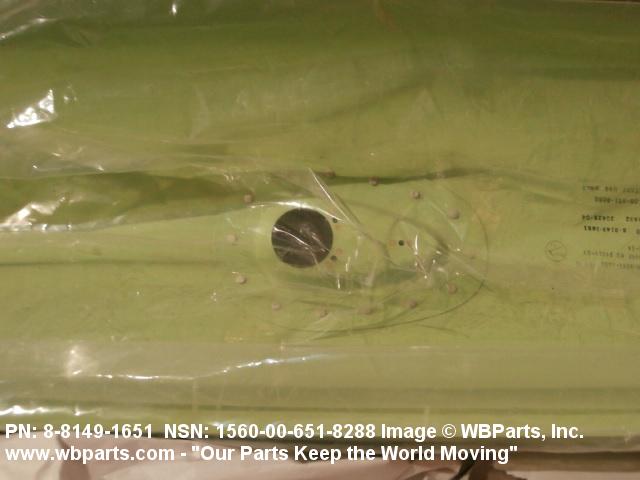

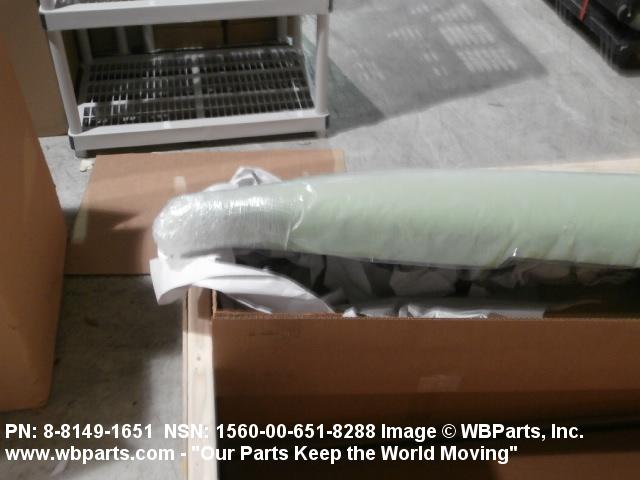

Drawings & Photos | NSN 1560-00-651-8288
Demand History | NSN 1560-00-651-8288
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-00-651-8288 | 2017-12-348 | 5 | DIBBS |
| 1560-00-651-8288 | 2017-06-173 | 5 | DIBBS |
| 1560-00-651-8288 | 2016-07-192 | 15 | DIBBS |
| 1560-00-651-8288 | 2016-06-160 | 10 | DIBBS |
| 1560-00-651-8288 | 2016-03-73 | 10 | DIBBS |
| 1560-00-651-8288 | 2015-07-198 | 1 | DIBBS-RFPs |
| 1560-00-651-8288 | 2013-07-185 | 4 | DIBBS |
| 1560-00-651-8288 | 2013-06-163 | 4 | United States |
| 1560-00-651-8288 | 2013-06-154 | 4 | United States |
| 1560-00-651-8288 | 2013-06-154 | 4 | United States |
| 1560-00-651-8288 | 2013-05-132 | 4 | DIBBS |
| 1560-00-651-8288 | 2013-03-77 | 4 | DIBBS |
| 1560-00-651-8288 | 2013-02-39 | 4 | DIBBS |
| 1560-00-651-8288 | 2013-02-35 | 3 | DIBBS |
| 1560-00-651-8288 | 2012-10-302 | 3 | DIBBS |
| 1560-00-651-8288 | 2009-12-363 | 2 | DIBBS |
| 1560-00-651-8288 | 2009-11-307 | 15 | DIBBS |
Cross Reference | NSN 1560-00-651-8288
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8-8149-1651 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-00-651-8288
Related Products | NSN 1560-00-651-8288
Technical Data | NSN 1560-00-651-8288
| Characteristic | Specifications |
|---|---|
| AIRCRAFT MISSION DESIGN SERIES | KC-135 |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 8-8149-1651 |
Restrictions/Controls & Freight Information | NSN 1560-00-651-8288
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011820 | AIRCRAFT SKINS METAL SUB3 |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-00-651-8288
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FL | SX:C-135 STRATOLIFTER |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
