Product Details | STRUCTURAL ANGLE
9540-00-595-8555 A structural shape fabricated from a ferrous or nonferrous material and resembling the letter L in cross-sectional form. The edges may have a bulb, be rounded, and the inside corner may have a fillet.20295200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: AMS-QQ-A-200/3, AMSQQA2003, LS637, QQ-A-200/3, QQA2003, 31331, 9540-00-595-8555, 00-595-8555, 9540005958555, 005958555
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
95 | 01 JAN 1963 | 00-595-8555 | 37017 ( ANGLE, STRUCTURAL ) |
Demand History | NSN 9540-00-595-8555
Part Number | Request Date | QTY | Origin |
---|---|---|---|
AMSQQA2003 | 2015-05-139 | 12 | US |
QQA2003 | 2009-11-323 | 1 | US |
Cross Reference | NSN 9540-00-595-8555
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 9540-00-595-8555
Related Products | NSN 9540-00-595-8555
Technical Data | NSN 9540-00-595-8555
Characteristic | Specifications |
---|---|
MATERIAL | ALUMINUM ALLOY |
FABRICATION METHOD | EXTRUDED |
LENGTH | 10.000 FEET MINIMUM AND 12.000 FEET MAXIMUM |

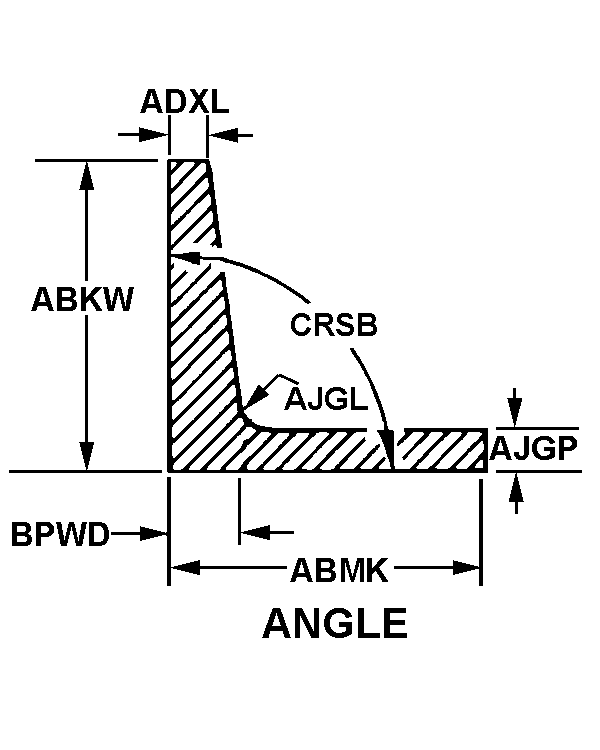

BASIC SHAPE STYLE | E11 ANGLE |
OVERALL HEIGHT | 1.150 INCHES NOMINAL |
OVERALL WIDTH | 1.200 INCHES NOMINAL |
LEFT SIDE FLANGE THICKNESS | 0.064 INCHES NOMINAL |
FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.030 INCHES NOMINAL |
BASE FLANGE THICKNESS | 0.100 INCHES NOMINAL |
LEFT FLANGE THICKNESS AT BASE | 0.189 INCHES NOMINAL |
WEIGHT PER UNIT MEASURE | 0.370 POUNDS PER LINEAR FOOT |
SPECIFICATION/STANDARD DATA | 81348-QQ-A-200/3 GOVERNMENT SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 9540-00-595-8555
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 013140 | ALUMINUM ANGLES |
Less than car load rating | S | 60 |
Less than truck load rating | S | 60.0 |
Water commodity Code | 576 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | R | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
