Product Details | STRUCTURAL CHANNEL
9540-00-027-9143 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.2032590000095200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: LS976, 9540-00-027-9143, 00-027-9143, 9540000279143, 000279143
Metal Bars, Sheets, and Shapes | Structural Shapes, Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1963 | 00-027-9143 | 37019 ( CHANNEL, STRUCTURAL ) |

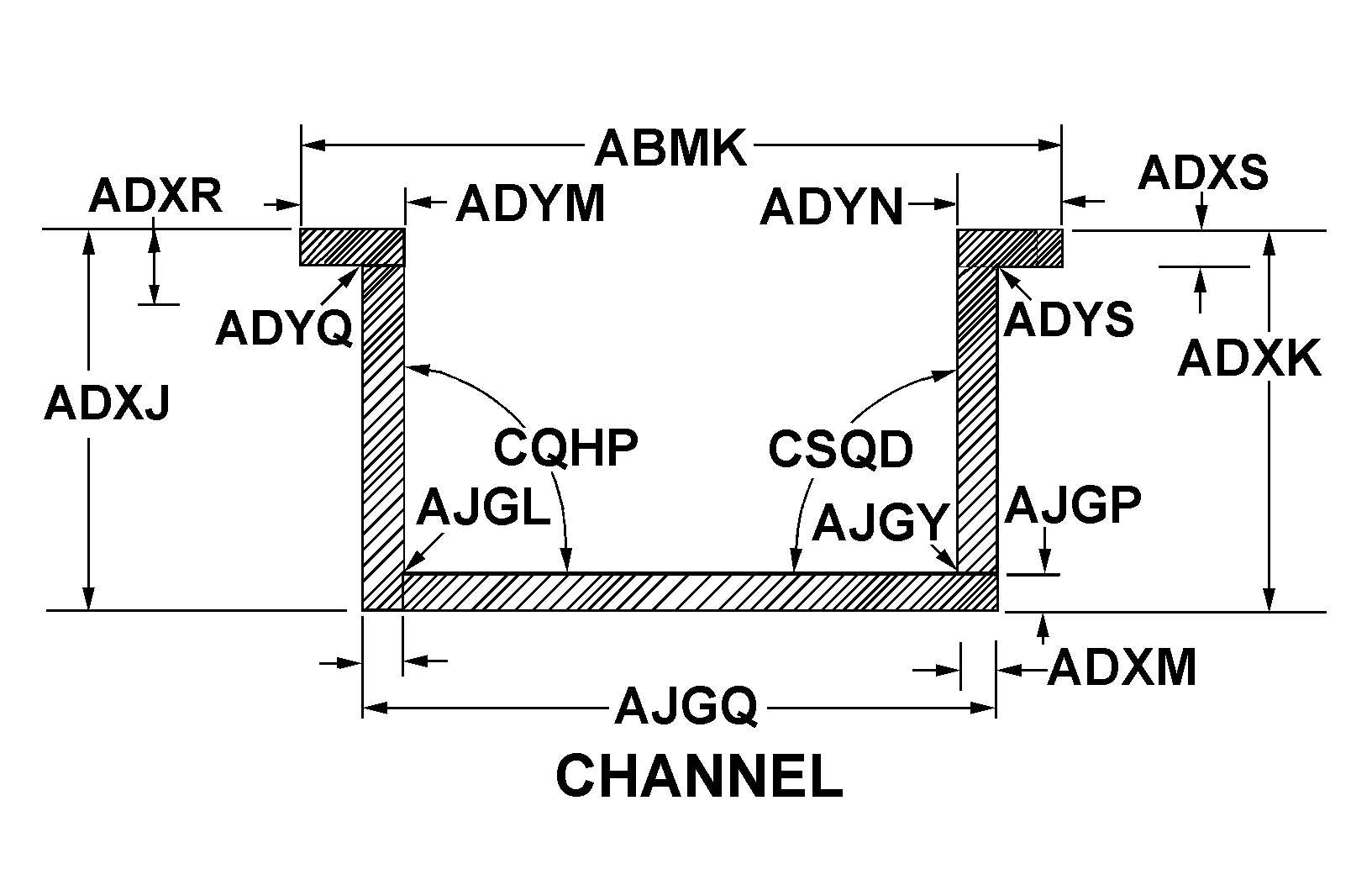

Drawings & Photos | NSN 9540-00-027-9143
Cross Reference | NSN 9540-00-027-9143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS976 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9540-00-027-9143
Technical Data | NSN 9540-00-027-9143
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| FABRICATION METHOD | EXTRUDED |
| BASIC SHAPE STYLE | F35 CHANNEL |
| OVERALL WIDTH | 2.250 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 1.625 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 1.625 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE WIDTH | 0.750 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE WIDTH | 0.750 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS TOP FLANGE | 0.060 INCHES NOMINAL |
| FILLET RADIUS WHERE RIGHT FLANGE JOINS TOP FLANGE | 0.060 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.120 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| BASE FLANGE WIDTH | 0.750 INCHES NOMINAL |
| FILLET RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.120 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 1 SQUARE END |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| WEIGHT PER UNIT MEASURE | 0.806 POUNDS PER LINEAR FOOT |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | LS976 |
