NSN 9535-00-596-3540 MILS22499, 00-596-3540, 005963540
Product Details | LAMINATED SHIM STOCK
9535-00-596-3540 A ferrous or nonferrous product of rectangular cross section uniform throughout. It is composed of thin layers of foil alternating with layers of adhesive binder to form a unit structure which can be reduced in thickness by peeling off one or more layers. It may be laminated or partly solid and partly laminated. All laminations must be of the same thickness.20295150035Plate, Sheet, Strip, Foil, and Leaf95350052Plate, Sheet, Strip, and Foil; Nonferrous Base Metal
Part Alternates: MILS22499, 9535-00-596-3540, 00-596-3540, 9535005963540, 005963540
Metal Bars, Sheets, and Shapes | Plate, Sheet, Strip, and Foil; Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 01 JAN 1963 | 00-596-3540 | 27928 ( SHIM STOCK, LAMINATED ) |
Drawings & Photos | NSN 9535-00-596-3540
Demand History | NSN 9535-00-596-3540
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILS22499 | 2023-02-37 | 1 | United States |
| MILS22499 | 2020-05-140 | 1 | US |
| MILS22499 | 2009-02-43 | 3 | US |
Cross Reference | NSN 9535-00-596-3540
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILS22499 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9535-00-596-3540
Technical Data | NSN 9535-00-596-3540
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS, QQ-B-626, ALLOY 260 |
| LENGTH | 2.000 FEET NOMINAL |

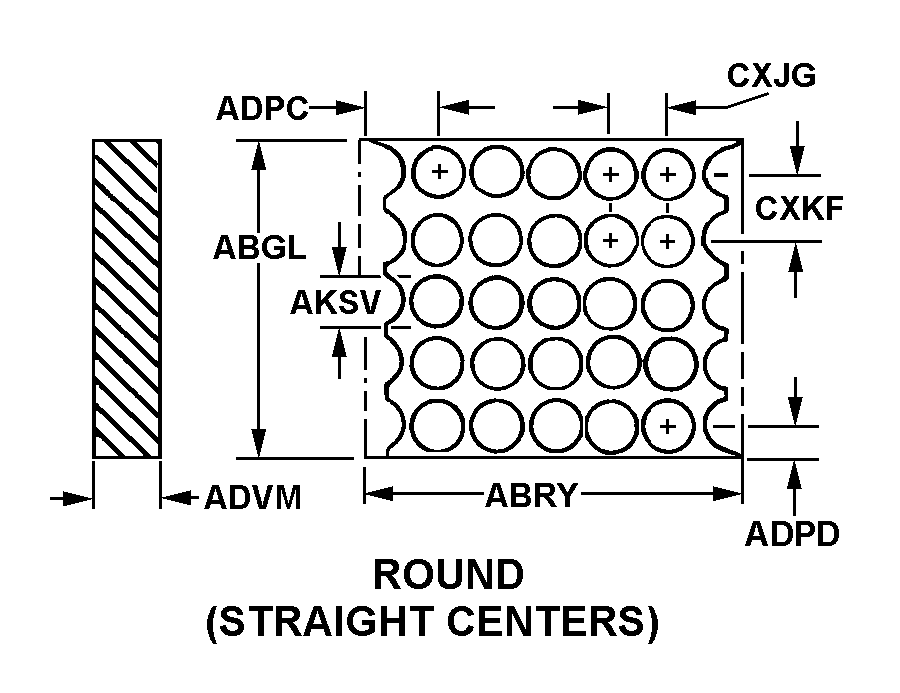

| BASIC SHAPE STYLE | A1 ROUND |
| CROSS-SECTIONAL THICKNESS | 0.0320 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 8.000 INCHES NOMINAL |
| LAMINATION CONSTRUCTION IN PERCENT | 100.0 |
| LAMINATION QUANTITY | 5 |
| LAMINATION THICKNESS | 0.002 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 2 COMPOSITION AND 1 TYPE AND 1 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS22499 |
Restrictions/Controls & Freight Information | NSN 9535-00-596-3540
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030740 | BBC PLATE SHEET R STRIP NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
