NSN 9535-01-632-9446 M22499/1 , M224991, AMSDTL22499
Product Details | LAMINATED SHIM STOCK
9535-01-632-9446 A ferrous or nonferrous product of rectangular cross section uniform throughout. It is composed of thin layers of foil alternating with layers of adhesive binder to form a unit structure which can be reduced in thickness by peeling off one or more layers. It may be laminated or partly solid and partly laminated. All laminations must be of the same thickness.20295150035Plate, Sheet, Strip, Foil, and Leaf95350052Plate, Sheet, Strip, and Foil; Nonferrous Base Metal
Part Alternates: M22499/1 , M224991, AMSDTL22499, AMS-DTL-22499 , MILS22499, MIL-S-22499 , 9535-01-632-9446, 01-632-9446, 9535016329446, 016329446
Metal Bars, Sheets, and Shapes | Plate, Sheet, Strip, and Foil; Nonferrous Base Metal
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 2014308 | 01-632-9446 | 27928 ( SHIM STOCK, LAMINATED ) |

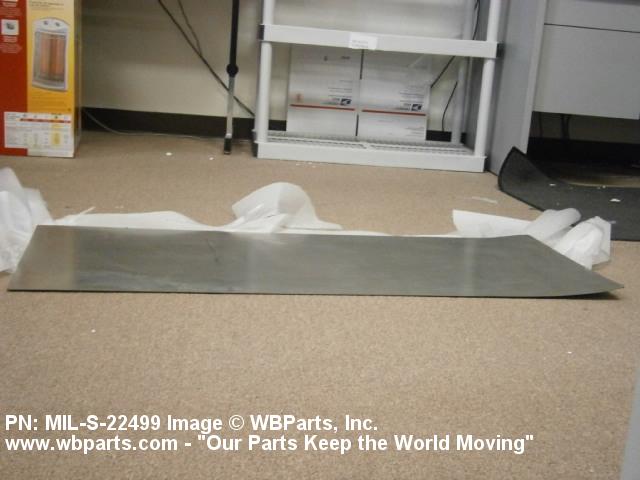

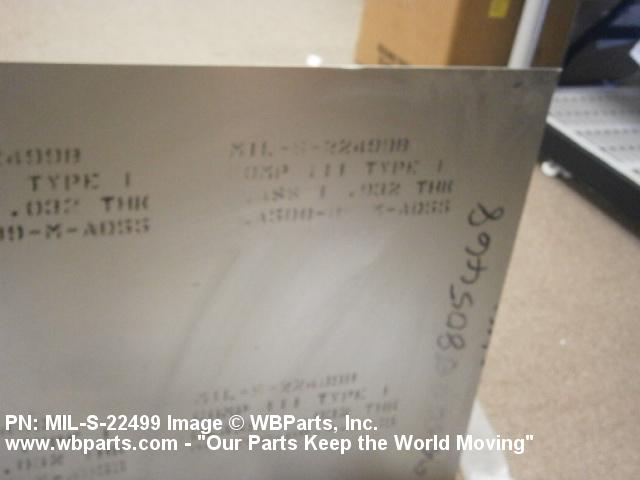

Drawings & Photos | NSN 9535-01-632-9446
Demand History | NSN 9535-01-632-9446
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AMSDTL22499 | 2023-11-317 | 1 | Croatia |
| MILS22499 | 2023-02-37 | 1 | United States |
| MILS22499 | 2020-05-140 | 1 | US |
| AMSDTL22499 | 2017-08-243 | 42 | us |
| AMSDTL22499 | 2009-06-160 | 5 | US |
| AMSDTL22499 | 2009-06-160 | 1 | US |
| AMSDTL22499 | 2009-06-160 | 1 | US |
| MILS22499 | 2009-02-43 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9535-01-632-9446
Technical Data | NSN 9535-01-632-9446
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 1100 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430, ALLOY 1100 FED SPEC SINGLE MATERIAL RESPONSE |
| LENGTH | 48.0 INCHES NOMINAL |
| BASIC SHAPE STYLE | SOLID |
| WIDTH | 20.0 INCHES NOMINAL |
| CROSS-SECTIONAL THICKNESS | 0.021 INCHES NOMINAL |
| LAMINATION CONSTRUCTION IN PERCENT | 100.0 |
| LAMINATION QUANTITY | 11 |
| LAMINATION THICKNESS | 0.002 INCHES NOMINAL |
| PHYSICAL FORM | FLAT STOCK |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-22499 |
Restrictions/Controls & Freight Information | NSN 9535-01-632-9446
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106140 | PLATE/SHEET NOI I/S GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9535-01-632-9446
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SH : Sheet |
