NSN 9520-01-489-5943 11686142, 01-489-5943, 014895943
Product Details | STRUCTURAL CHANNEL
9520-01-489-5943 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.2032590000095200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: 11686142, 9520-01-489-5943, 01-489-5943, 9520014895943, 014895943
Metal Bars, Sheets, and Shapes | Structural Shapes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 18 SEP 2001 | 01-489-5943 | 37019 ( CHANNEL, STRUCTURAL ) |
Drawings & Photos | NSN 9520-01-489-5943
Demand History | NSN 9520-01-489-5943
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9520-01-489-5943 | 2020-08-236 | 169 | DIBBS |
| 9520-01-489-5943 | 2019-06-177 | 73 | DIBBS |
| 9520-01-489-5943 | 2016-12-336 | 52 | DIBBS |
| 9520-01-489-5943 | 2016-04-118 | 74 | DIBBS |
| 9520-01-489-5943 | 2014-08-215 | 36 | DIBBS |
| 9520-01-489-5943 | 2014-05-126 | 54 | DIBBS |
| 9520-01-489-5943 | 2013-12-344 | 26 | DIBBS |
| 9520-01-489-5943 | 2013-12-343 | 34 | DIBBS |
| 9520-01-489-5943 | 2013-10-304 | 21 | DIBBS |
| 9520-01-489-5943 | 2013-10-275 | 13 | DIBBS |
| 9520-01-489-5943 | 2013-09-252 | 37 | DIBBS |
| 9520-01-489-5943 | 2012-09-269 | 6 | DIBBS |
Cross Reference | NSN 9520-01-489-5943
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11686142 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9520-01-489-5943
Related Products | NSN 9520-01-489-5943
Technical Data | NSN 9520-01-489-5943
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-698, COMP 1010 |
| FABRICATION METHOD | ANY ACCEPTABLE |
| LENGTH | 10.250 INCHES NOMINAL |

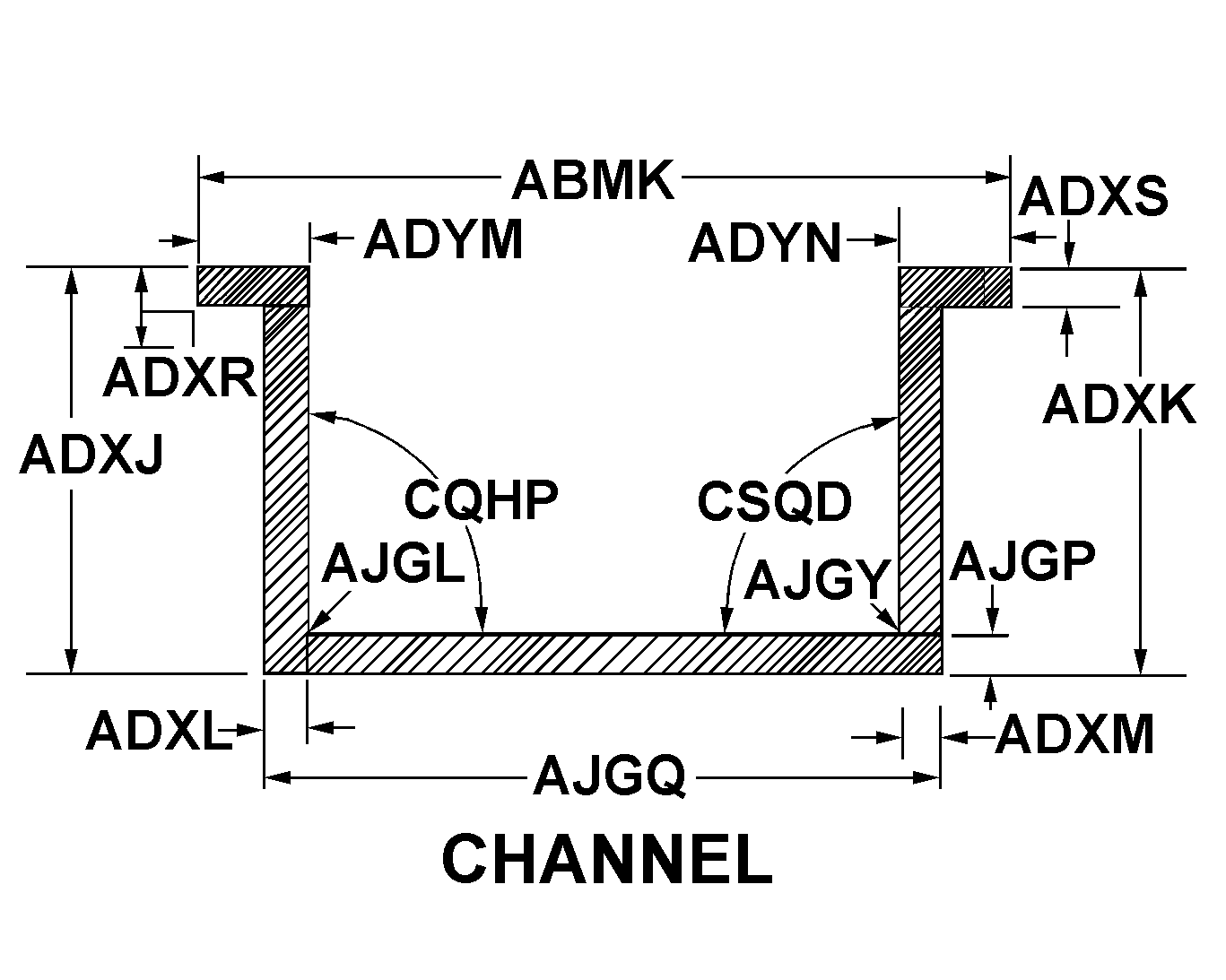

| BASIC SHAPE STYLE | F27 CHANNEL |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 0.081 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 0.081 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| LEFT SIDE TOP FLANGE WIDTH | 0.620 INCHES NOMINAL |
| RIGHT SIDE TOP FLANGE WIDTH | 0.620 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.060 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| BASE FLANGE WIDTH | 2.000 INCHES NOMINAL |
| FILLET RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.060 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | 1 SQUARE END |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| SPECIAL FEATURES | WELD PER MIL-STD-1261 CLASS 1; ALL BEND RAD11 .06 UNLESS OTHERWISE SPECIFIED; BEND PER DRAWING |
| III USAGE DESIGN | STRUCTURAL |
| III END ITEM IDENTIFICATION | 2330-01-117-3280 SEMITRAILER, LOW BED; TRAILER, SEMI (M860A1) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SHIELD |
Restrictions/Controls & Freight Information | NSN 9520-01-489-5943
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104850 | CHANNELS I/S NOI |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9520-01-489-5943
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
