NSN 9520-01-329-2169 A 1000, A1000, A100020PL
Product Details | STRUCTURAL CHANNEL
9520-01-329-2169 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.2032590000095200017Structural Shapes95400040Structural Shapes, Nonferrous Base Metal
Part Alternates: A 1000, A1000, A100020PL, A1000-20PL , 9520-01-329-2169, 01-329-2169, 9520013292169, 013292169
Metal Bars, Sheets, and Shapes | Structural Shapes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | 13 NOV 1990 | 01-329-2169 | 37019 ( CHANNEL, STRUCTURAL ) |
Drawings & Photos | NSN 9520-01-329-2169
Demand History | NSN 9520-01-329-2169
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A1000 | 2019-06-164 | 1 | Malaysia |
| 9520-01-329-2169 | 2014-11-306 | 352 | DIBBS |
| A1000 | 2013-06-162 | 1 | Malaysia |
| 9520-01-329-2169 | 2010-05-150 | 20 | DIBBS |
| 9520-01-329-2169 | 2010-04-110 | 100 | DIBBS |
| 9520-01-329-2169 | 2010-04-110 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9520-01-329-2169
Related Products | NSN 9520-01-329-2169
Technical Data | NSN 9520-01-329-2169
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | ANY ACCEPTABLE |
| LENGTH | 10.000 FEET MINIMUM AND 16.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | F25 CHANNEL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 1.250 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 1.250 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.075 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.075 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.075 INCHES NOMINAL |
| LEFT INSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT INSIDE ANGLE | 90.0 DEGREES NOMINAL |

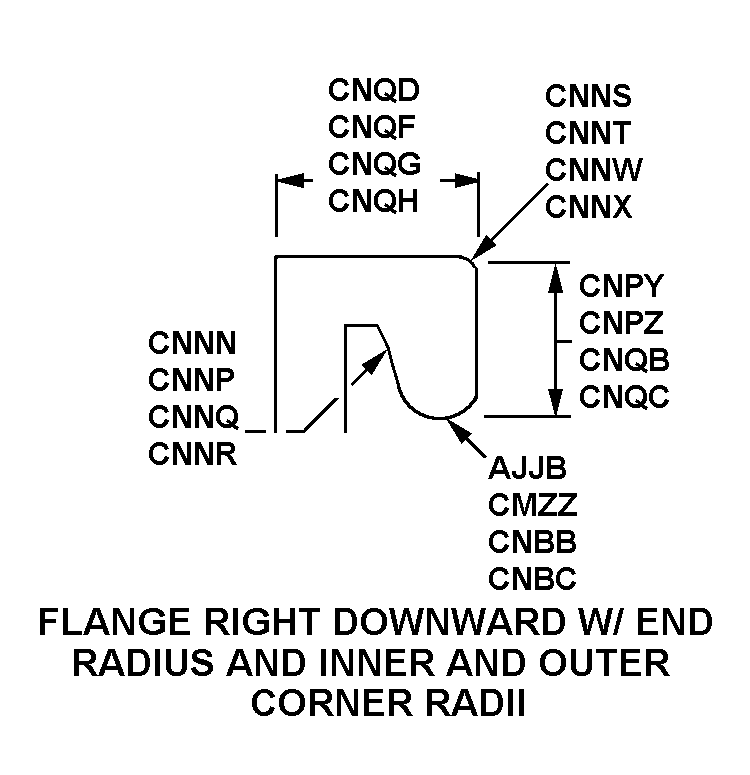

| FIRST TIP STYLE | 54 FLANGE RIGHT DOWNWARD WITH END RADIUS AND INNER AND OUTER CORNER RADII |
| FIRST TIP FLANGE HEIGHT | 0.190 INCHES NOMINAL |
| FIRST TIP FLANGE WIDTH | 0.280 INCHES NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | NOT IDENTICAL |

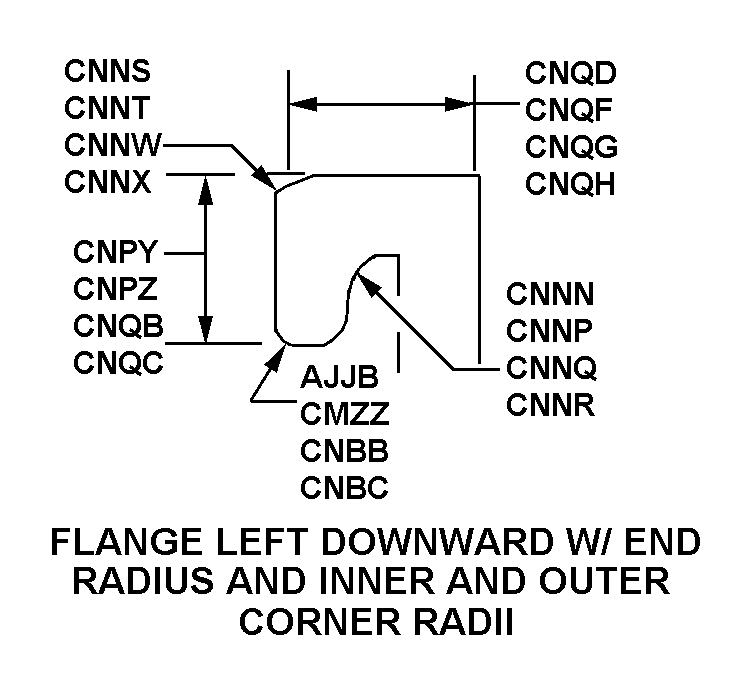

| SECOND TIP STYLE | 53 FLANGE LEFT DOWNWARD WITH END RADIUS AND INNER AND OUTER CORNER RADII |
| SECOND TIP FLANGE HEIGHT | 0.190 INCHES NOMINAL |
| SECOND TIP FLANGE WIDTH | 0.280 INCHES NOMINAL |
| WEIGHT PER UNIT MEASURE | 1.100 POUNDS PER LINEAR FOOT |
Restrictions/Controls & Freight Information | NSN 9520-01-329-2169
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104850 | CHANNELS I/S NOI |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
