NSN 9390-01-477-3362 8507K13, 01-477-3362, 014773362
Product Details | NONMETALLIC SPECIAL SHAPED SECTION
9390-01-477-3362 A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: 8507K13, 9390-01-477-3362, 01-477-3362, 9390014773362, 014773362
Nonmetallic Fabricated Materials | Miscellaneous Fabricated Nonmetallic Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 07 AUG 2000 | 01-477-3362 | 30219 ( NONMETALLIC SPECIAL SHAPED SECTION ) |

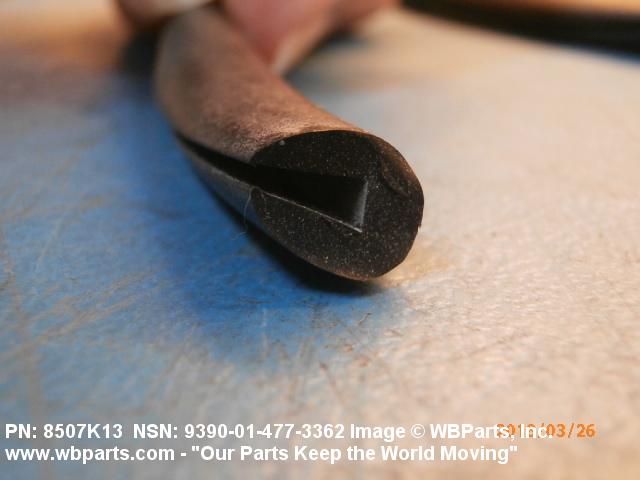

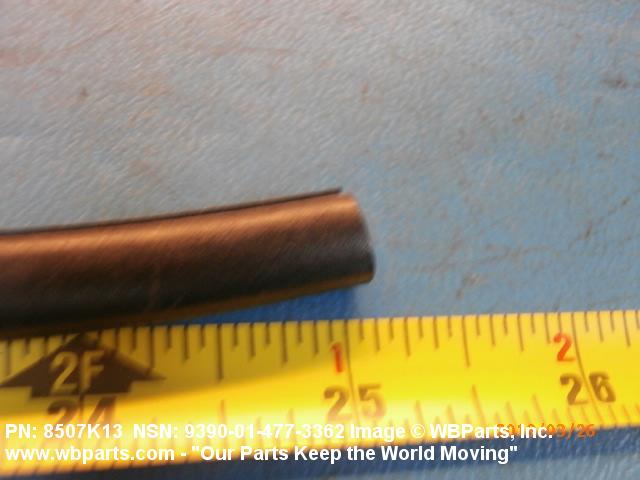

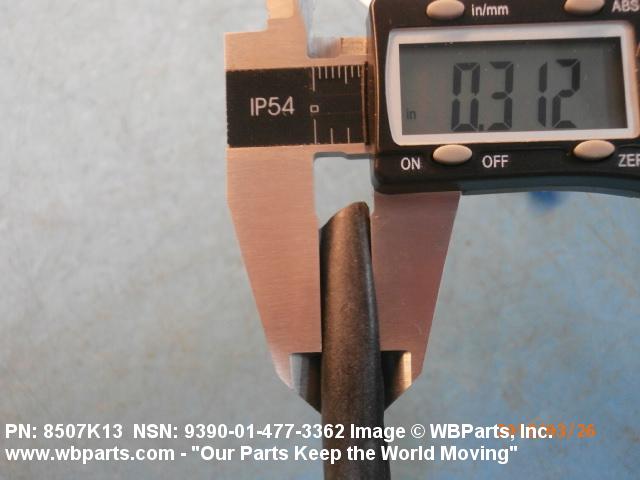

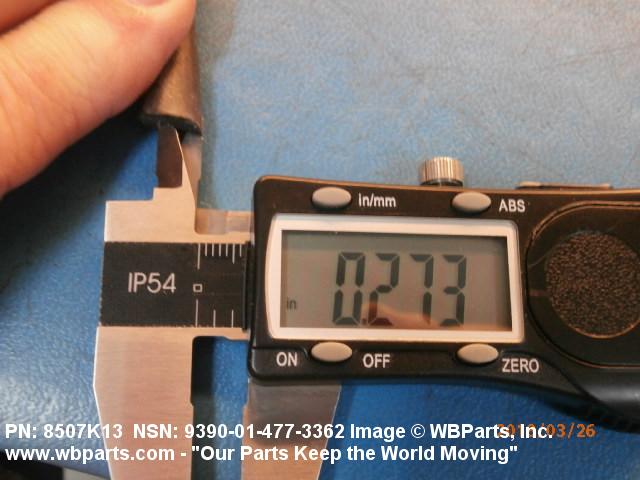

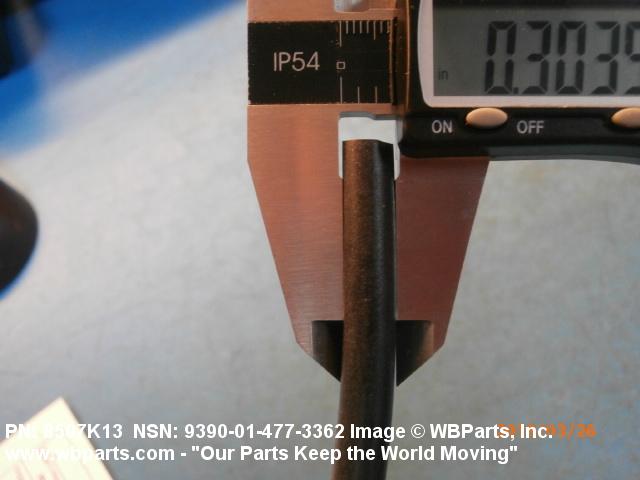

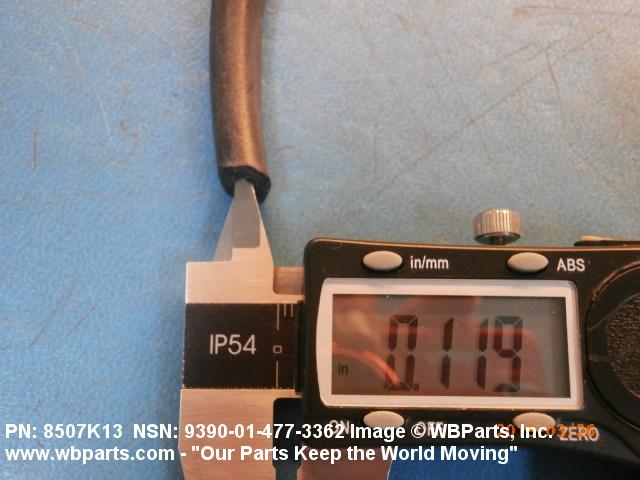

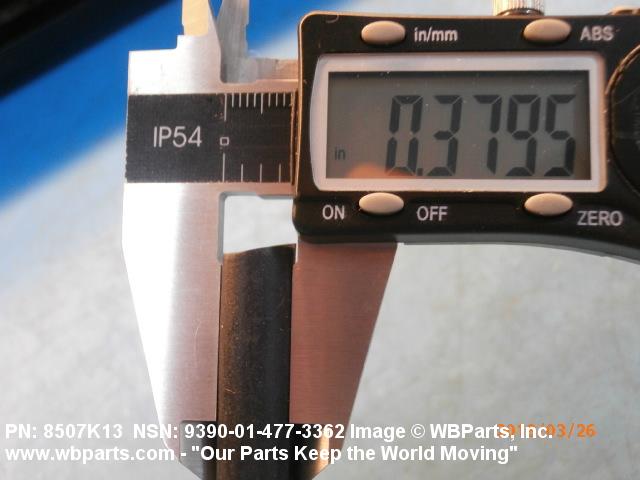

Drawings & Photos | NSN 9390-01-477-3362
Demand History | NSN 9390-01-477-3362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8507K13 | 2018-02-57 | 6 | United States |
| 9390-01-477-3362 | 2016-12-336 | 633 | DIBBS |
| 9390-01-477-3362 | 2014-08-215 | 633 | DIBBS |
| 9390-01-477-3362 | 2012-07-205 | 10 | DIBBS |
| 9390-01-477-3362 | 2010-03-68 | 127 | DIBBS |
Cross Reference | NSN 9390-01-477-3362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8507K13 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9390-01-477-3362
Related Products | NSN 9390-01-477-3362
Technical Data | NSN 9390-01-477-3362
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | C305 |
| OVERALL HEIGHT | 0.375 INCHES NOMINAL |
| OVERALL WIDTH | 0.297 INCHES NOMINAL |
| FIRST SLOT/GROOVE DEPTH | 0.281 INCHES NOMINAL |
| FIRST SLOT/GROOVE WIDTH | 0.125 INCHES NOMINAL |
| LENGTH | 600.000 INCHES NOMINAL |
| MATERIAL | RUBBER, BUNA-N |
| NONMETALLIC HARDNESS RATING | 55.0 NOMINAL SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TEMP RATING | -40.0 DEG FAHRENHEIT AND 150.0 DEG FAHRENHEIT |
| ENVIRONMENTAL PROTECTION | HEAT AGING AND OIL RESISTANT |
| III END ITEM IDENTIFICATION | TICONDEROGA CLASS CG(47) |
Restrictions/Controls & Freight Information | NSN 9390-01-477-3362
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9390-01-477-3362
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
