NSN 9390-00-541-9156 AMS 3198, AMS3198, AMS3198 .093THK
Product Details | NONMETALLIC SPECIAL SHAPED SECTION
9390-00-541-9156 A structural shape fabricated from nonmetallic material(s) having a peculiar preformed cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC SPECIAL SHAPED SECTION.
Part Alternates: AMS 3198, AMS3198, AMS3198 .093THK, AMS3198.093THK, AMS3198093THK, 1112, 111-2, 9390-00-541-9156, 00-541-9156, 9390005419156, 005419156
Nonmetallic Fabricated Materials | Miscellaneous Fabricated Nonmetallic Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 01 JAN 1963 | 00-541-9156 | 30219 ( NONMETALLIC SPECIAL SHAPED SECTION ) |

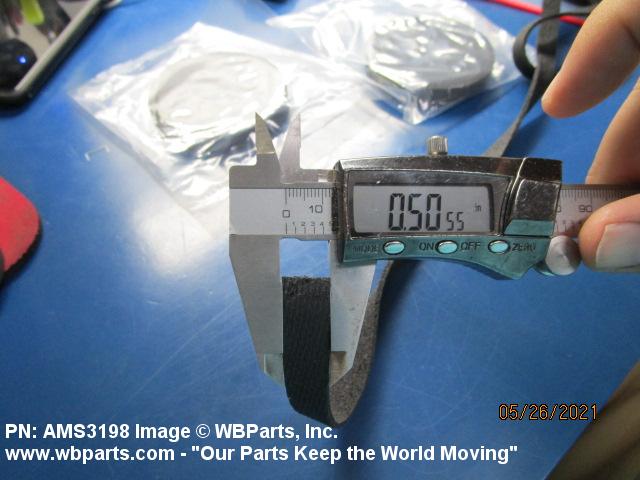

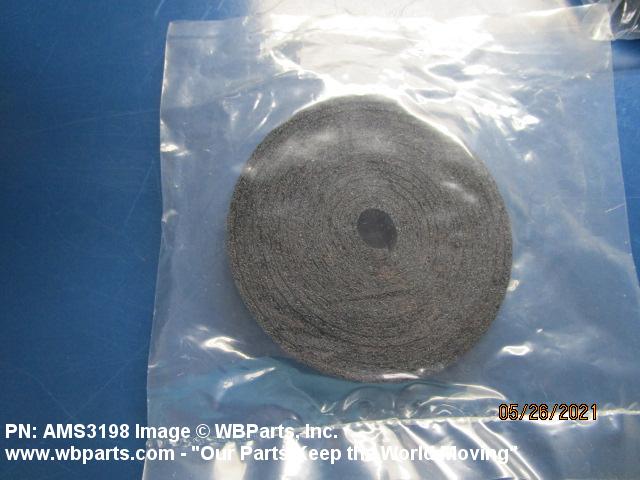

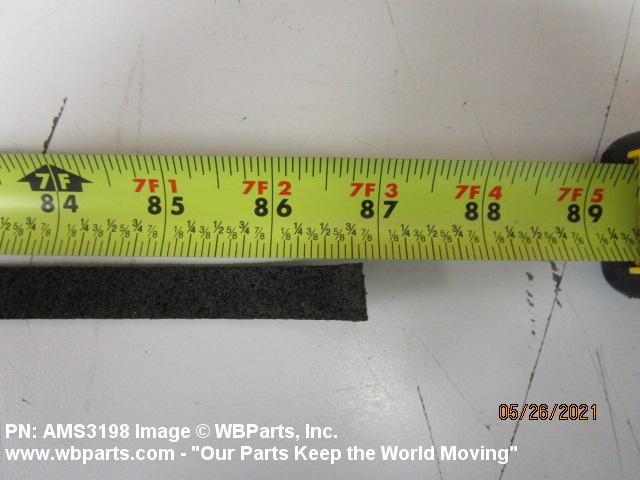

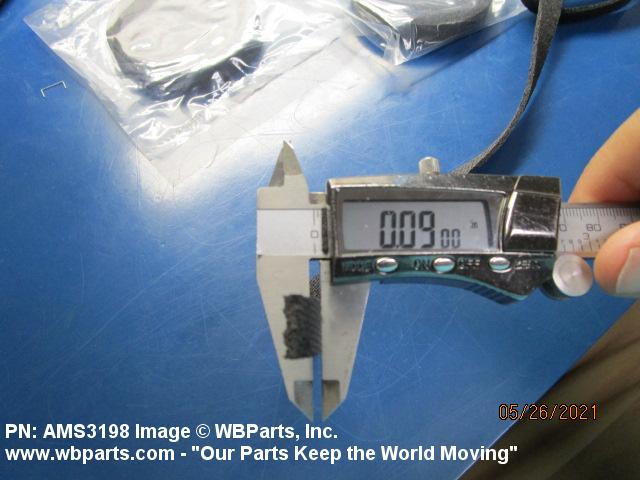

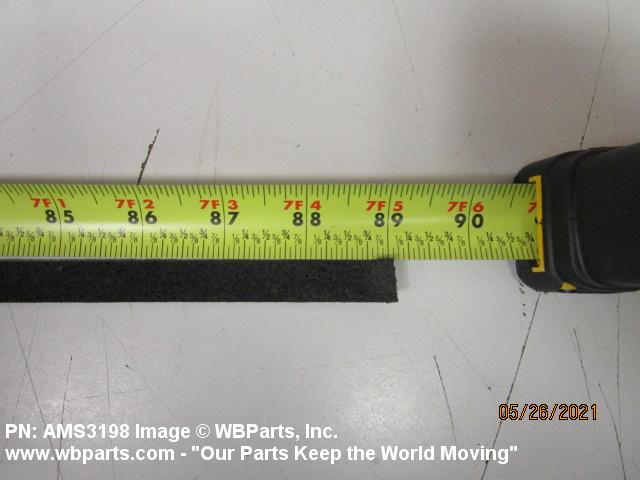

Drawings & Photos | NSN 9390-00-541-9156
Demand History | NSN 9390-00-541-9156
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AMS3198 | 2024-03-73 | 2 | US |
| AMS3198 | 2023-04-95 | 1 | AE |
| 9390-00-541-9156 | 2022-03-81 | 1 | Malaysia |
| AMS3198 | 2021-03-81 | 6 | Italy |
| AMS3198 | 2021-03-76 | 1 | UK |
| 1112 | 2020-06-163 | 3 | US |
| AMS3198 | 2011-05-126 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9390-00-541-9156
Related Products | NSN 9390-00-541-9156
Technical Data | NSN 9390-00-541-9156
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | C276 |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.090 INCHES NOMINAL |
| OUTSIDE RADIUS | 0.090 INCHES NOMINAL |
| FIRST FILLET RADIUS | 0.090 INCHES NOMINAL |
| FIRST TIP RADIUS | ANY ACCEPTABLE |
| LENGTH | 60.000 INCHES NOMINAL |
| MATERIAL | RUBBER, SYNTHETIC, CHLOROPRENE-MEDIUM, AMS 3198 |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| TEMP RATING | -40.0 DEG CELSIUS AND 80.0 DEG CELSIUS |
| ENVIRONMENTAL PROTECTION | LOW TEMPERATURE AND HEAT, DRY AND HIGH TEMPERATURE |
| SPECIAL FEATURES | COLOR,BLACK; SMOOTH FINISH ON BOTH SIDES |
| SPECIFICATION/STANDARD DATA | 81343-AMS 3198 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 9390-00-541-9156
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 7 | 36 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9390-00-541-9156
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 7 | 36 months |
| Purchasing | QTY UOM |
1 LG : Length |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 7 | 36 months |
| Purchasing | QTY UOM |
1 LG : Length |
