NSN 9340-01-388-0381 CC10451TYPEA38GLASS, CC-1045-TYPE A- ALUM-30X24-3/8T, CC-1045-TYPE A-ALUM-30424-3/8THK
Product Details | OBSERVATION WINDOW
9340-01-388-0381 A transparent item of a predetermined size that permits unobstructed and undistorted view of a desired area. It may include a frame, have reference markings, grid lines and may be heat strengthened and/or tinted. It is generally used where safety, security, and/or the restriction of foreign matter are required, such as the visual examination of the inside of pressurized tanks, liquid sights, controlled liquid flow, and inspection of equipment enclosed in a housing. See WINDOW (as modified); SCALE, CATHODE RAY TUBE; SCALE, PLOTTING; WINDOW, METAL; WINDOW, WOOD; and WINDOW PANEL, AIRCRAFT.20293300029Plastics Fabricated Materials93400026Glass Fabricated Materials
Part Alternates: CC10451TYPEA38GLASS, CC-1045-TYPE A- ALUM-30X24-3/8T, CC-1045-TYPE A-ALUM-30424-3/8THK, CC1045TYPEAALUM3042438THK, CC1045TYPEAALUM30X2438T, 6139067115, 6139067-115, 9340-01-388-0381, 01-388-0381, 9340013880381, 013880381
Nonmetallic Fabricated Materials | Glass Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 18 MAR 1994 | 01-388-0381 | 16880 ( WINDOW, OBSERVATION ) |
Drawings & Photos | NSN 9340-01-388-0381
Demand History | NSN 9340-01-388-0381
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9340-01-388-0381 | 2015-09-256 | 7 | DIBBS |
| 9340-01-388-0381 | 2012-06-153 | 1 | DIBBS |
| 9340-01-388-0381 | 2011-06-174 | 1 | DIBBS |
| 9340-01-388-0381 | 2010-07-191 | 1 | DIBBS |
Cross Reference | NSN 9340-01-388-0381
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9340-01-388-0381
Technical Data | NSN 9340-01-388-0381
| Characteristic | Specifications |
|---|---|

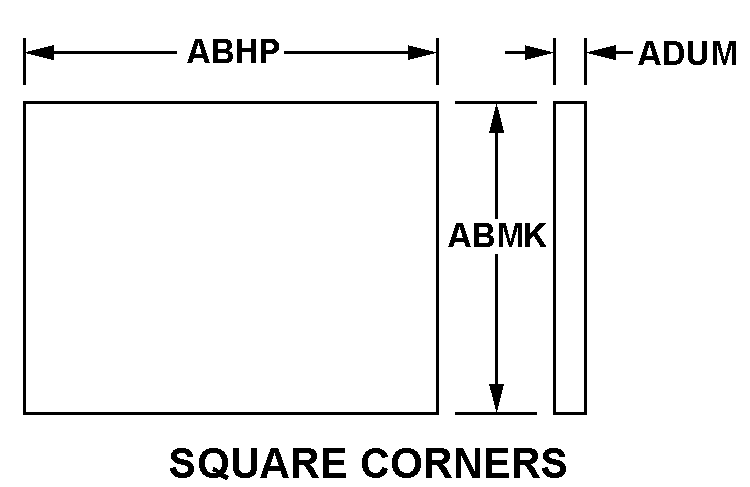

| STYLE DESIGNATOR | 1 SQUARE CORNERS |
| OVERALL LENGTH | 30.000 INCHES NOMINAL |
| OVERALL WIDTH | 24.000 INCHES NOMINAL |
| OVERALL THICKNESS | 1.750 INCHES NOMINAL |
| MATERIAL | GLASS |
| MATERIAL TRANSPARENCY | CLEAR |
| TEMP AT MAXIMUM OPERATING PRESSURE | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| RADIATION PROTECTION RATING | NOT RATED |
| FEATURES PROVIDED | FRAME |
| SPECIAL FEATURES | FIXED WINDOW, ALUMINUM FRAME, 0.375 IN. THICK TEMP GLASS |
Restrictions/Controls & Freight Information | NSN 9340-01-388-0381
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 035315 | SCREEN DOORS OR WINDOW SCREENS,NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9340-01-388-0381
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
