NSN 9340-01-388-6575 07302, 01-388-6575, 013886575
Product Details | GLASS TUBING
9340-01-388-6575 A tubular item of glass having a uniform cross section throughout its entire length. It may have reference and/or indicator markings and is generally used where the conveying, containing, or visual inspection of liquids and/or gasses are required, such as laboratories. Excludes INSULATOR (1), WASHER; and WASHER (as modified).20266400033Laboratory Equipment and Supplies93400026Glass Fabricated Materials
Part Alternates: 07302, 9340-01-388-6575, 01-388-6575, 9340013886575, 013886575
Nonmetallic Fabricated Materials | Glass Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 05 APR 1994 | 01-388-6575 | 04508 ( TUBING, GLASS ) |

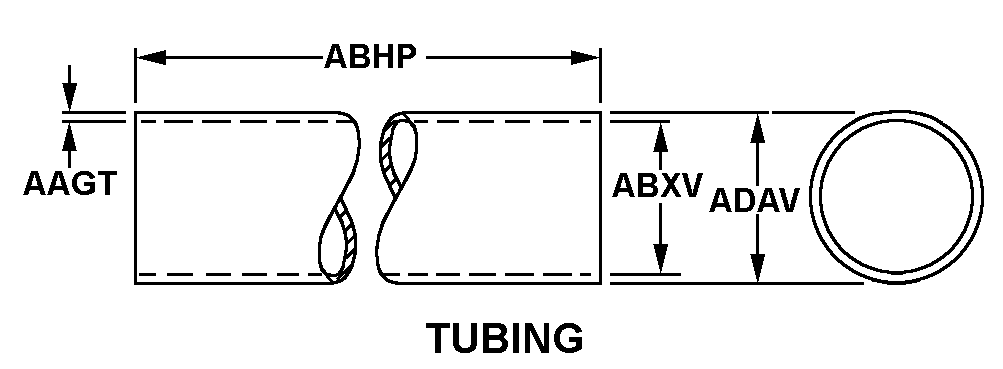

Drawings & Photos | NSN 9340-01-388-6575
Cross Reference | NSN 9340-01-388-6575
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 07302 | 13059 | CLEVELAND RANGE LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 9340-01-388-6575
Technical Data | NSN 9340-01-388-6575
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 19 TUBING |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| OVERALL DIAMETER | 0.625 INCHES NOMINAL |
| MATERIAL | GLASS BOROSILICATE |
| MATERIAL TRANSPARENCY | CLEAR |
| TEMP AT MAXIMUM OPERATING PRESSURE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 9340-01-388-6575
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9340-01-388-6575
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Y EA : Each |
