Product Details | PLASTIC SHEET

9330-01-496-8094 A cellular, solid, or laminated material including film furnished in widths greater than 6 inches (152.4mm). It includes material cut to specific lengths. It may include fillers, reinforcements, or pigments. For items which have a definite rated electrical characteristics, see INSULATION SHEET, ELECTRICAL. Excludes CELLOPHANE; DRY TRANSFER SHEET; PLASTIC SHEET, LAMINATED, DECORATIVE; PLASTIC STRIP; SCREEN, COLOR OVERLAY; TILE, VINYL RESIN; PLASTIC SHEET, TRACING.

Part Alternates: AA59502, A-A-59502, AA595022B0042O1, AA59502-2B0042O1, 9330-01-496-8094, 01-496-8094, 9330014968094, 014968094

Nonmetallic Fabricated Materials | Plastics Fabricated Materials

Supply Group (FSG) NSN Assign. NIIN
93 26 APR 2002 01-496-8094

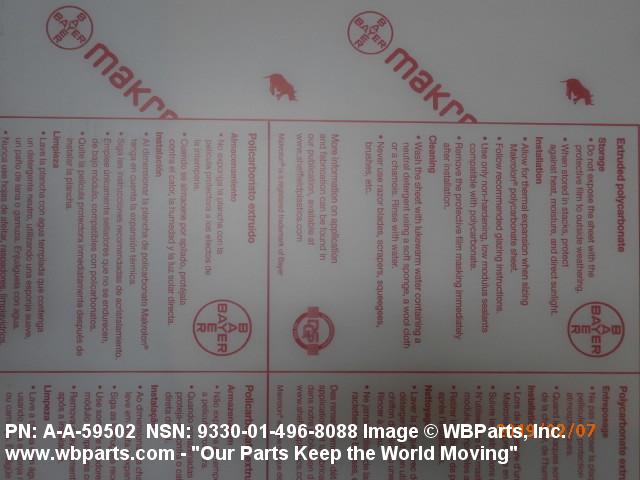

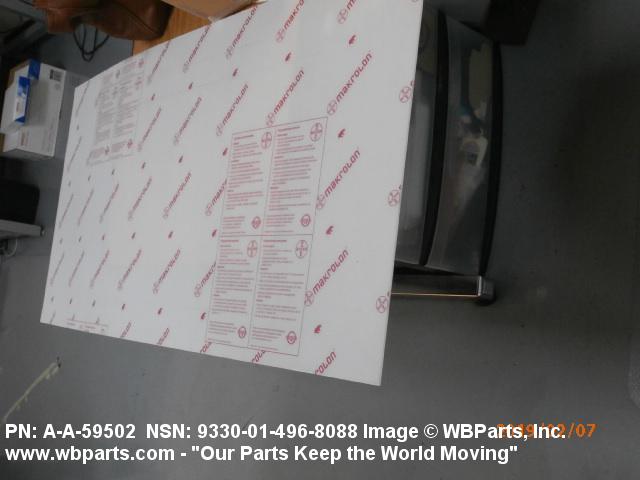

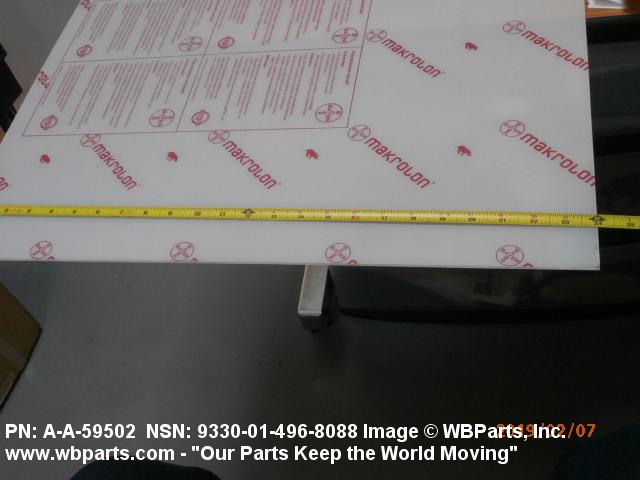

Drawings & Photos | NSN 9330-01-496-8094


Demand History | NSN 9330-01-496-8094

Part Number Request Date QTY Origin
AA59502 2014-02-35 1 Spain
AA59502 2013-09-253 6 United States

Cross Reference | NSN 9330-01-496-8094

Part Number Cage Code Manufacturer
A-A-59502 58536 FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59502-2B0042O1 58536 FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 9330-01-496-8094

Technical Data | NSN 9330-01-496-8094

Characteristic Specifications
MATERIAL PLASTIC, POLYCARBONATE
NONMETALLIC HARDNESS RATING NOT RATED
MINIMUM TENSILE STRENGTH 8600 POUNDS PER SQUARE INCH
FLEXURAL STRENGTH NOT RATED
COLOR NEUTRAL BOTH SIDES
LENGTH 48.000 INCHES NOMINAL
WIDTH 24.000 INCHES NOMINAL
THICKNESS 0.187 INCHES NOMINAL
SPECIAL FEATURES END ITEM: CBIL FOR C/D/
SPECIFICATION/STANDARD DATA 58536-A-A-59502 GOVERNMENT SPECIFICATION
NONDEFINITIVE SPEC/STD DATA 2 TYPE AND 2 CLASS AND NATURAL COLOR
III END ITEM IDENTIFICATION F/A-18E/F HORNET AIRCRAFT
III SUPPLEMENTARY FEATURES FLAME RESISTANT; NON UV STABILIZED
MANUFACTURERS CODE 58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE A-A-59502
MANUFACTURERS CODE 58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AA59502-2B0042O1

Restrictions/Controls & Freight Information | NSN 9330-01-496-8094

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 041820 CELLULOSE FILM SHEETS NOT PRI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 845 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 9330-01-496-8094

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Z
SH : Sheet
