NSN 9330-01-293-7678 PSS205, 20INX20INX0.005INTHK BLUE, 20INX20INX0005INTHKBLUE
Product Details | PLASTIC SHEET
9330-01-293-7678 A cellular, solid, or laminated material including film furnished in widths greater than 6 inches (152.4mm). It includes material cut to specific lengths. It may include fillers, reinforcements, or pigments. For items which have a definite rated electrical characteristics, see INSULATION SHEET, ELECTRICAL. Excludes CELLOPHANE; DRY TRANSFER SHEET; PLASTIC SHEET, LAMINATED, DECORATIVE; PLASTIC STRIP; SCREEN, COLOR OVERLAY; TILE, VINYL RESIN; PLASTIC SHEET, TRACING.
Part Alternates: PSS205, 20INX20INX0.005INTHK BLUE, 20INX20INX0005INTHKBLUE, 9330-01-293-7678, 01-293-7678, 9330012937678, 012937678
Nonmetallic Fabricated Materials | Plastics Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 05 FEB 1989 | 01-293-7678 | 18304 ( PLASTIC SHEET ) |

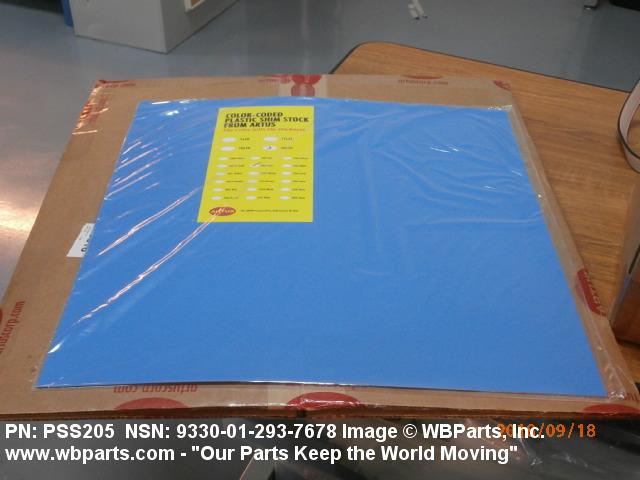

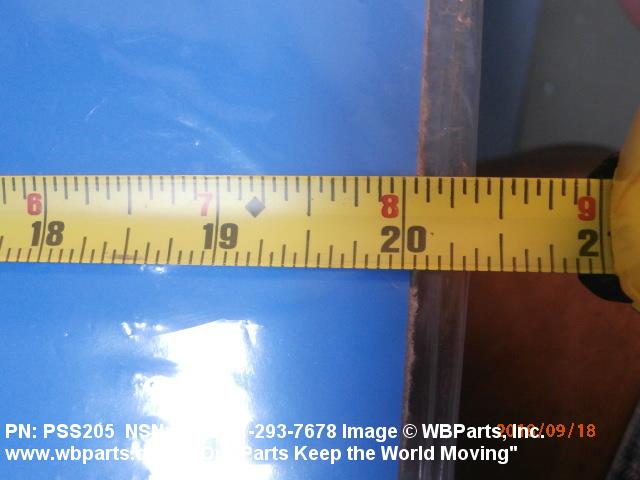

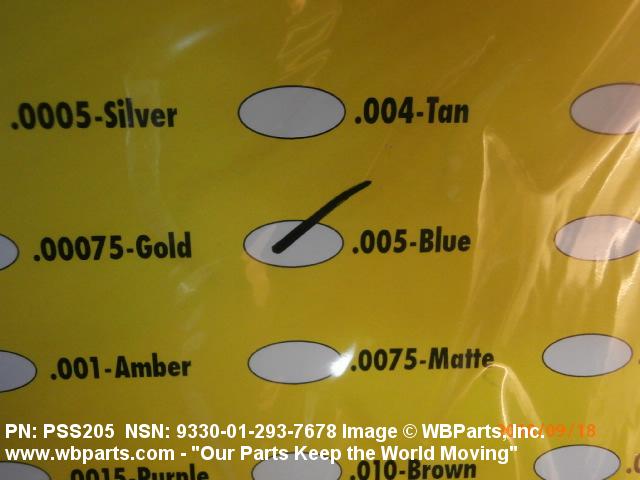

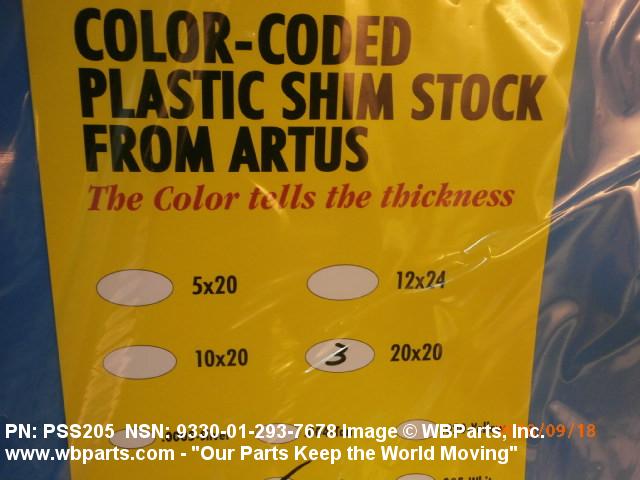

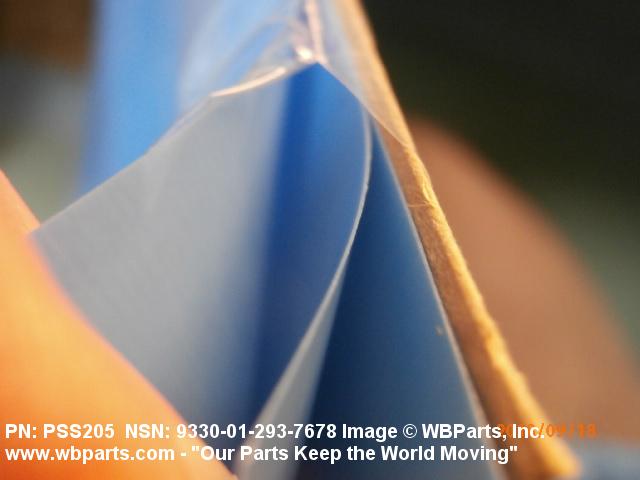

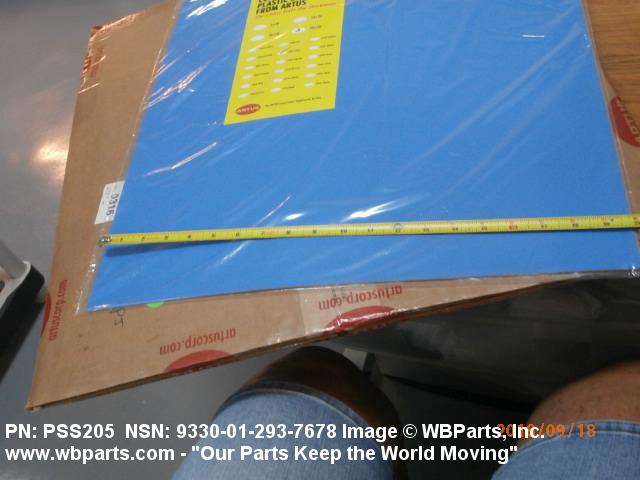

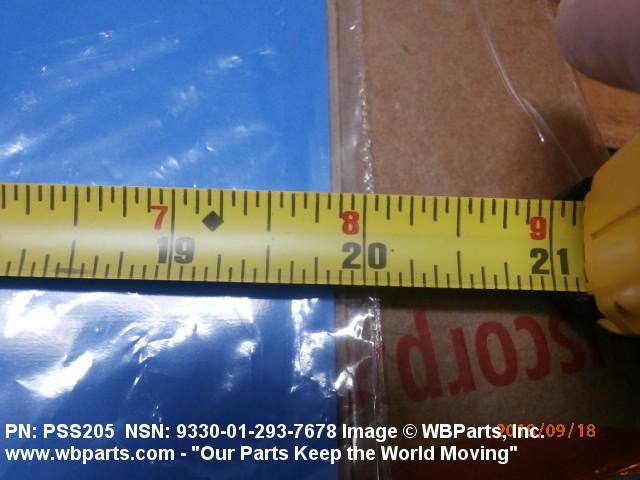

Drawings & Photos | NSN 9330-01-293-7678
Demand History | NSN 9330-01-293-7678
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9330-01-293-7678 | 2023-03-80 | 2 | US |
| 20INX20INX0.005INTHK BLUE | 2023-02-53 | 215 | DIBBS |
| PSS205 | 2023-02-53 | 215 | DIBBS |
| 20INX20INX0.005INTHK BLUE | 2022-08-236 | 86 | DIBBS |
| PSS205 | 2022-08-236 | 86 | DIBBS |
| 20INX20INX0.005INTHK BLUE | 2020-04-99 | 86 | DIBBS |
| PSS205 | 2020-04-99 | 86 | DIBBS |
| 9330-01-293-7678 | 2020-03-72 | 1 | United States |
| PSS205 | 2018-09-248 | 1 | United States |
| 9330-01-293-7678 | 2018-02-43 | 71 | DIBBS |
| 9330-01-293-7678 | 2016-08-215 | 1 | United States |
| 9330-01-293-7678 | 2016-08-215 | 10 | United States |
| 9330-01-293-7678 | 2012-10-277 | 55 | DIBBS |
| 9330-01-293-7678 | 2011-01-03 | 55 | DIBBS |
| 9330-01-293-7678 | 2010-03-81 | 55 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9330-01-293-7678
Related Products | NSN 9330-01-293-7678
Technical Data | NSN 9330-01-293-7678
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| MINIMUM TENSILE STRENGTH | NOT RATED |
| FLEXURAL STRENGTH | NOT RATED |
| COLOR | BLUE |
| LENGTH | 20.000 INCHES NOMINAL |
| WIDTH | 20.000 INCHES NOMINAL |
| THICKNESS | 0.005 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 9330-01-293-7678
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 086700 | GLASS,FLAT,BENT 220 UNITED IN |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 734 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9330-01-293-7678
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H SH : Sheet |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H SH : Sheet |
