NSN 9330-01-179-0242 HT 2051, HT2051, SWT-1/2 NATURAL
Product Details | SPIRAL WRAP PLASTIC TUBING
9330-01-179-0242 A length of flat plastic tubing wound on itself in the form of a spiral. The item may be utilized in the binding of wires, cables and for harnesses or as a spiral chafe guard on a nonmetallic hose assembly and the like. The elastic properties of the plastic item, in that it expands and contracts, creates a gripping eefect on the items it encompasses. It may be color coded for identification purposes. For flat plastic tubing designed to be expanded for use see TUBING, NONMETALLIC. Excludes CONDUIT, NONMETALLIC, FLEXIBLE; and INSULATION SLEEVING, ELECTRICAL
Part Alternates: HT 2051, HT2051, SWT-1/2 NATURAL, SWT12NATURAL, T50TQ, T50T-Q, FV2197686, P543414, P5434-1-4, T50T, 9330-01-179-0242, 01-179-0242, 9330011790242, 011790242
Nonmetallic Fabricated Materials | Plastics Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 12 MAY 1984 | 01-179-0242 | 32642 ( TUBING, PLASTIC, SPIRAL WRAP ) |
Drawings & Photos | NSN 9330-01-179-0242
Demand History | NSN 9330-01-179-0242
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P543414 | 2024-12-346 | 1280 | Denmark |
| 9330-01-179-0242 | 2024-10-281 | 4 | United States |
| HT 2051 | 2024-08-234 | 109 | DIBBS |
| P5434-1-4 | 2024-08-234 | 109 | DIBBS |
| SWT-1/2 NATURAL | 2024-08-234 | 109 | DIBBS |
| T50T | 2024-08-234 | 109 | DIBBS |
| HT 2051 | 2024-04-108 | 45 | DIBBS |
| P5434-1-4 | 2024-04-108 | 45 | DIBBS |
| SWT-1/2 NATURAL | 2024-04-108 | 45 | DIBBS |
| T50T | 2024-04-108 | 45 | DIBBS |
| 9330-01-179-0242 | 2024-03-80 | 129 | DIBBS |
| HT 2051 | 2023-11-327 | 158 | DIBBS |
| P5434-1-4 | 2023-11-327 | 158 | DIBBS |
| SWT-1/2 NATURAL | 2023-11-327 | 158 | DIBBS |
| T50T | 2023-11-327 | 158 | DIBBS |
| HT 2051 | 2023-11-305 | 134 | DIBBS |
| P5434-1-4 | 2023-11-305 | 134 | DIBBS |
| SWT-1/2 NATURAL | 2023-11-305 | 134 | DIBBS |
| T50T | 2023-11-305 | 134 | DIBBS |
| HT 2051 | 2023-10-282 | 70 | DIBBS |
| P5434-1-4 | 2023-10-282 | 70 | DIBBS |
| SWT-1/2 NATURAL | 2023-10-282 | 70 | DIBBS |
| T50T | 2023-10-282 | 70 | DIBBS |
| HT 2051 | 2022-10-292 | 190 | DIBBS |
| P5434-1-4 | 2022-10-292 | 190 | DIBBS |
| SWT-1/2 NATURAL | 2022-10-292 | 190 | DIBBS |
| T50T | 2022-10-292 | 190 | DIBBS |
| HT 2051 | 2021-11-308 | 211 | DIBBS |
| P5434-1-4 | 2021-11-308 | 211 | DIBBS |
| SWT-1/2 NATURAL | 2021-11-308 | 211 | DIBBS |
| T50T | 2021-11-308 | 211 | DIBBS |
| HT 2051 | 2021-01-28 | 209 | DIBBS |
| P5434-1-4 | 2021-01-28 | 209 | DIBBS |
| SWT-1/2 NATURAL | 2021-01-28 | 209 | DIBBS |
| T50T | 2021-01-28 | 209 | DIBBS |
| 9330-01-179-0242 | 2021-01-22 | 50 | US |
| HT 2051 | 2020-10-302 | 266 | DIBBS |
| P5434-1-4 | 2020-10-302 | 266 | DIBBS |
| SWT-1/2 NATURAL | 2020-10-302 | 266 | DIBBS |
| T50T | 2020-10-302 | 266 | DIBBS |
| HT 2051 | 2019-11-318 | 232 | DIBBS |
| P5434-1-4 | 2019-11-318 | 232 | DIBBS |
| SWT-1/2 NATURAL | 2019-11-318 | 232 | DIBBS |
| T50T | 2019-11-318 | 232 | DIBBS |
| HT 2051 | 2019-03-72 | 180 | DIBBS |
| P5434-1-4 | 2019-03-72 | 180 | DIBBS |
| SWT-1/2 NATURAL | 2019-03-72 | 180 | DIBBS |
| T50T | 2019-03-72 | 180 | DIBBS |
| 9330-01-179-0242 | 2019-02-32 | 1 | United States |
| 9330-01-179-0242 | 2017-05-151 | 125 | DIBBS |
| 9330-01-179-0242 | 2016-07-213 | 254 | DIBBS |
| 9330-01-179-0242 | 2016-02-35 | 173 | DIBBS |
| 9330-01-179-0242 | 2015-09-250 | 230 | DIBBS |
| 9330-01-179-0242 | 2015-08-221 | 322 | DIBBS |
| 9330-01-179-0242 | 2015-05-125 | 178 | DIBBS |
| 9330-01-179-0242 | 2014-08-218 | 174 | DIBBS |
| 9330-01-179-0242 | 2013-10-304 | 231 | DIBBS |
| 9330-01-179-0242 | 2013-08-240 | 142 | DIBBS |
| 9330-01-179-0242 | 2013-05-135 | 116 | DIBBS |
| 9330-01-179-0242 | 2013-01-22 | 87 | DIBBS |
| 9330-01-179-0242 | 2011-09-245 | 171 | DIBBS |
| 9330-01-179-0242 | 2010-12-341 | 171 | DIBBS |
| 9330-01-179-0242 | 2010-09-266 | 154 | DIBBS |
| 9330-01-179-0242 | 2010-07-190 | 66 | DIBBS |
| 9330-01-179-0242 | 2010-05-139 | 105 | DIBBS |
| 9330-01-179-0242 | 2008-12-343 | 445 | DIBBS |
| 9330-01-179-0242 | 2008-10-303 | 495 | DIBBS |
Cross Reference | NSN 9330-01-179-0242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FV2197686 | U0795 | QINETIQ |
| HT 2051 | 09106 | M M NEWMAN CORPORATION |
| P5434-1-4 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| SWT-1/2 NATURAL | 51705 | INSULATION SOURCES, INC. DBA ICO RALLY |
| T50T | 06383 | PANDUIT CORP. DBA PANDUIT |
| T50T | 61125 | J.G.B. ENTERPRISES, INC. |
| T50T-Q | U2117 | PANDUIT EUROPE LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9330-01-179-0242
Related Products | NSN 9330-01-179-0242
Technical Data | NSN 9330-01-179-0242
| Characteristic | Specifications |
|---|---|
| PLASTIC MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE |
| COLOR CODING/SPECIAL MARKINGS | NOT INCLUDED |

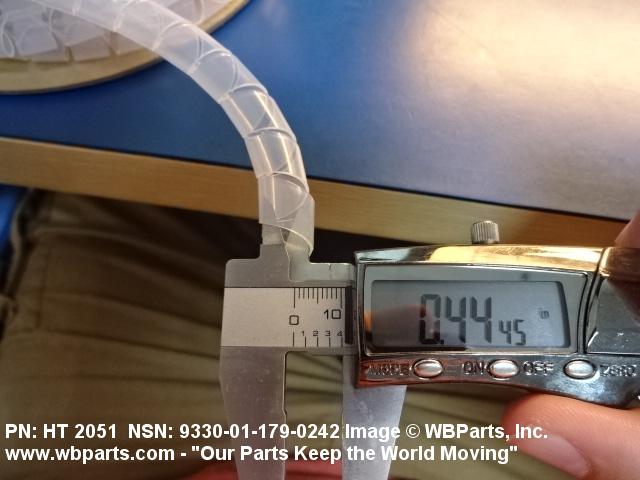

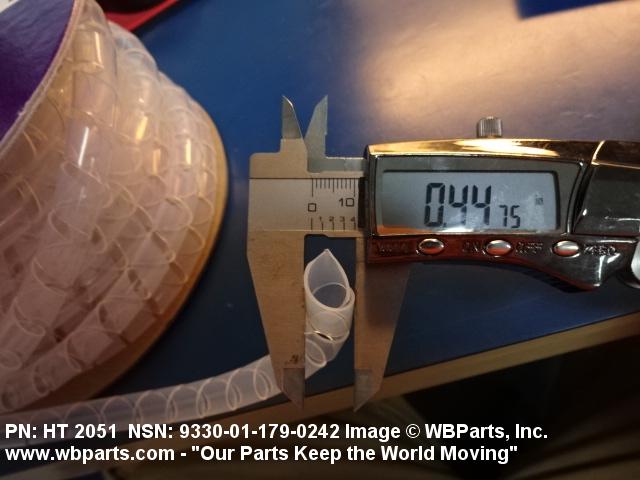

| INSIDE DIAMETER | 0.424 INCHES MINIMUM AND 0.456 INCHES MAXIMUM |

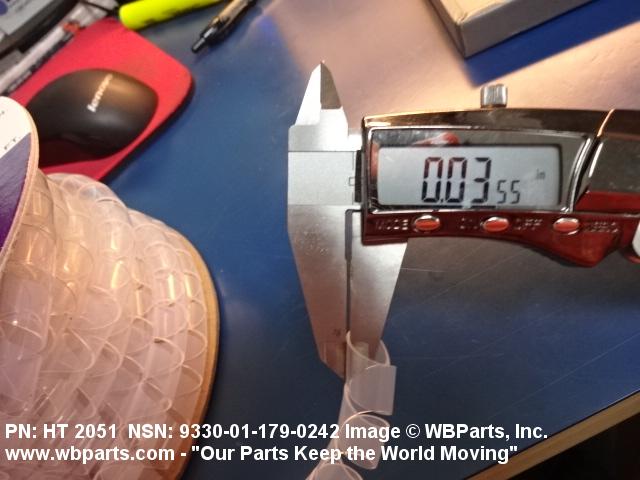

| WALL THICKNESS | 0.0220 INCHES MINIMUM AND 0.0380 INCHES MAXIMUM |
| LENGTH | 25.000 FEET NOMINAL |
| BUNDLE DIAMETER RANGE | 0.750 TO 4.000 INCHES |
| OPERATING TEMP RANGE IN DEG FAHRENHEIT | -65.0 TO 500.0 |
| QUANTITY WITHIN EACH UNIT PACKAGE | 25.000 FEET |
Restrictions/Controls & Freight Information | NSN 9330-01-179-0242
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 845 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9330-01-179-0242
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RO : Roll |
