NSN 9330-01-085-2922 SC-6060-1/4, SC606014, SC-606-1/4
Product Details | SPIRAL WRAP PLASTIC TUBING
9330-01-085-2922 A length of flat plastic tubing wound on itself in the form of a spiral. The item may be utilized in the binding of wires, cables and for harnesses or as a spiral chafe guard on a nonmetallic hose assembly and the like. The elastic properties of the plastic item, in that it expands and contracts, creates a gripping eefect on the items it encompasses. It may be color coded for identification purposes. For flat plastic tubing designed to be expanded for use see TUBING, NONMETALLIC. Excludes CONDUIT, NONMETALLIC, FLEXIBLE; and INSULATION SLEEVING, ELECTRICAL
Part Alternates: SC-6060-1/4, SC606014, SC-606-1/4, SC60614, T0004, T25T TUBING, T25TTUBING, TFE-SW-0.250-C-BR, TFESW0250CBR, TSW 1/4, TSW14, 10150501 , 14M912TB4, 14M912TN4, 5000241, 500024-1, 890AN0039 , 9330-01-085-2922, 01-085-2922, 9330010852922, 010852922
Nonmetallic Fabricated Materials | Plastics Fabricated Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | 05 NOV 1979 | 01-085-2922 | 32642 ( TUBING, PLASTIC, SPIRAL WRAP ) |

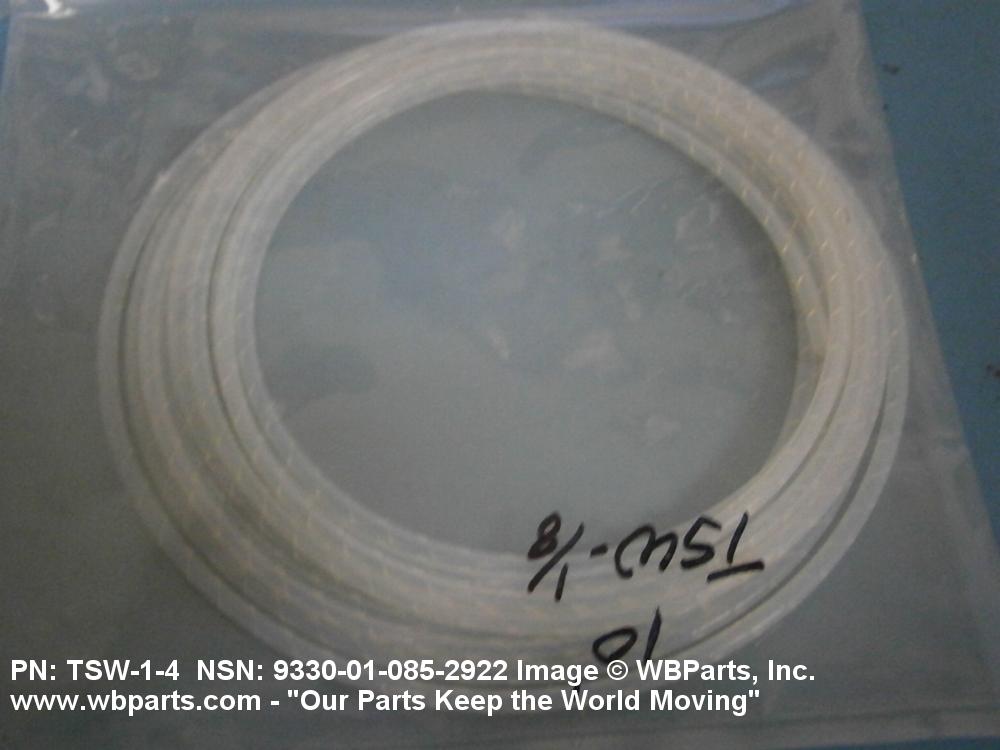

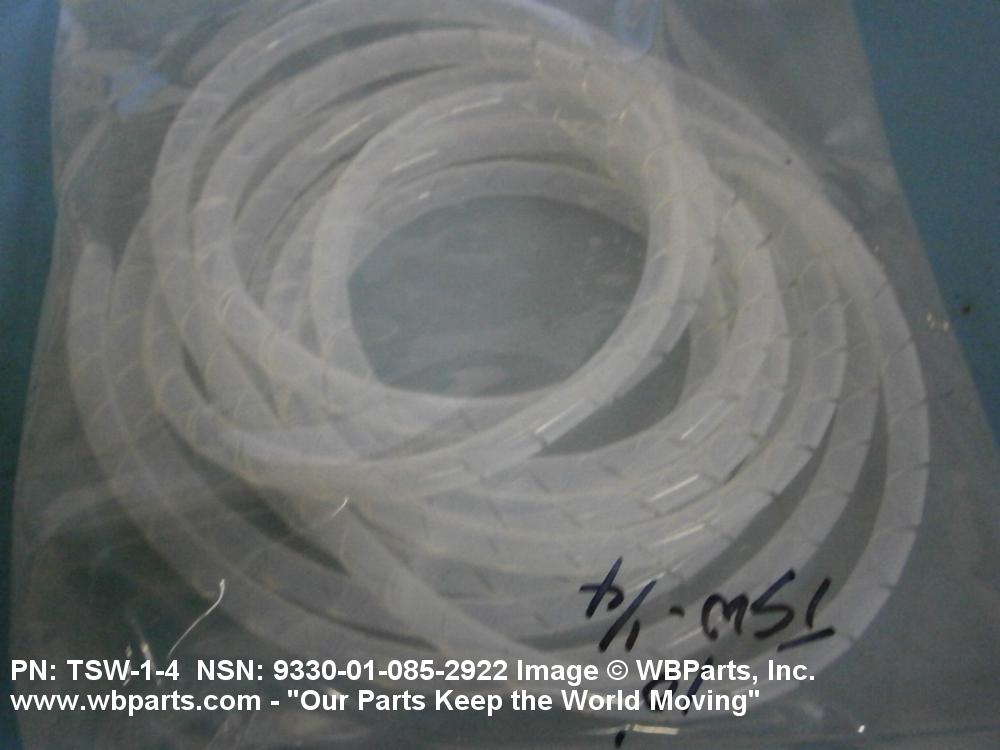

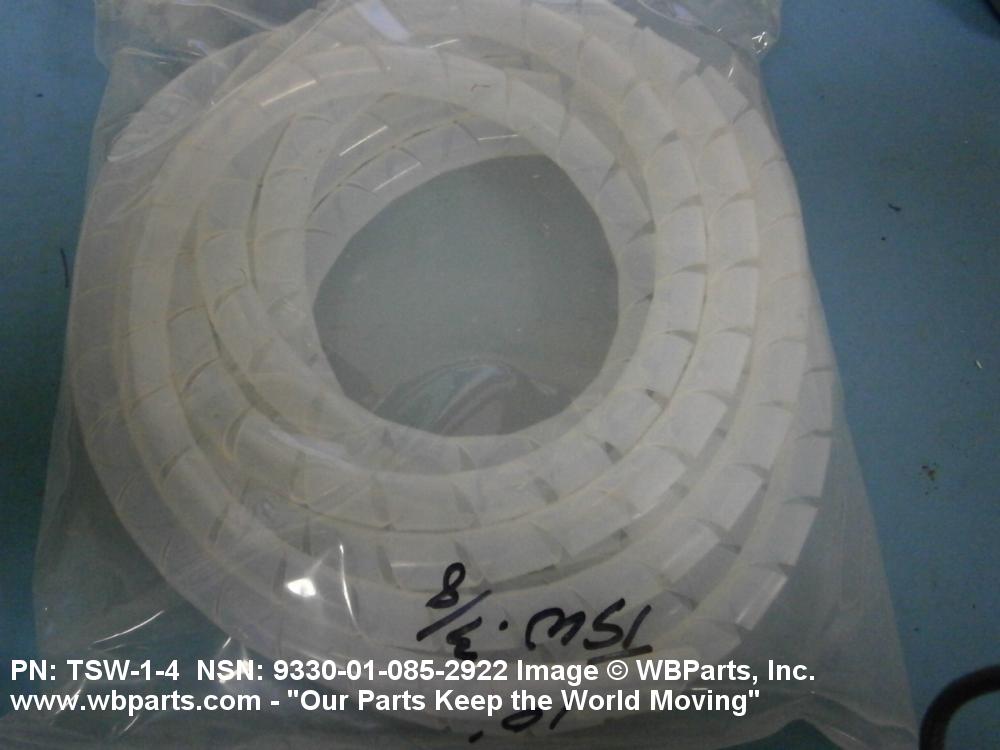

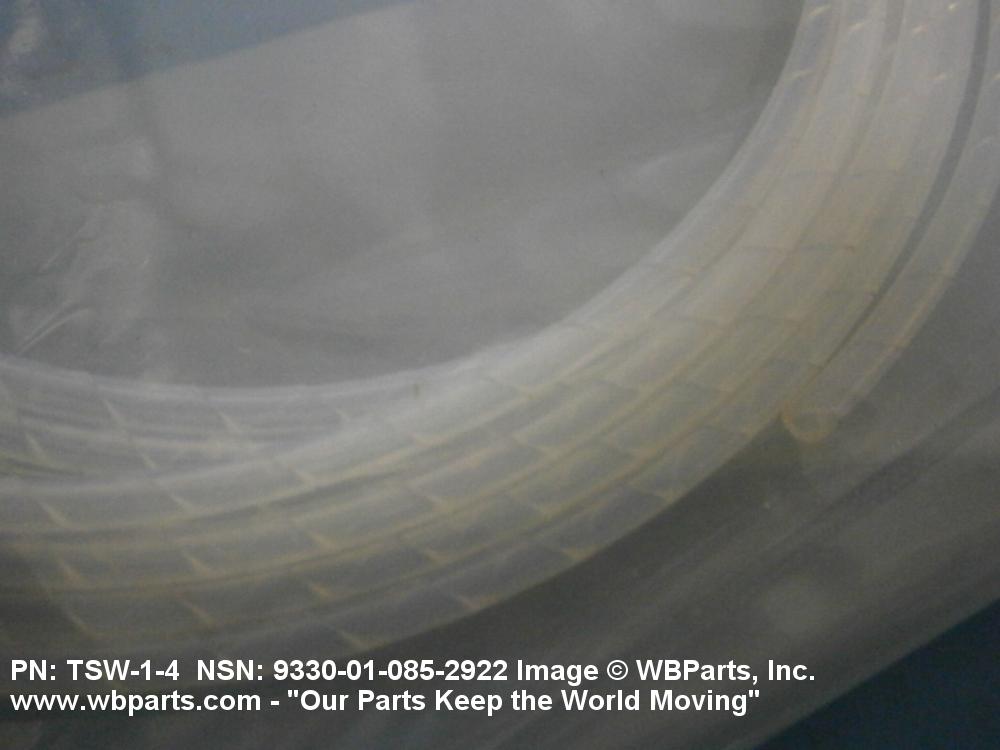

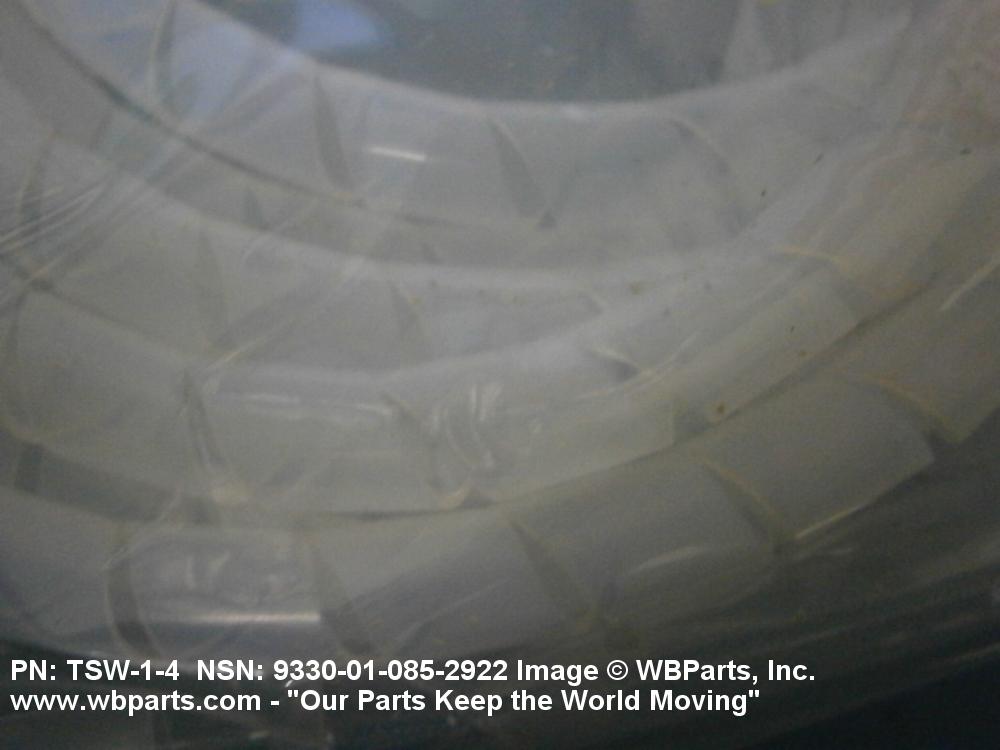

Drawings & Photos | NSN 9330-01-085-2922
Demand History | NSN 9330-01-085-2922
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9330-01-085-2922 | 2024-09-264 | 100 | UK |
| 14M912TN4 | 2021-07-207 | 30 | Malaysia |
| 14M912TN4 | 2021-04-115 | 30 | Malaysia |
| 14M912TN4 | 2021-04-102 | 30 | Malaysia |
| 14M912TB4 | 2020-10-281 | 849 | IN |
| 14M912TN4 | 2018-08-220 | 600 | United States |
| 9330-01-085-2922 | 2016-10-305 | 58779 | DIBBS |
| 9330-01-085-2922 | 2016-02-55 | 100161 | DIBBS |
| 9330-01-085-2922 | 2015-12-336 | 65841 | DIBBS |
| 9330-01-085-2922 | 2015-10-295 | 20251 | DIBBS |
| 9330-01-085-2922 | 2010-10-301 | 30 | Indonesia |
| 10150501 | 2009-07-212 | 1 | US |
Cross Reference | NSN 9330-01-085-2922
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14M912TB4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 14M912TN4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 500024-1 | 00779 | TYCO ELECTRONICS CORPORATION |
| 500024-1 | 13577 | MEGA CORP |
| 500024-1 | 6M033 | MEGA CO INC |
| 890AN0039 | A0199 | OTO MELARA SPA |
| SC-606-1/4 | 96904 | HIGH VOLTAGE ENGINEERING CORP NATVAR CO DIV |
| SC-6060-1/4 | 96904 | HIGH VOLTAGE ENGINEERING CORP NATVAR CO DIV |
| T0004 | 66794 | TELEFLEX FLOUROPLASTICS INC SUB OF TELEFLEX INC USA |
| T25T TUBING | 06383 | PANDUIT CORP. DBA PANDUIT |
| TFE-SW-0.250-C-BR | 32039 | ZEUS INDUSTRIAL PRODUCTS, INC. |
| TSW 1/4 | 60495 | PARKER HANNIFIN CORPORATION DIV PARFLEX DIVISION ATLANTIC TUBE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 9330-01-085-2922
Related Products | NSN 9330-01-085-2922
Technical Data | NSN 9330-01-085-2922
| Characteristic | Specifications |
|---|---|
| PLASTIC MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE, AMS 3653 OR PLASTIC,POLYTETRAFLUOROETHYLENE,M IL-I-22129 |
| COLOR CODING/SPECIAL MARKINGS | NOT INCLUDED |
| INSIDE DIAMETER | 0.190 INCHES NOMINAL |
| WALL THICKNESS | 0.0300 INCHES NOMINAL |
| LENGTH | ANY ACCEPTABLE |
| BUNDLE DIAMETER RANGE | 0.250 TO 0.562 INCHES |
| OPERATING TEMP RANGE IN DEG FAHRENHEIT | -450.0 TO 500.0 |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 14M912TN4 |
Restrictions/Controls & Freight Information | NSN 9330-01-085-2922
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157320 | PLASTIC/RUBBER ARTICLE/ETC VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 9330-01-085-2922
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 7 | An item that has been reviewed and determined not to fit the definition of codes 0 thru 6. These items are not assigned a specific application within the Marine Corps. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
