NSN 6695-00-855-8564 MS280551, MS28055-1, MS2805511
Product Details | INSTRUMENT MOUNTING BEZEL
6695-00-855-8564 An item, usually in the form of a flanged rim, designed to fit over the front of a dial instrument to secure it in place in an instrument panel, or the like.
Part Alternates: MS280551, MS28055-1, MS2805511, MS28055-11, AN58091, AN5809-1, KG99A1, MILF6836, MIL-F-6836, MILM2805511, MILM28055-11, 14985B, 149-85B, 6695-00-855-8564, 00-855-8564, 6695008558564, 008558564
Instruments and Laboratory Equipment | Combination and Miscellaneous Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-855-8564 | 19067 ( BEZEL, INSTRUMENT MOUNTING ) |

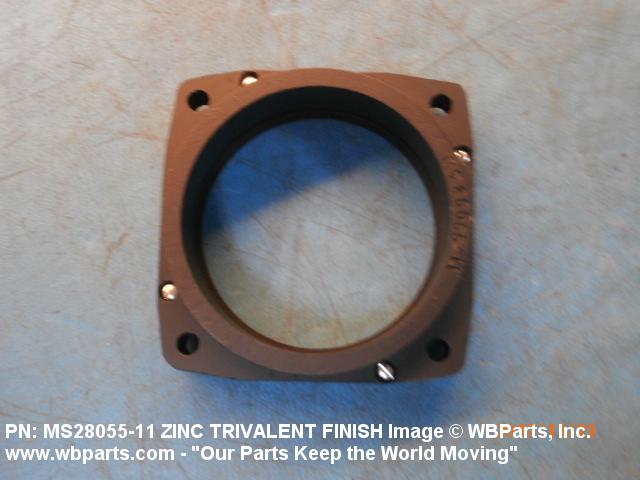

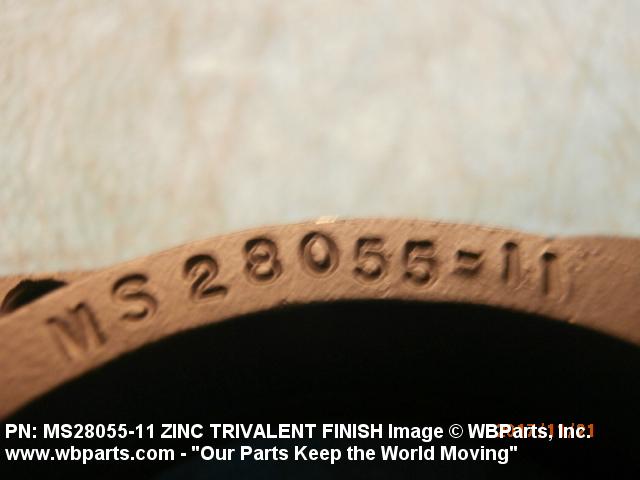

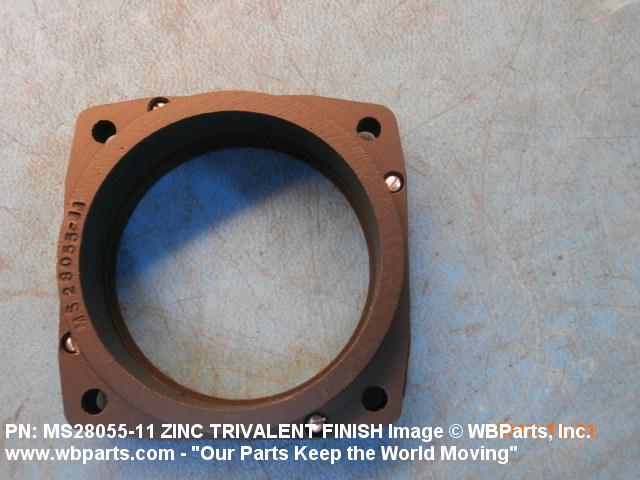

Drawings & Photos | NSN 6695-00-855-8564
Demand History | NSN 6695-00-855-8564
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6695-00-855-8564 | 2024-02-46 | 10 | DIBBS |
| 6695-00-855-8564 | 2023-09-248 | 10 | DIBBS |
| 6695-00-855-8564 | 2023-08-232 | 10 | DIBBS |
| 6695-00-855-8564 | 2023-03-61 | 13 | DIBBS |
| 6695-00-855-8564 | 2022-12-338 | 10 | DIBBS |
| 6695-00-855-8564 | 2022-09-261 | 10 | DIBBS |
| 6695-00-855-8564 | 2020-04-119 | 3 | us |
| MS2805511 | 2017-11-314 | 1 | United States |
| 6695-00-855-8564 | 2015-09-268 | 110 | DIBBS |
| 6695-00-855-8564 | 2015-09-260 | 110 | DIBBS |
| 6695-00-855-8564 | 2013-07-205 | 64 | DIBBS |
| 6695-00-855-8564 | 2013-07-204 | 64 | DIBBS |
| MS2805511 | 2013-06-163 | 3 | United States |
| 6695-00-855-8564 | 2011-05-147 | 87 | DIBBS |
| 6695-00-855-8564 | 2010-12-340 | 1 | US |
| 6695-00-855-8564 | 2010-05-127 | 90 | DIBBS |
| MS2805511 | 2009-07-194 | 1 | United States |
Cross Reference | NSN 6695-00-855-8564
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 149-85B | 35918 | HORIZON AEROSPACE LLC DBA MAGNETICS DIVISION |
| AN5809-1 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| KG99A1 | 94580 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MIL-F-6836 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILM28055-11 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS28055-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS28055-11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6695-00-855-8564
Related Products | NSN 6695-00-855-8564
Technical Data | NSN 6695-00-855-8564

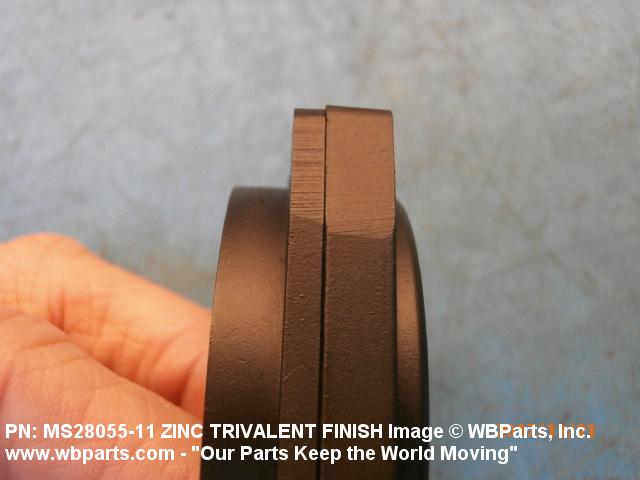

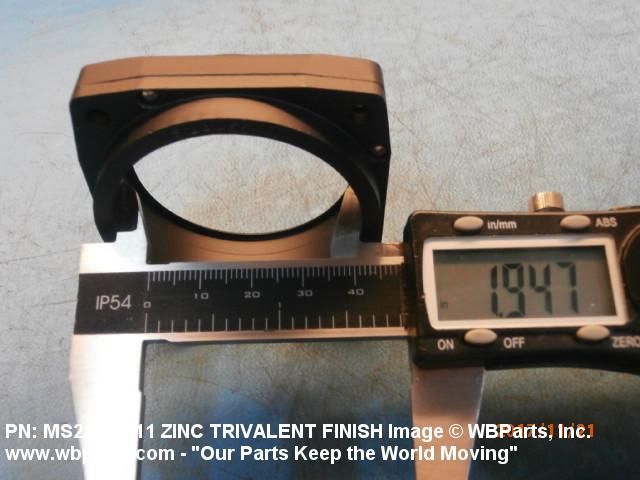

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | DULL BLACK |
| INSTRUMENT SIZE FOR WHICH DESIGNED | 2 IN. DIA |
| CONSTRUCTION TYPE | TWO-PIECE FRONT FLANGE/REAR FLANGE |
| DIAL APERTURE SHAPE | CIRCULAR |
| DIAL APERTURE SIZE | 2 IN. DIA |
| DIAL APERTURE KNOB CUTOUT FEATURE | NOT INCLUDED |
| MOUNTING METHOD | WITH SCREWS THROUGH HOLES IN FLANGE |
| MOUNTING HOLE QUANTITY | 4 |

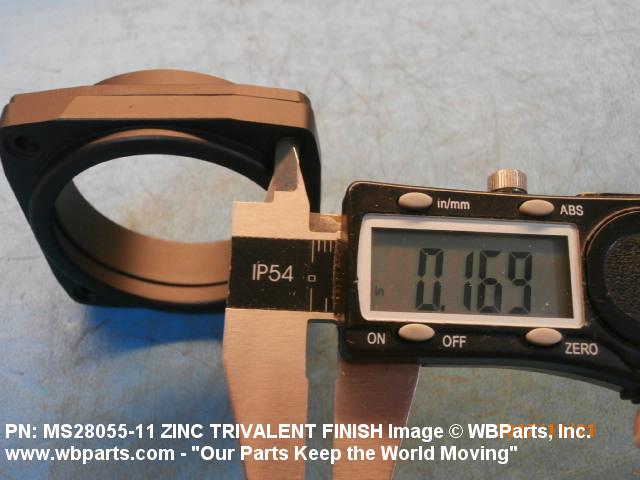

| MOUNTING HOLE SIZE | 0.170 IN. DIA |

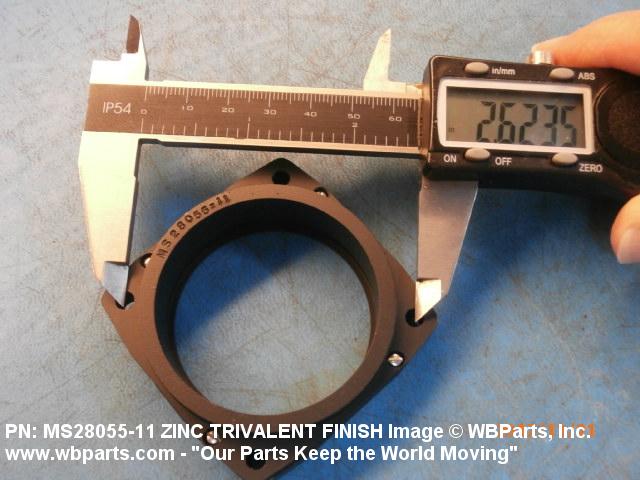

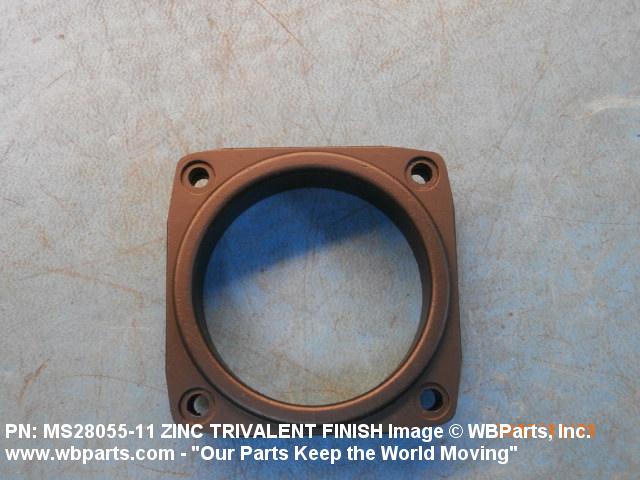

| MOUNTING HOLE CONFIGURATION | MTG HOLES SPACED 90 DEG APART ON 2.625 IN. BOLT CIRCLE DIA. |

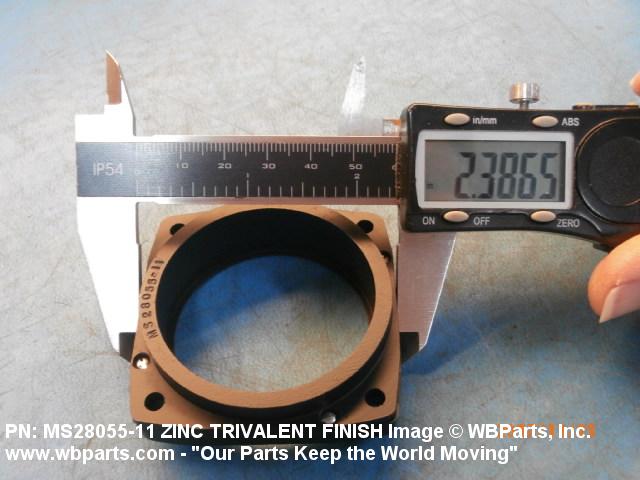

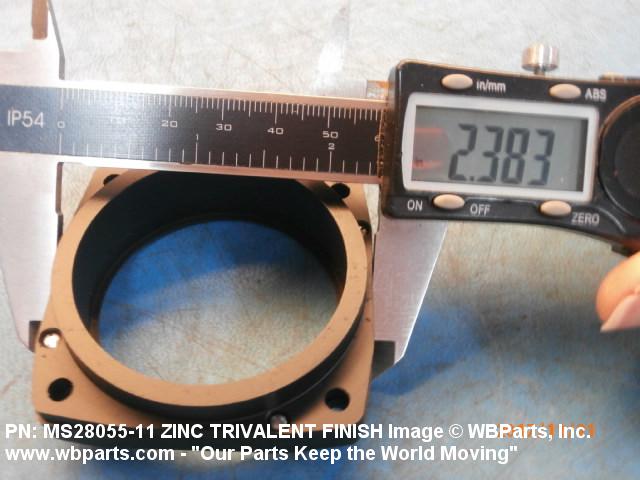

| OVERALL LENGTH | 2.375 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |

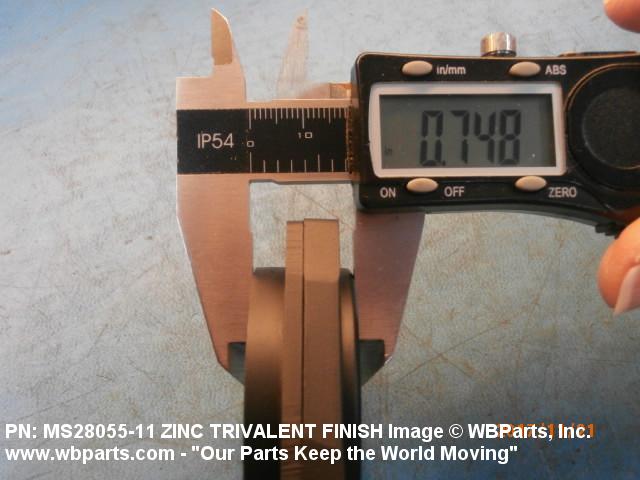

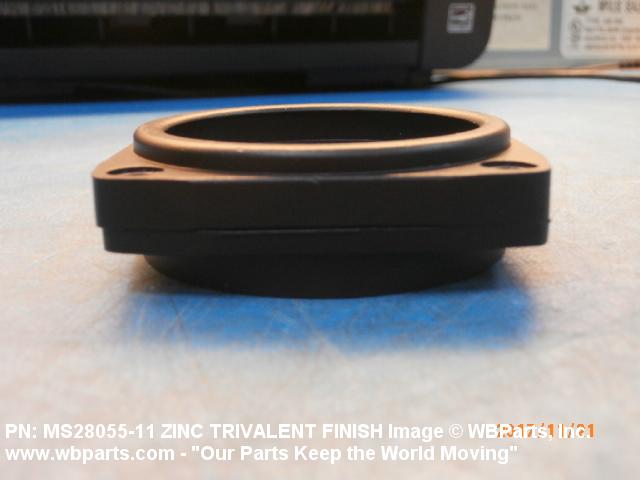

| OVERALL THICKNESS | 0.875 INCHES NOMINAL |
