NSN 6695-00-519-5607 40400297, 4040-0297, 00-519-5607
Product Details | INSTRUMENT MOUNTING BEZEL
6695-00-519-5607 An item, usually in the form of a flanged rim, designed to fit over the front of a dial instrument to secure it in place in an instrument panel, or the like.
Part Alternates: 40400297, 4040-0297, 6695-00-519-5607, 00-519-5607, 6695005195607, 005195607
Instruments and Laboratory Equipment | Combination and Miscellaneous Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 16 AUG 1974 | 00-519-5607 | 19067 ( BEZEL, INSTRUMENT MOUNTING ) |

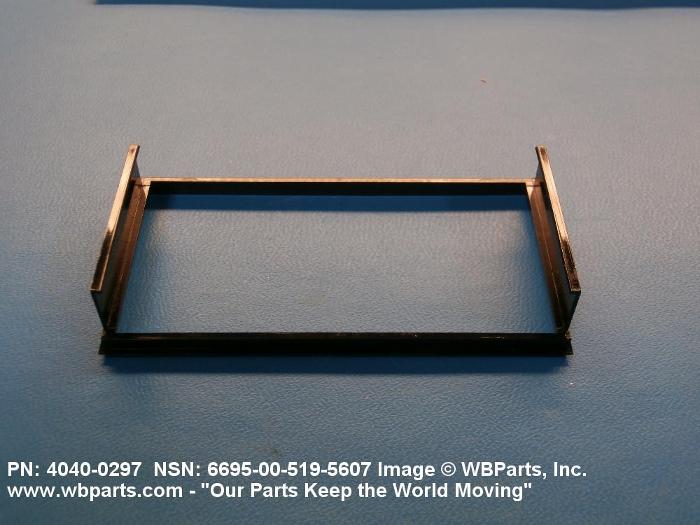

Drawings & Photos | NSN 6695-00-519-5607
Demand History | NSN 6695-00-519-5607
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6695-00-519-5607 | 2022-11-20 | 2 | US |
| 6695-00-519-5607 | 2022-01-31 | 24 | US |
| 6695-00-519-5607 | 2021-03-01 | 6 | US |
| 6695-00-519-5607 | 2019-06-13 | 1 | DE |
| 6695-00-519-5607 | 2017-05-30 | 2 | US |
| 6695-00-519-5607 | 2017-03-19 | 1 | US |
| 6695-00-519-5607 | 2012-08-08 | 2 | United States |
| 6695-00-519-5607 | 2008-12-02 | 1 | Chile |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6695-00-519-5607
Related Products | NSN 6695-00-519-5607
Technical Data | NSN 6695-00-519-5607
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, POLYCARBONATE RESIN |
| INSTRUMENT SIZE FOR WHICH DESIGNED | 3.750 IN. LONG BY 2.000 IN. WIDE |
| CONSTRUCTION TYPE | ONE-PIECE |
| DIAL APERTURE SHAPE | RECTANGULAR W/SQUARE ENDS |
| DIAL APERTURE KNOB CUTOUT FEATURE | NOT INCLUDED |
| OVERALL LENGTH | 3.733 INCHES NOMINAL |
| OVERALL WIDTH | 1.900 INCHES NOMINAL |
| OVERALL THICKNESS | 0.677 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 66250543483 TEST SET OSCILLATOR |
| MANUFACTURERS CODE | 1LQK8 |
| DESIGN CONTROL REFERENCE | 4040-0297 |
Restrictions/Controls & Freight Information | NSN 6695-00-519-5607
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6695-00-519-5607
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
