Product Details | INSTRUMENT MOUNTING BEZEL

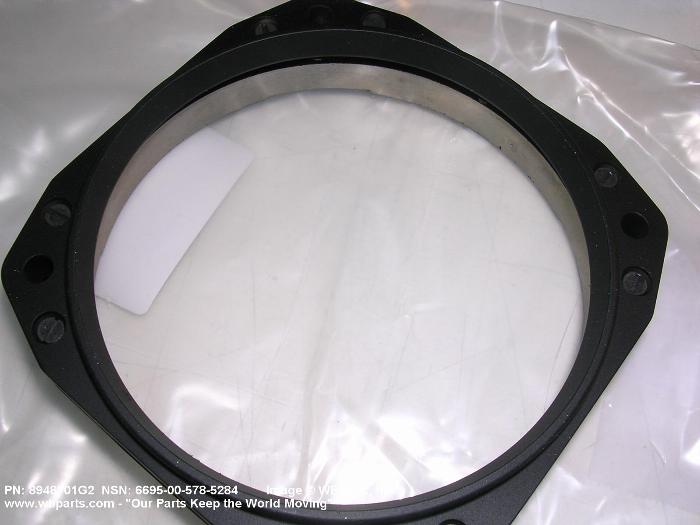

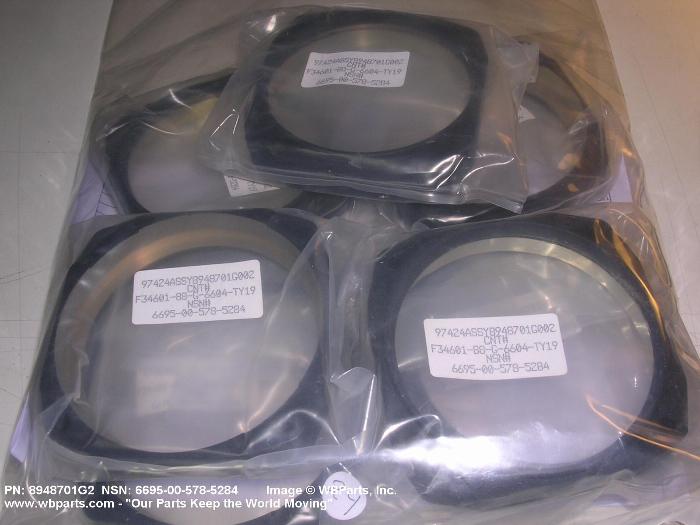

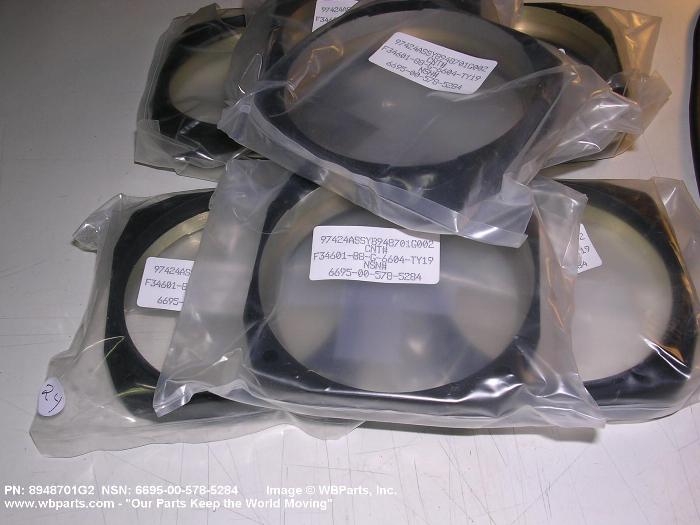

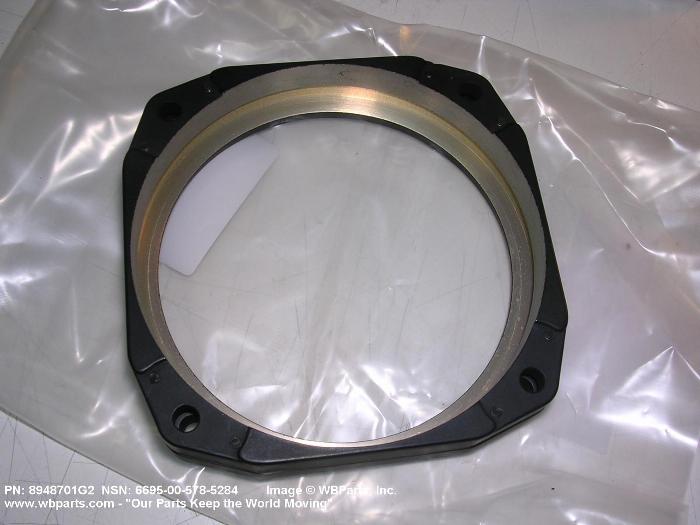

6695-00-578-5284 An item, usually in the form of a flanged rim, designed to fit over the front of a dial instrument to secure it in place in an instrument panel, or the like.
Part Alternates: 8948701G002, 8948701G2, 8948701GR2, 89-48701GR2, 6695-00-578-5284, 00-578-5284, 6695005785284, 005785284
Instruments and Laboratory Equipment | Combination and Miscellaneous Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-578-5284 | 19067 ( BEZEL, INSTRUMENT MOUNTING ) |
Drawings & Photos | NSN 6695-00-578-5284
Demand History | NSN 6695-00-578-5284
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8948701G002 | 2023-07-200 | 11 | DIBBS |
| 8948701G002 | 2023-04-95 | 11 | DIBBS |
| 8948701G002 | 2023-03-73 | 11 | DIBBS |
| 6695-00-578-5284 | 2019-12-353 | 1 | SA |
| 6695-00-578-5284 | 2019-12-346 | 1 | SA |
| 6695-00-578-5284 | 2019-01-21 | 6 | US |
| 6695-00-578-5284 | 2013-08-213 | 4 | US |
| 8948701G2 | 2013-06-177 | 1 | United States |
| 8948701G2 | 2010-11-305 | 1 | United States |
| 8948701G2 | 2009-01-29 | 5 | United States |
| 8948701G2 | 2008-12-351 | 2 | United States |
| 8948701G002 | 2008-01-08 | 7 | United States |
Cross Reference | NSN 6695-00-578-5284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 89-48701GR2 | 24446 | GENERAL ELECTRIC CO |
| 89-48701GR2 | 24455 | GENERAL ELECTRIC CO LAMP DIVISION OF CONSUMER |
| 8948701G002 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 8948701G2 | 24446 | GENERAL ELECTRIC CO |
| 8948701G2 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 8948701GR2 | 24446 | GENERAL ELECTRIC CO |
| 8948701GR2 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6695-00-578-5284
Related Products | NSN 6695-00-578-5284
Technical Data | NSN 6695-00-578-5284
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | BLACK OXIDE |
| INSTRUMENT SIZE FOR WHICH DESIGNED | 3.500 IN. WIDE BY 3.500 IN. LONG |
| CONSTRUCTION TYPE | TWO-PIECE |
| DIAL APERTURE SHAPE | CIRCULAR |
| DIAL APERTURE SIZE | 2.7500 IN. DIA |
| DIAL APERTURE KNOB CUTOUT FEATURE | NOT INCLUDED |
| MOUNTING METHOD | WITH SCREWS THROUGH HOLES IN FLANGE |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE SIZE | 0.170 IN. DIA |
| MOUNTING HOLE CONFIGURATION | EQUALLY SPACED AT EACH CORNER ON 2.474 IN. MTG CENTERS |
| OVERALL LENGTH | 3.261 INCHES NOMINAL |
| OVERALL WIDTH | 3.261 INCHES NOMINAL |
| OVERALL THICKNESS | 0.750 INCHES NOMINAL |
