Product Details | DIGITAL SELF-INDICATING THERMOMETER
6685-01-429-3274 A device whose measurable physical properties change with variation in temperature. The temperature reading appears in either degrees Celsius or degrees Fahrenheit on a self-indicating digital display. The device operates in conjunction with thermocouples and is powered by an electric current. Excludes INDICATOR, TEMPERATURE, THERMOCOUPLE.
Part Alternates: 866, 6685-01-429-3274, 01-429-3274, 6685014293274, 014293274
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 09 APR 1996 | 01-429-3274 | 33257 ( THERMOMETER, SELF-INDICATING, DIGITAL ) |
Drawings & Photos | NSN 6685-01-429-3274
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-429-3274
Technical Data | NSN 6685-01-429-3274
| Characteristic | Specifications |
|---|---|
| MEASUREMENT TYPE | DIGITAL |
| MATERIAL | PLASTIC METER CASE |

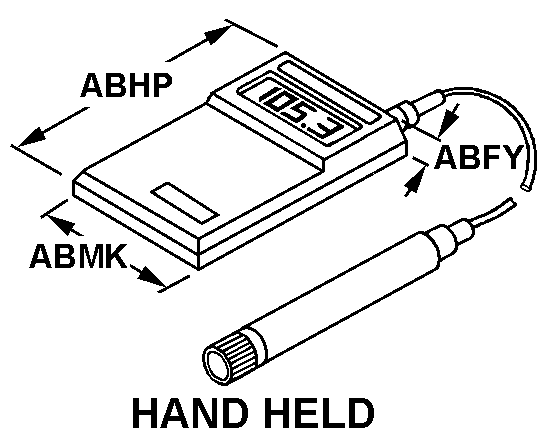

| STYLE DESIGNATOR | H6 HAND HELD |
| OVERALL DEPTH | 31.0 MILLIMETERS NOMINAL |
| OVERALL LENGTH | 160.0 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 69.0 MILLIMETERS NOMINAL |
| VOLTAGE RATING IN VOLTS | 9.0 DC MAXIMUM |
| OPERATING TEMP RANGE | -40.0 TO 150.0 DEG FAHRENHEIT |
| DISPLAY TYPE | LIQUID CRYSTAL |
| DISPLAY DIGIT QUANTITY | 4 |
| MEASUREMENT RANGE | -55.0 TO 150.0 DEG FAHRENHEIT |
| SWITCH TYPE AND QUANTITY | 1 TOGGLE |
Restrictions/Controls & Freight Information | NSN 6685-01-429-3274
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
