NSN 6685-01-504-2026 ED1759103, ED175-9103, ED175910396
Product Details | DIGITAL SELF-INDICATING THERMOMETER
6685-01-504-2026 A device whose measurable physical properties change with variation in temperature. The temperature reading appears in either degrees Celsius or degrees Fahrenheit on a self-indicating digital display. The device operates in conjunction with thermocouples and is powered by an electric current. Excludes INDICATOR, TEMPERATURE, THERMOCOUPLE.
Part Alternates: ED1759103, ED175-9103, ED175910396, ED1759103-96, 50640 ITEM 17, 50640ITEM17, 6685-01-504-2026, 01-504-2026, 6685015042026, 015042026
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 22 JAN 2003 | 01-504-2026 | 33257 ( THERMOMETER, SELF-INDICATING, DIGITAL ) |

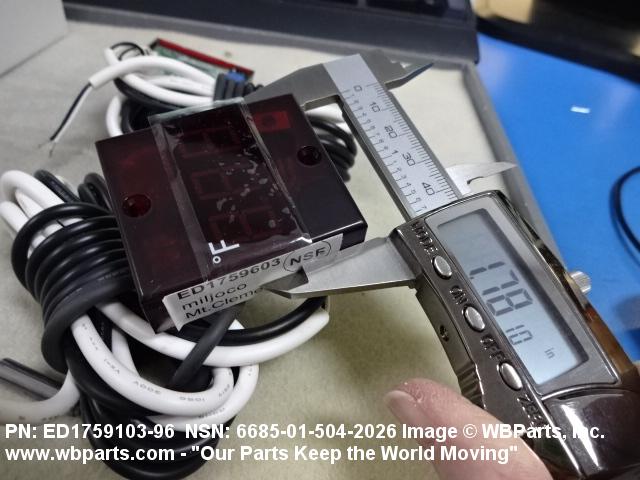

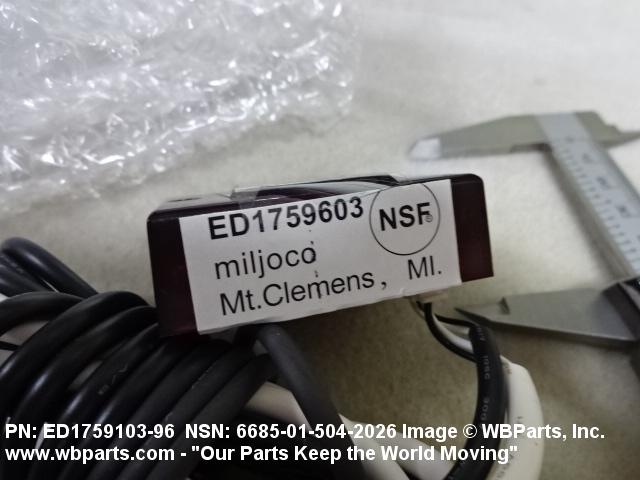

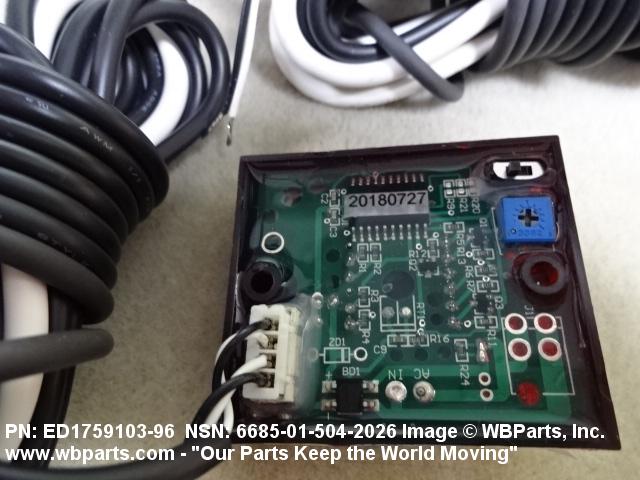

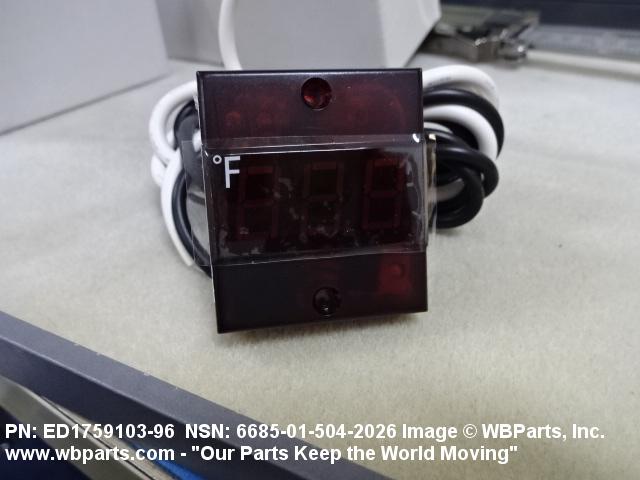

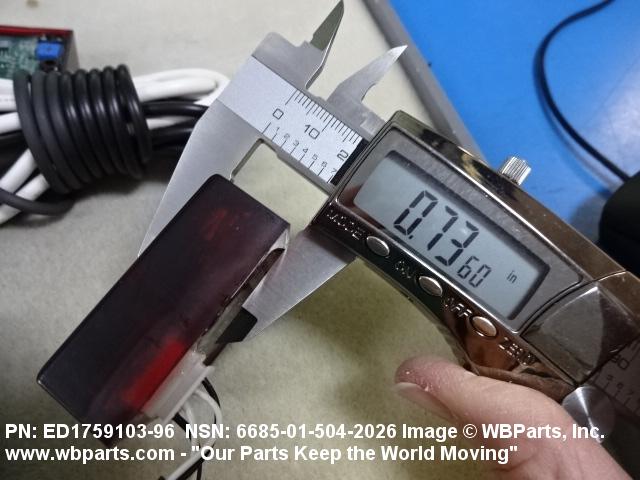

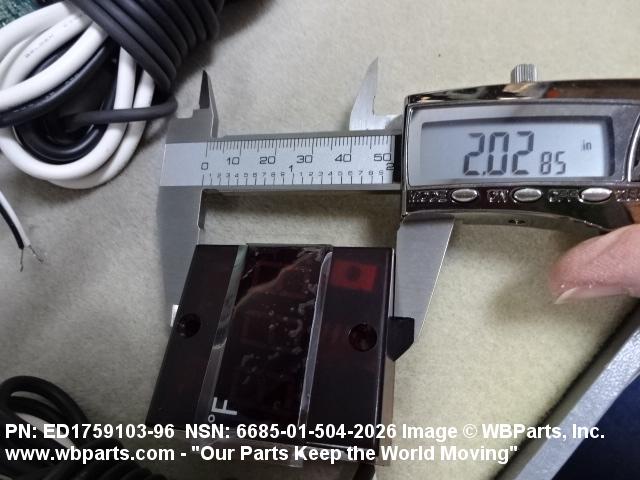

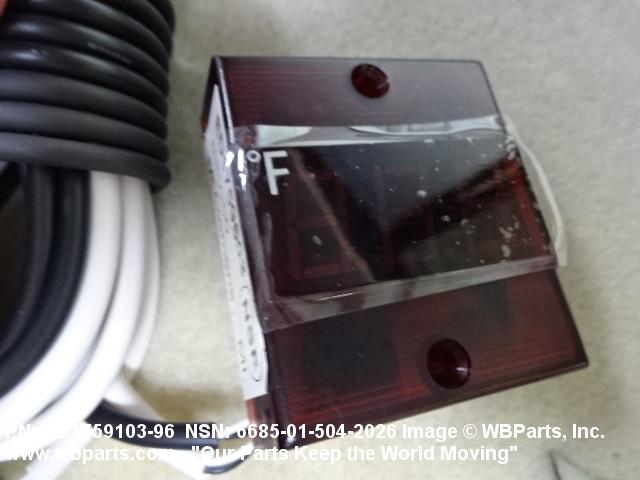

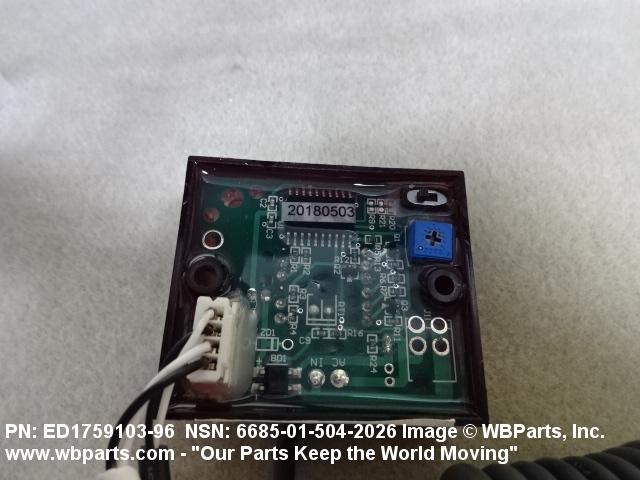

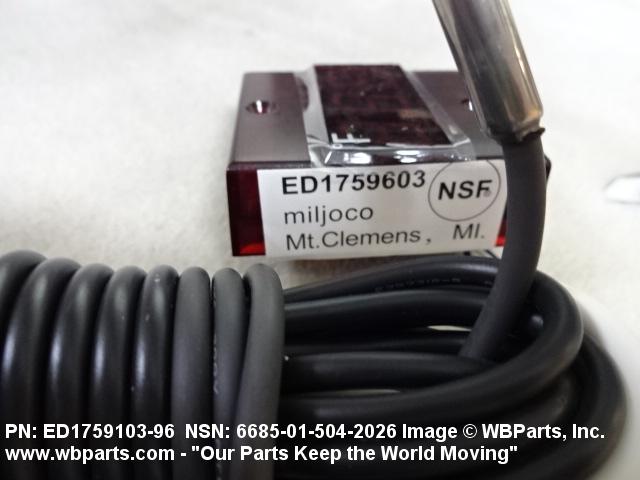

Drawings & Photos | NSN 6685-01-504-2026
Demand History | NSN 6685-01-504-2026
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ED175-9103 | 2020-04-97 | 2 | DIBBS |
| ED1759103-96 | 2020-04-97 | 2 | DIBBS |
| 6685-01-504-2026 | 2019-08-218 | 1 | US |
| 6685-01-504-2026 | 2018-12-347 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-504-2026
Technical Data | NSN 6685-01-504-2026
| Characteristic | Specifications |
|---|---|
| MEASUREMENT TYPE | DIGITAL |
| MATERIAL | STEEL CORROSION RESISTING BULB |

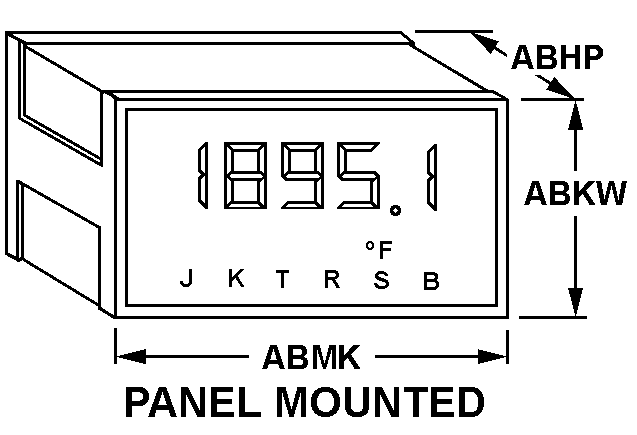

| STYLE DESIGNATOR | H5 PANEL MOUNTED |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE |
| OPERATING TEMP RANGE | -20.0 TO 140.0 DEG FAHRENHEIT |
| DISPLAY TYPE | THERMISTOR |
| DISPLAY DIGIT QUANTITY | 3 |
| MEASUREMENT RANGE | -40.0 TO 120.0 DEG FAHRENHEIT AND -40.0 TO 50.0 DEG CELSIUS |
| SWITCH TYPE AND QUANTITY | ANY ACCEPTABLE |
| III END ITEM IDENTIFICATION | THAW CABINET |
Restrictions/Controls & Freight Information | NSN 6685-01-504-2026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-504-2026
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
