NSN 6685-01-096-4269 2926221, 292622-1, 01-096-4269
Product Details | THERMOCOUPLE TEMPERATURE INDICATOR
6685-01-096-4269 An indicator which indicates temperature by means of a thermocouple circuit.
Part Alternates: 2926221, 292622-1, 6685-01-096-4269, 01-096-4269, 6685010964269, 010964269
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 18 JUN 1980 | 01-096-4269 | 03395 ( INDICATOR, TEMPERATURE, THERMOCOUPLE ) |
Drawings & Photos | NSN 6685-01-096-4269
Demand History | NSN 6685-01-096-4269
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-096-4269 | 2024-05-143 | 1 | US |
Cross Reference | NSN 6685-01-096-4269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 292622-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-096-4269
Related Products | NSN 6685-01-096-4269
Technical Data | NSN 6685-01-096-4269
| Characteristic | Specifications |
|---|---|
| ELECTRICAL CONNECTION QUANTITY | 2 |
| SCALE RANGE | 0.0 TO 1800.0 DEG FAHRENHEIT ALL INDICATORS 1ST SCALE 0.0 TO 1000.0 DEG CELSIUS ALL INDICATORS 2ND SCALE |
| CONTACT QUANTITY | 2 |
| CONTACT TYPE | LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED STUD |
| MOUNTING HOLE DIAMETER | 0.138 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.380 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| FLANGE MOUNTING LENGTH | 0.400 INCHES NOMINAL |
| MOUNTING FLANGE WIDTH | 0.355 INCHES NOMINAL |

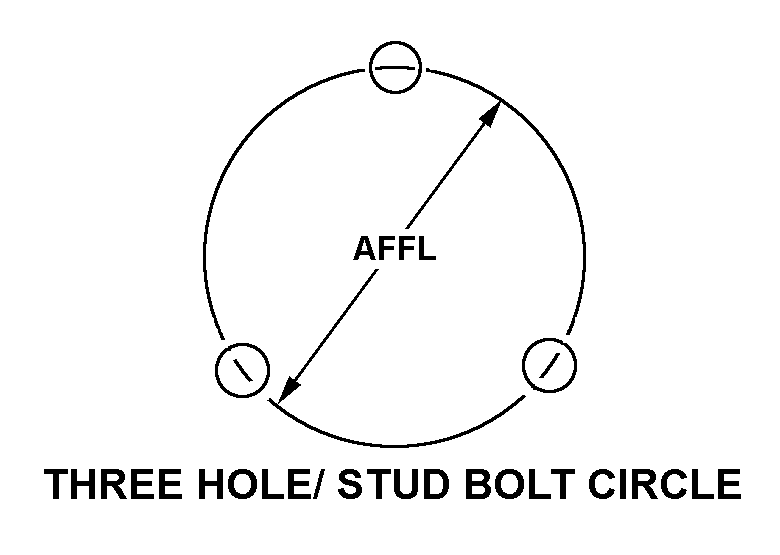

| MOUNTING ARRANGEMENT STYLE | 5 THREE HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 3.160 INCHES NOMINAL |
| DIAMETER | 3.510 INCHES NOMINAL |
| DEPTH | 2.850 INCHES NOMINAL |
| SPECIAL FEATURES | SCALE CALIBRATION:40.0 DEG F,20.0 DEG C;SCALE NAME:DEG F,DEG C;MOUNTING THREAD PER IN.:32;MOUNTING FLANGE HEIGHT:0.400 IN.NOM;EXTERNAL CIRCUIT RESISTANCE IN OHMS:990.0 MIN,1010.0 MAX;DEPTH BEHIND MOUNTING FLANGE:2.450 IN.NOM |
| III END ITEM IDENTIFICATION | A-10 ACFT |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 292622-1 |
