NSN 6685-00-530-3614 MILI9343, MJ1, 152B4
Product Details | THERMOCOUPLE TEMPERATURE INDICATOR
6685-00-530-3614 An indicator which indicates temperature by means of a thermocouple circuit.

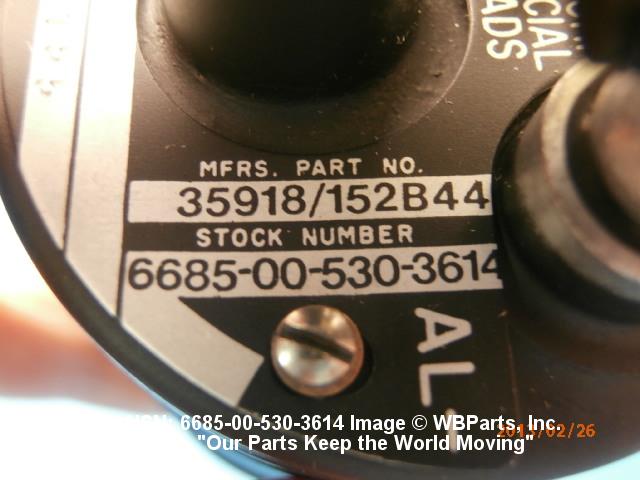

Part Alternates: MILI9343, MJ1, 152B4, 152B44, 157801, 6685-00-530-3614, 00-530-3614, 6685005303614, 005303614
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-530-3614 | 03395 ( INDICATOR, TEMPERATURE, THERMOCOUPLE ) |

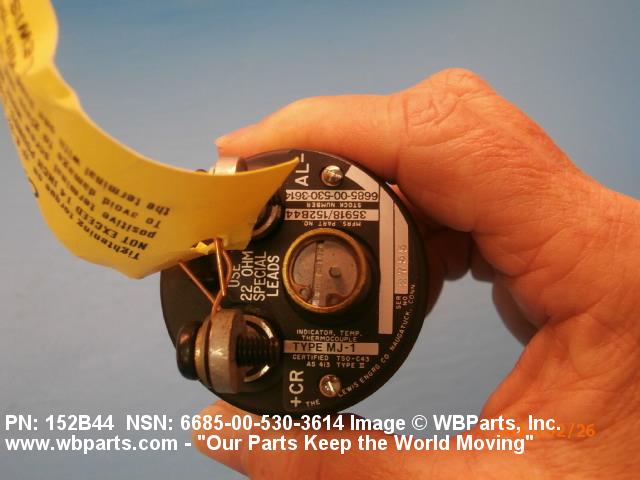

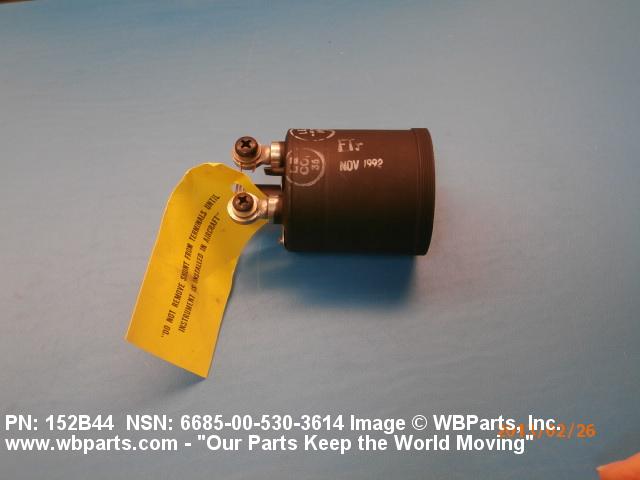

Drawings & Photos | NSN 6685-00-530-3614
Demand History | NSN 6685-00-530-3614
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-530-3614 | 2023-06-170 | 17 | DIBBS |
| 6685-00-530-3614 | 2023-02-59 | 22 | DIBBS |
| 6685-00-530-3614 | 2023-02-51 | 22 | DIBBS |
| 6685-00-530-3614 | 2022-08-224 | 38 | US |
| 152B4 | 2013-02-43 | 3 | South Korea |
| 6685-00-530-3614 | 2012-06-170 | 31 | DIBBS |
| 152B4 | 2012-06-167 | 2 | South Korea |
| 6685-00-530-3614 | 2011-08-224 | 32 | DIBBS |
| 6685-00-530-3614 | 2010-11-322 | 53 | DIBBS |
| 6685-00-530-3614 | 2010-07-209 | 53 | DIBBS |
| 6685-00-530-3614 | 2009-12-356 | 48 | DIBBS |
| 6685-00-530-3614 | 2009-06-162 | 14 | DIBBS |
Cross Reference | NSN 6685-00-530-3614
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 152B4 | 35918 | HORIZON AEROSPACE LLC DBA MAGNETICS DIVISION |
| 152B44 | 35918 | HORIZON AEROSPACE LLC DBA MAGNETICS DIVISION |
| 157801 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
| MILI9343 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MJ1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-530-3614
Related Products | NSN 6685-00-530-3614
Technical Data | NSN 6685-00-530-3614
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | METAL |
| ELECTRICAL CONNECTION QUANTITY | 2 |
| PRESENTATION TYPE | DIAL |

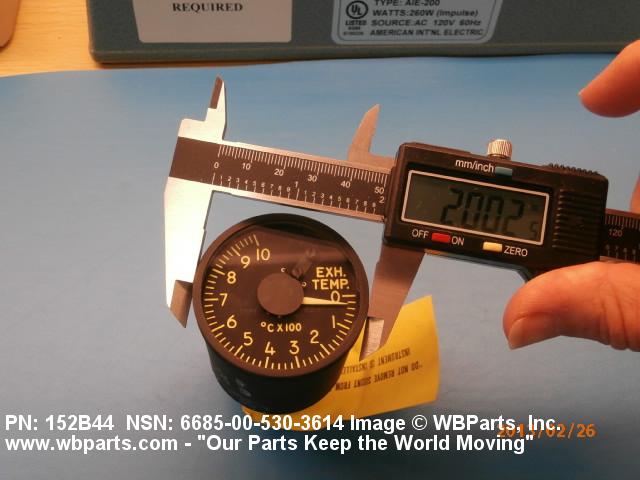

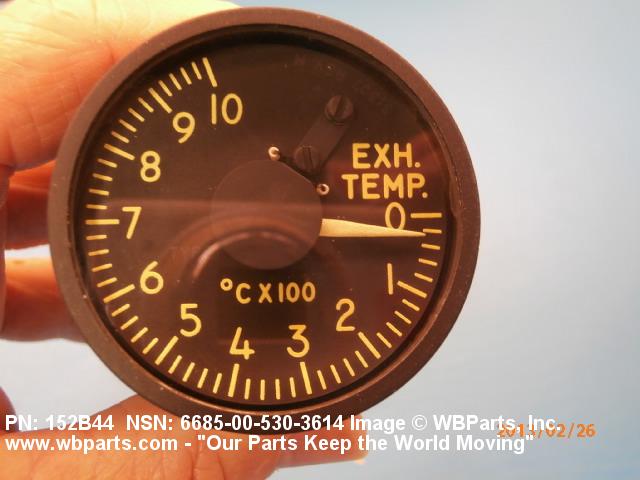

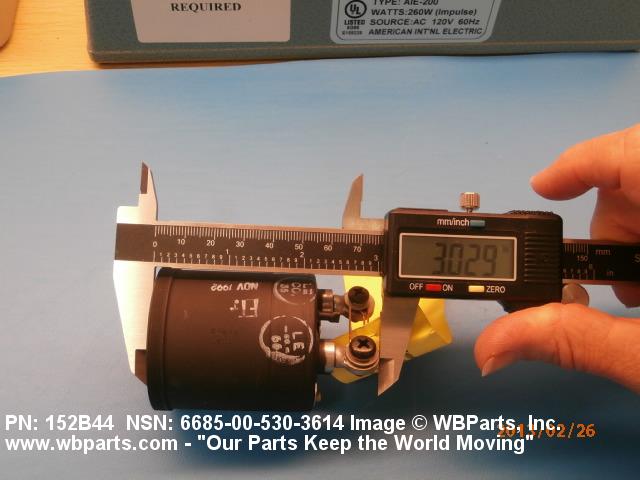

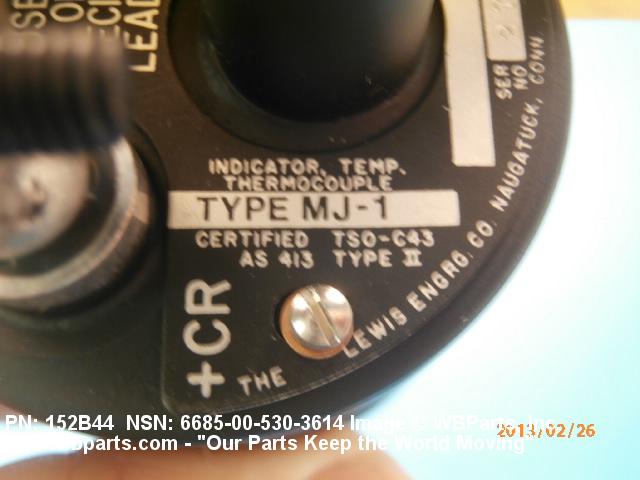

| SCALE DIVISION QUANTITY | 11 SINGLE INDICATOR SINGLE SCALE |
| SCALE MARKING AND SURFACE FINISH | MAJOR GRADUATION FLUORESCENT AND MINOR GRADUATION FLUORESCENT |
| SCALE RANGE | 0.0 TO 1000.0 DEG CELSIUS SINGLE INDICATOR SINGLE SCALE |
| POINTER TYPE | INDICATING SINGLE POINTER |
| POINTER FINISH | FLUORESCENT SINGLE POINTER |
| CONTACT QUANTITY | 2 |
| CONTACT TYPE | SCREW |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PANEL |
| LENGTH | 3.250 INCHES NOMINAL |
| DIAMETER | 2.000 INCHES NOMINAL |
| SPECIAL FEATURES | SCALE CALIBRATION:20 DEG;SCALE NAME:EXHAUST TEMP;THERMOCOUPLE MATERIAL:NICKEL-CHROMIUM ALLOY;ELECTRICAL CONNECTION CONTROLLING AGENCY:LEWIS ENGINEERING CO.;PANEL MOUNTED BODY SIZE:1.938 IN.NOM;EXTERNAL CXIRCUIT RESISTANCE IN OHMS;22.0 NOM |
| NONDEFINITIVE SPEC/STD DATA | MJ1 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILI9343 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MJ1 |
