NSN 6685-01-033-0651 BAT8C, BAT-8C, 01-033-0651
Product Details | DIGITAL SELF-INDICATING THERMOMETER
6685-01-033-0651 A device whose measurable physical properties change with variation in temperature. The temperature reading appears in either degrees Celsius or degrees Fahrenheit on a self-indicating digital display. The device operates in conjunction with thermocouples and is powered by an electric current. Excludes INDICATOR, TEMPERATURE, THERMOCOUPLE.
Part Alternates: BAT8C, BAT-8C, 6685-01-033-0651, 01-033-0651, 6685010330651, 010330651
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 27 DEC 1976 | 01-033-0651 | 33257 ( THERMOMETER, SELF-INDICATING, DIGITAL ) |
Drawings & Photos | NSN 6685-01-033-0651
Cross Reference | NSN 6685-01-033-0651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BAT-8C | 55477 | PHYSITEMP INSTRUMENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6685-01-033-0651
Technical Data | NSN 6685-01-033-0651
| Characteristic | Specifications |
|---|---|
| MEASUREMENT TYPE | DIGITAL |

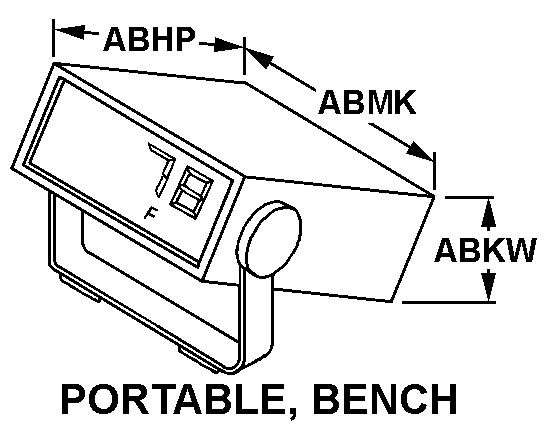

| STYLE DESIGNATOR | H4 PORTABLE, BENCH |
| OVERALL HEIGHT | 5.500 INCHES NOMINAL |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| OVERALL WIDTH | 9.250 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 115.0 AC NOMINAL |
| DISPLAY TYPE | LIGHT EMITTING DIODE |
| DISPLAY DIGIT QUANTITY | 4 |
| MEASUREMENT RANGE | 0.0 TO 400.0 DEG CELSIUS |
| SPECIAL FEATURES | TEMP RANGE DIFFERENTIAL-READS TEMP DIFFERENCE BETWEEN 2 PROBES; RESOLUTION 0 TO 60 DEG C 1/10TH DEGREE, RESOLUTION 0 TO 400 DEG C ONE DEGREE; ACCURACY 0.2% OF FULL SCALE +/- 1 DIGIT; READOUT BRIGHT RED LED DIGITS 0.4 INCH HIGH, READABLE AT 20 FEET; WORKS WITH ANY TYPE T (COPPER/CONSTANTAN) THERMOCOUPLE; THREE PROBE INPUTS, SWITCH SELECTABLE; RECORDER OUTPUT 4 V MAX, LINEARIZED, DRIVES ALL CHART RECORDERS; WEIGGHT 7 LBS; PORTABLE ITEM WITH HANDLE; HAS ULTRA STABLE DC AMPLIFIER THAT ELIMINATES BOTH CALIBRATION DRIFT AND THE EFFECT OF THERMOCOUPLE RESISTANCE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PORTABLE DIGITAL THERMOMETER |
Restrictions/Controls & Freight Information | NSN 6685-01-033-0651
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | U | 50 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
