NSN 6685-01-031-0958 SMA715626, SM-A-715626, GT100
Product Details | BIMETALLIC SELF-INDICATING THERMOMETER
6685-01-031-0958 A thermometer which has a bimetallic substance, whose measurable physical properties, or one of them, change with variation in temperature and self-indicate the temperature to a division or number on a graduated scale(s).
Part Alternates: SMA715626, SM-A-715626, GT100, 6685-01-031-0958, 01-031-0958, 6685010310958, 010310958
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 19 NOV 1976 | 01-031-0958 | 07329 ( THERMOMETER, SELF-INDICATING, BIMETALLIC ) |
Drawings & Photos | NSN 6685-01-031-0958
Demand History | NSN 6685-01-031-0958
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-01-031-0958 | 2018-07-206 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-01-031-0958
Related Products | NSN 6685-01-031-0958
Technical Data | NSN 6685-01-031-0958
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | ARC |
| MATERIAL | STEEL METER CASE |

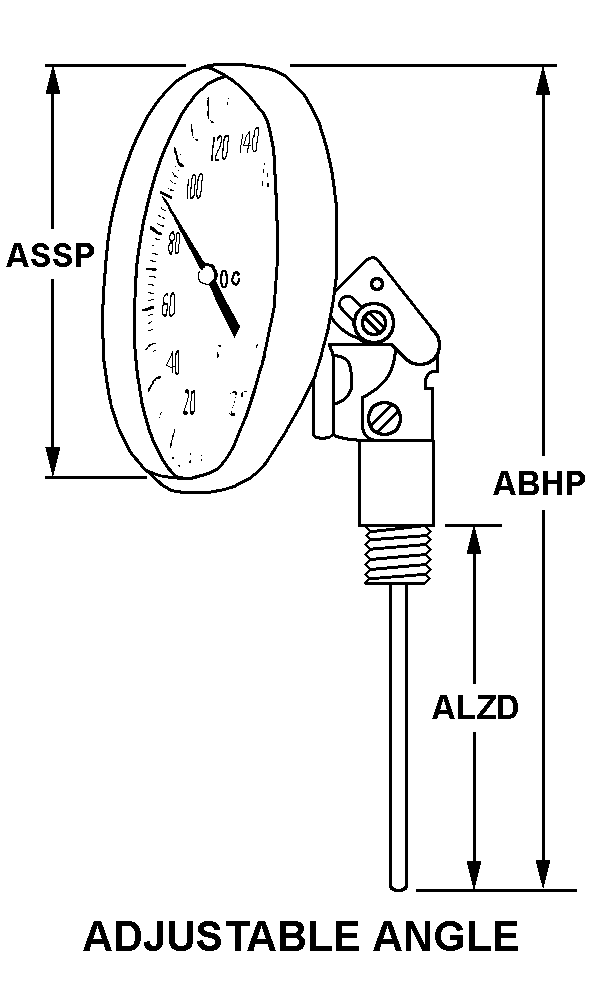

| STYLE DESIGNATOR | C1 ADJUSTABLE ANGLE |
| DIAL DIAMETER | 1.750 INCHES NOMINAL |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| STEM LENGTH | 3.000 INCHES NOMINAL |
| DESIGN TYPE | FLUCTUATING |
| IMMERSION LENGTH | 2.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PEDESTAL |
| FEATURES PROVIDED | PROTECTIVE GLASS/PLASTIC |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACKGROUND |
| III SCALE ACCURACY RATING | 0.5 DEG AT 100 DEG F |
| III SCALE SMALLEST INCREMENT | 1.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 23249 |
| DESIGN CONTROL REFERENCE | GT100 |
Restrictions/Controls & Freight Information | NSN 6685-01-031-0958
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058360 | THERMOMETERS,O/THAN CLINICAL |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-01-031-0958
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 4 | Communications Systems Agency and Satellite Communications |
| Weapons Systems/End Item or Homogeneous Group | 4A | AN/FSC-78/GSC-39 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | IY | TG:"GROUND RADIO COMMUNICATIONS, GROUND COMMUNICATIONS PROJECTS, COMPASS LINK DEFENSE SATELLITE COMMUNICATIONS SYSTEM (DSCS) 439L, COMMUNICATION SYSTEM. 469L, CONVERSION OF RANGE TELEMETRY SYSTEM (CORTS) 484L, MOBILE SECURE VOICE SYSTEM, 484N, PACIFIC AREA COMMUNICATION SYSTEM 486L, EUROPEAN WIDEBAND RADIO RELAY SYSTEM, 487L, SURVIVAL LOW FREQUENCY SYSTEM, 487M, VLF/LF SPECIAL PURPOSE COMMUNICATIONS SYSTEM, 488L, GREEN PINE SYSTEM, 489L, FOX-THULE TROPO SYSTEM, 490L DCS AUTOVON (OVERSEAS) SYSTEM, 439L, SECURE V " |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J. |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
