NSN 6685-00-782-5247 H793250040, H793-2500-40, ITD32402
Product Details | BIMETALLIC SELF-INDICATING THERMOMETER
6685-00-782-5247 A thermometer which has a bimetallic substance, whose measurable physical properties, or one of them, change with variation in temperature and self-indicate the temperature to a division or number on a graduated scale(s).
Part Alternates: H793250040, H793-2500-40, ITD32402, ITD-3-24-0-2, MILI17244, MIL-I-17244, 785E109010, 785E109-010, 785E109PC10 , 84402272, 8440227-2, 892010, 892019, 1475421, 19040233, 19-04-0233, 2115935002, 2115935-002, 2628747, 2869020, 3062658EMP, 30-62658EMP, 30T7457T34L0, 30-T7457T-34L-0, 3-6365-AH-S2 30, 36365AHS230, 3S0220240, 3S02-20-240, 40J54350, 40J543-50, 418L771001, 418L771-001, 43300020464, 4330-0020464, 4750, 4750M522024, 4750-M5-2-20-24, 4750MS2, 4750M-S2, 4750MS220240, 4750MS2-20-240, 50460002, 504-60002, 522C833001, 5347502, 556707022440, 556-7070224-40, 5808571, 580857-1, 626905, 626-905, 6685-00-782-5247, 00-782-5247, 6685007825247, 007825247
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-782-5247 | 07329 ( THERMOMETER, SELF-INDICATING, BIMETALLIC ) |

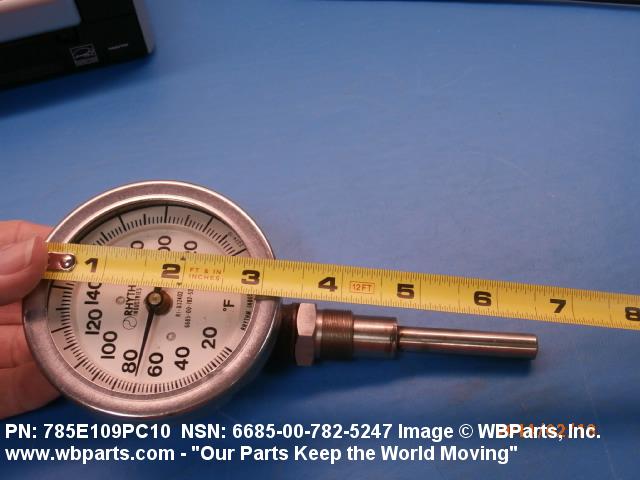

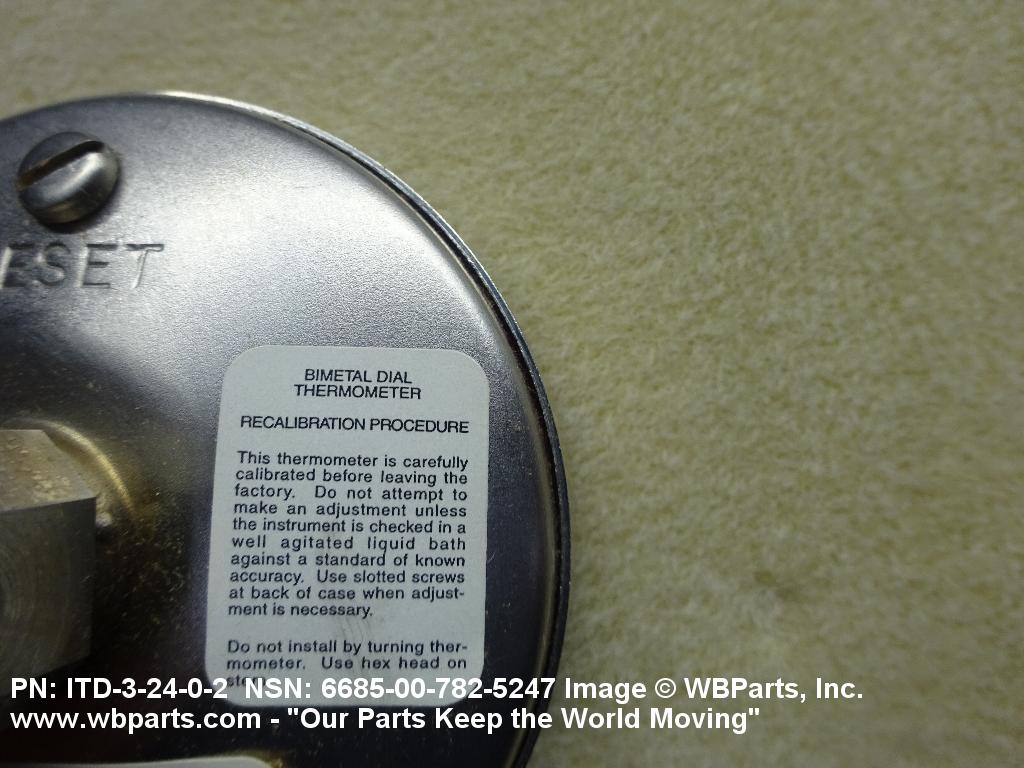

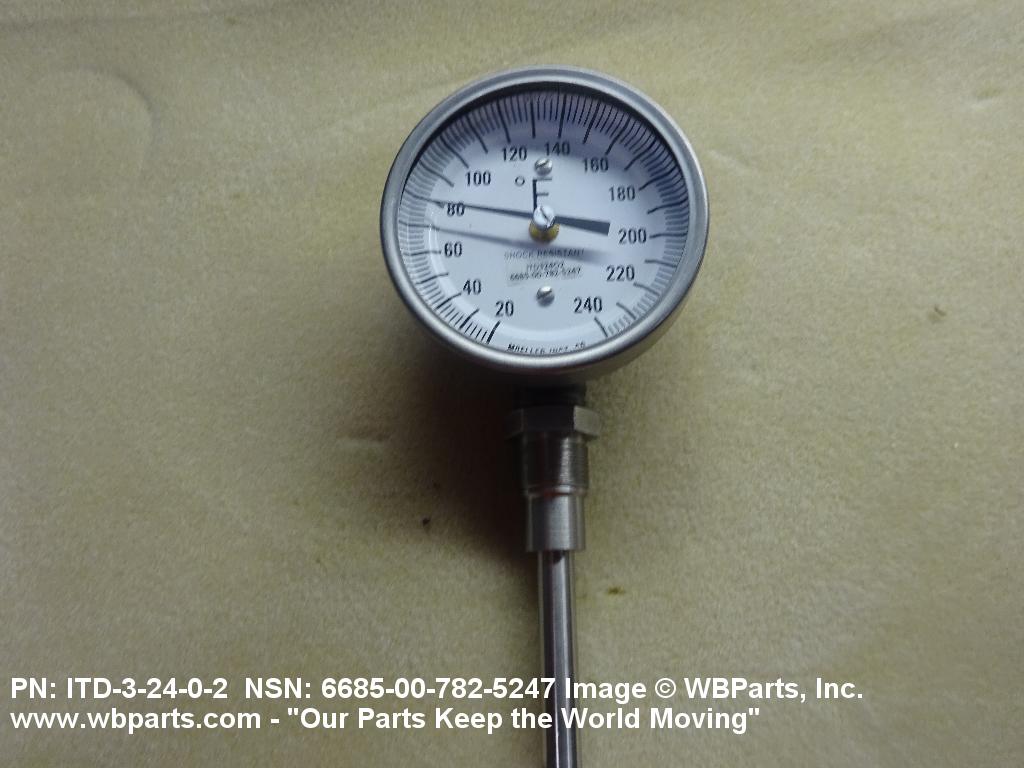

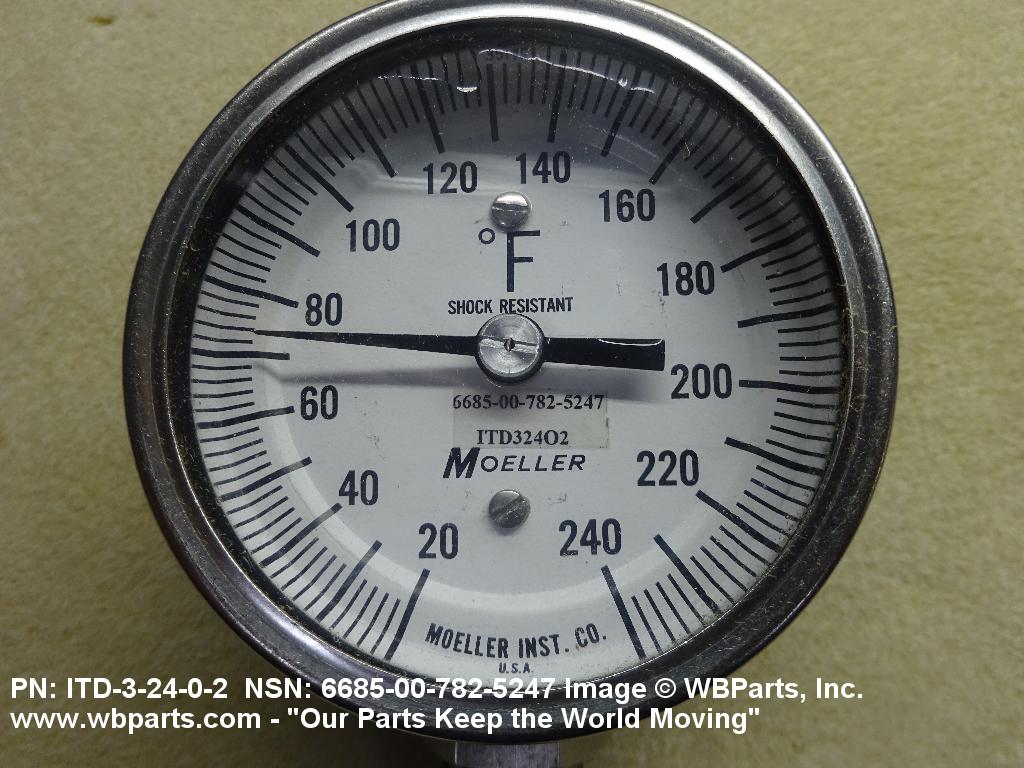

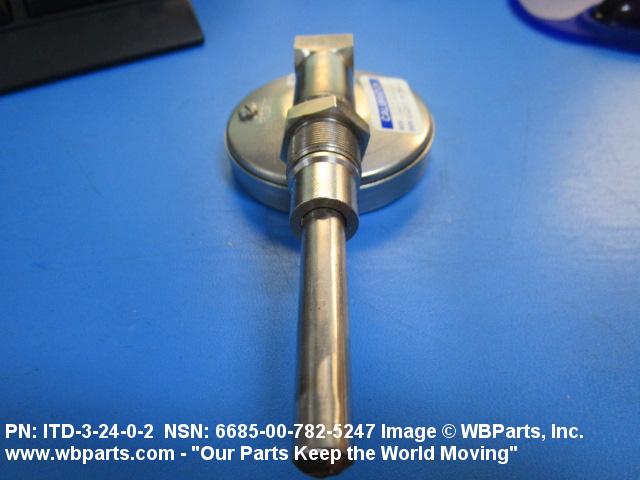

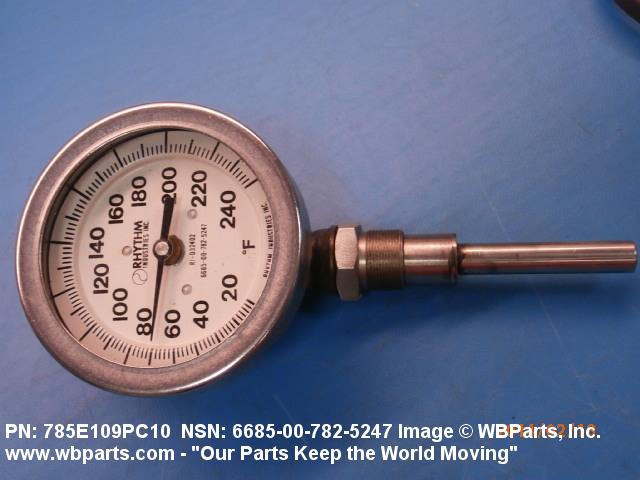

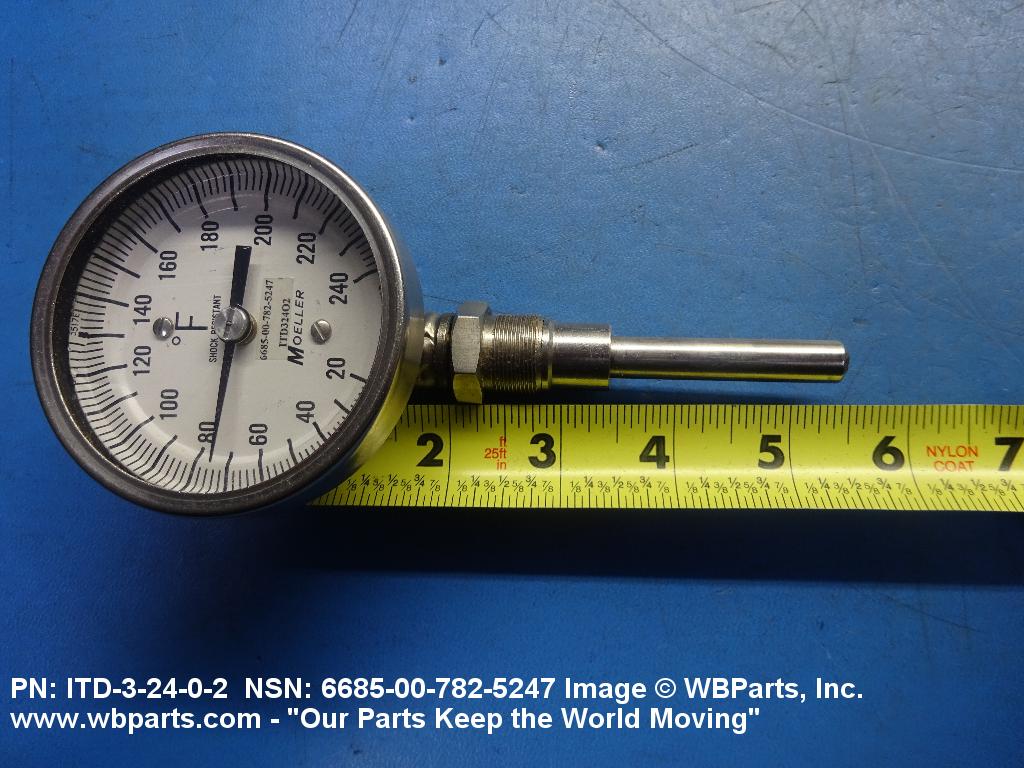

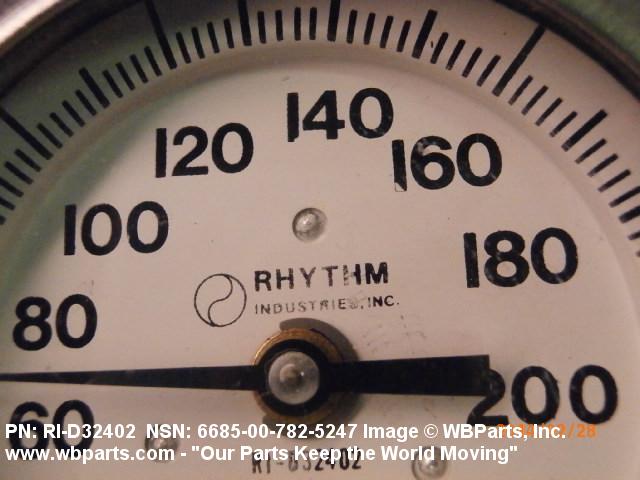

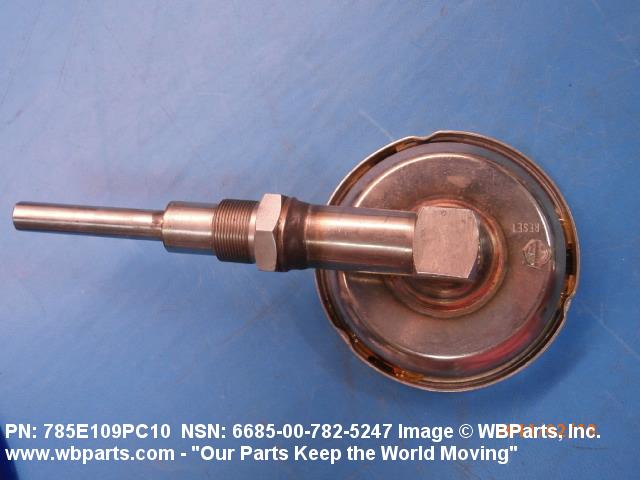

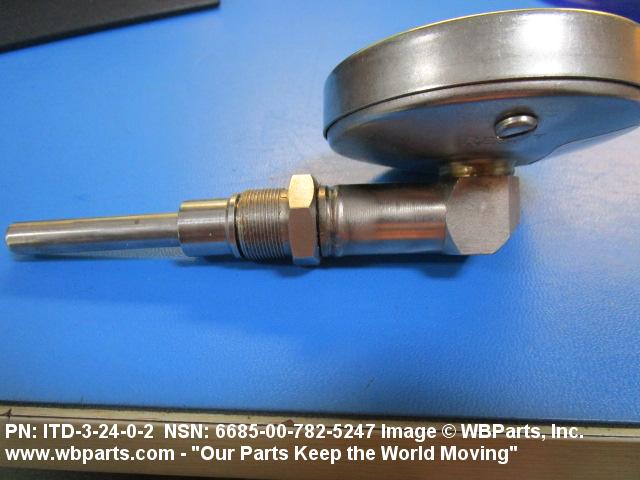

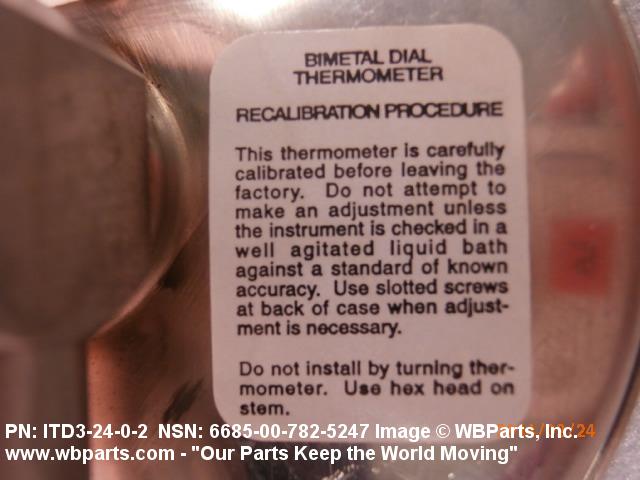

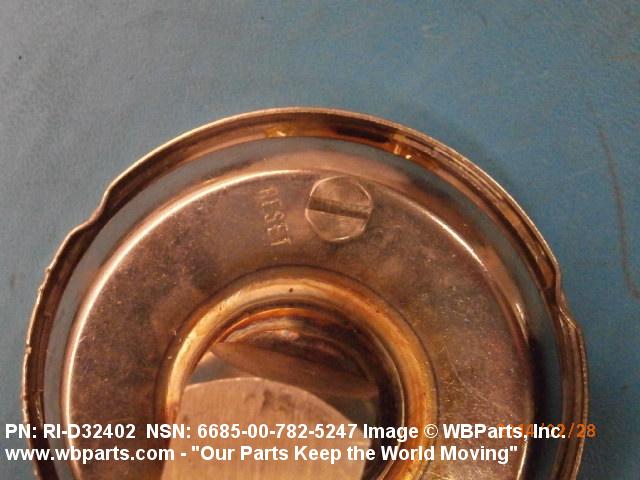

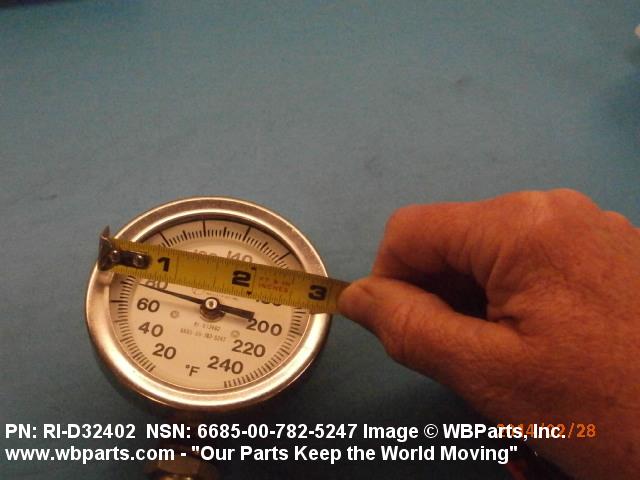

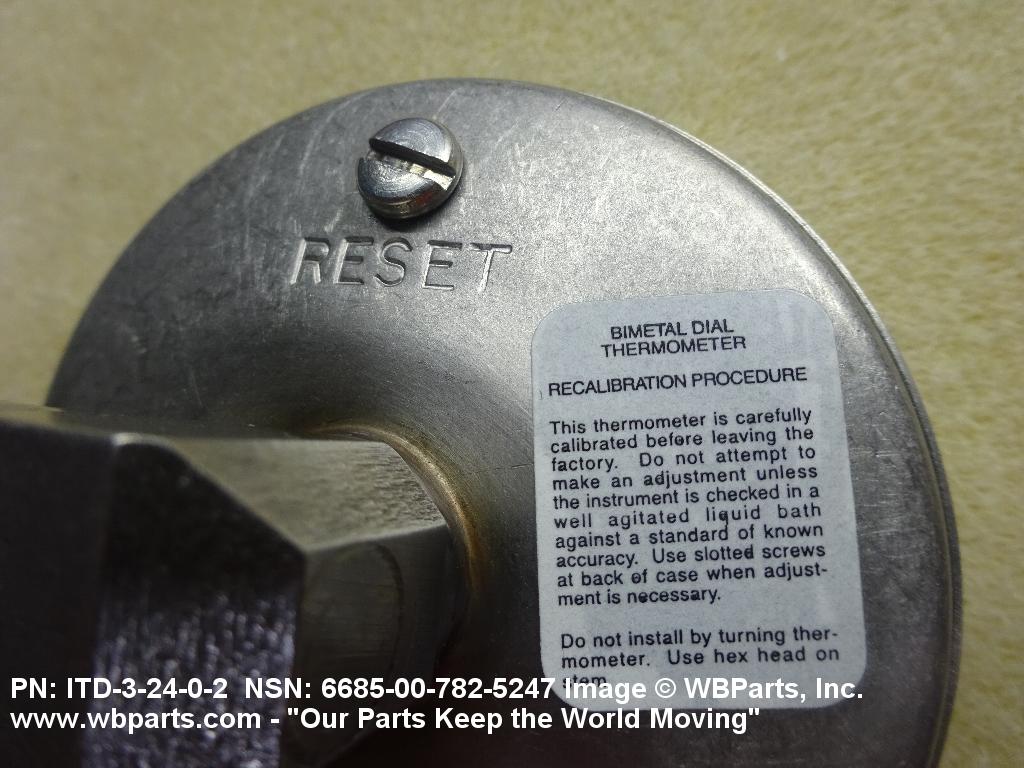

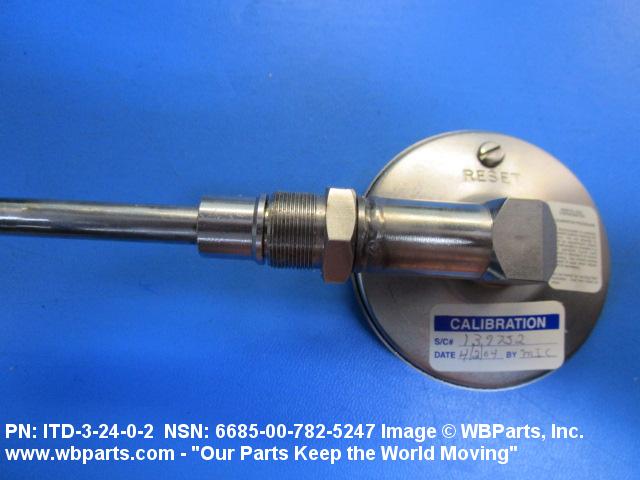

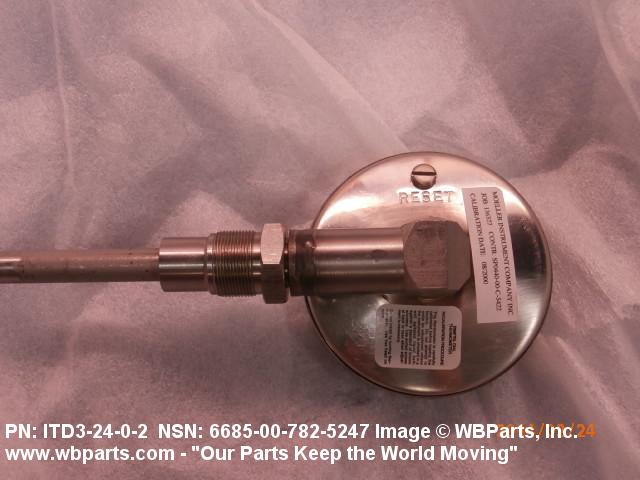

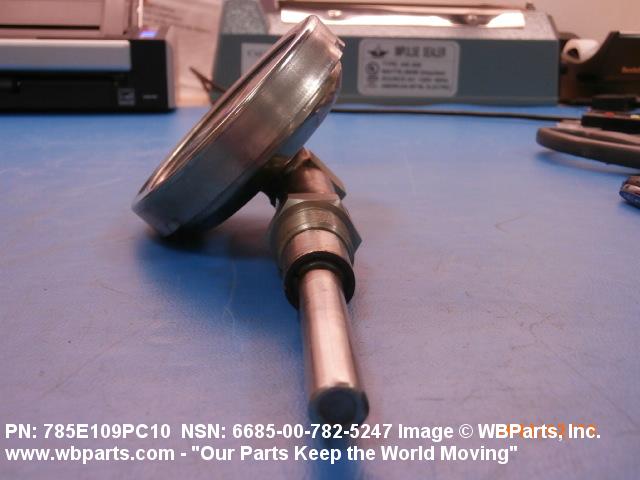

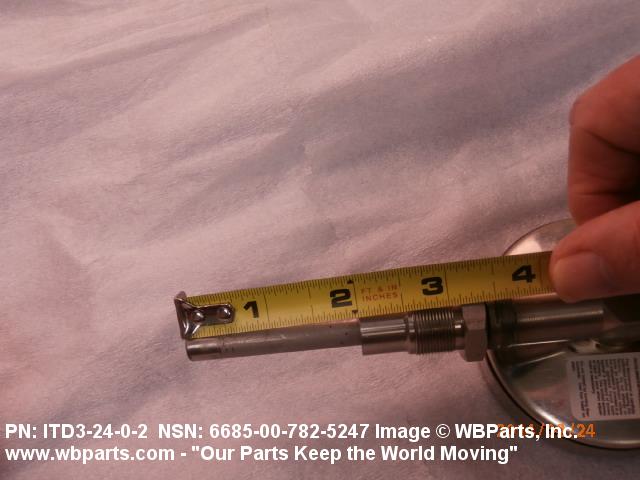

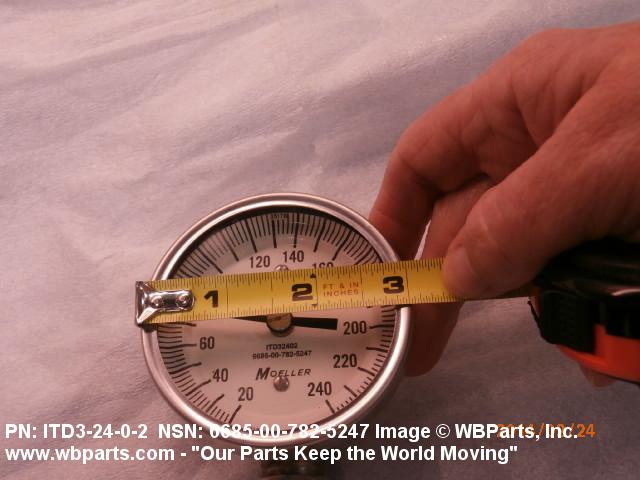

Drawings & Photos | NSN 6685-00-782-5247
Demand History | NSN 6685-00-782-5247
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-782-5247 | 2024-11-313 | 2 | US |
| 6685-00-782-5247 | 2024-10-284 | 2 | US |
| 6685-00-782-5247 | 2024-08-221 | 22 | US |
| 6685-00-782-5247 | 2024-08-218 | 12 | United States |
| 6685-00-782-5247 | 2024-07-206 | 11 | United States |
| 6685-00-782-5247 | 2024-07-201 | 11 | United States |
| 6685-00-782-5247 | 2023-09-248 | 2 | United States |
| 6685-00-782-5247 | 2023-06-173 | 2 | US |
| 6685-00-782-5247 | 2023-05-141 | 3 | US |
| 6685-00-782-5247 | 2021-09-257 | 1 | US |
| 6685-00-782-5247 | 2021-09-256 | 1 | United States |
| 6685-00-782-5247 | 2021-07-208 | 6 | United States |
| 6685-00-782-5247 | 2021-07-204 | 6 | United States |
| 6685-00-782-5247 | 2019-05-137 | 2 | US |
| 6685-00-782-5247 | 2019-04-98 | 1 | US |
| 6685-00-782-5247 | 2014-10-300 | 1 | DIBBS-RFPs |
| 6685-00-782-5247 | 2014-07-202 | 329 | DIBBS |
| 6685-00-782-5247 | 2014-02-42 | 4 | United States |
| 6685-00-782-5247 | 2014-02-42 | 193 | DIBBS |
| 6685-00-782-5247 | 2014-02-36 | 4 | US |
| 36365AHS230 | 2012-07-185 | 4 | US |
| 6685-00-782-5247 | 2008-12-350 | 2 | DIBBS |
| 6685-00-782-5247 | 2008-12-343 | 3 | DIBBS |
Cross Reference | NSN 6685-00-782-5247
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1475421 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 19-04-0233 | 96169 | ELECTRIC BOAT CORPORATION |
| 2115935-002 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2628747 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2869020 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 3-6365-AH-S2 30 | 38056 | ASHCROFT INC. |
| 30-62658EMP | 51420 | COMPU-LITE CORP |
| 30-T7457T-34L-0 | 38056 | ASHCROFT INC. |
| 3S02-20-240 | 64467 | WEKSLER GLASS THERMOMETER CORP |
| 40J543-50 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 418L771-001 | 17454 | TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR |
| 4330-0020464 | 03966 | ZURN INDUSTRIES INC |
| 4750 | 76526 | MOELLER INSTRUMENT COMPANY, INC. |
| 4750-M5-2-20-24 | 76526 | MOELLER INSTRUMENT COMPANY, INC. |
| 4750M-S2 | 76526 | MOELLER INSTRUMENT COMPANY, INC. |
| 4750MS2-20-240 | 76526 | MOELLER INSTRUMENT COMPANY, INC. |
| 504-60002 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
| 522C833001 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 5347502 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 556-7070224-40 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 580857-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 626-905 | 27235 | HARDIE-TYNES CO., INC. |
| 785E109-010 | 17454 | TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR |
| 785E109PC10 | 01289 | GENERAL ELECTRIC COMPANY DBA GE DIV GE-AVIATION GEAR PLANT |
| 785E109PC10 | 17454 | TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR |
| 8440227-2 | 01286 | ACME METAL PRODUCTS CO |
| 892010 | 82328 | DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND |
| 892019 | 82328 | DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND |
| H793-2500-40 | 96169 | ELECTRIC BOAT CORPORATION |
| ITD-3-24-0-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ITD-3-24-0-2 | 96169 | ELECTRIC BOAT CORPORATION |
| MIL-I-17244 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-782-5247
Related Products | NSN 6685-00-782-5247
Technical Data | NSN 6685-00-782-5247
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | CONCENTRIC DIAL |
| SCALE MEASUREMENT RANGE | 20.000 TO 240.000 DEG FAHRENHEIT |
| MATERIAL | STEEL CORROSION RESISTING METER CASE |
| SURFACE TREATMENT | ENAMEL METER CASE |
| STYLE DESIGNATOR | C3 STRAIGHT FORM, VERTICAL DIAL |
| DIAL DIAMETER | 3.000 INCHES NOMINAL |
| OVERALL LENGTH | 6.547 INCHES NOMINAL |
| STEM LENGTH | 2.000 INCHES NOMINAL |
| DESIGN TYPE | FLUCTUATING |
| IMMERSION LENGTH | 2.000 INCHES NOMINAL |
| FEATURES PROVIDED | PROTECTIVE GLASS/PLASTIC |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACKGROUND |
| III SCALE ACCURACY RATING | 1 PCT |
| III SCALE SMALLEST INCREMENT | 2.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | ITD-3-24-0-2 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-17244 |
Restrictions/Controls & Freight Information | NSN 6685-00-782-5247
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136940 | METERS LIQUID O/T FLOW NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-782-5247
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | O | If condemned or economically unserviceable, dispose at organizational level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
