Product Details | SELF-INDICATING THERMOMETER

6685-00-526-9428 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.20365150057Medical and Surgical Instruments, Equipment, and Supplies66600040Meteorological Instruments and Apparatus66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Part Alternates: 571, T571, 6685-00-526-9428, 00-526-9428, 6685005269428, 005269428

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-526-9428

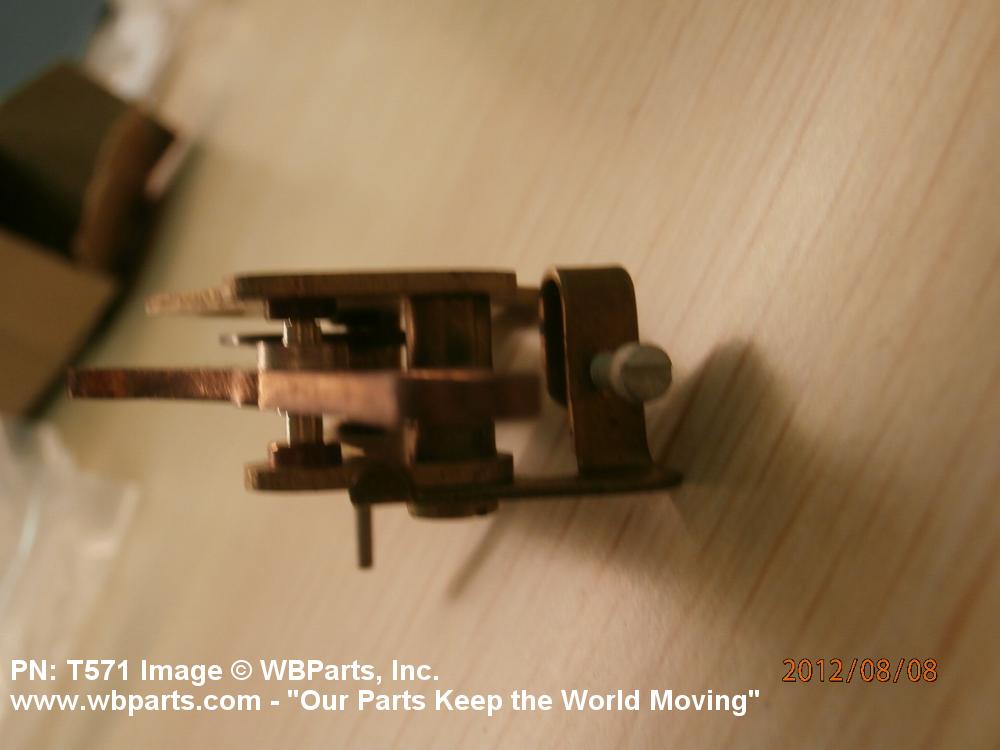

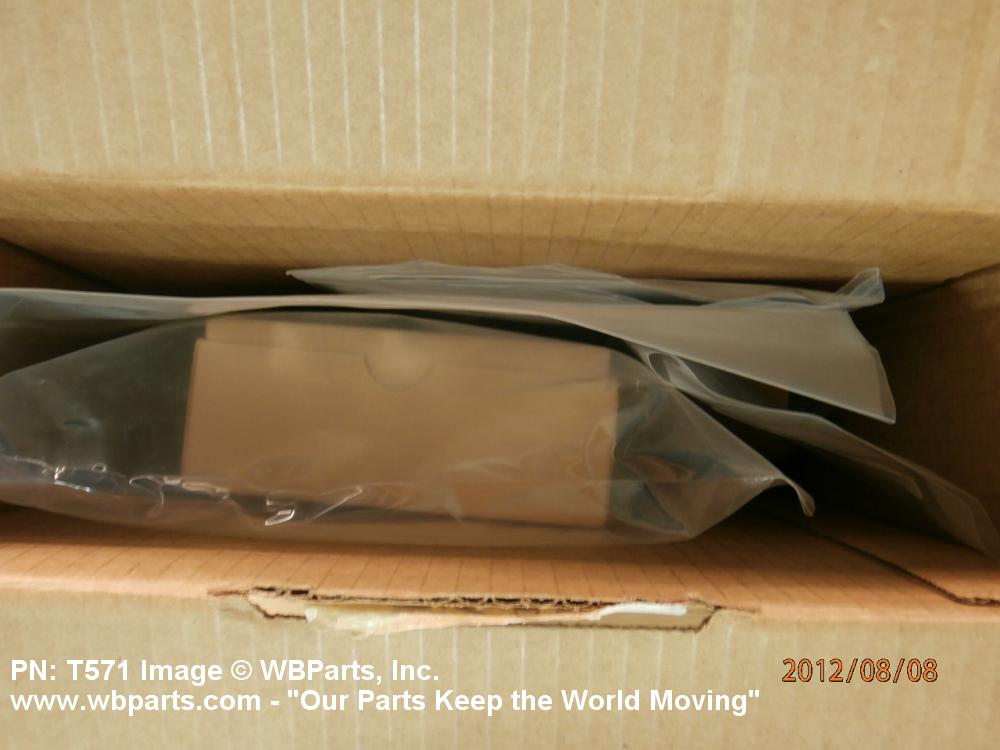

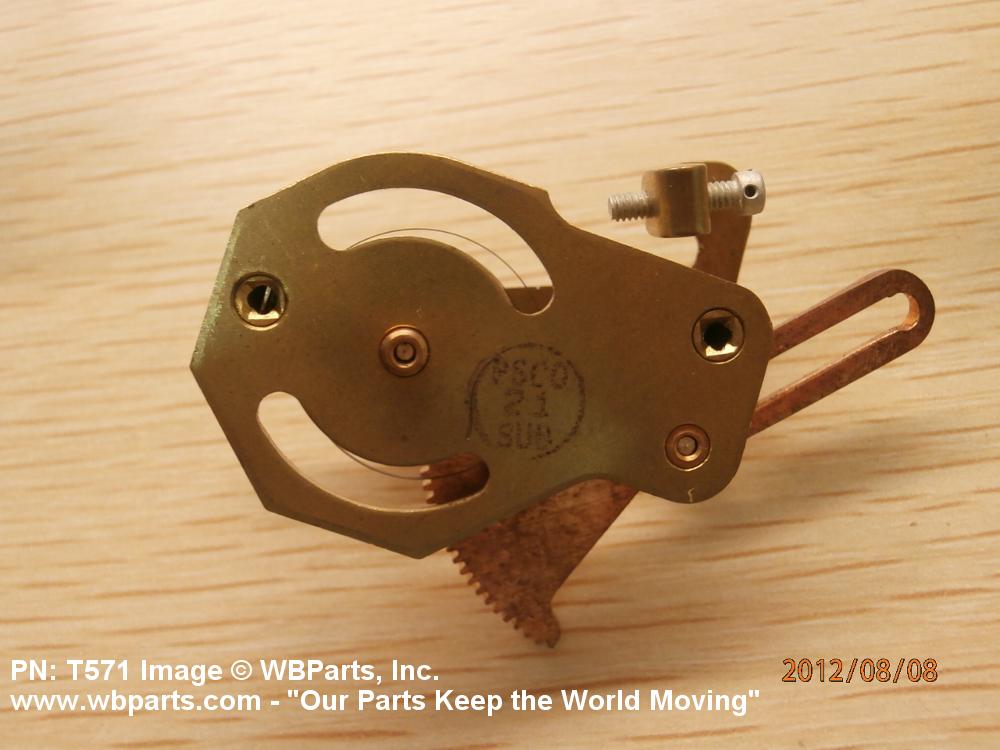

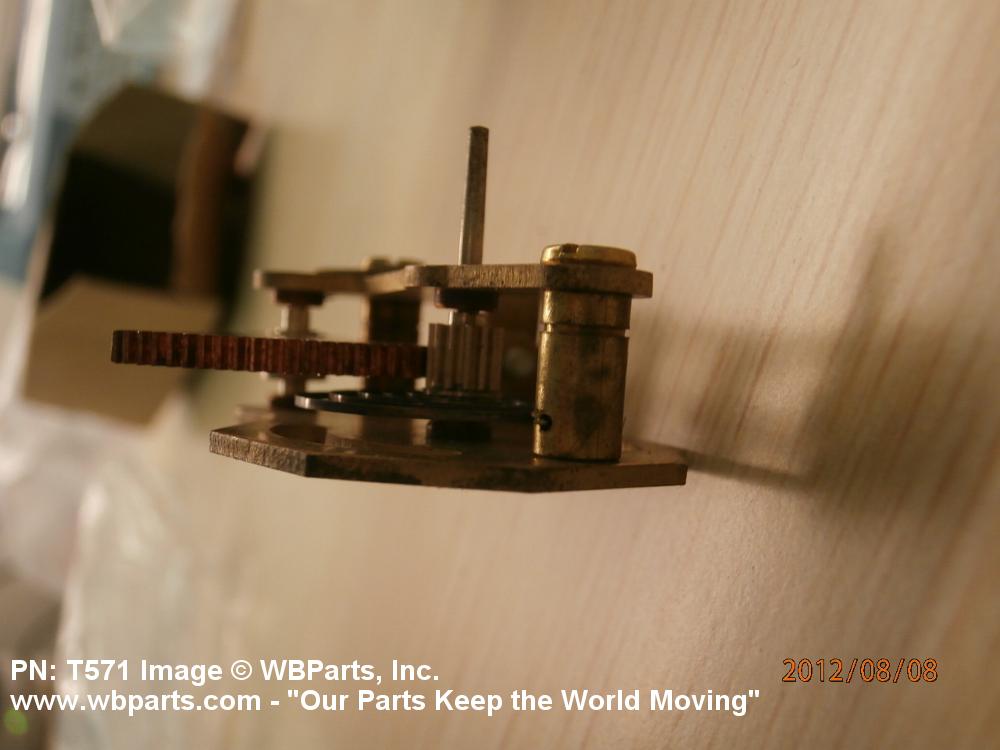

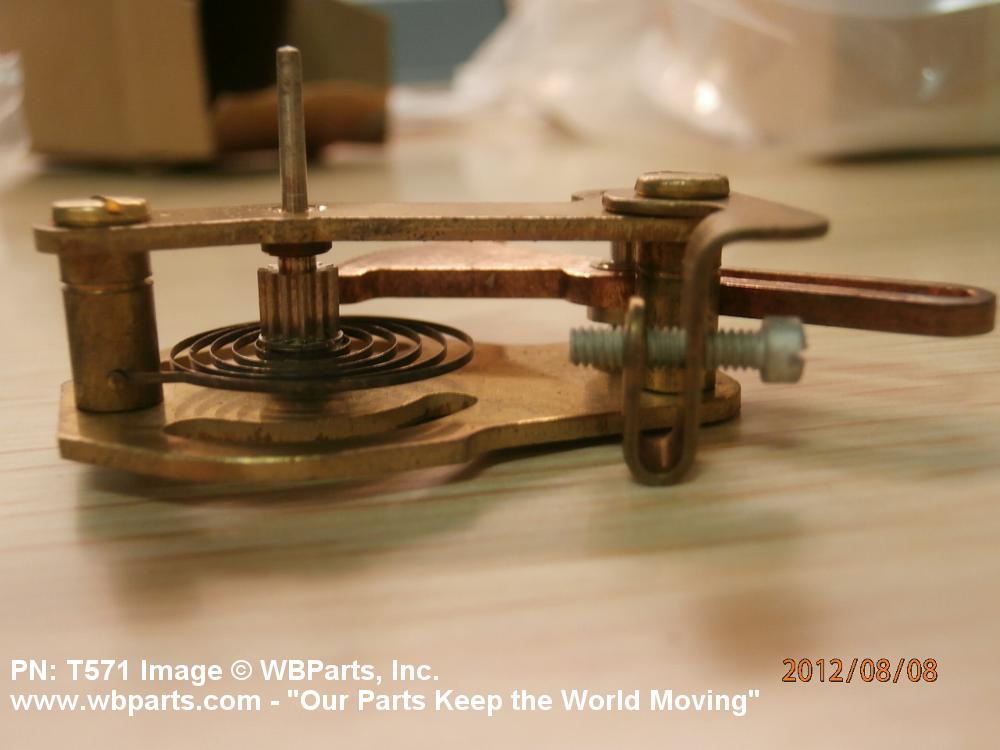

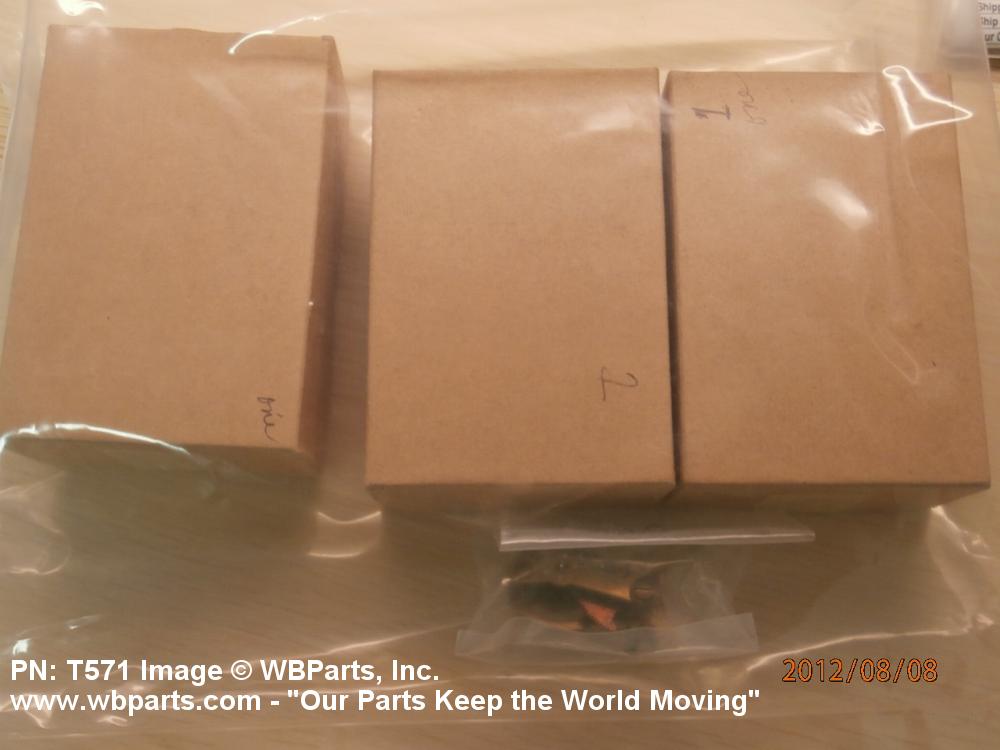

Drawings & Photos | NSN 6685-00-526-9428


Demand History | NSN 6685-00-526-9428

Part Number Request Date QTY Origin
T571 2016-04-110 1 Singapore

Cross Reference | NSN 6685-00-526-9428

Part Number Cage Code Manufacturer
571 61349 AMETEK, INC. DIV AEROSPACE & DEFENSE
T571 61349 AMETEK, INC. DIV AEROSPACE & DEFENSE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6685-00-526-9428

Technical Data | NSN 6685-00-526-9428

Characteristic Specifications
SCALE TYPE ENGRAVED TUBE
SCALE MEASUREMENT RANGE 40.000 TO 260.000 DEG FAHRENHEIT
MATERIAL STEEL METER CASE

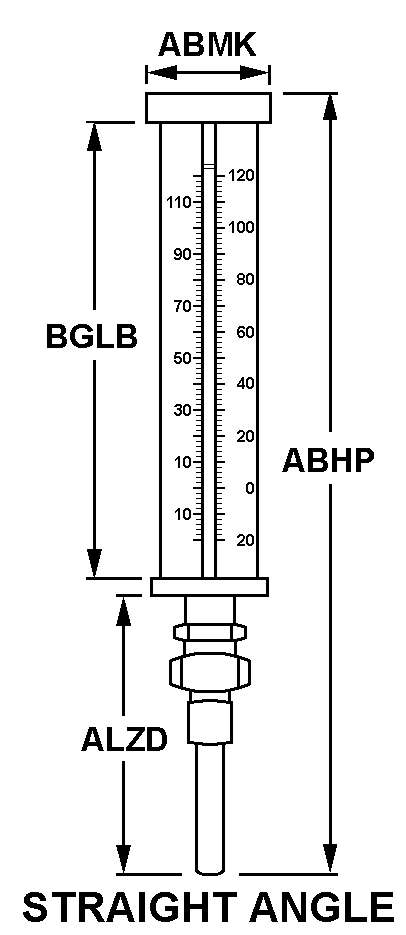

STYLE DESIGNATOR A2 STRAIGHT ANGLE
OVERALL LENGTH 10.250 INCHES NOMINAL
OVERALL WIDTH ANY ACCEPTABLE
SCALE LENGTH 5.000 INCHES NOMINAL
STEM LENGTH 3.250 INCHES NOMINAL
ACTUATING MEDIUM MERCURY
DESIGN TYPE FLUCTUATING
SECURING DEVICE TYPE CLIP
FEATURES PROVIDED LENS MAGNIFYING FRONT
III SCALE INSCRIPTION/BACKGROUND COLOR BLACK MARKING ON WHITE BACKGROUND
III SCALE ACCURACY RATING PORM 2 DEG F THROUGHOUT RANGE OF SCALE
III SCALE SMALLEST INCREMENT 2.0 DEG FAHRENHEIT

Restrictions/Controls & Freight Information | NSN 6685-00-526-9428

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 000000 NO NMFC FREIGHT DESCRIPTION
Less than car load rating
Less than truck load rating Z No Rating
Water commodity Code 653 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Q Extremely fragile items including delicate instruments.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
