NSN 6685-00-246-2363 ASME B40.1, ASMEB401, AW2514AB01
Product Details | DIAL INDICATING PRESSURE GAGE
6685-00-246-2363 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments
Part Alternates: ASME B40.1, ASMEB401, AW2514AB01, GGG76, GG-G-76, MILG16983A, 10808551, 1080855-1, 22185721, 2218572-1, 6685-00-246-2363, 00-246-2363, 6685002462363, 002462363
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-246-2363 | 07428 ( GAGE, PRESSURE, DIAL INDICATING ) |

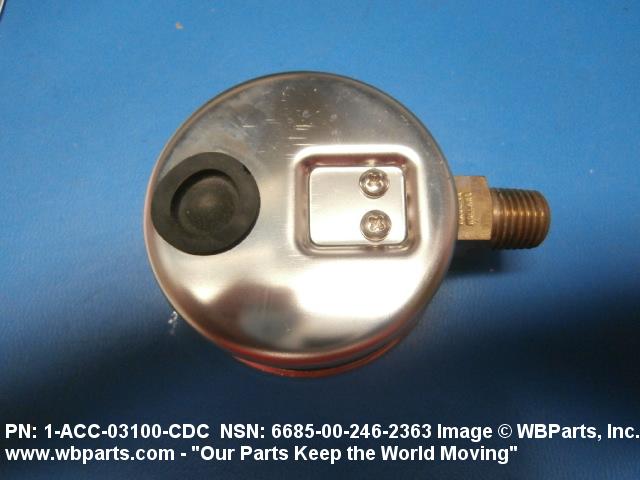

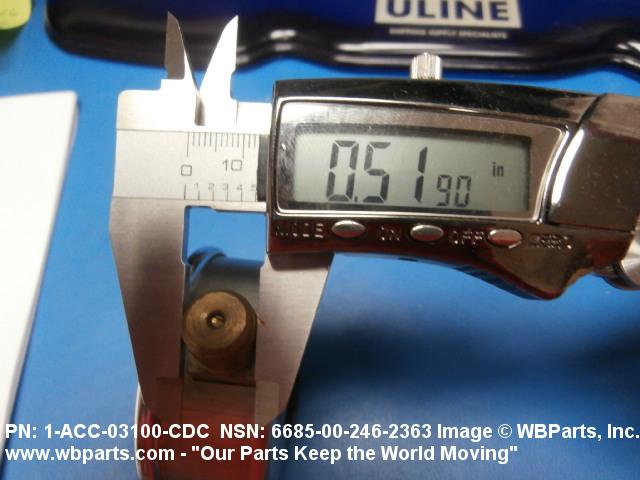

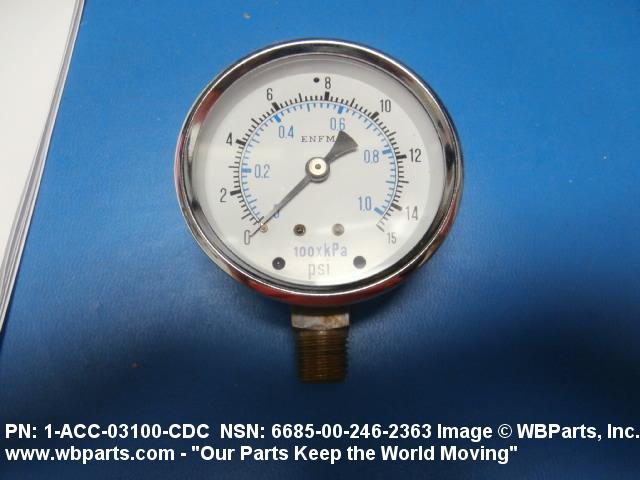

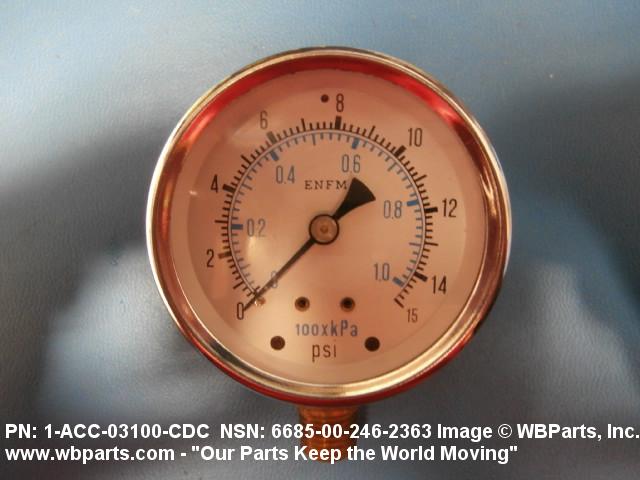

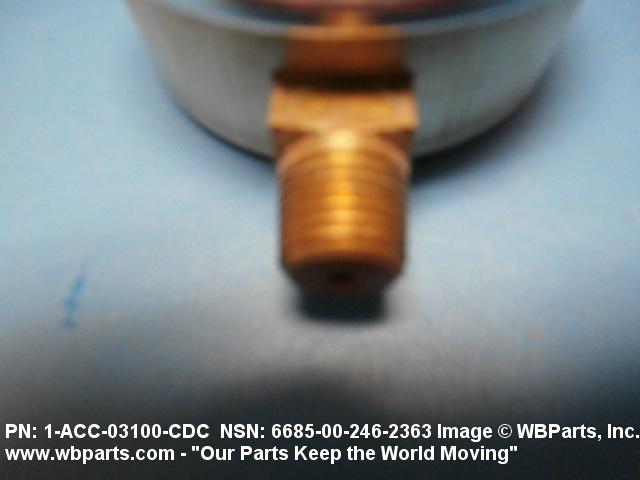

Drawings & Photos | NSN 6685-00-246-2363
Demand History | NSN 6685-00-246-2363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6685-00-246-2363 | 2024-07-200 | 67 | DIBBS |
| 6685-00-246-2363 | 2024-03-77 | 96 | DIBBS |
| 6685-00-246-2363 | 2023-12-351 | 60 | DIBBS |
| 6685-00-246-2363 | 2023-08-233 | 34 | DIBBS |
| 6685-00-246-2363 | 2023-04-106 | 39 | DIBBS |
| 6685-00-246-2363 | 2022-10-289 | 28 | DIBBS |
| 6685-00-246-2363 | 2022-07-187 | 84 | DIBBS |
| 6685-00-246-2363 | 2022-02-56 | 35 | DIBBS |
| 6685-00-246-2363 | 2022-02-48 | 35 | DIBBS |
| 6685-00-246-2363 | 2021-11-330 | 26 | DIBBS |
| 6685-00-246-2363 | 2021-11-322 | 26 | DIBBS |
| 6685-00-246-2363 | 2019-10-293 | 54 | DIBBS |
| 6685-00-246-2363 | 2019-05-136 | 52 | DIBBS |
| 6685-00-246-2363 | 2019-03-85 | 73 | DIBBS |
| 6685-00-246-2363 | 2019-03-77 | 73 | DIBBS |
| 6685-00-246-2363 | 2019-01-08 | 64 | DIBBS |
| 6685-00-246-2363 | 2018-10-304 | 36 | DIBBS |
| 6685-00-246-2363 | 2018-10-298 | 36 | US |
| 6685-00-246-2363 | 2018-10-296 | 36 | DIBBS |
| 6685-00-246-2363 | 2018-07-203 | 34 | DIBBS |
| 6685-00-246-2363 | 2018-04-108 | 3 | DIBBS |
| 6685-00-246-2363 | 2017-09-263 | 25 | United States |
| 6685-00-246-2363 | 2017-01-19 | 36 | United States |
| 6685-00-246-2363 | 2016-09-251 | 178 | DIBBS |
| 6685-00-246-2363 | 2016-05-132 | 82 | United States |
| 6685-00-246-2363 | 2016-01-27 | 194 | DIBBS |
| 6685-00-246-2363 | 2016-01-19 | 194 | DIBBS |
| 6685-00-246-2363 | 2016-01-11 | 194 | DIBBS |
| 6685-00-246-2363 | 2014-09-261 | 1 | United States |
| 6685-00-246-2363 | 2014-07-190 | 201 | DIBBS |
| 6685-00-246-2363 | 2014-06-160 | 1 | US |
| 6685-00-246-2363 | 2014-03-66 | 41 | United States |
| 6685-00-246-2363 | 2014-01-07 | 1 | United States |
| 6685-00-246-2363 | 2010-01-07 | 261 | DIBBS |
| 6685-00-246-2363 | 2009-03-69 | 133 | DIBBS |
Cross Reference | NSN 6685-00-246-2363
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1080855-1 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 2218572-1 | 57311 | NIPAK INC |
| ASME B40.1 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| AW2514AB01 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| GG-G-76 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MILG16983A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-246-2363
Related Products | NSN 6685-00-246-2363
Technical Data | NSN 6685-00-246-2363
| Characteristic | Specifications |
|---|---|
| ACTUATION TYPE | SINGLE BOURDON TUBE |
| ACTUATING ELEMENT MATERIAL | PHOSPHOR BRONZE |
| SCALE TYPE | SINGLE |
| SCALE NAME | PRESSURE |
| SCALE RANGE | 0.0 TO 15.0 POUNDS PRESSURE PER SQUARE INCH |
| SCALE ACCURACY | 2 PCT MIDDLE HALF OF RANGE,3 PCT REMAINDER |
| GRADUATION UNIT | 3.0 POUNDS PER SQUARE INCH |
| SCALE SMALLEST INCREMENT | 0.5 POUNDS PER SQUARE INCH |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK FIGURES,WHITE OR SILVERED BACKGROUND |
| DIAL SIZE | 2-1/2 IN. DIA |
| POINTER TYPE | INDICATING |
| ADJUSTABILITY | NONADJUSTABLE |
| POINTER COLOR | BLACK |
| CASE MATERIAL | BRASS AND STEEL, CORROSION RESISTING |
| CASE SURFACE TREATMENT | ENAMEL, GRAY |

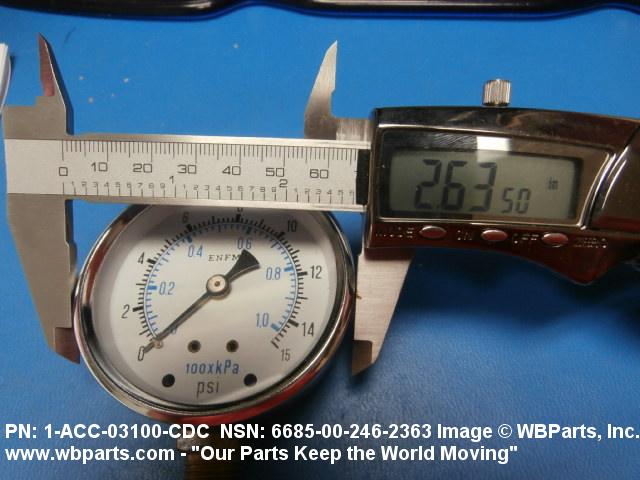

| OVERALL DIAMETER | 2.813 INCHES NOMINAL |

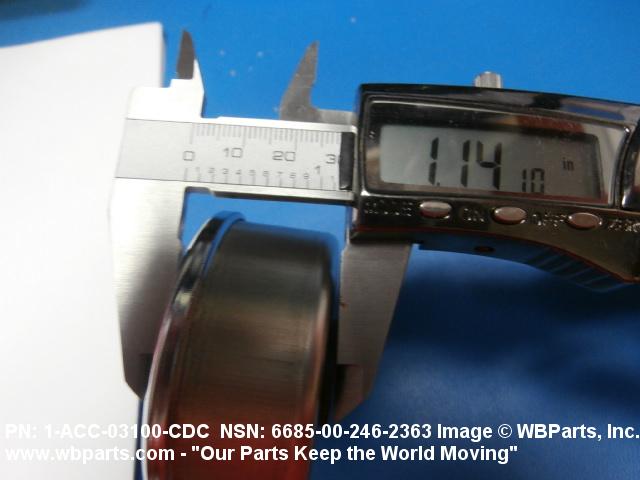

| OVERALL DEPTH | 1.140 INCHES NOMINAL |
| BEZEL TYPE | THREAD |
| MATERIAL | BRASS AND STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | ENAMEL, GRAY |
| PROTECTIVE CRYSTAL MATERIAL | PLASTIC |
| CONNECTION QUANTITY | 1 |
| CONNECTION TYPE | EXTERNAL |
| CONNECTION LOCATION | BOTTOM |

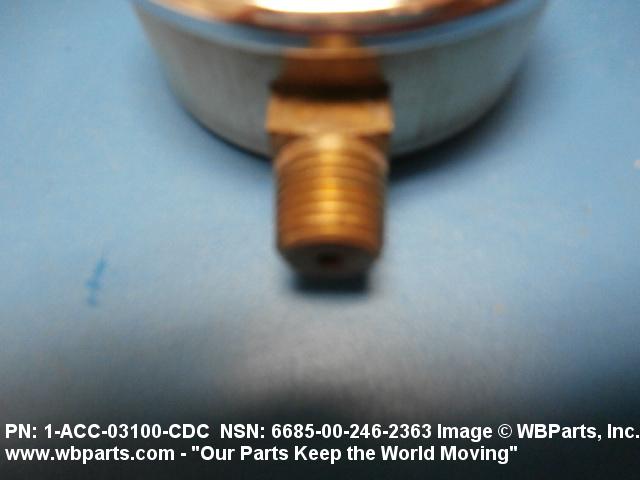

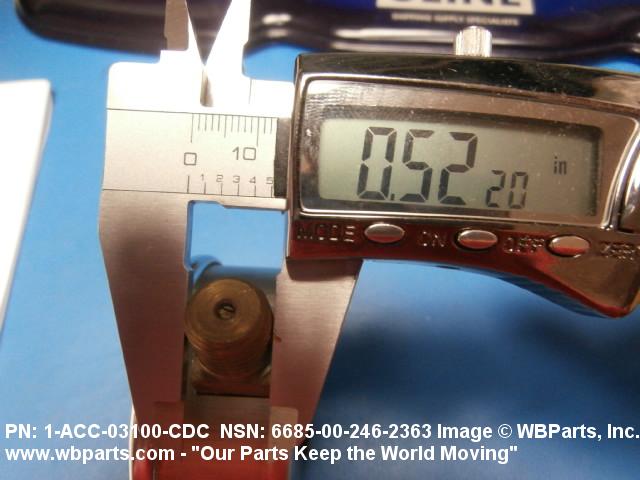

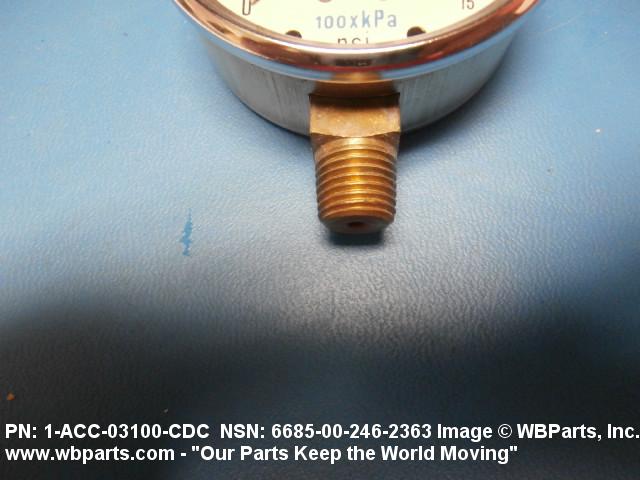

| CONNECTION SIZE | 0.250 IN. NPT DIA |
| MOUNTING METHOD | RIGID STEM |
| MOUNTING CONNECTION LOCATION | BOTTOM |
| CONNECTOR TYPE VENT | NOT PROVIDED |
| III END ITEM IDENTIFICATION | GUN,5IN./54CAL,MK-42&45;MAIN FEED PUMPS;SHIP,B.FRANKLIN CLASS SSBN;MISSILE SYSTEMS,SURFACE;BATTLESHIP,NEW JERSEY BB-62;RADAR,FCS,AN/S PG-55 |
| III FSC APPLICATION DATA | GAGE,PRESSURE,DIAL INDICATING,EXCEPT ENGINE |
Restrictions/Controls & Freight Information | NSN 6685-00-246-2363
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-246-2363
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | O | If condemned or economically unserviceable, dispose at organizational level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
