NSN 6685-00-246-2365 ASME B40.1, ASMEB401, GGG76D

Product Details | DIAL INDICATING PRESSURE GAGE

6685-00-246-2365 An instrument designed to measure air, gas, fluid, and vapor pressure by means of an internal pressure sensitive element (bellows, bourdon tube, transducer/transmitter and the like) which transmits energy, by direct linkage, to the indicating pointer of a scale or a digital display, calibrated in units of pressure. It may include a temperature equivalent scale. For items that do not have an internal pressure sensitive element see INDICATOR, PRESSURE.205138600004220000042400027Safety and Rescue Equipment66200018Engine Instruments66850073Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Part Alternates: ASME B40.1, ASMEB401, GGG76D, GG-G-76D, P1535SPEC110794, P500-1/4LM-2 1/, P50014LM21, UA25B4L, UA25-B4L, H68A, 100135, 110782P1530, 110782-P1530, 115363, 2200893000, 22711183, 2271118-3, 25-1009A-02L 0-, 251009A02L0, 251009KNS2LXMA, 25-1009KNS2LXMA, 47495, 5390781, 539078-1, 6685-00-246-2365, 00-246-2365, 6685002462365, 002462365

Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	01 JAN 1963	00-246-2365	07428 ( GAGE, PRESSURE, DIAL INDICATING )

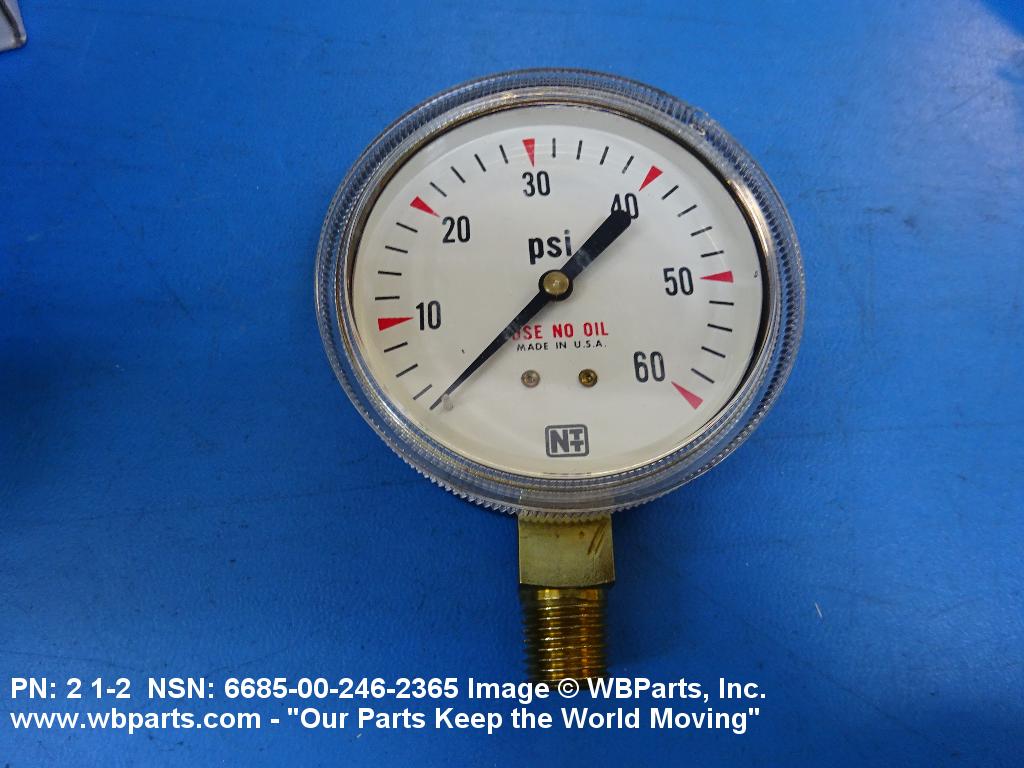

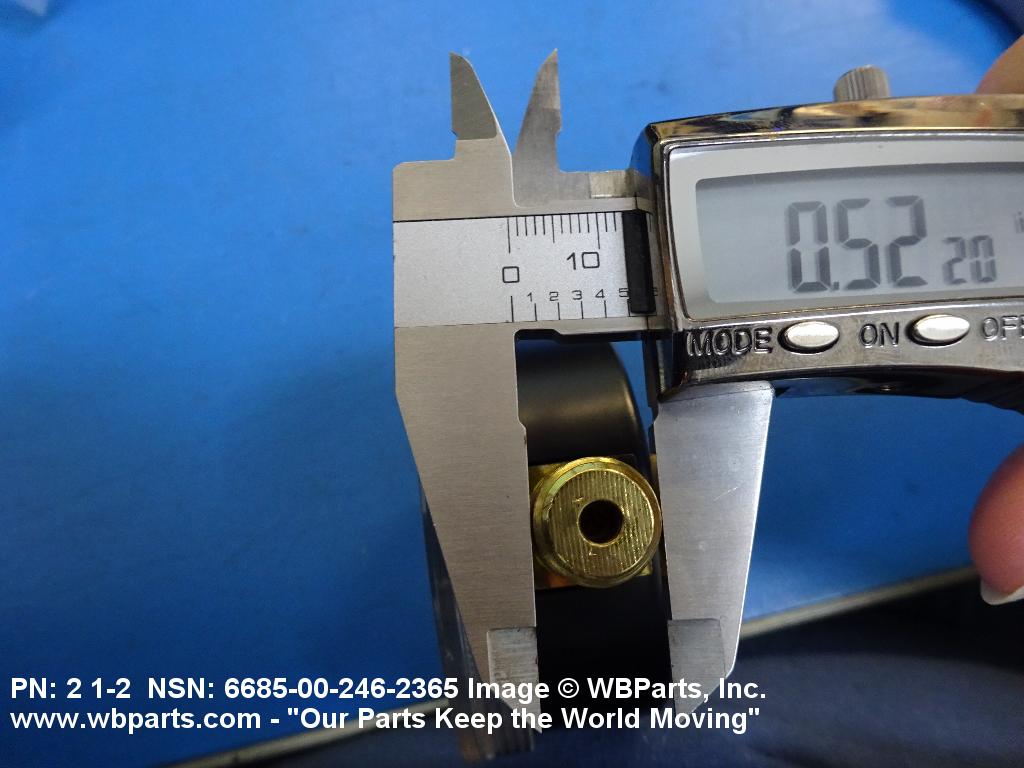

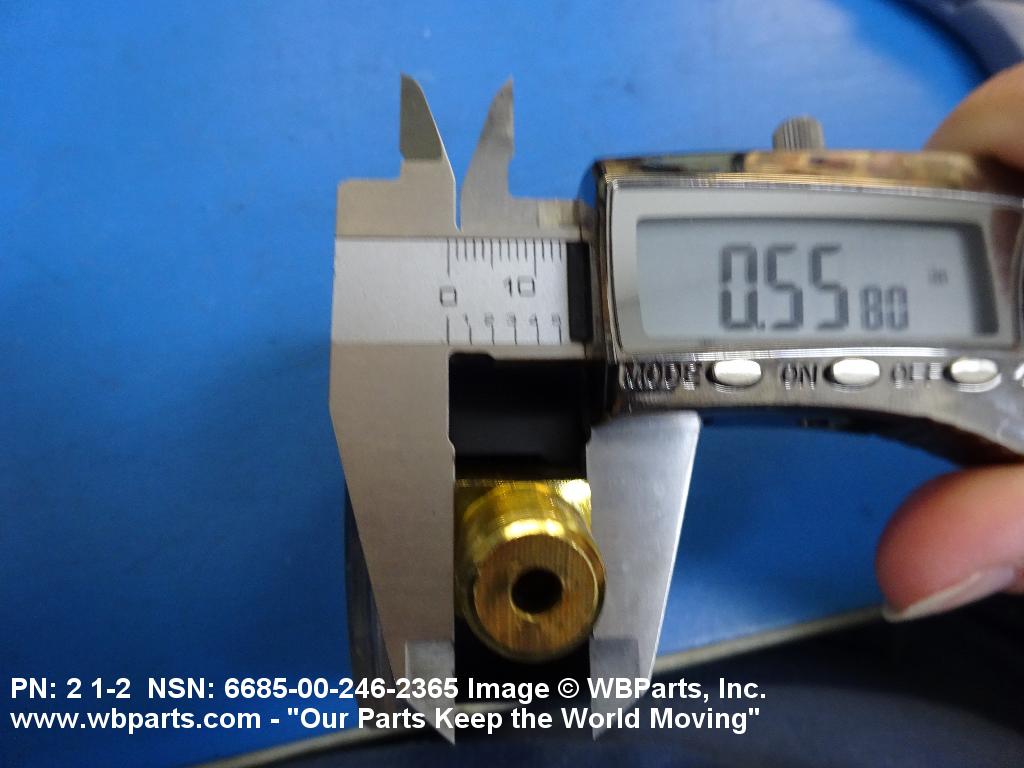

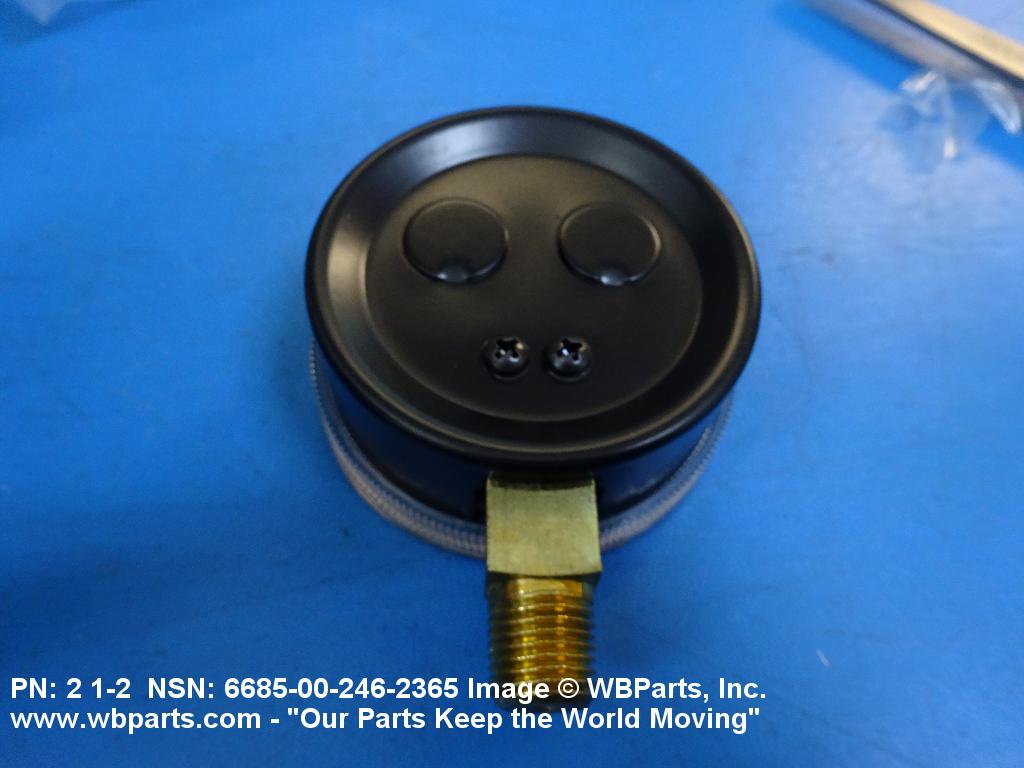

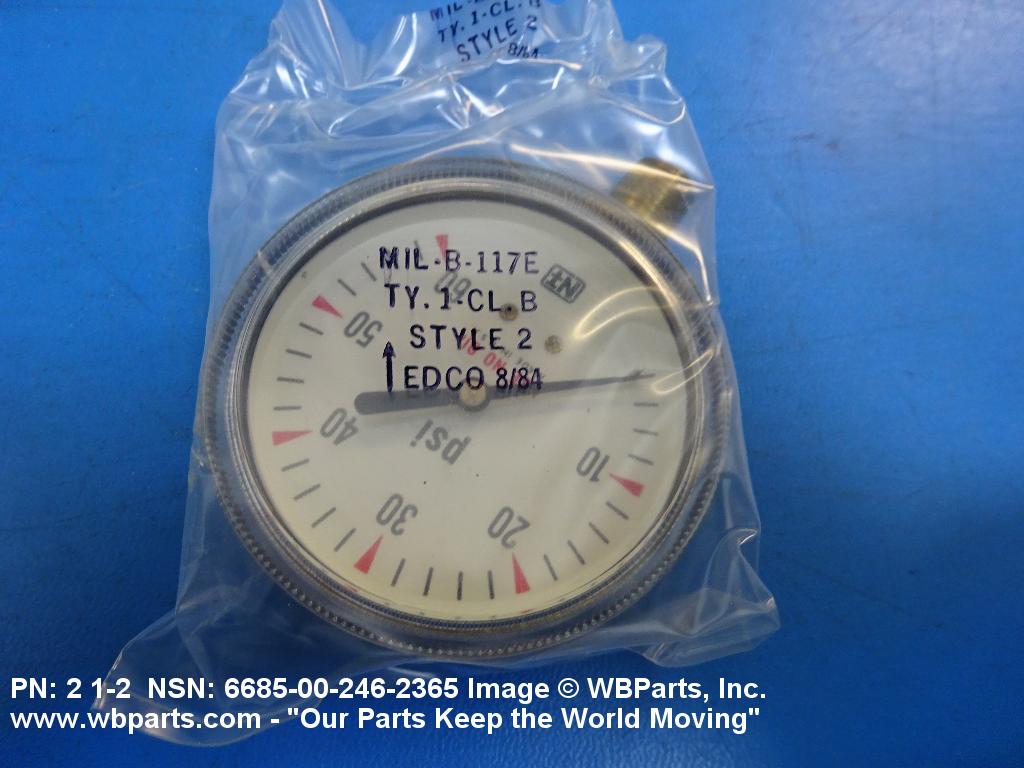

Drawings & Photos | NSN 6685-00-246-2365

Part Number	Request Date	QTY	Origin
6685-00-246-2365	2024-09-259	73	DIBBS
6685-00-246-2365	2024-09-254	2	United States
6685-00-246-2365	2023-12-352	73	DIBBS
6685-00-246-2365	2022-07-208	32	DIBBS
6685-00-246-2365	2022-06-173	73	DIBBS
6685-00-246-2365	2021-11-319	1	United States
6685-00-246-2365	2021-06-174	73	DIBBS
6685-00-246-2365	2021-03-74	10	United States
6685-00-246-2365	2020-10-289	192	DIBBS
6685-00-246-2365	2019-10-295	153	DIBBS
6685-00-246-2365	2019-10-287	153	DIBBS
6685-00-246-2365	2017-11-310	122	DIBBS
6685-00-246-2365	2017-11-305	122	DIBBS
6685-00-246-2365	2012-07-191	213	DIBBS

Cross Reference | NSN 6685-00-246-2365

Part Number	Cage Code	Manufacturer
100135	11520	CHAMPION INDUSTRIES INC.
110782-P1530	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
115363	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
2200893000	76371	MECHANICAL EQUIPMENT COMPANY, INC. DBA MECO
2271118-3	53711	NAVAL SEA SYSTEMS COMMAND
25-1009A-02L 0-	38056	ASHCROFT INC.
25-1009KNS2LXMA	38056	ASHCROFT INC.
47495	61439	GILLESPIE DECALS, INC. DBA GILLESPIE GRAPHICS
539078-1	24821	ROSEMOUNT ANALYTICAL, INC. DIV PROCESS ANALYTICAL DIVISION
539078-1	86035	CALGON CORP
ASME B40.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
GG-G-76D	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
H68A	55681	SMITH EQUIPMENT MFG CO LLC
P1535SPEC110794	22851	FLOW ENGINEERING INC
P500-1/4LM-2 1/	61349	AMETEK, INC. DIV AEROSPACE & DEFENSE
UA25-B4L	049X3	ASHCROFT INC. DBA WEKSLER

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6685-00-246-2365

Compare

Related Products | NSN 6685-00-246-2365

6685-00-246-5114, 6685-00-246-5344, 6685-00-246-5346, 6685-00-246-5347, 6685-00-246-5349

Technical Data | NSN 6685-00-246-2365

Characteristic	Specifications
ACTUATION TYPE	SINGLE BOURDON TUBE
ACTUATING ELEMENT MATERIAL	BRONZE
SCALE TYPE	SINGLE
SCALE NAME	PRESSURE

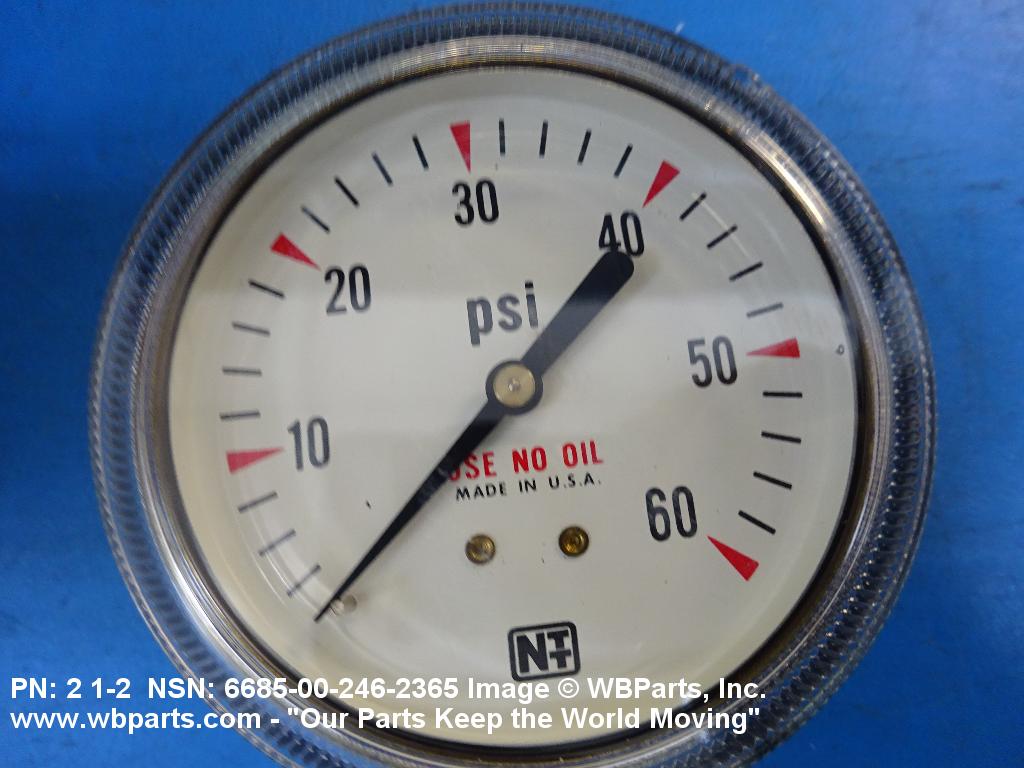

SCALE RANGE	0.0 TO 60.0 POUNDS PRESSURE PER SQUARE INCH
SCALE ACCURACY	ONE SCAL DIV. ABOVE 10 PCT OF RANGE
GRADUATION UNIT	5.0 POUNDS PER SQUARE INCH
SCALE SMALLEST INCREMENT	1.0 POUNDS PER SQUARE INCH
SCALE INSCRIPTION/BACKGROUND COLOR	BLACK FIGURES ON WHITE BACKGROUND
DIAL SIZE	2-1/2 IN. DIA
SCALE MARKING	DIAL MARKED,/COIL PRESSURE/
POINTER TYPE	INDICATING
ADJUSTABILITY	NONADJUSTABLE
POINTER COLOR	BLACK
CASE MATERIAL	BRASS OR STEEL
CASE SURFACE TREATMENT	ENAMEL
OVERALL DIAMETER	2.813 INCHES NOMINAL
OVERALL DEPTH	1.281 INCHES NOMINAL
BEZEL TYPE	THREAD
MATERIAL	STEEL
SURFACE TREATMENT	ENAMEL
PROTECTIVE CRYSTAL MATERIAL	PLASTIC
CONNECTION QUANTITY	1
CONNECTION TYPE	EXTERNAL
CONNECTION LOCATION	LOWER

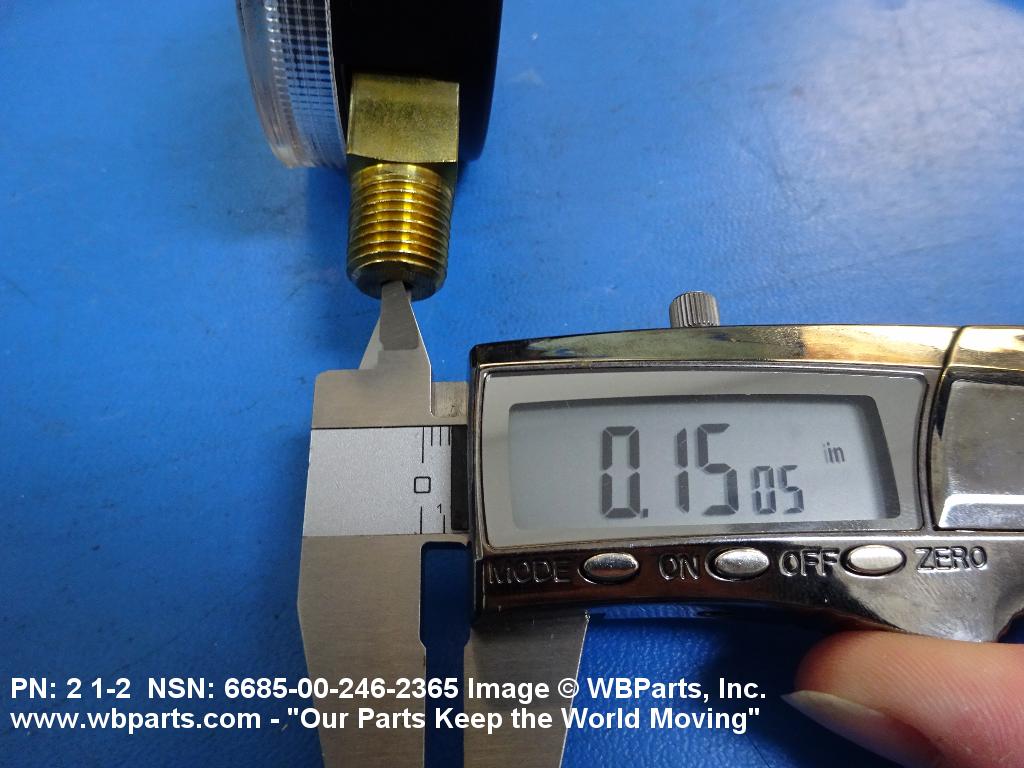

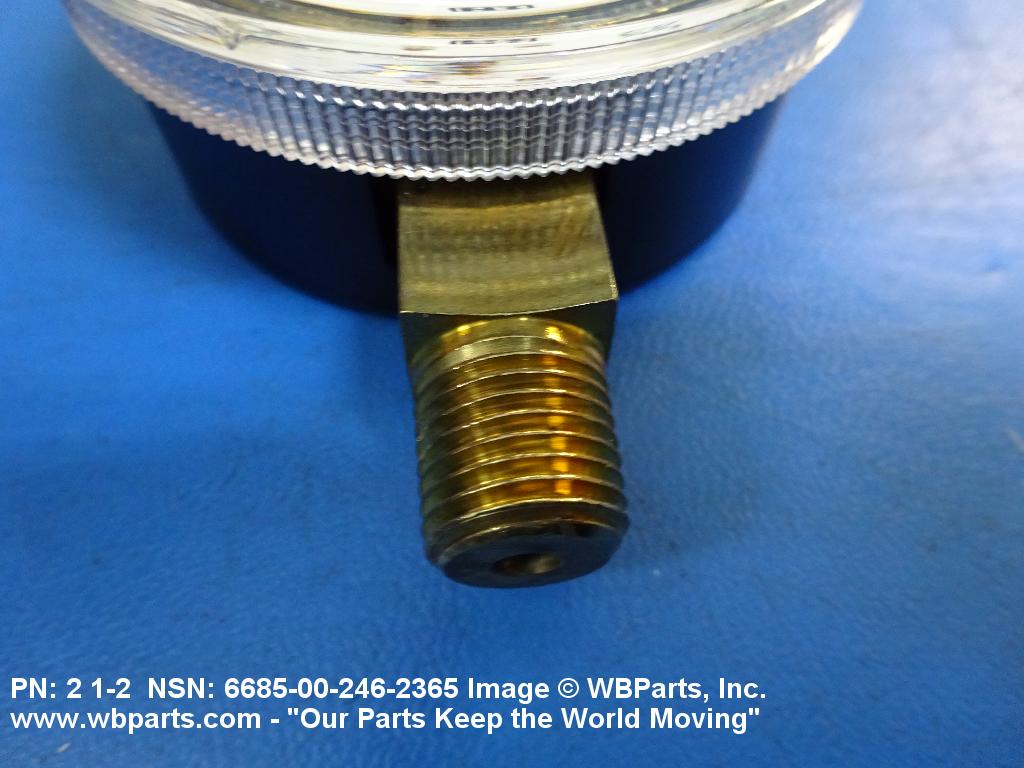

CONNECTION SIZE	0.250 IN. NPT
MOUNTING METHOD	THREAD
CONNECTOR TYPE VENT	NOT PROVIDED
III END ITEM IDENTIFICATION	BOILERS,1200PSI;L.P.COMPRESSORS;M AIN FEED PUMPS; AIR COMPRESSORS,HIGH PRESSURE;SHIP,B.FRANKLIN CLASS SSBN;MISSILE SYSTEM,SURFACE;BATTLESHIP,NEW JERSEY BB-62;RADAR,FCS,AN/SPG-55
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	GG-G-76D

Restrictions/Controls & Freight Information | NSN 6685-00-246-2365

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	121570	GAGES AIR LIQUID LEVEL PRESSURE
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	653	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6685-00-246-2365

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
