NSN 6685-00-042-4443 MILI17244, MIL-I-17244, 1534843
Product Details | BIMETALLIC SELF-INDICATING THERMOMETER
6685-00-042-4443 A thermometer which has a bimetallic substance, whose measurable physical properties, or one of them, change with variation in temperature and self-indicate the temperature to a division or number on a graduated scale(s).
Part Alternates: MILI17244, MIL-I-17244, 1534843, 6685-00-042-4443, 00-042-4443, 6685000424443, 000424443
Instruments and Laboratory Equipment | Pressure, Temperature, and Humidity Measuring and Controlling Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1961 | 00-042-4443 | 07329 ( THERMOMETER, SELF-INDICATING, BIMETALLIC ) |
Drawings & Photos | NSN 6685-00-042-4443
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6685-00-042-4443
Related Products | NSN 6685-00-042-4443
Technical Data | NSN 6685-00-042-4443
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | CONCENTRIC DIAL |
| SCALE MEASUREMENT RANGE | 20.000 TO 180.000 DEG FAHRENHEIT |
| MATERIAL | STEEL CORROSION RESISTING METER CASE |
| DIAL DIAMETER | 3.000 INCHES NOMINAL |
| OVERALL DEPTH | 1.640 INCHES NOMINAL |
| OVERALL LENGTH | 6.781 INCHES NOMINAL |

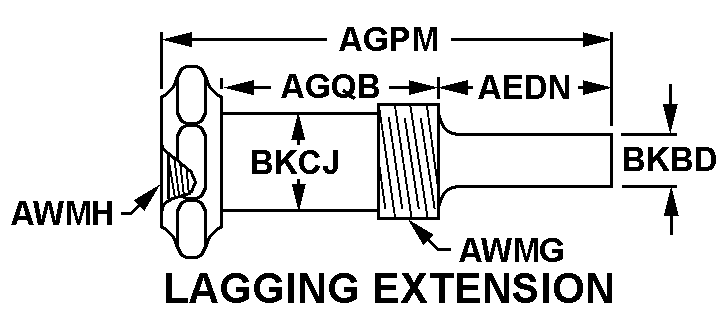

| SEPARABLE SOCKET STYLE | J4 LAGGING EXTENSION |
| BULB TIP OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| EXTENSION NECK DIAMETER | 1.050 INCHES NOMINAL |
| NECK LENGTH | 0.810 INCHES NOMINAL |
| SOCKET OVERALL LENGTH | 3.250 INCHES NOMINAL |
| TIP LENGTH | 1.315 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 1/2 IN. NPT |
| INTERNAL THREAD SIZE | 3/4 IN. NPT |
| DESIGN TYPE | FLUCTUATING |
| IMMERSION LENGTH | 2.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 METAL CASE SEPARABLE SOCKET |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | NPT |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.500 INCHES |
| MOUNTING THREAD QUANTITY | 14 PER INCH |
| FEATURES PROVIDED | PROTECTIVE GLASS/PLASTIC |
| III SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON WHITE BACKGROUND |
| III SCALE ACCURACY RATING | 3 DEG ENTIRE RANGE |
| III SCALE SMALLEST INCREMENT | 2.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-17244 |
Restrictions/Controls & Freight Information | NSN 6685-00-042-4443
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6685-00-042-4443
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
